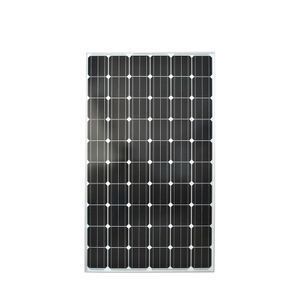

Transparent Solar Panel 300W 360W1000W Solar Panel Monocrystalline

Supplier: Dongguan Amplec Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Shayne LI
Price: $0.20 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Place of Origin:	Guangdong China (Mainland);	Port:	shenzhen port;
Size:	195099040mm;	Connector:	MC4 Compatible Connector;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	25 Years Output Power Guarantee;
Back Sheet:	Double-sided Fluorine TPT;	Junction Box:	IP67 Rated;
Packaging Detail:	Transparent Solar Panel 300W Packing in Standard export carton, 2 pcs/carton;	Application:	solar system;
Brand Name:	AMPLEC or OEM;	Supply Ability:	100000 Piece/Pieces per Month;
Solar cell:	poly or mono solar panel;	Model Number:	AP-300WSP;
Type:	Standard Solar Panel;	Front Glass:	High Transmission;

Product Description

300w Monocrystalline Solar Panel. Ideally suited panel for your motorhome or caravan. This solar panel is powerful enough to keep your battery charged over that long weekend away without starting the generator or plugging in to an external source. Comes with MC4 connectors so they are easily added to a string and protected from the wet weather. Fully weather proof and professionally made with high quality components.

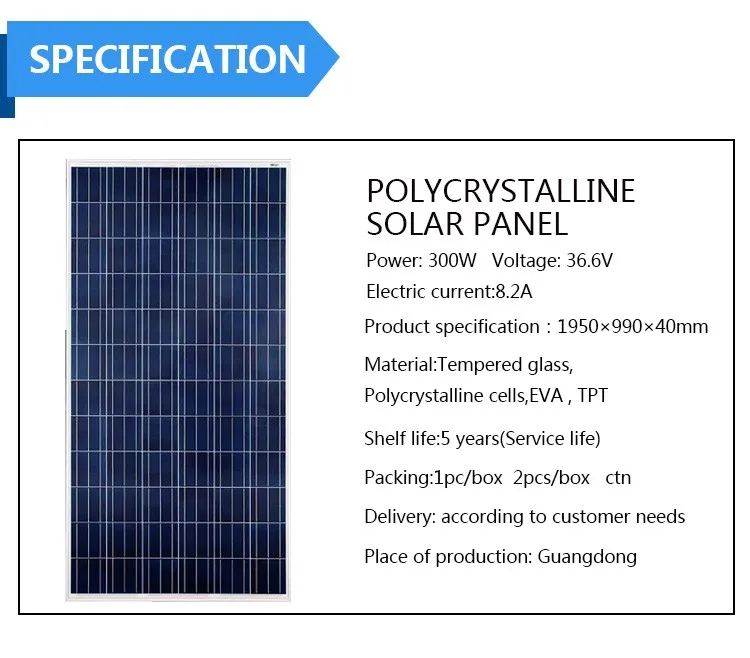

Specifications

Cell Type	Poly or monocrystal optional)
Cell Array	72pcs (6×12)

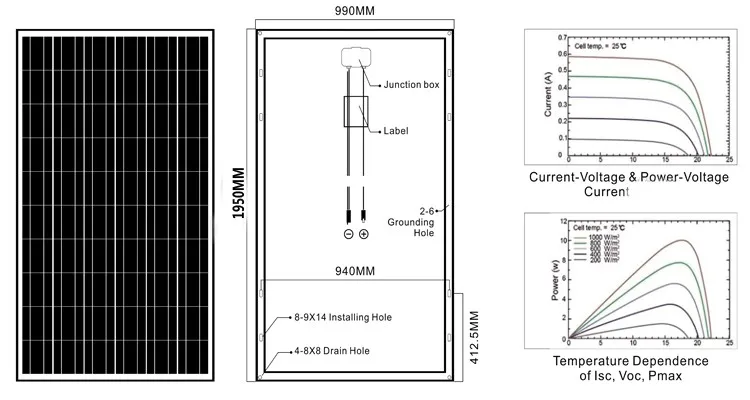

Module Dimensions	1950x990x40mm
Weight	25kg
Glass	3.2mm tempered glass
Junction Box	Protection class IP67
Cable	4.0mm2 photovoltaic special cable 90cm
Connector	MC4 compatiple connector

Moduel	SP-300	SP-310	SP-320	SP-330	SP-340
Rated Maximum Power at STC	300	310	320	330	340
Open Circuit Voltage(Voc/V)	45.68	45.68	46.19	46.78	46.78
Maximum Power Voltage(Vmp/V)	36.51	36.51	36.95	37.39	37.39
Short Circuit Current(Isc/A)	8.83	8.83	8.98	9.13	9.43
Maximum Power Current(Imp/A)	8.49	8.49	8.66	8.83	9.09
Module Efficiency(%)	17	19.3	19.6	20	21
Power Tolerance	0~+3%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5

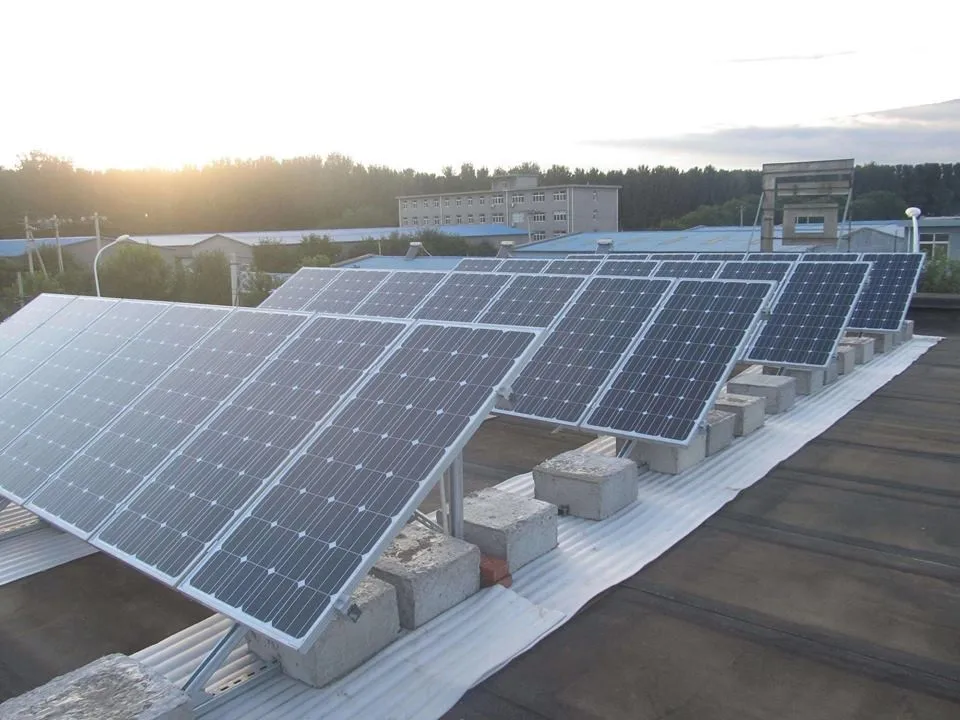

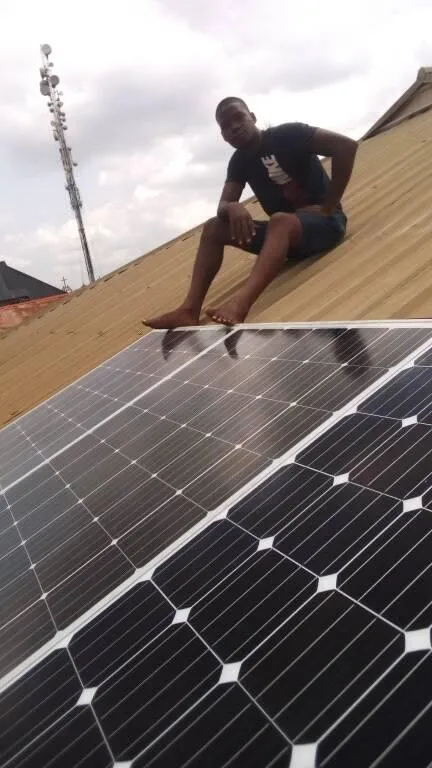

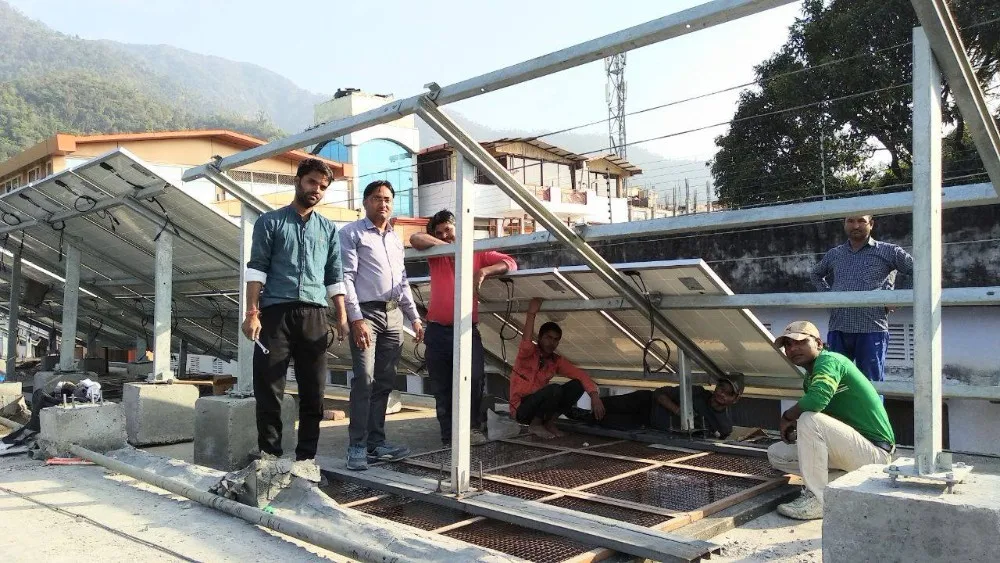

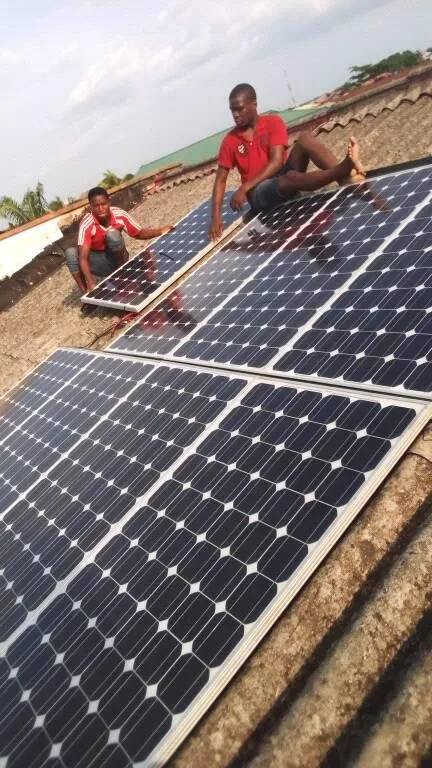

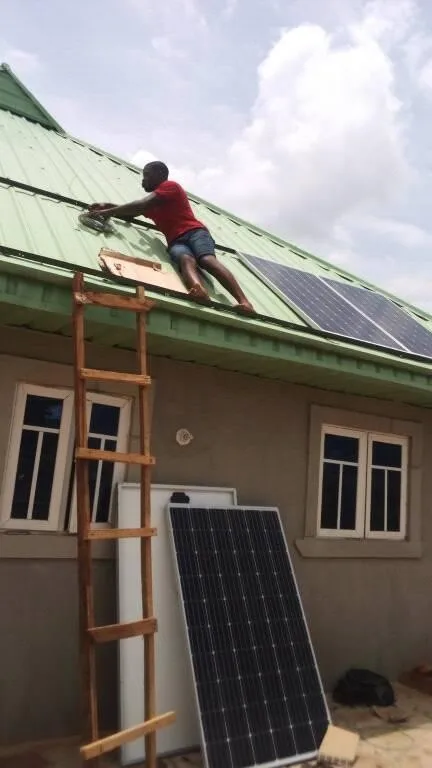

Detailed Images

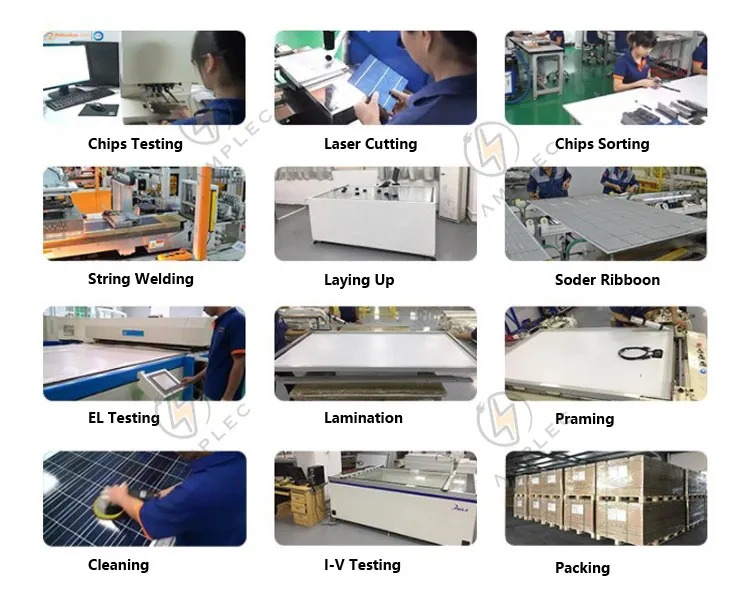

Our Company
