Copper Wire Stripping Machine Wire Stripper Cable Stripping Machine Copper Cable Stripper

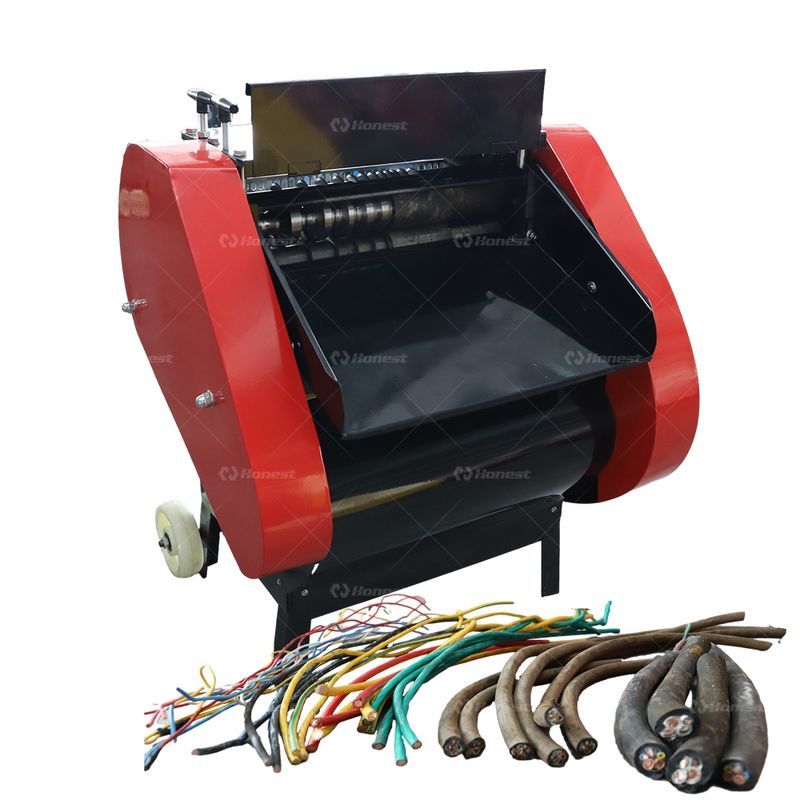

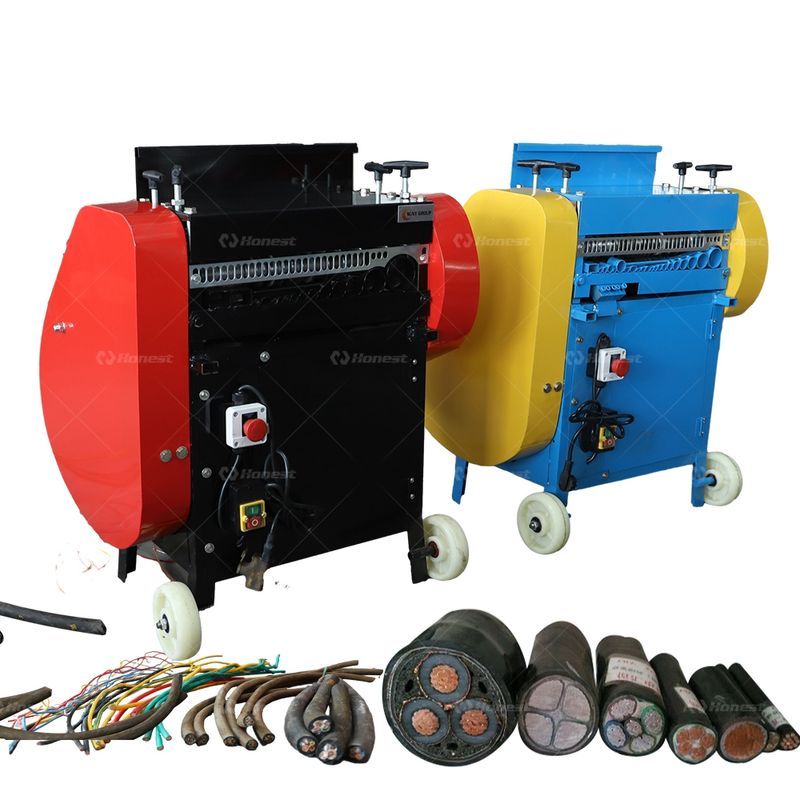

The newly launched multifunctional wire stripping machine is specially designed to handle wires with diameters of 1-200mm. Whether operating in manual or electric mode, this machine easily strips the outer sheath and inner conductor of discarded cables. Its dual operating modes provide easy manual control and efficient automated operation through the intelligent wire stripping function in electric mode.

In terms of working and using this machine, there are mainly the following points worth noting:

When the machine is working, special attention should be paid to the safety of both hands. When processing sheath lines and cross-head operations, the operator must concentrate and a safety cover must be installed in the middle.

When processing sheathed wires and various cables, the pressure should not be too tight, and the operation should not be overloaded to avoid affecting the service life of each part.

If the material feeding cannot be transmitted, check whether the belt is loose, whether the pressure is too tight, or whether the position of the knife is in the wrong direction.

If this machine works under heavy load for a long time, the oil reserve of the transmission should be checked every quarter, and the four teeth of the transmission shaft should be lubricated with butter every shift.

The four Z208 bearings of the upper and lower spindles should be checked regularly to see if the bearings and shafts are running smoothly and whether the bearings are damaged. If this occurs, they should be repaired in time. Otherwise, if used continuously, the shaft will easily break.

When the upper shaft needs to be lifted for work, the heights of both sides should be relatively parallel.

The four lifting screws of the transmission and the four lifting screws of the motor should be adjusted regularly one by one to check whether there is any looseness. If so, the chain and V-belt should be adjusted and tightened in time. When adjusting, the transmission or motor must be relatively parallel and not too tilted.
