Petrol Engine Rail Profile Grinder
- 2700.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

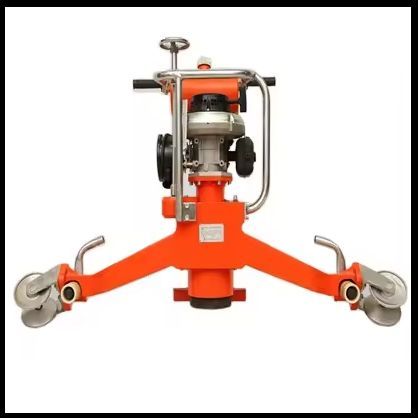

NGM-6.0 Rail Profile Grinder
This machine is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
Specification
Model | NGM-6.0 |
类型 | Rail Profile Grinder |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 1410*500*850mm |
发动机 | 2 stroke petrol engine M165 |
Power | 6.0kW |
Grinding stone speed | ≥3900r/min |
Grinding stone inclination | 0~90° |
Grinding stone feeding stroke | 42mm |
Grinding stone specification | φ150xφ55x70mm |
Fuel tank volume | 4.5L |
Profile wheel span | 1000mm |
Feed adjustment accuracy | 0.125mm |
重量 | 60kg |
