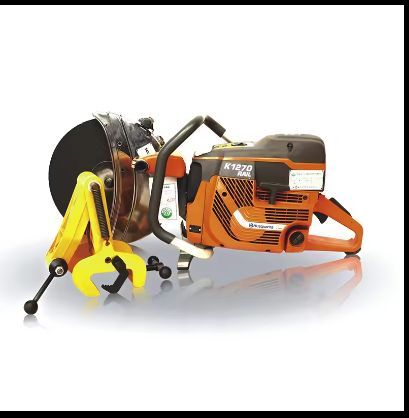

NQG-5.8 Abrasive Rail Saw
NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
规范
型 | NQG-5.8 |
类型 | 钢轨切割机 |
材料 | 不锈钢 |
尺寸 （长 x 宽 x 高） （mm） | 850*480*500mm |
Engine | Single-cylinder, air-cooling two-stroke petrol engine (imported from Sweden K1270R)5.8 kW |
Cutting disc form | Double- layer reinforced wire mesh |
Linear speed of cutting disc | 100 m/s |
Rated RPM | ≥4500 r/min |
Specification of cutting disc | φ355xφ25.4 x3.8mm |
Cutting accuracy | Vertical deviation of notch and rail≤0.30mm Deviation of bidirectional cutting interfaces≤0. 35mm |
切割时间 | ≤110s( cut off 60kg/m rail) |
Fuel tank capacity | 1.25 L |
Weight | 22kg |
