Digital Switch Rail Lateral Wear Gauge
- 1500.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Digital switch guide rail lateral wear meter

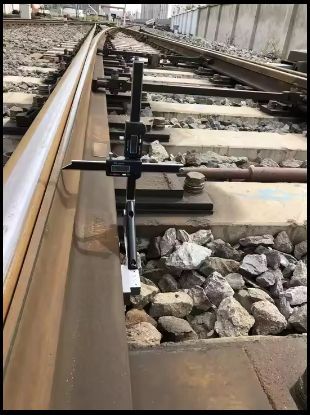

Turnout rail lateral wear is used to measure the turnout rail lateral wear and the drop height value of the turnout rail. The device can be used for all types of turnout rails.
benefit
The turnout guide rail lateral wear resistance meter has the advantages of high measurement accuracy, easy operation, high reliability, small size and light weight.
specification
type | LJ-JGCM-I type |
type | Turnout guide rail lateral wear meter |
Material | Stainless steel |
Dimensions (length x width x height) (mm) | 315*190*200mm |
Vertical wear measurement range | 92-193mm |
Lateral wear measurement range | 0-120mm |
resolution | 0.01mm |
Indicated error | ≤±0.15mm |
