Winnergy Polycrystalline Monocrystalline TOPCon HJT IBC Solar Cells Tabber Stringer

I. Equipment Characteristics:

1, High speed: Actual production capacity 1450-1500 pieces/hour; Among them, BC cells 1000-1200 pieces/hour;

2, Grid line compatibility: compatible with 5BB-20BB;

3, The cells source specifications compatibility: compatible with 156mm-220mm;

4, Strong compatibility: compatible slice width ≧26mm cutting cells;

5, Different grid lines, different cells width specifications switching speed is fast and convenient;

6, When the solar cell is on, it has visual positioning and detection function, which can realize grid line positioning and detect the damage, edge breakage and missing corners of the solar cells;

7, Optional EL detection function, BC cells material box paper-picking function, cells string layer paper-releasing function;

Technical Parameters

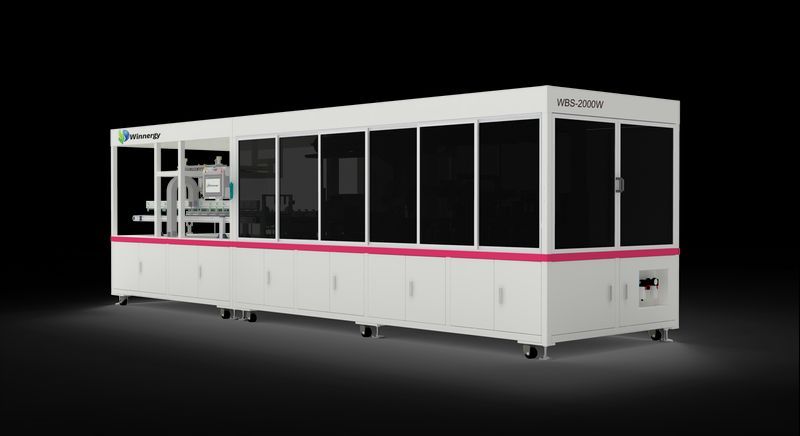

Equipment Model	WBS-2000W
Operation Speed	Single cycle maximum speed		2000pcs/h
	The common speed for conventional cells		1450～1500pcs/h
	BC cells common speed		1000～1200pcs/h
Defect Detection	Before soldering, with visual detection function, fragments, cell edge missing corners and other bad products can be selected;
Fragmentation Rate	<2‰（Grade A cells）
Applicable Grid Line	5BB-20BB，Grid line positioning by visual system
Applicable Ribbon	Width	0.35～1.6(mm) The ribbon used for different cells will be different
	Thickness	0.14～0.20(mm) The ribbon used for different cells will be different
Applicable Solar cells	Specification	Reference from Cells supplier
	Dimension	156-220mm
		156-166mm cells：Cut cell width ≧26mm 182-220mm cells：compatible half or less cut cells；
	Thickness	160～300μm
String Cells Number	Min cells	Whole cells: 2 pcs
	Max cells	Whole cells: 12 pcs
	Max length	<2100mm
Cells Spacing	1.5～20mm (Different ribbon specifications, the cells spacing will be different, the thicker the ribbon, the greater the spacing required)
	BC cells can be negative spacing, zero spacing, positive spacing
First & Last Ribbon Length	Can be flexibly adjusted according to the product requirement
Electrical Power	Applicable power	10kw
	Peak power	15kw
Average Gas Consumption	300 L/min
Equipment Dimension	5890x1590x1850(mm)
