Rail Opening Gauge

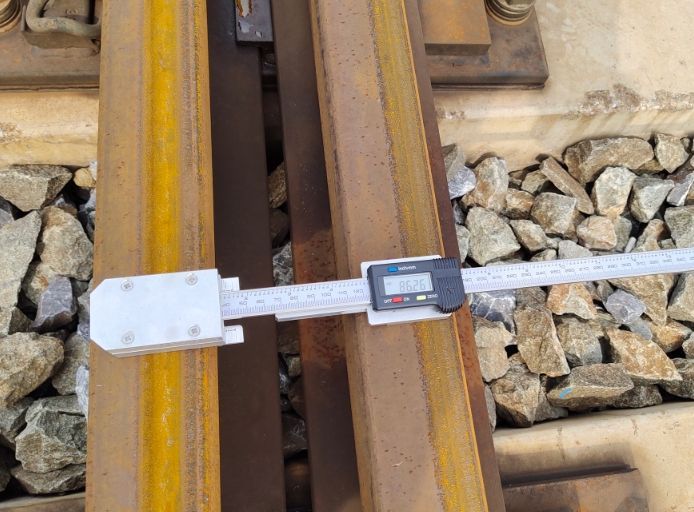

JG-KC01 Rail opening gauge is mainly used for measuring turnout opening and offset gauge. It can be used for electrical maintenance, overhaul, engineering survey and other related department line operation.The instrument has fast measuring speed and easy to use. It can be used in day or night.
Specification
Model | JG-KC01 |
Type | Rail Opening Gauge |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 50*3*5cm |
Opening measure range | 0-350mm |
Offset measure range | 0-350mm |
Accuracy | ±0.25mm |
Working temperature | -30℃~+55℃ |
Length Size | 56cm |
