New Product Automatic Coding Machine Thermal Transfer Printing Machine LINX TT500 for 32mm Bag Film

Supplier: Lanhai Finenorm Coding Co., Ltd.
Region: Henan, China
Contact: Ms jessica lu
Price: $2350.00 / 2 - 2 pieces
$2200.00 / 3 - 4 pieces
$2150.00 / >=5 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Health status:	new	Key selling points:	long lasting
Package Preview:		Intermittent printing speed:	50 mm/s - 300 mm/s
Automatic:	automatic	Maximum throughput:	150 sheets per minute
application:	industrial	port:	Qingdao
product name:	Linx TT500 32mm TTO Printer	brand:	Links
Origin:	Henan, China	Warranty:	1 year
Drive Type:	pneumatic	Video factory inspection:	if
weight:	10 kg	Continuous printing speed:	40 mm/s - 500 mm/s
Packaging Details:	Paper Box	Ribbon:	Various types, colors, lengths and widths
Core component warranty:	1 year	Maximum intermittent printing area:	32mm (W) x 47mm (L)
Maximum ribbon length:	700m	type of packaging:	Carton
Exhibition Hall Location:	not any	Voltage:	100-110V/200-220V
Mechanical test report:	if	Applicable industries:	Food and Beverage Factory
type:	Coding Machine	Core components:	PLC
Materials used for packaging:	Paper	payment terms:	L/C, Western Union, T/T

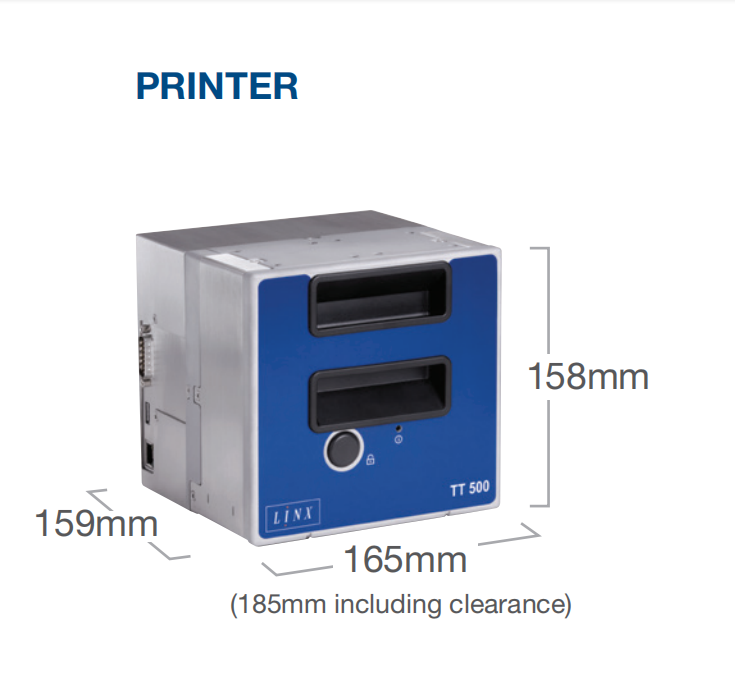

Dimensions (LWH):	181215183mm	Maximum continuous printing area:	32mm (W) x 100mm (L)

Related Products

Product Description

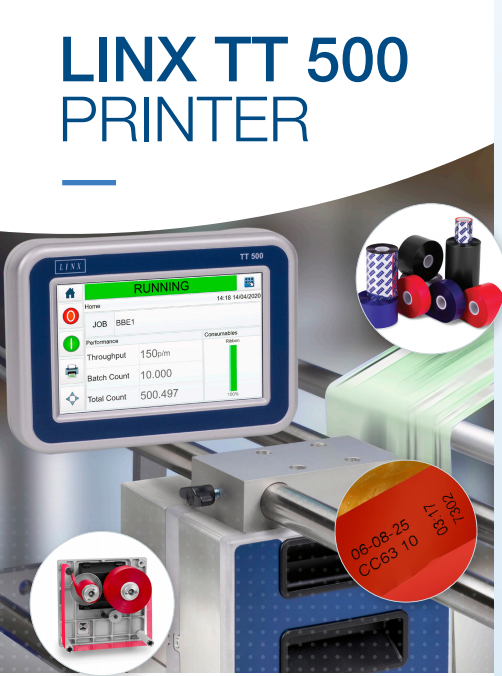

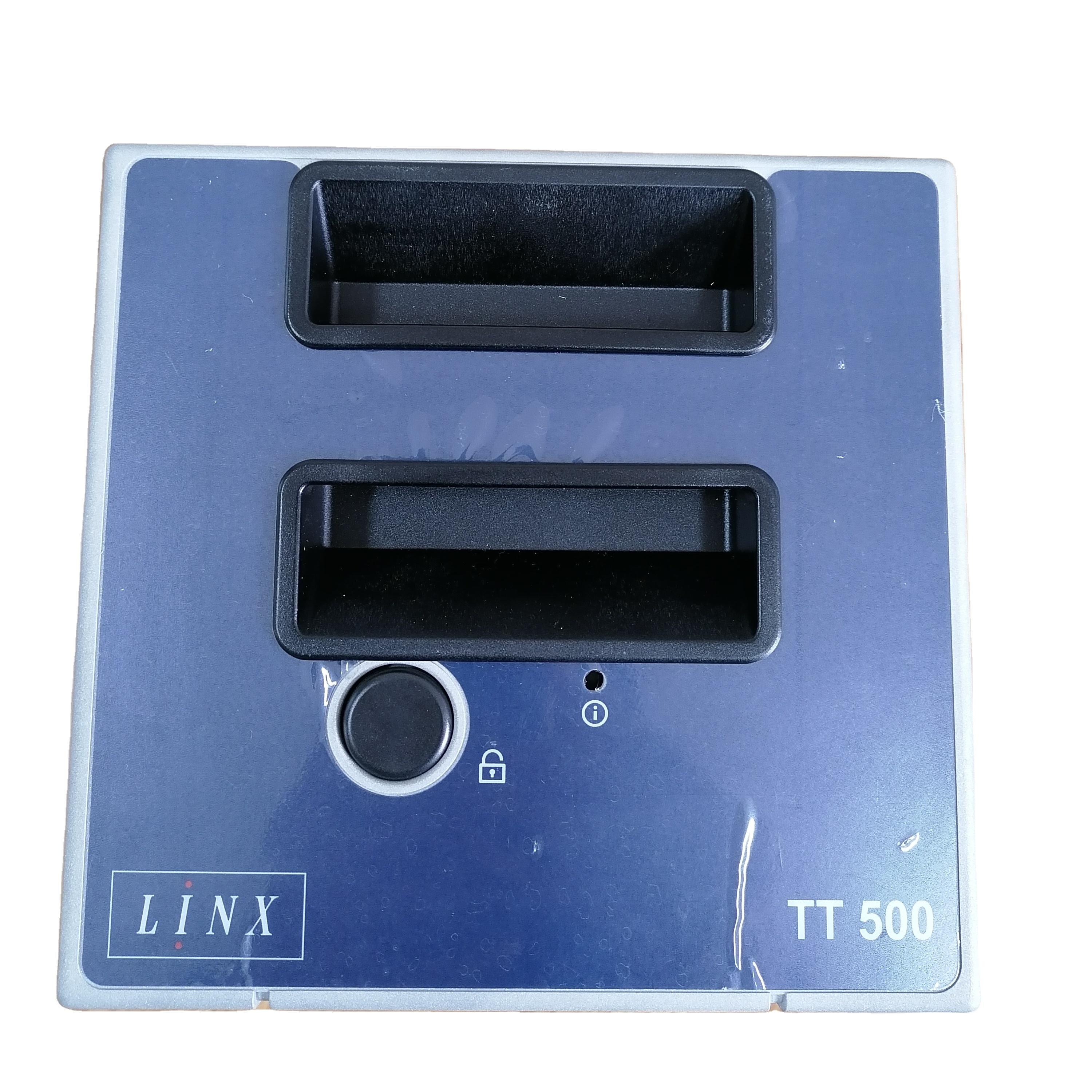

Linco TT500

The Linx TT500 represents a transparent, advanced coding solution that includes long-term cost control, environmentally friendly design, greater uptime and improved line performance even in harsh environmental conditions.

Model	Linco TT500
Maximum Ribbon length	700m
Print Head	33mm, 200dpi, 8 dots/mm
printing speed	150 times/min
Printing area	Interval: 32mm (width) * 47mm (length) Continuous: 32mm(width)*100mm(length)mm
printing speed	Gap mode: 50mm/s-300mm/s Continuous mode: 40mm/s-500mm/s
Saving Mode	Save 50% on ribbons

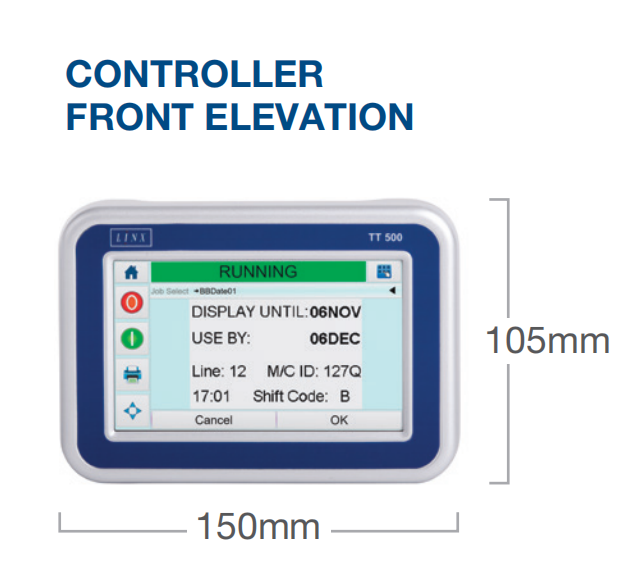

Controller	Web page control, dedicated controller control, WYSIWYG editing interface
interface	RS232, USB, Ethernet

user's guidance

TTO uses a 300dpi print head to print barcodes, expiration dates, graphics, pictures, logos and other variable information directly onto packaging, substrates and other materials. The size, position and content of the information can be fixed or changed on the TTO S user interface.

GermanyDescription of the effect

main feature
1) Can print intermittently or continuously from one unit, so can be applied to both continuous and intermittent packaging machines.
2)Support various input and output connections.

3) Support various reverse and mirror printing.

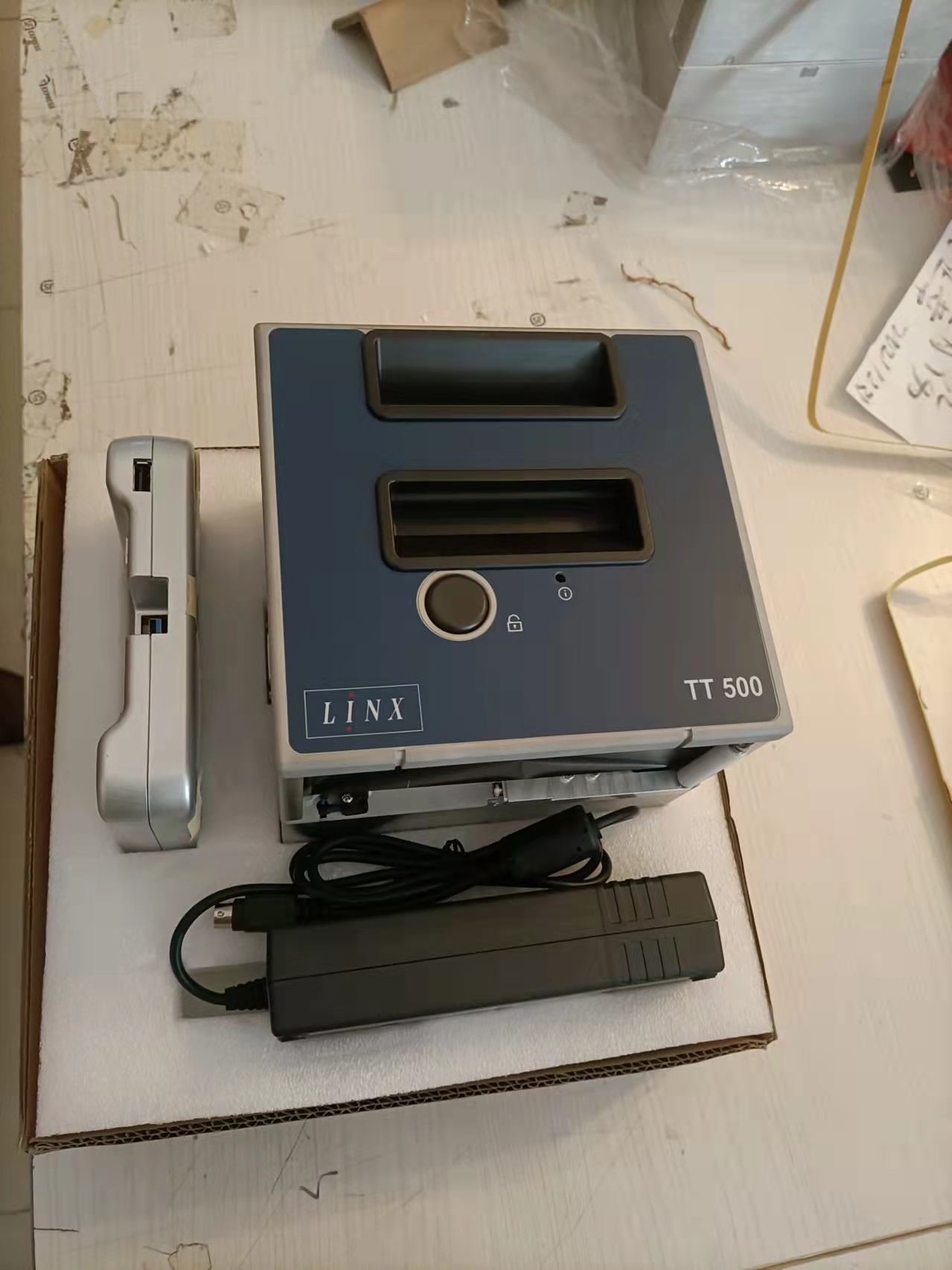

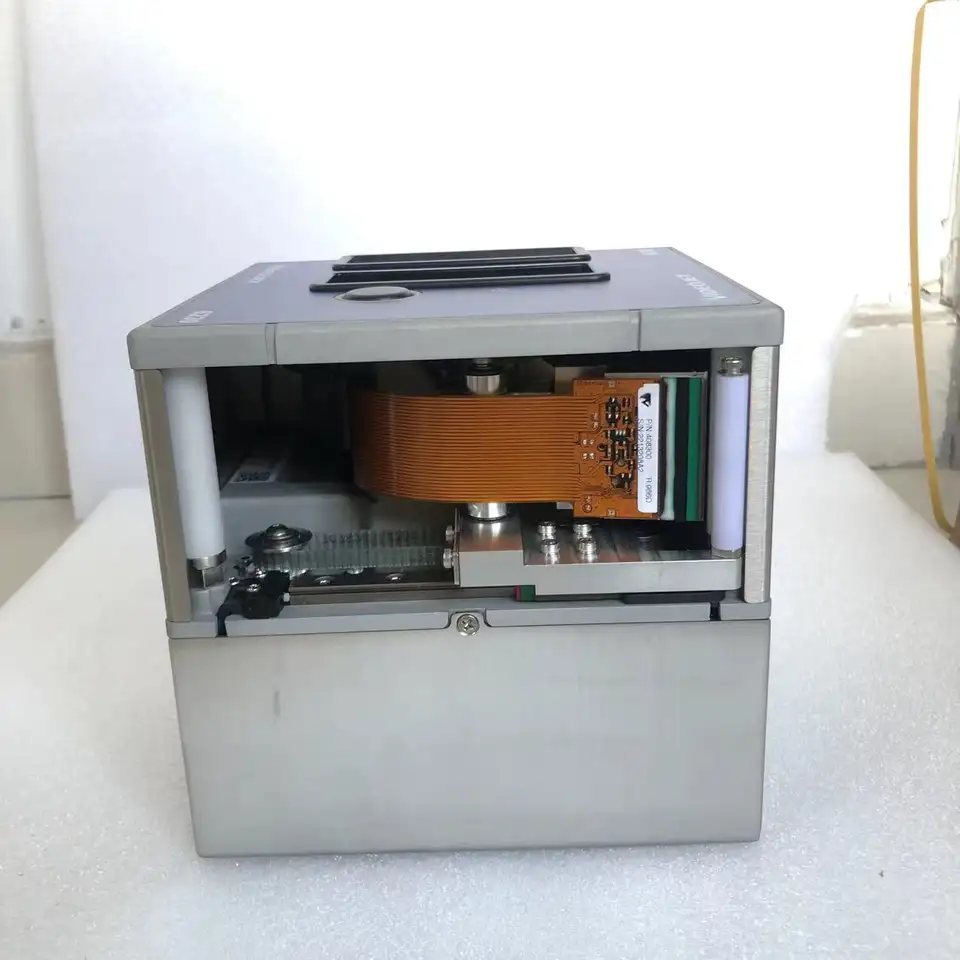

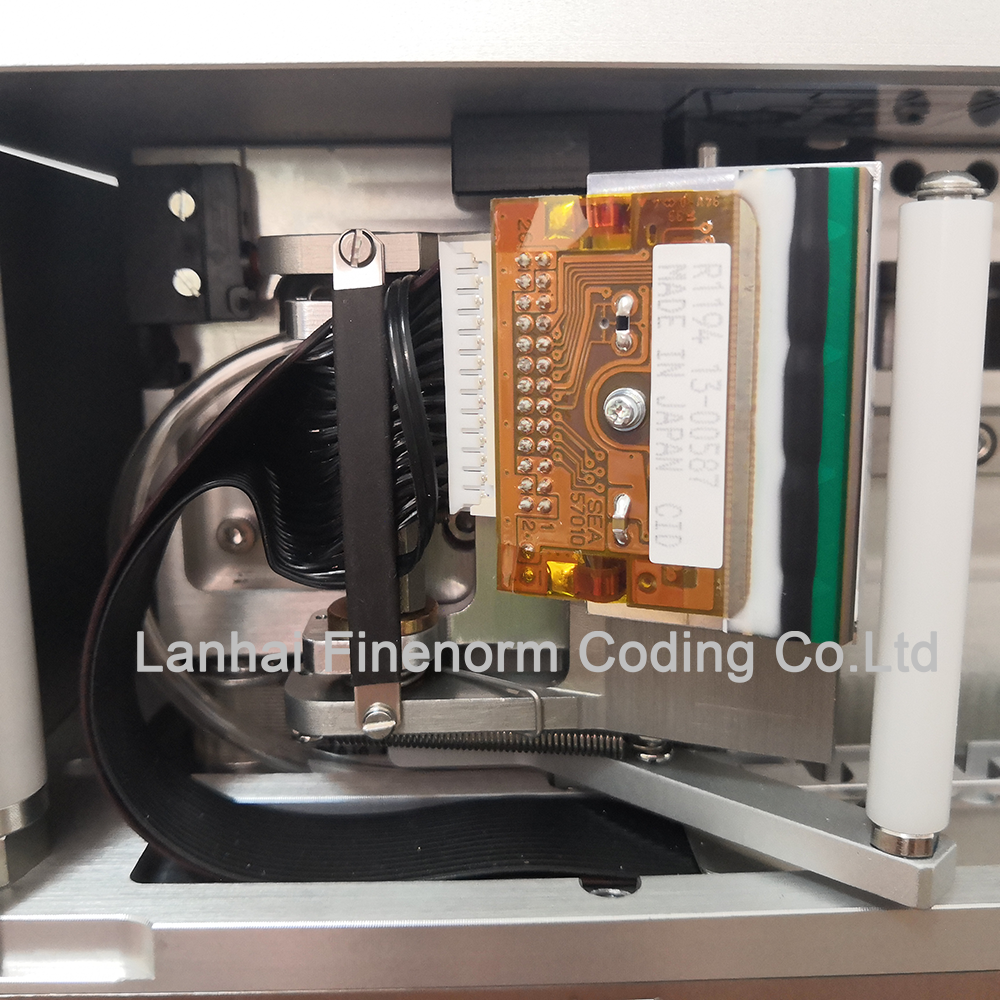

detailed picture

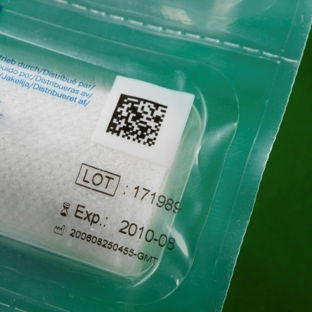

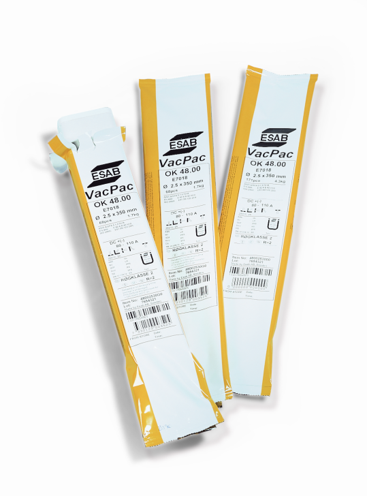

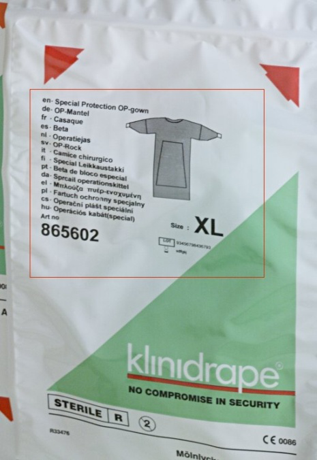

LINX TT500 printer can print on PE/PP film, flexible aluminum film, labels (without UV treatment),Papers, especially medical papers,Tyvek.

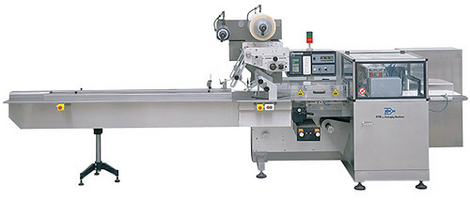

Compatible Machines

The Linx TT500 thermal transfer printer provides you with the perfect coding solution for flexible packaging materials.

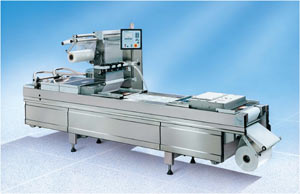

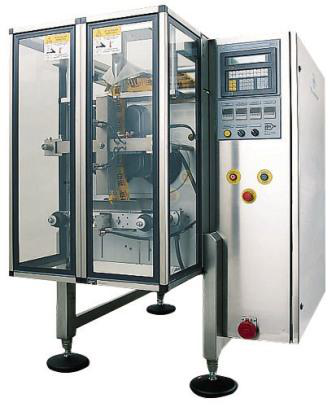

Suitable for various vertical intermittent or continuous packaging machines, such as granule packaging machines, VFFS packaging machines, tissue packaging machines, labeling machines, etc.
