Digital rail ultrasonic flaw detector/railway flaw detection device/Rai defect detection Products from Wuhan Linkage Track Equipment Co., Ltd.

Product Details

product name:	Rail ultrasonic flaw detector	Material:	Stainless steel
payment terms:	Wire transfer, credit card	Warranty:	1 year
usage:	Railway flaw detection	Packaging details:	PE foam + carton slope measuring instrument
type:	Rail ultrasonic flaw detector	brand:	chain
Dimensions (length x width x height) (mm):	7802901006mm	Supply capacity:	500 units per month
QC:	different	port:	Shenzhen
Place of origin:	Hubei, China	Place of origin:	Hubei, China
Certificate:	CE	standard:	China Railway Construction
brand:	chain	custom made:	Yes
application:	Rail ultrasonic flaw detector

Product Description

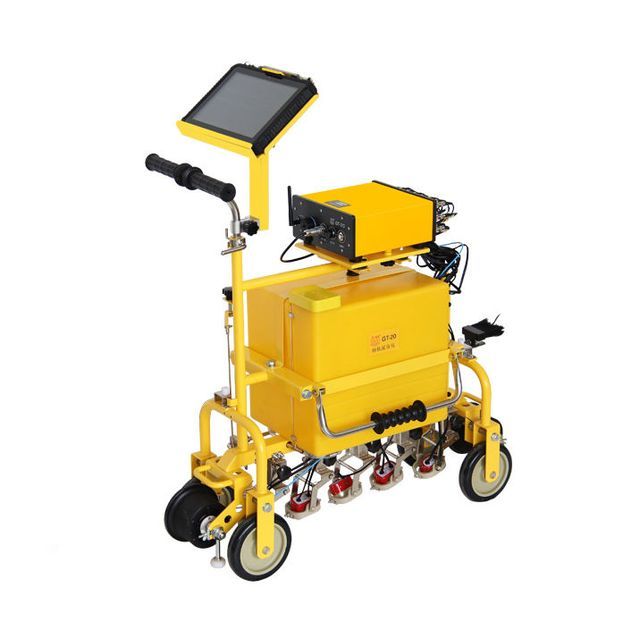

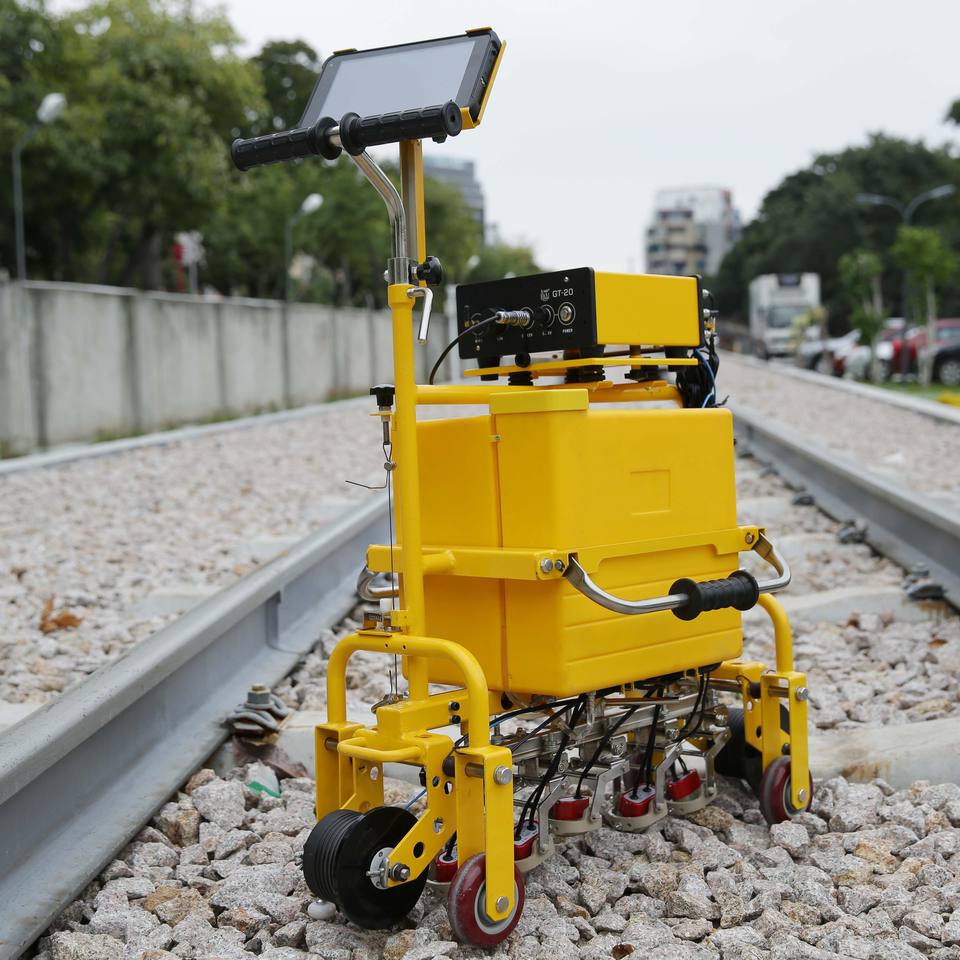

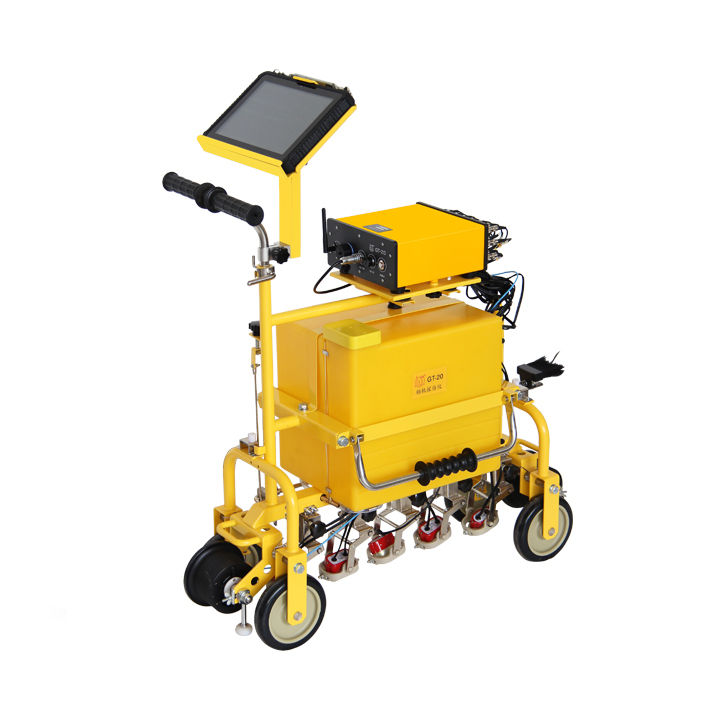

GT-20 digital ultrasonic rail flaw detector

GT-20 rail flaw detector is the third generation of fully digital, portable hand-push ultrasonic flaw detection equipment for railway rails. This equipment fully meets the requirements of the Ministry of Railways TB/T 2340-2012 Rail Ultrasonic Flaw Detector. It is suitable for flaw detection of 43kg/m~75kg/m rails, and can efficiently detect various defects such as rail heads, waists, and rails. The bottom part is suitable for various rail inspection applications such as ordinary railways, high-speed railways, subways, etc. The instrument adopts ultrasonic host + operation terminal mode and wireless WIFI connection. It improves the user experience and expands the Internet+ function of the instrument. It can realize human-machine detection and separation, data online, offline real-time storage, GPS positioning, data cloud storage and other functions. And you can customize your own ultrasonic operating terminal according to your own needs.

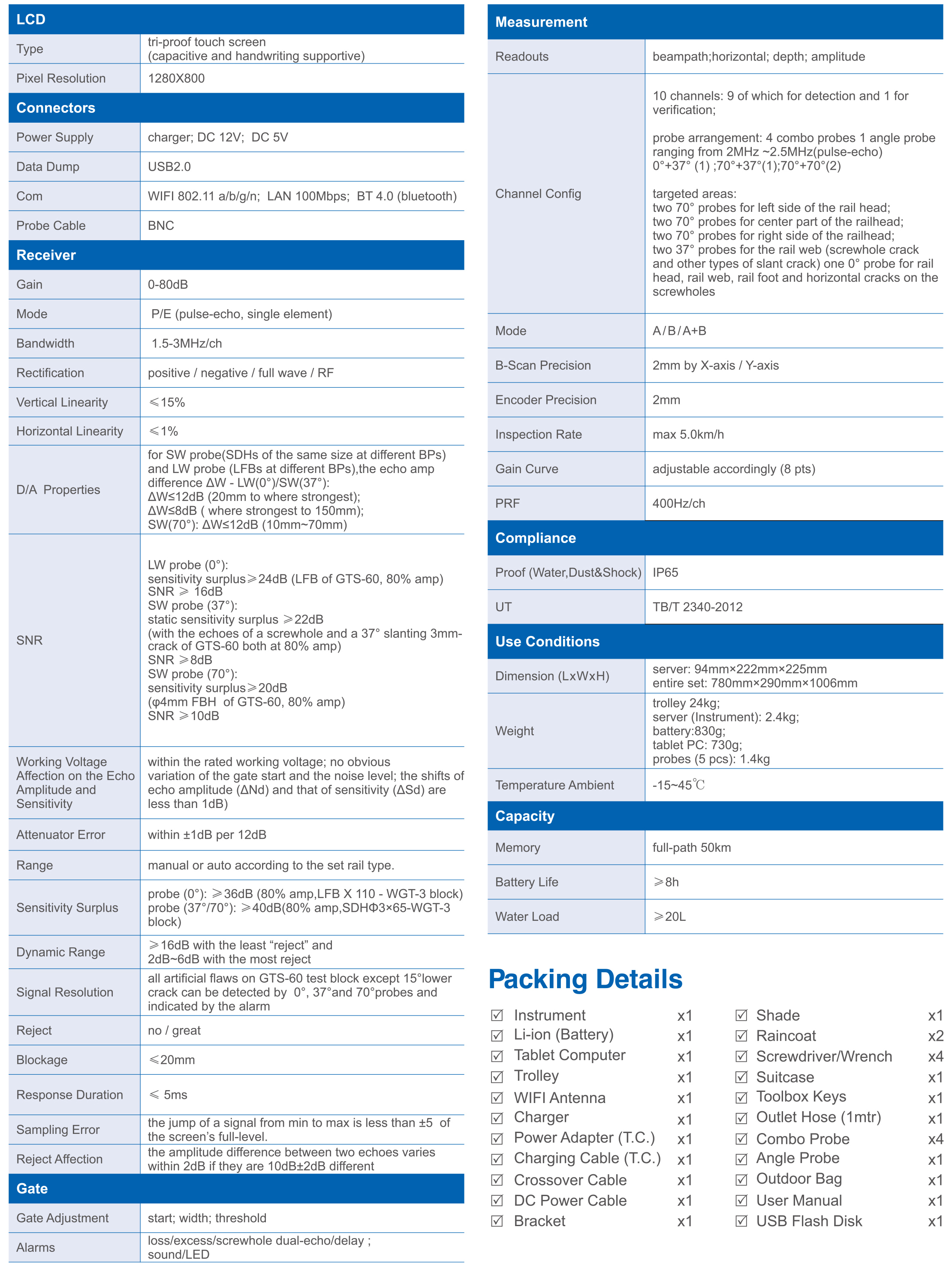

product specifications
