Dongyi DY-15kg Commercial Coffee Roaster with Bluetooth Artisan data

Supplier: Nanyang Dongyi Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Johnny Zhang
Price: $13800.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers is available to serve machinery overseas;	Package Type:	1. Standards Ocean or Airfreight shipment wooden case package 2. machine wrap by Bubble bag and fixed on the floor by rubber belt . 3. as per request;
Roasting Time:	12-15minutes;	Weight:	480kg;
Drum Material:	310 stainless steel;	Service:	free parts for one year;
Brand Name:	Dongyi;	Warranty:	1 Year;
After-sales Service Provided:	Free spare parts;	Machinery Function:	New;
Place of Origin:	Henan China (Mainland);	Batch Capacity:	4-16kg/ batch;
Selling Units:	Single item;	Machine Size:	180011002000;
Certification:	CE/ISO9001;	Single gross weight:	640 KG;
Product name:	cocoa beans roasting machine commercial coffee roasters;	Voltage:	220V ~380V 50/60Hz;
Drum Motor:	400W;	Single package size:	153X72X165 cm;
Package Preview:	https://sc01.alicdn.com/kf/HLB14aNUO3TqK1RjSZPhq6xfOFXa0.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1aW8WO3DqK1RjSZSyq6yxEVXao.jpg_640x640.jpg;	Dimension(LWH):	15372165CM;
Output product name:	coffee beans baking;	Raw material:	coffee beans , cocoa beans baking;
Application fields:	Bakery,coffee beans baking;	Weight:	640;
Power(W):	20Kw;

Product Description

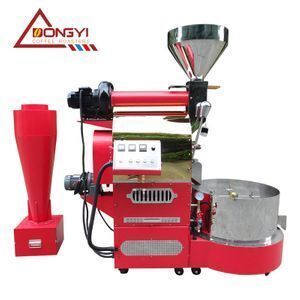

DY15kg cocoa beans roasting machine commercial coffee roasters for sale

New-Technology advantages Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

The latest 2019 DY series coffee bean roaster, classic appearance, seiko quality,

coffee shop treasure. Barista baking competition designated equipment sponsors

1. All bean contact body are made of High temperature resistant stainless steel.

2. Including cyclone dust collector and exhaust pipe.

3. Import rosewood bean sampling handler.

4. Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.

5. Electric igniter. Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

6. Omron PID Double Temperature instrument. precised long using life.

7. hot air regulation system. you can adjust hot-wind speed.

8. 304 stainless steel made gas valve regulator you can adjust fire volume precise...

9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system

10. Data logger function for option Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

The computer via USB direct connection, to realize synchronous transmission copy operation curve,

11. Fuse and leakage protector on application

12. LED deluxe Lamp. Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

13. CE, ROHS, ISO9001 Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

Details Description

Cocoa Bean Roasting / Cocoa Bean Roasting /cocoa bean bakery equipment

TECHNICAL DATA:

Model	DY-15kg coffee roaster
Roasting capacity	Up to 4-16kg/batch
Roasting time	12-15 minutes for brown and dark roasting
Dimension	1800mm(L)1100mm(W)2000mm(H)
Bean skin cyclone collector tank	1500mm770mm770(mm
Host and mixing motor power	AC 220V 50/60HZ 90W+50W
Fans of cooler & regulator	AC 220V 50/60Hz 45W & 50W
Heating sources	LPG(Y),Propane gas(R),N-gas(T)
Power consumption	0.35kg/Hr
N.W	480kg (roaster) + 120kg (cyclone tank)
G.W	650kg
Packing Dimension	999592cM(cooling mixing try), 20391191CM(Roaster),1857572CM(Cyclone tank)

Working Videos:

DY-2kg feedback: https://www.youtube.com/watch?v=Au6ucR2wn5A&t=174s
BY-1KG: https://www.youtube.com/watch?v=Wz-vsNO3E7o
DY-1:https://www.youtube.com/watch?v=VNKVeM7FsM8&t=27s
DY-60:https://www.youtube.com/watch?v=FGO3lXv5n8k
DY-15:https://www.youtube.com/watch?v=EBDqfaI3-Qs
DY-20:https://www.youtube.com/watch?v=hpAhrB-AyQs
