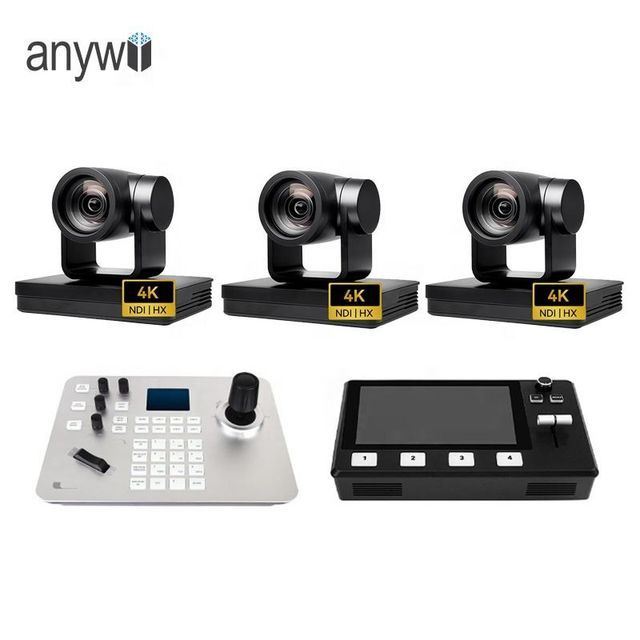

Anywii IP POE 4K PTZ Camera Controller Kit Multi-Camera Live Video Switcher ndi Ptz Broadcast Camera for Church Events

Supplier: Shenzhen Anywii Electronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Betty Yin
Price: $238.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

support:	OEM production	Place of origin:	Guangdong, China
Private mold:	Yes	interface:	RJ45
Maximum aperture:	F1.6-2.8	Supply capacity:	1,000,000 pieces per month
media type:	No	model:	HC510-12/C2/BS1
product name:	ptz camera controller set	payment terms:	Western Union, T/T, Credit Card
HD support:	4K	Key words:	Artificial intelligence automatic tracking
Additional features:	4K PTZ Camera, NDI POE PTZ Camera 4k, PTZ Controller, Video Switcher	Used for:	Conference room camera online meeting video
brand:	lucky images	support system:	Windows 2000/XP/7/8/10/Vista/linux/mac os/android TV box (UVC)) or more
Wide angle:	70.9	HD resolution:	4k 3840x2160p
Imaging sensor:	complementary metal oxide semiconductor	feature:	Video conferencing system ptz camera 20x
Warranty:	1 year	port:	Shenzhen/Hong Kong
Video output interface:	USB+HD MI+SDI+LAN(POE)	optical zoom:	12 times,12 times

Product Description

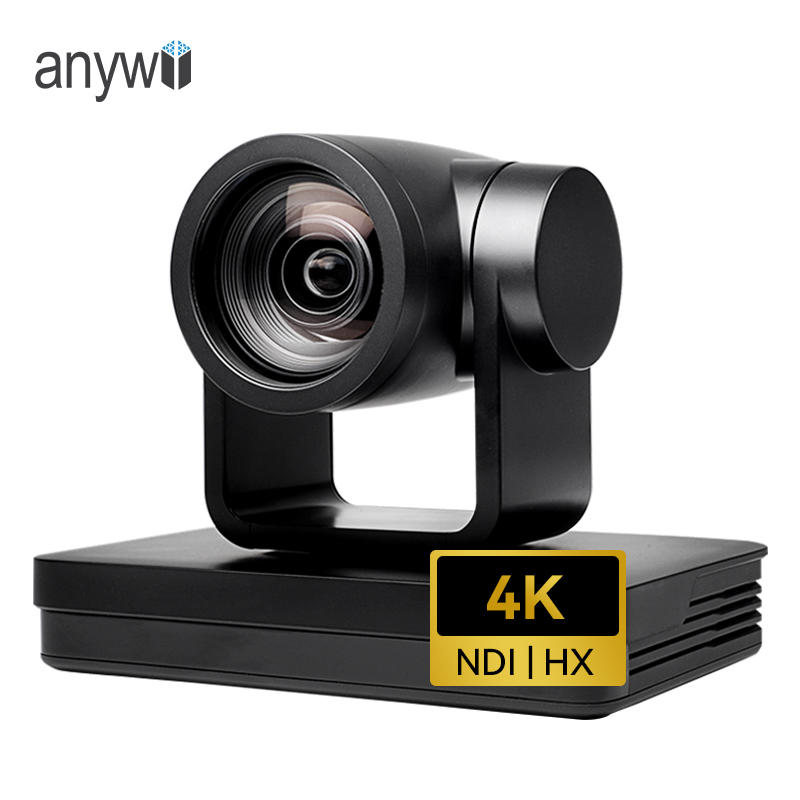

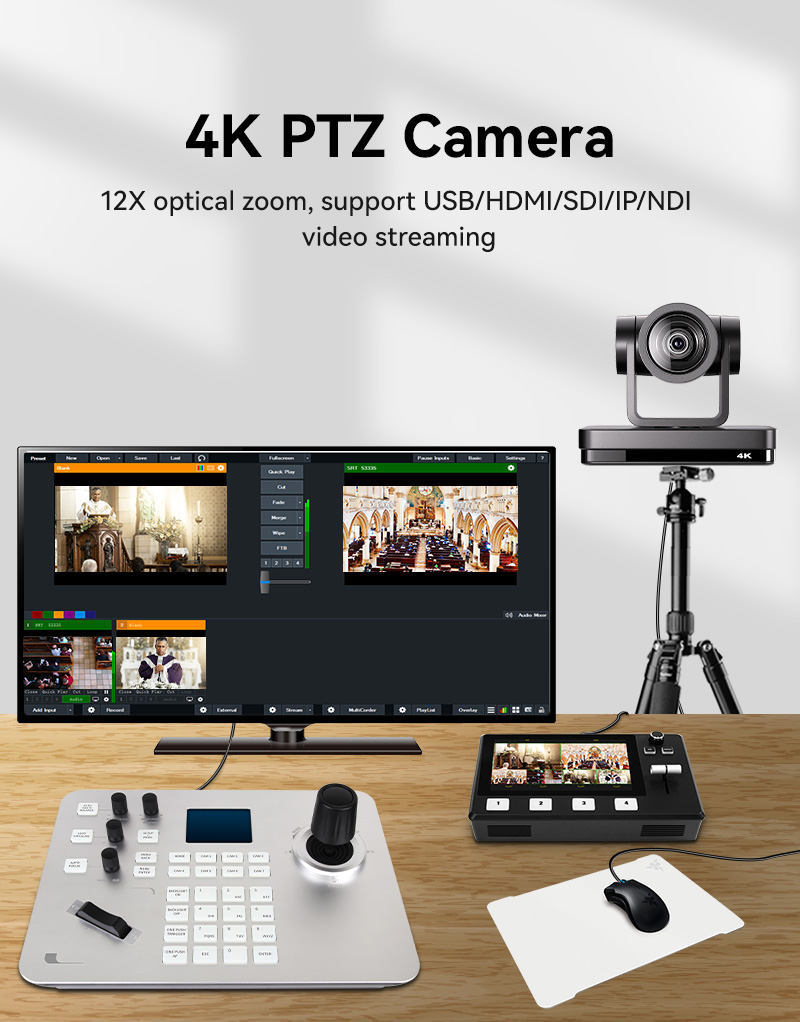

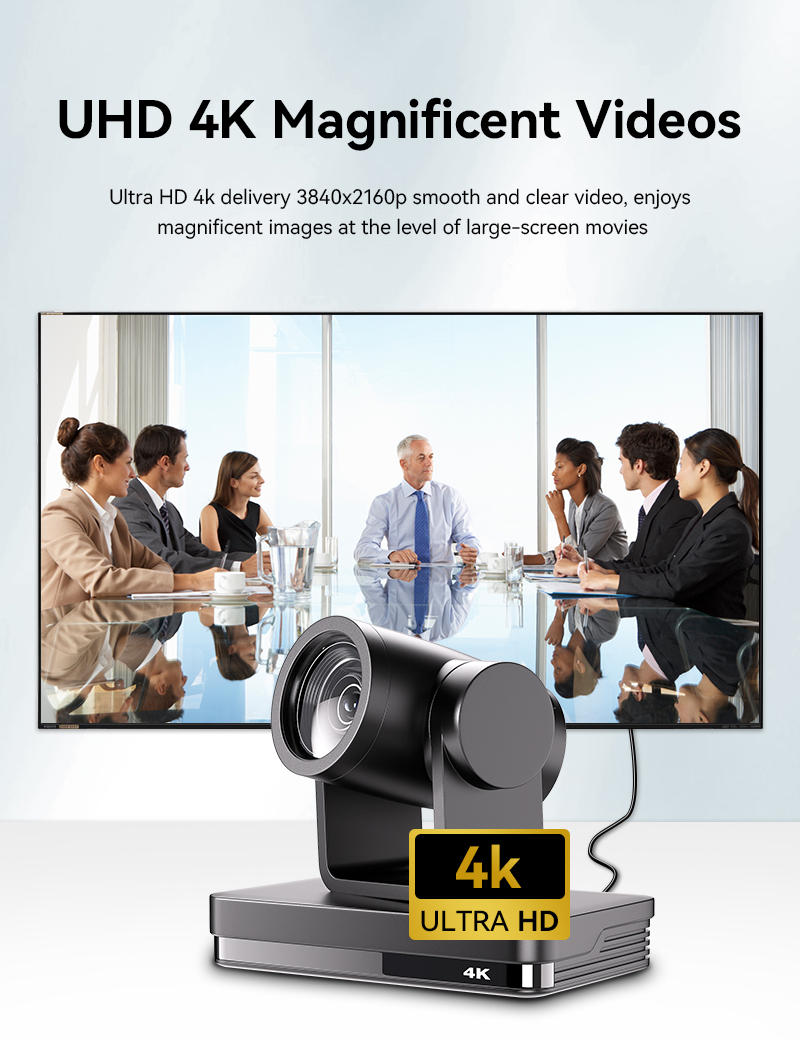

NDI POE PTZ camera 4K 12X

■Ultra HD 4K resolution, 12x zoom

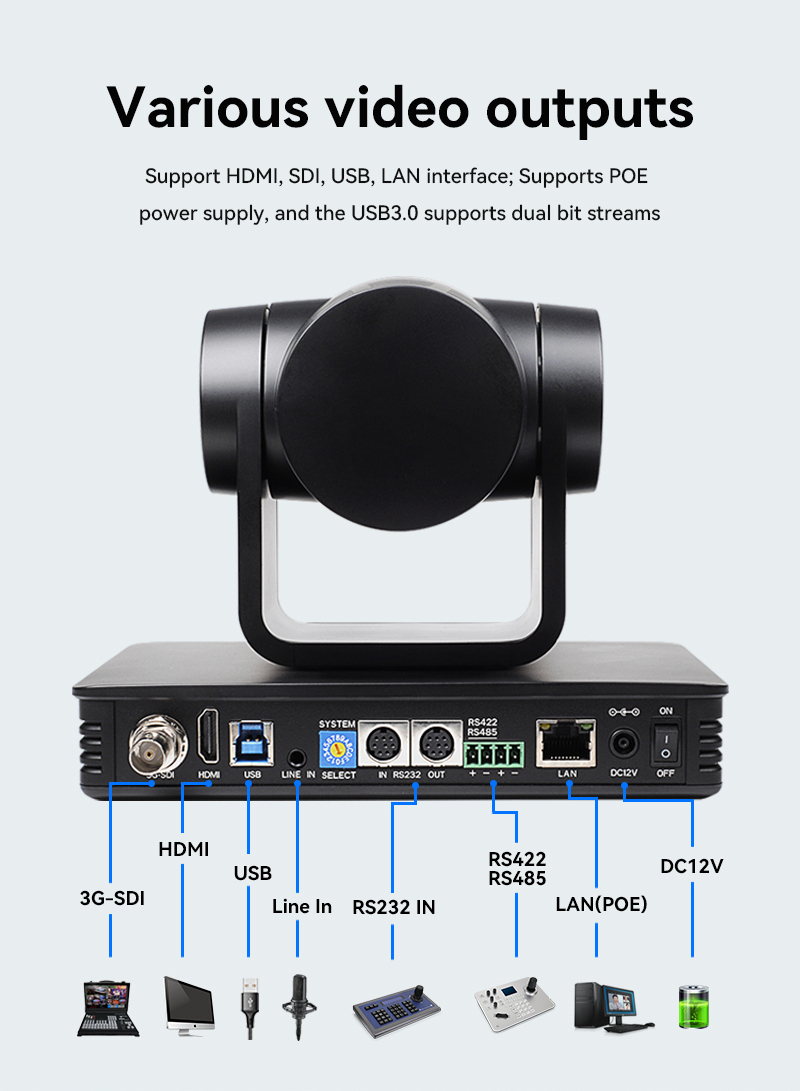

■ USB/HDM I/SDI/LAN interface

■ NDI HX
■ Pan 340 degrees, tilt 120 degrees
■ RS-232/422 port (VISCA/Pelco-D/Pelco-P protocol)
■Support RTSP, RTMP, ONVIF, RTMPs, SRT, GB/T28181, VISCA OVER IP, IP VISCA protocol
■ Desktop, tripod, wall and ceiling mounting

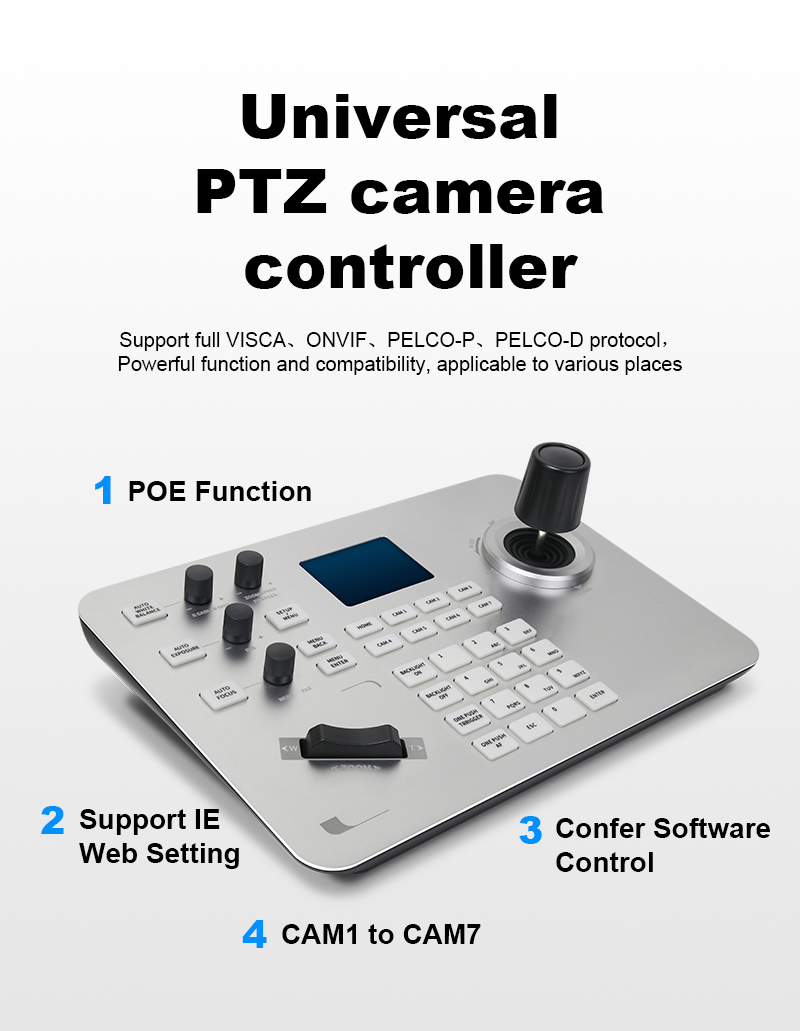

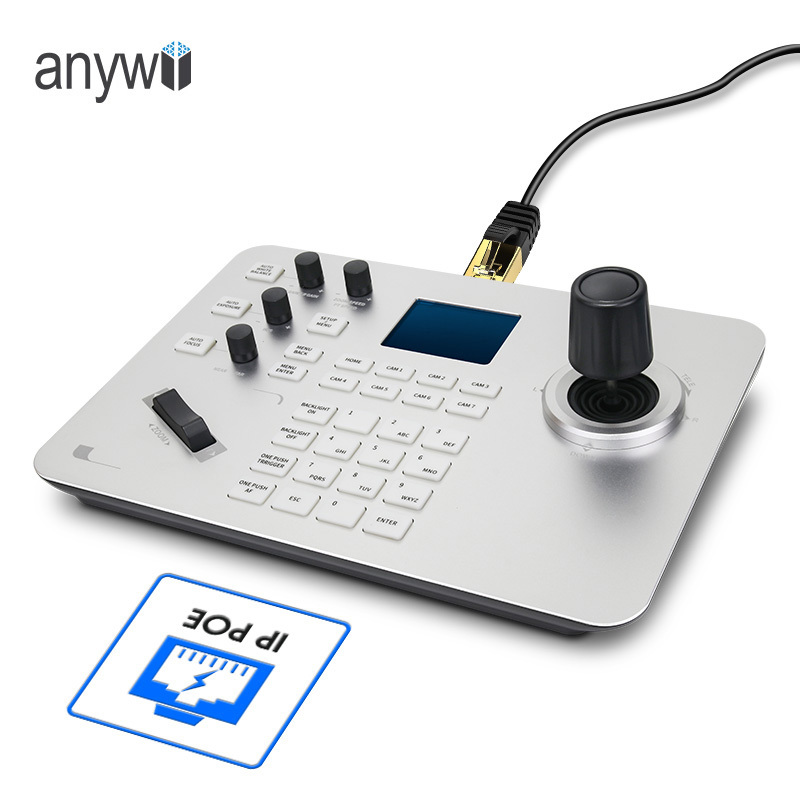

IP POE PTZ controller

■Supports 7 buttons from CAM1 to CAM7, easy and quick switching

■ RS 232, RS422, LAN port
■ VISCA, ONVIF, PELCO-P, PELCO-D protocols
■Support IE web page settings
■Support POE power supply
■Supports 4D joystick control of PTZ function

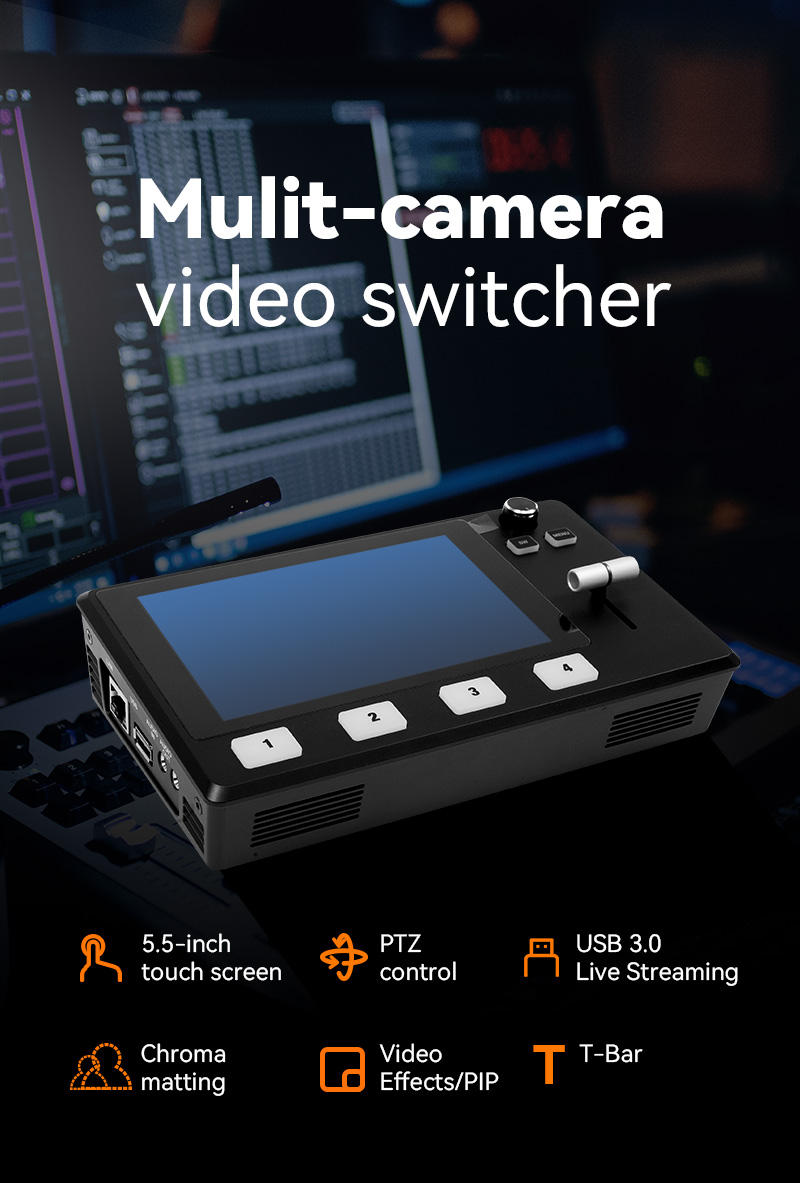

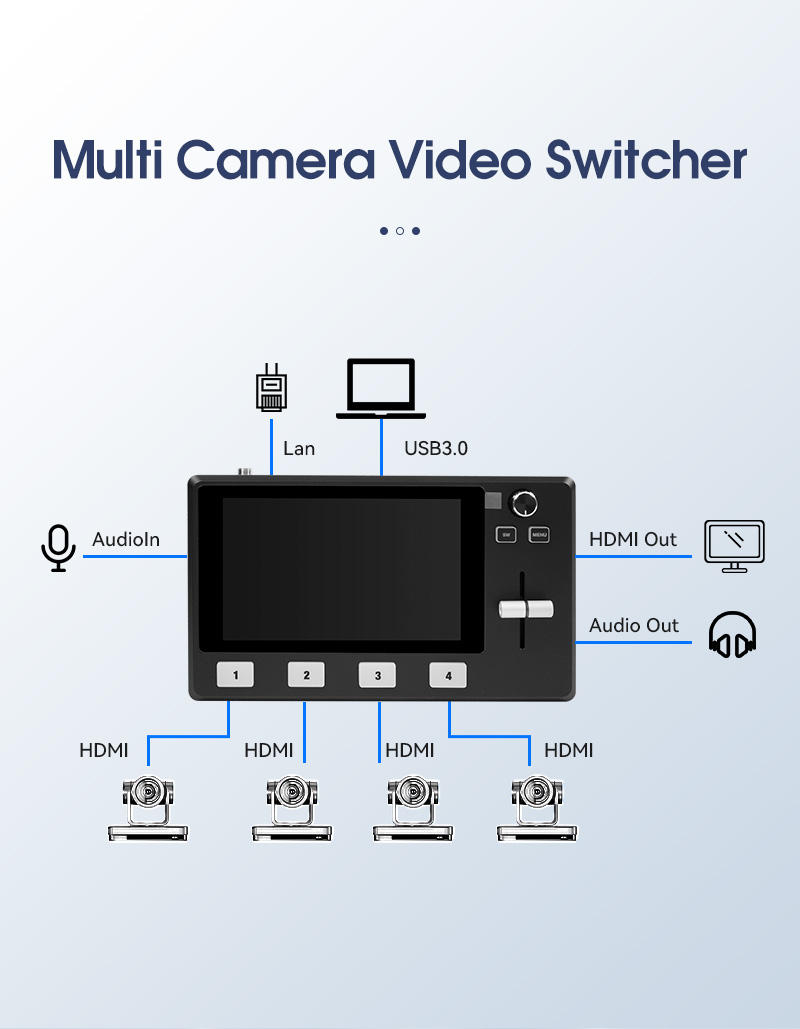

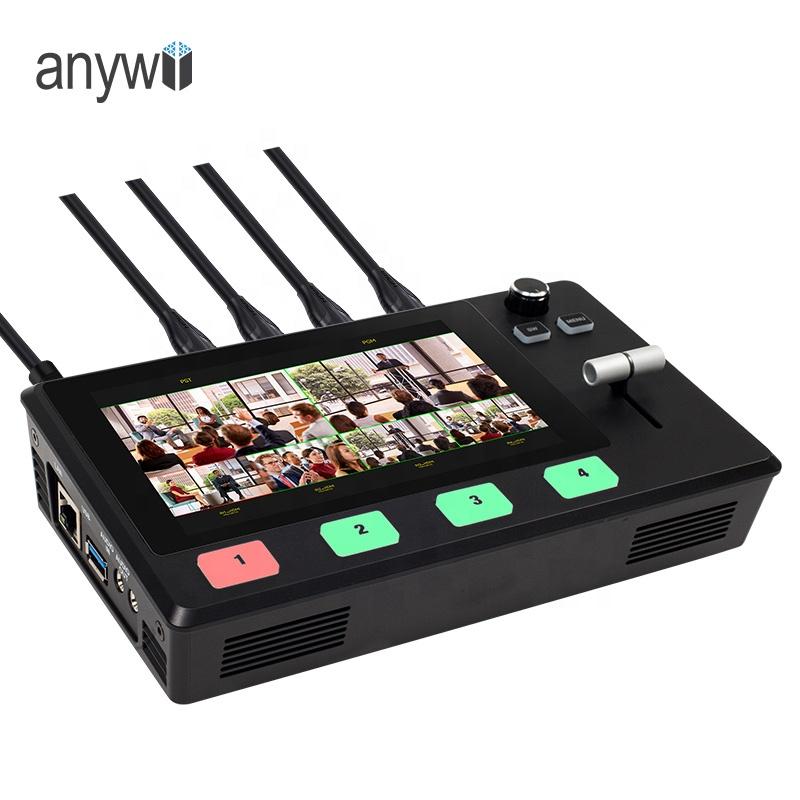

4-way video switcher

■ 5.5-inch touch screen

■ 4*HDM I output, 1*HDM I input, 1*LAN
■ 1*USB 3.0, 1*audio input, 1*audio output

■Support VISCA protocol to control camera pan/tilt and zoom
■Supports chroma keying, video mixing, picture-in-picture, and LOGO overlay
■ Various application scenarios, such as sports events, weddings, churches, TV studios, video conferencing, education, social media, etc.

maximum resolution	*4k 38402160P**
Max frame rate	30 frames/second
Artificial Intelligence Driven Track	Automatic tracking
focus	auto focus
optical zoom	12x optical zoom
field of view	6.5°～70.9°
aperture	F1.6～F2.8
video signal	4K@30fps, 4K@25fps,1080P@30fps, 1080P@25FPS, etc.
video format	H.265, H.264 (LAN) MJPG/H264/YUY2/NV12(USB3.0)
video output	USB3.0/SDI/HD-MI/LAN(POE)
Audio input	3.5mm line input
audio compression	AAC/G.711A/MP3
Network protocol	RTSP, RTMP, ONVIF, RTMPS, SRTGB/T28181, VISCA OVER I, IP VISCA protocol
control interface	RS232 input/output, RS422 (compatible with RS485)
control protocol	VISCA/Pelco-D/Pelco-P
Horizontal rotation	-170°～+170°
Tilt and rotate	-30°～+90°
Accessories	Power adapter, RS232 control cable, USB3.0 connection cable, remote control, manual, warranty card and certificate of conformity

About Anywii

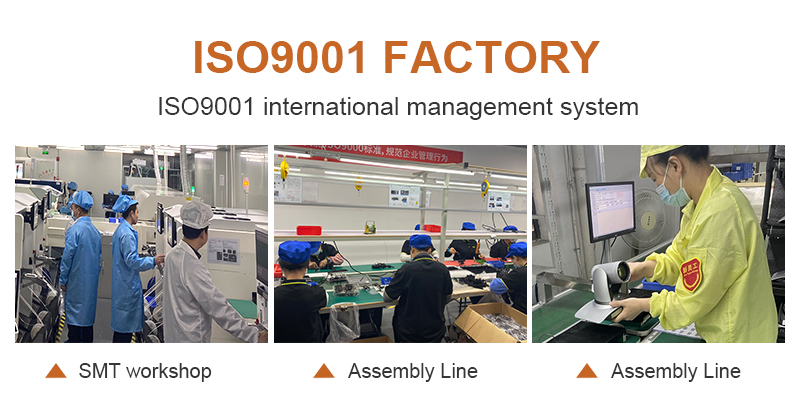

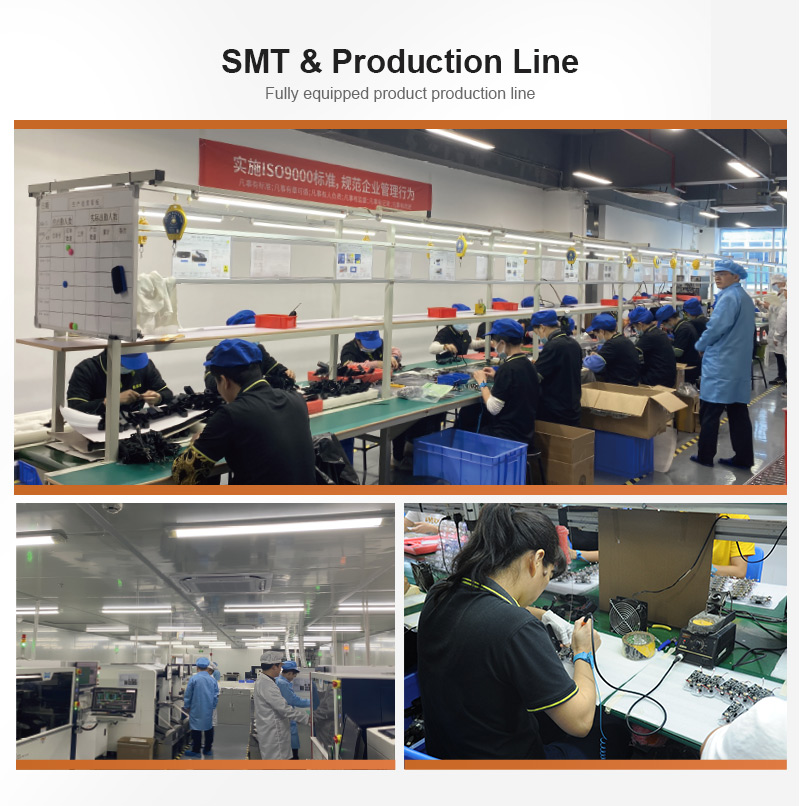

1. We are Anywii China factory with more than 15 years of history, mature technology and excellent quality. The factory is located in Guangdong, China, covering an area of more than 5,000 square meters, with nearly 200 skilled workers and 6 SMT lines, 6 production lines, 2 packaging lines and module production workshops, with a production capacity of 6,000 PCS/day.

2. More than 15 years of experience in producing webcams/video cameras/speakers/PTZ joysticks.

3. Our products are exported to all over the world, and our customers are from Europe, North America, South America, the Middle East, Southeast Asia, Central Asia and Africa.

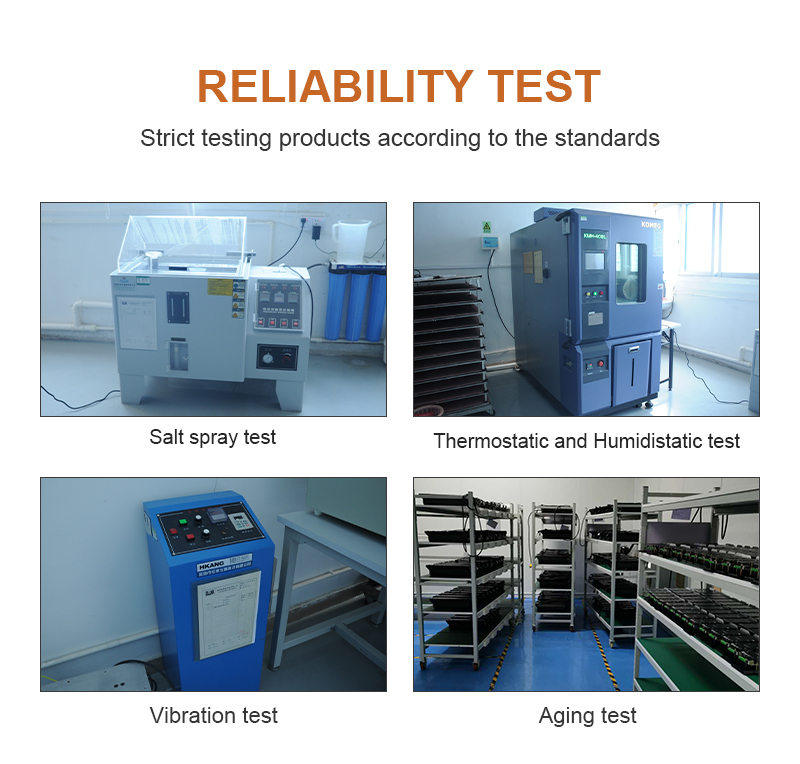

4. The products have passed CB, CE, FCC, ROHS, SASO, CCC and other certifications.

5. Fast delivery time: 3~5 working days for 1~100 pieces, 15-30 days for bulk orders after deposit is confirmed.
