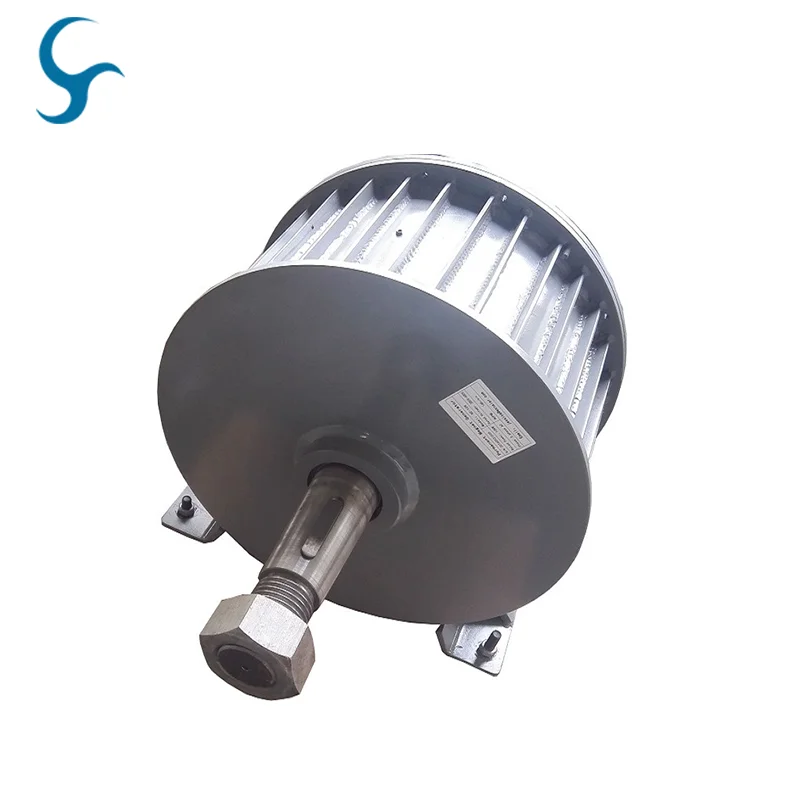

low rpm 10kw 220v AC permanent magnet generator for sale

Product details
Package Preview:https://sc01.alicdn.com/kf/HLB1fm2RMMHqK1RjSZJn762NLpXaK.png_640x640.png;Factory Direct Sale:YES;
Life Time:20 Years;Place of Origin:Jiangsu China (Mainland);
Brand Name:Fengteng;Selling Units:Single item;
Rated RPM:170RPM / 220RPM/ 300RPM;Brushless:YES;
Package Type:Plywood case for 10kw 20kw 30kw 50kw low rpm gearless permanent magnet generator More information and the latest price, pls contact jessica directly. newenergy@ wxftgs.com;Single package size:59X38X53 cm;
Rated power:10kw;Single gross weight:130 KG;
Shaft Type:Horizontal and Vertical;Model Number:FT-10kw;
OEM ODM:YES, we can customize generator for you;Generator type:3 Phase Permanent Magnent Generator;
Rated Voltage:220V / 240V / 360V / 380V;Shell Material:Carbon Steel / Aluminium Alloy casting;

1kw to 500KW permanent magnet generator



Product Description



 1. Rare earth Nd-Fe-B permanent magnet generator. energy save energy more than 15% than ordinary generators.

2. Permanent magnet rotor structure, no excitation windingno carbon brushesno slip rings, no need gear box. Simple structure, reliable ,durable and Maintenance free.

3. Multi poles design, improve the frequency and efficiency of rectifiers and inverters. Saving cost .

4. Started directly, without control cabinet, replace the asynchronous motor totally.

5. H class insulation, vacuum pressure impregnation.

6. Power factor close to 1,no need add power factor compensation equipment.

7. Small heat, aslo can add fan cooling or water cooling

8. Long life time >20years, Strong rotors, could run at high speed.24hours 365days running.

9. Energy-saving, return investment within 1-2years.















Technical Data of 10KW Permanent Magnet Generator:



Item #

10kw GP

Rated Power(W):

10kw

Rated Speed(RPM):

170RPMor 220RPM or 300RPM

Rated Voltage(V):

AC220v or as your request

Insulation Class:

F

Efficiency (%)

93

Generator type

3 -Phase Permanent Magnet AC Synchronous Generator

Service Life:

over 20 years

Working Environment

-35º C-60º C

Speed Range

0-500 rpm

Mechanical specifications

Mounting Means

Horizontal/ Vertical

Approx Gross Weight(Kg)

130

Material specifications

Shaft Material

Iron with quenching and tempering Treatment

Bearing

HRB or as your request

Lubrication

Lubrication Grease

Shell Material

Carbon Steel

Winding Temperature Class

150 Centigrade

Permanent Magnet Material

Rare Earth NdFeB

Permanent Magnet Material Temperature Class

150 Centigrade

Core

High Grade Cold Rolling Silicon Sheet 50WW470

Protection Grade

IP54

The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator, hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.

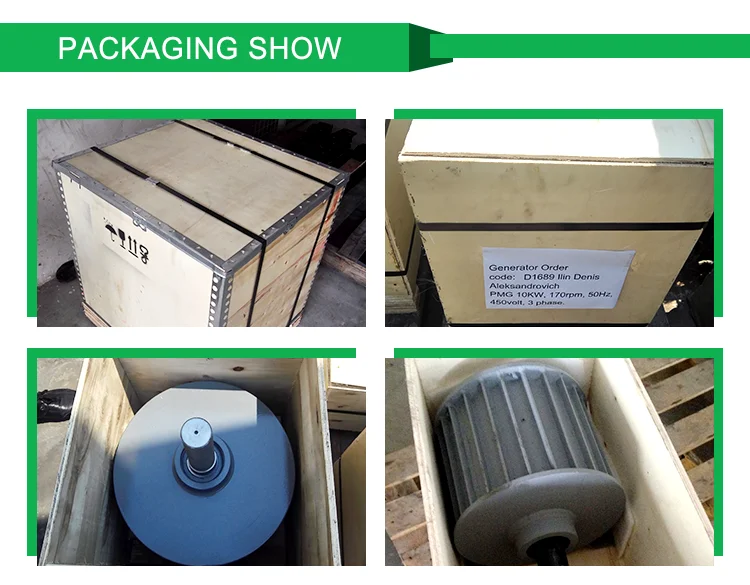

Packaging & Shipping



1. 10kw-200KW permanent magnet alternator use inner foam protection, outer Plywooden case .

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.



Our Services

We can design different systems for customers according to their requirements.

All lifelong technical support and part cost supply.

24 hours on-line---Your enquiries will be replied within 24 hours.



This is Jessica, if you want to get the best price and more specification, please contact us direatly:
