Manufacturing Continuous Scale Nuts Small Hazelnuts Sesame Tahini Peanut Butter Making Machine Production Line

Supplier: Henan Gondor Machinery Co., ltd.
Region: Henan, China
Contact: Mr Neo Von
Price: $22599.00 / 1 - 1 sets
$18599.00 / 2 - 4 sets
$14599.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Material:	Stainless steel	brand:	Gondor
Mechanical test report:	if	strength:	100-110kW
Supply capacity:	1 set per month	raw material:	nut
constitute:	Roasters, coolers, peelers, grinders, coolers	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Video outbound inspection:	if	Health status:	new
Dimensions (lengthwidthheight):	2360024502250mm	Warranty:	1 year
heating method:	electric	Place of origin:	Henan, China
feature:	easy to use	Output product name:	peanut butter
Application areas:	Commercial catering, condiment factory, snack food factory	port:	Qingdao Port, Tianjin Port, Shanghai Port
weight:	3000kg	Packaging details:	Standard export wooden box packaging, suitable for multiple handling and long-distance air/sea transportation.
Marketing type:	Hot Products of 2023	Showroom location:	not any
Core components:	PLC, motor, pressure vessel, pump	color:	silver or customer demand
Core component warranty:	1 year	OEM/ODM service:	acceptable
raw material:	Peanuts and other nuts	Fineness:	2-50 micron
Certification:	ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL	product name:	Peanut butter production line
Package preview:		Voltage:	380V/220V
Applicable industries:	Manufacturing plants, food and beverage plants, farms

Product Description

introduce

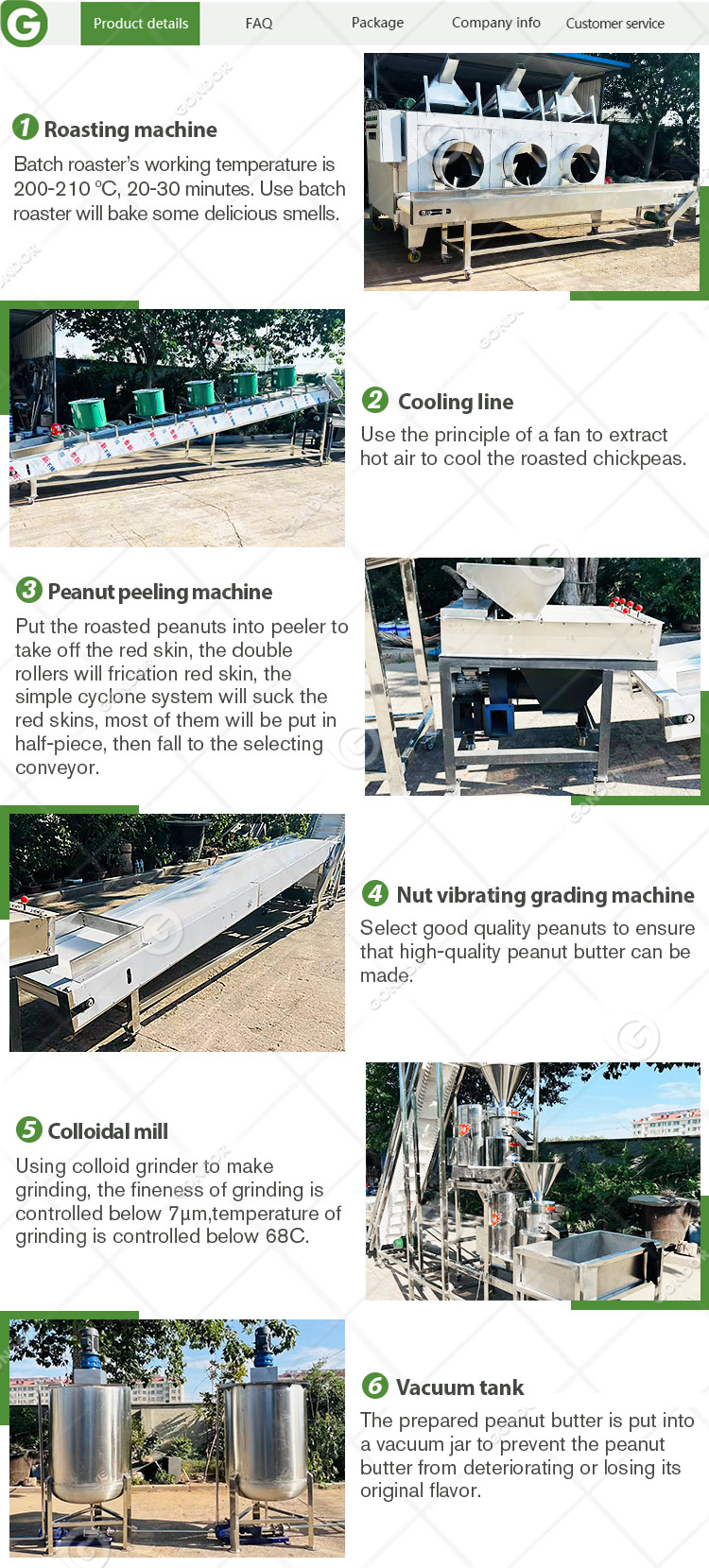

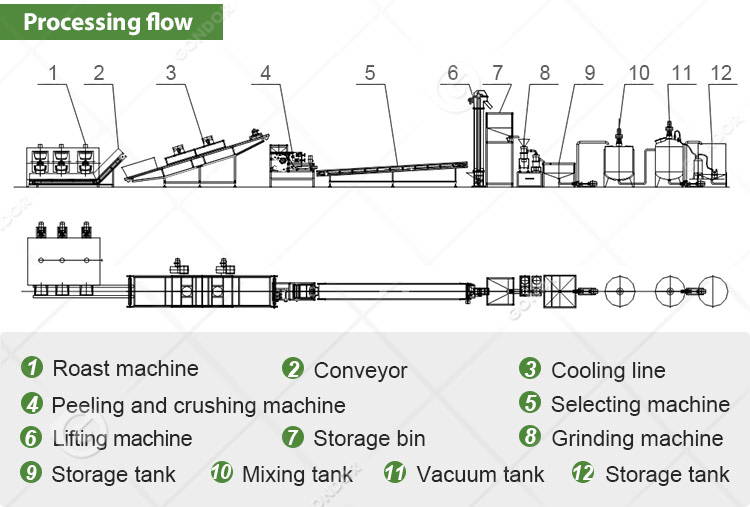

The main equipment of the peanut and sesame production process and production line include oven, peeling and half-graining machine, sorting belt, feeding machine, coarse grinder, mixing tank, transfer pump, mixer, homogenizer, fine grinder, vacuum tank, cooler, Filling machines, etc. It is characterized by flowing water, high degree of mechanization, good reliability, fully enclosed production and no pollution. It is an advanced equipment for producing stable peanut butter.

scope

machine	size	strength
roasting machine	*260035001650mm*	5.5kW
cooling line	*6008001600mm*	3.5kW
Peeling Crusher	*11007501100mm*	*0.37kW2**
conveyor	*4000600500mm*	0.75kW
Hoist	*3000600800mm*	0.75kW
grinder	*950400980mm*	11 kilowatts
cooling tank	*φ10002000mm**	3kW
Storage tank	*φ10002000mm**	22kW
filling machine	Equipment name: Semi-automatic filling machine Output: 100-400 bottles/hour	1 kilowatt
