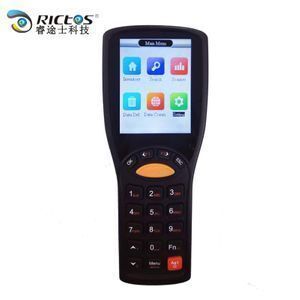

Portable wifi wireless mobile laser barcode data collector RTS-3200PRO

Supplier: Cash register
Region: Guangdong, China
Contact: Ms. Christina Liu
Price: $75.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	215g;	Package Preview:	https://sc01.alicdn.com/kf/HTB1ylAeObvpK1RjSZPi762mwXXar.png_640x640.png;
Scanner:	laser;	Package Type:	Inner box: 22148cm Carton size:574043cm 25pcs/carton 20'GP: 6875pcs, 40'GP:13775PCS, 40'HQ:17347pcs Portable wifi wireless mobile laser barcode data collector;
Model Number:	RTS-3200PRO;	Single gross weight:	1 KG;
Selling Units:	Single item;	Memory Capacity:	16MB;
Brand Name:	Rictos;	Style:	Handheld Computer;
Processor Type:	ARM 9 Micro-processor, Main frequency:320MHz;	Name:	Portable wifi wireless mobile laser barcode data collector;
Place of Origin:	Guangdong China (Mainland);	Operating System:	Linux;
Single package size:	30X25X15 cm;	Wireless and Communication:	WIFI;
Battery:	3.7V 1800mAh Lithium battery;	Screen Size:	2.8inch;
Products Status:	Stock;	Interface:	USB;
Language:	Multi-languages;

Data collectorc

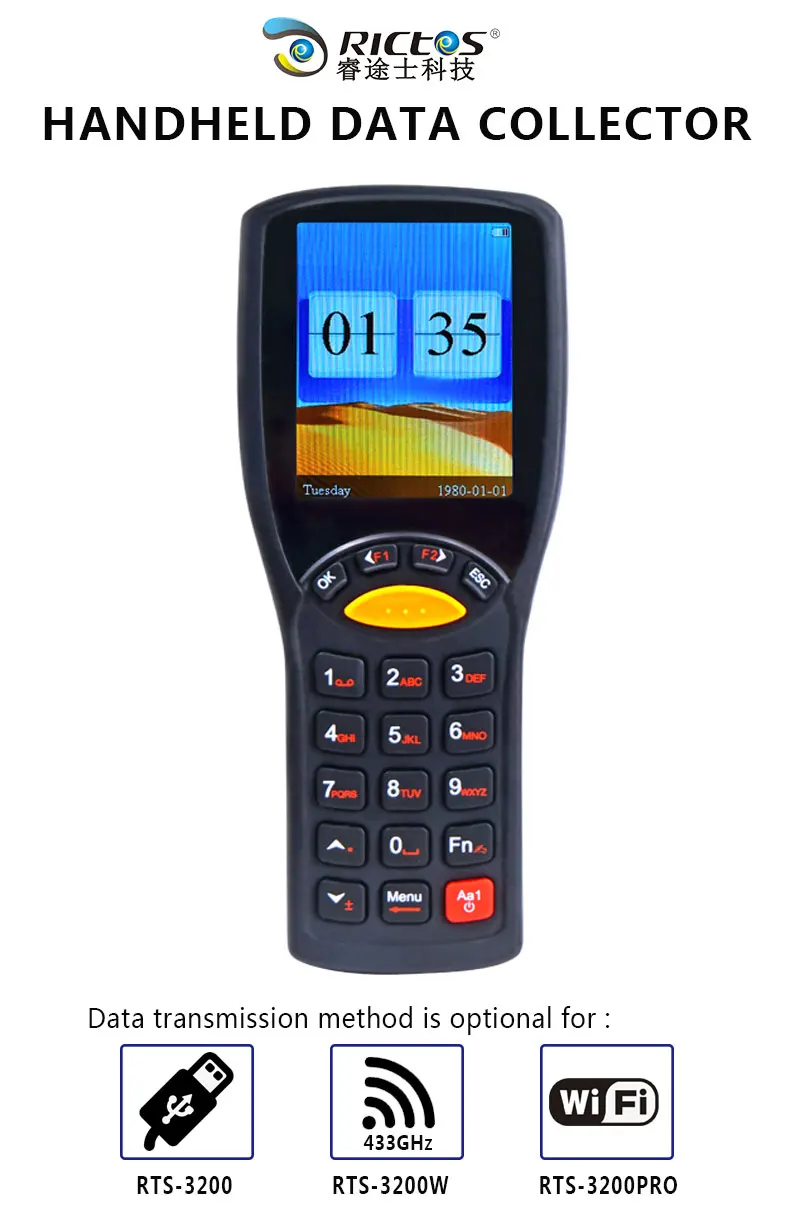

Portable wifi wireless mobile laser barcode data collector RTS-3200PRO

Description

Our barcode data collector adopts ARM9 micro-processor, with high performance and low consumption. Integrated functions of laser barcode scanning, display, read & write together. Built-in FATFS documents system, can copy, paste or delete documents through USB cable easily. It is widely used in areas of retail, manufacturing, medical, mail post, logistic, capital management, warehouse management, library, supermarket management etc.

Features:

ARM 9 micro-processor, high performance and low consumption;

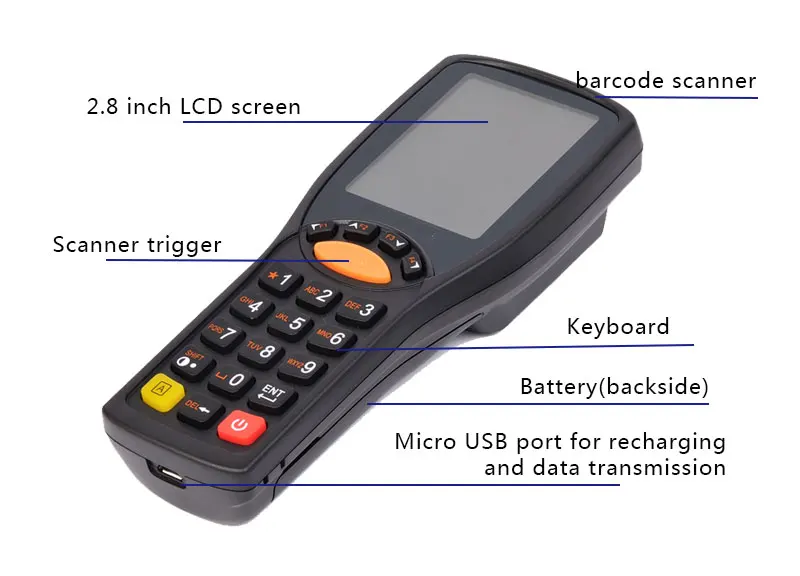

2.8 inch HD LED screen
Support WIFI connection, can work under online real-time or off-line storage sate.
Adopt industrial memory, built-in 16MB storage memory (can be extended according to customer’s requirement)
Built-in high capacity Lithium battery, support continuous working 10 hours.

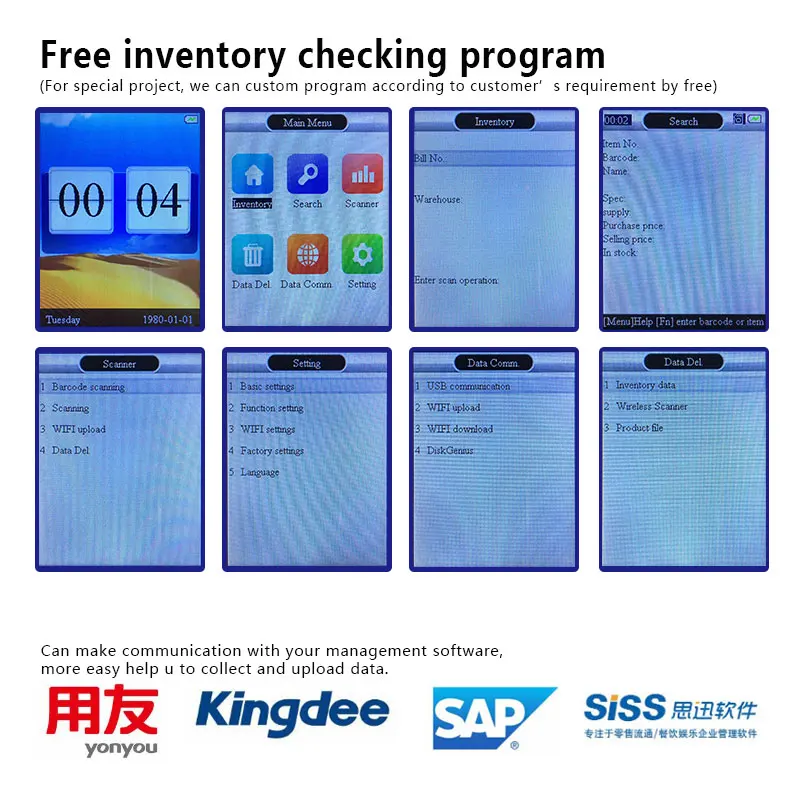

Multifunctional design, with functions of stock check, data collect, commercial material input and output, wireless barcode scanning (optional)
Convenient operating management background.
Support product information input and output, can check the product information in the device directly.
Support various of management software.

Parameters

Basic information
Size	168 x 40 x 68mm
Material	ABS+PC
Net weight:	215g
Processor	ARM 9 Micro-processor, Main frequency:320MHz
Memory:	16MB FLASH storage memory
Screen	2.8 inch colorful screen, 320*240 resolution
Software development	Support secondary development
PCB technology	Sinking gold process
Language	Multi-languages
Input	Manual input/ scanning input
Technical Parameter

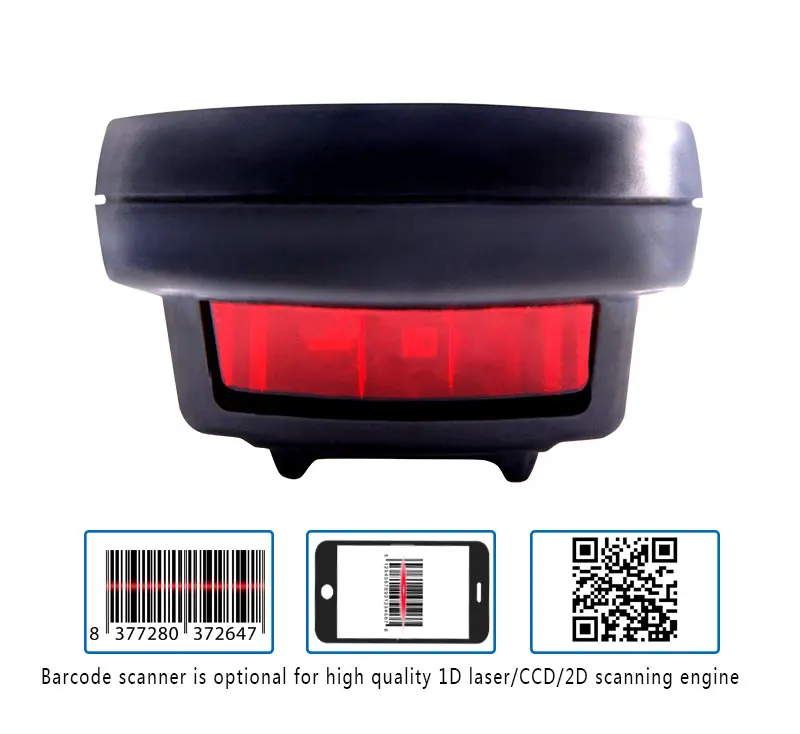

Decoding type	ID barcode
Scanning speed	50 times/ sec
Error rate	1/500million
Scanning angel	±65°/ ±70°/ ±45°(L/R, F/B, Rotation)
Print contrast	Lowest 20% reflection
Decoding ability	UPC-A,UPC-E/E1,EAN-13,EAN-8,ISBN/ISSN,Code39,Code39(ASCII Full),Code 32,Trioptic code39,Intersection code25,Industrial code25,(Discrete 2of5),Matrix 25,Coda bar(NW7), Code128,UCC/EAN 128,ISBT128, Code93,Code11(USD-8),MSI/Plessey, UK/Plesse, China post etc
Scanning distance:	10-650mm
Accuracy	4mil
Interface:	USB2.0,WIFI
Scanning mode	Single thread scanning
Prompt method	Buzz, Screen display
Electronic parameter
Power supply	3.7V 1800mAh Lithium battery
Working current	95mA
Peak current	150mA
Standby current	0mA
Charging current	550mA
Safety standard
Laser safety grade	EN60825-1, National laser safety standard(leval 2)
EMC	CE&FCC DOC compliance
Electronic safety	EN60950-1
Shock resistance	30 times dropping from 1.5m height test
Environment parameter
Working temperature	-20℃-55℃
Storage temperature	-25℃-70℃
Humidity	Relative humidity 5%-90% (no condensation)
Brightness	Max.5,000Lux(CFL)
Accessories
Accessories	3.7V 1800mAh Lithium battery: 1pc, 5V/1V charger:1pc, USB cable: 1pc, Manual:1pc

Certificates

Warranty

1. All of our products enjoy basic 1 year warranty for none man-made problems for hardware,and free online service in whole lifetime for software;

2. For some countries which require 2 or more years warranty, we can negotiate as special projects to enjoy extended warranty;

3. Considering the high cost to for international shiping freight, we provide some options for customer of the warranty, like discount/spare parts/spare products to instead of warranty.

FAQ

1. How will you control product quality?

We strictly control every detail of production, and every product is inspected by our QC team before delivery. More over, our production is abided by FCC, CE and ROHS standards.

2. Can you send samples for confirmation? Are they free?

Yes, we can offter samples for you to test, but not for free.

3. Can you do OEM?

Yes, we provide OEM service and can customize products according to the customers demand.

4. What terms of payment?

We can accept T/T, West Union, Paypal and L/C, ect

5. How do you do after sales service?

The produt warranty is 1 year, and we can provide repair for you during warrantty time.

6. What's the MOQ?

We do not have MOQ, we can accept 1 pc sample to test
