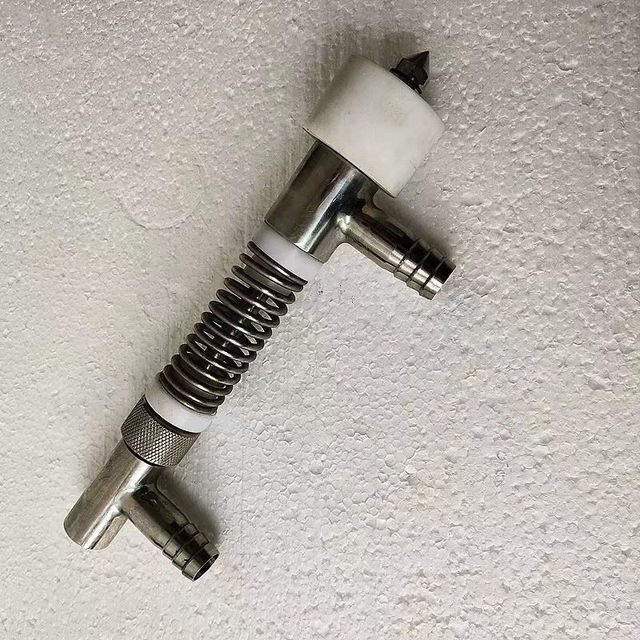

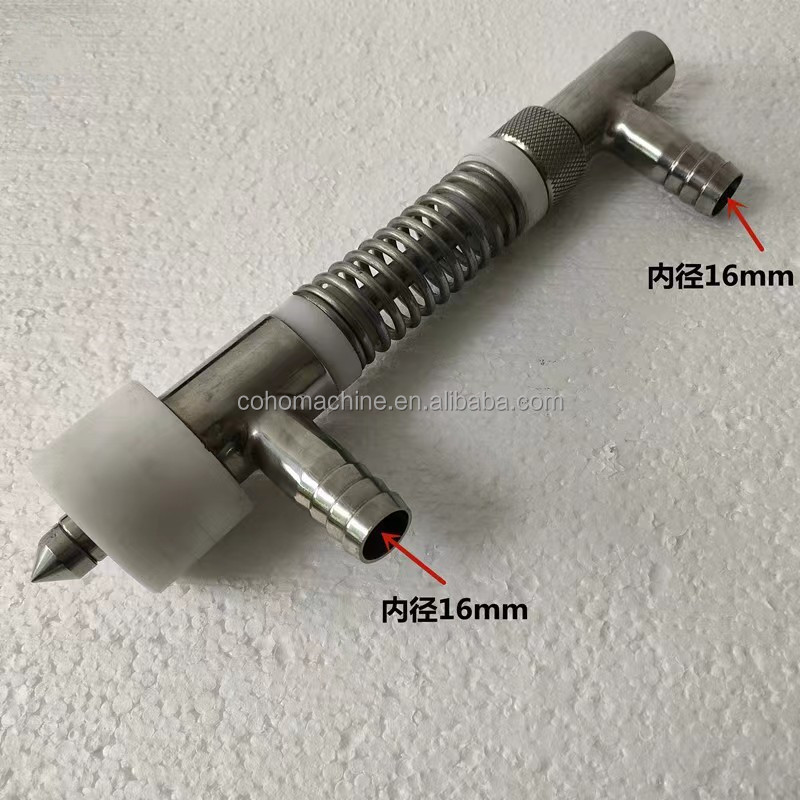

Factory direct sales high-precision stainless steel bottle filling nozzle overflow nozzle

Supplier: Xiamen Chuhai Machinery Co., Ltd.
Region: Fujian, China
Contact: Mr lin Lynn
Price: $33.00 / 10 - 99 sets
$30.00 / >=100 sets
Min. Order: 10 sets

Click here to contact

Product details

Moderate:	Water, gas, oil, corrosive liquid	Filling machine valve:	Liquid filling equipment nozzles
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Supply capacity:	100,000 sets per month
port:	Xiamen	Fluid pressure:	0-0.7Mpa
Advantage:	Improve efficiency	Showroom location:	Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, South Korea, Tajikistan, Japan, Malaysia, Australia
brand:	koho machine	product name:	High-precision stainless steel bottle filling nozzle overflow nozzle
Material:	Stainless steel 304/SS316	Warranty:	1 year
Marketing type:	normal product	Weight (kg):	3
Control pressure:	0.35-.0.4Mpa	temperature:	-10-120 degrees
connect:	internal thread	Video outbound inspection:	if
Packaging details:	Factory direct sales of high-precision stainless steel bottle filling nozzles and overflow nozzles are packaged in export wooden boxes	Mechanical test report:	if
Place of origin:	China	Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, home use, construction engineering, energy and mining, other
Package preview:		Health status:	new
application:	Stainless steel anti-drip oil valve

advantage:

1. Easy installation, maintenance-free and long life;

2. Self-adjusting valve stem seal, reliable operation, and the cylinder can rotate freely 360 degrees;

3. Corrosion resistance, large flow, small fluid resistance, and no water hammer;

4. Control air consumption to be low. Optical position indication,

The filling valve is made of stainless steel and has a built-in PTFE seal, which is non-toxic, tasteless, safe and hygienic.

It is widely used in filling and packaging machinery, especially suitable for filling viscous and easily foaming paste liquids.

The filling speed is fast and the accuracy is stable. The valve is compact and compact for easy piping layout.

The bottom of the filling head has a special sealing design to achieve drip-free filling.

Applicable fluids: water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and alkali liquid

Fluid pressure: Max.0 .7 mpa

Fluid temperature: -10℃---+200℃

maximum. Viscosity: 300mm2/s

Control fluid: neutral gas, air

Control pressure: 0.35-0.4mpa

Ambient temperature: -10℃---+120℃

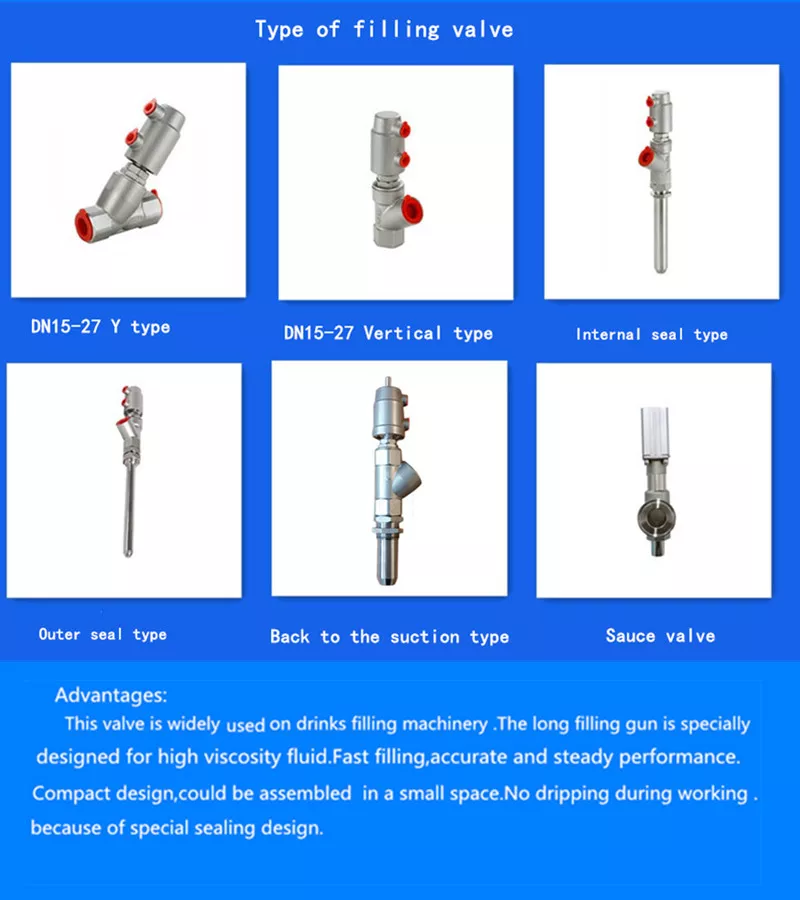

There are three types of filling valves used for filling.

1. For external sealing, insert the filling rod into the bottom of the bottle, and the liquid will be discharged in a spray state.

2. Internal sealing type: the filling rod can be placed under the bottle mouth, and the liquid is discharged in a straight line.

3. Suction-back type: The inner rod of the valve is hollow, which can better suck foam and viscous media back into the wall to better achieve the anti-drip effect.

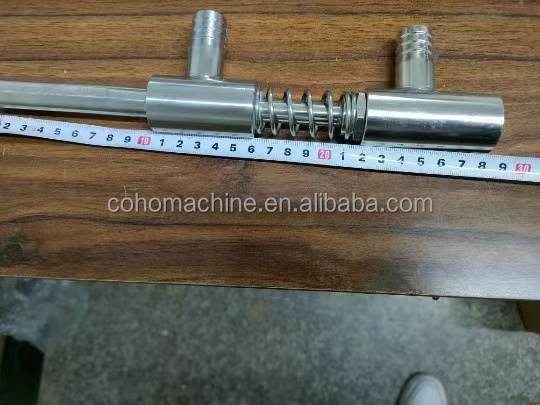

DN15, nozzle diameter 10mm~20mm can be produced

DN20, nozzle diameter 25mm, nozzle length 120mm.

DN25, nozzle diameter 35mm, nozzle length 150mm or 180mm

DN32, nozzle diameter 42mm, nozzle length 150mm

DN40, nozzle diameter 50mm, nozzle length 150mm

DN50, nozzle diameter 70mm, nozzle length 150mm

The nozzle diameter can be selected as needed.

Nozzle diameter and length can be made as required

Contact me~
