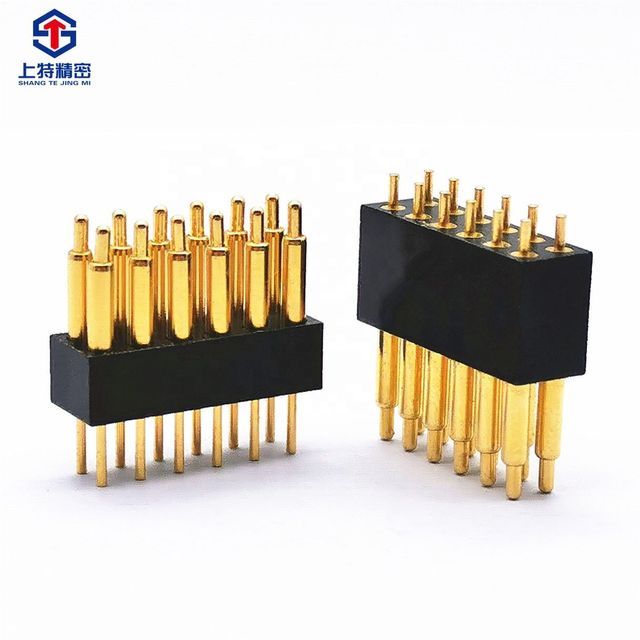

Custom 2.54mm 12 Pin SMT SMD Male Pin Header
- 0.90 5000 - 49999 pieces
- 0.89 50000 - 99999 pieces
- 0.88 100000 - 99999999 pieces
- 0.59 >=100000000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Interface Type: | USB, DC head | Single piece packaging size: | 10X10X10cm |
| type: | Pogo pin connector, speaker connector | Name: | Electronic cigarette POGO PIN charging spring magnetic connector |
| Contact information: | Gold-plated brass + environmentally friendly plastic | Application scope: | Communication and conduction |
| Packaging details: | Bulk, carrier TPE, pipe | Craftsmanship: | Cold working |
| letter of credit: | ST-12PIN series | Place of origin: | Guangdong, China |
| Gross weight of single piece: | 1.000kg | Package preview: | |
| Support customization: | Yes | describe: | pogo pin connector |
| brand: | Shante | life: | >20000 times |
| feature: | Fireproof/flame retardant, conductive and stable | model: | ST-12PIN series |
| Sales unit: | Single product | working frequency: | High |
| Package: | Bagged bulk |
Product Description
|
|
|
| product material: | |
| plunger | C3604 brass alloy, electroplated nickel 60-80u", electroplated gold 1-3u"(Customized 1-100u") |
| bucket | C3604 brass alloy, electroplated nickel 60-80u", electroplated gold 1-3u"(Customized 1-100u") |
| spring | Stainless steel SUS304(custom made) |
| elasticity | custom made |
| housing | PA46+30% glass fiber, PA9T, HTN, LCP (halogen-free material, fire protection grade UL94V-0)(custom made) |
| cap | liquid crystal polymer(custom made) |
| parameter: | |
| Continuous working current 2A(Customized 0.5~50A) | |
| Working voltage: less than 12-36V@25℃(custom made) | |
| Working impedance: <30mΩ | |
| Working temperature: -40℃-+85℃ 90%RHMax | |
| Work flexibility: 120gf/PIN+-20%(Customized 20-600GF) | |
| Service life: >20,000 times | |
| Storage temperature: -40℃-+85℃ 90%RHMax | |
|
|
|
