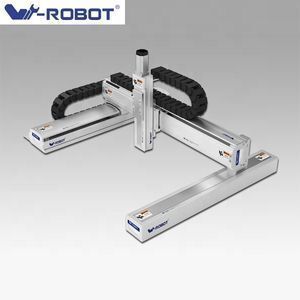

linear actuator for gantry three axis robot arm with ball screw drive
-
Supplier: Shenzhen William Automation Equipment Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Candy Ho -
Price: $600.00 /unit -
Min. Order: 1 unit
Product details
| Dimension(L*W*H): | 1056mm; | After-sales Service Provided: | Video technical support; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Package Type: | Wooden case & Carton boxes; |
| Body dimension: | 1056mm *140mm*88mm; | Single package size: | 100X40X30 cm; |
| Travelling stroke: | 600mm; | Selling Units: | Single item; |
| Single gross weight: | 36 KG; | Package Preview: | https://sc01.alicdn.com/kf/H4d0986fa76b94f0dbc9ff1551c4cbea5r.jpg_640x640.jpg; |
| Brand Name: | W-ROBOT; | Power(W): | 220V; |
| Brand name: | W-robot; | Ball screw lead pitch: | 20mm; |
| Coupling: | 19*12mm; | Driven System: | Servo Motor; |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,parts testing; | Place of Origin: | Guangdong China (Mainland); |
| Max speed: | 1000mm/s; | Linear Slide Rail: | 20*15.5--- 2 pcs; |
| Condition: | New; | Weight: | 18.8kg; |
| Horizonal Travel(mm): | 600mm; | Certification: | ISO9001:2008 CE; |
| Vertical Travel(mm): | 350mm; | Package: | Standard wooden case & Carton boxes; |
| Warranty: | 1 Year; |
Product Description

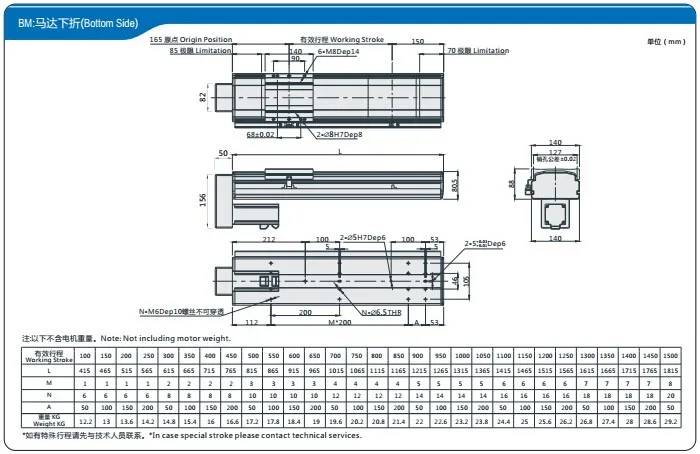

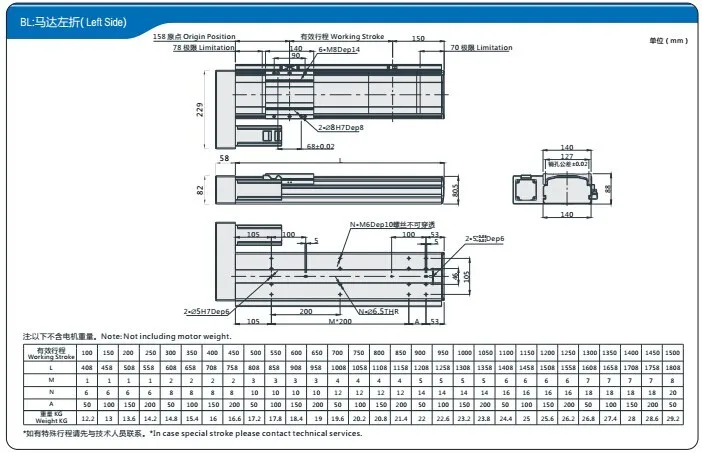

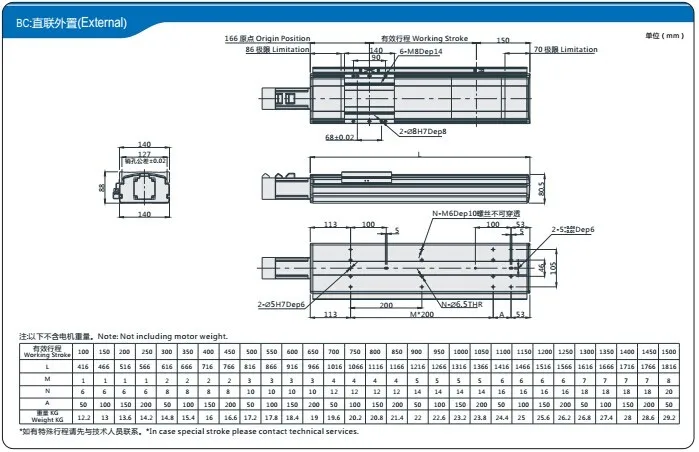

Detailed Images

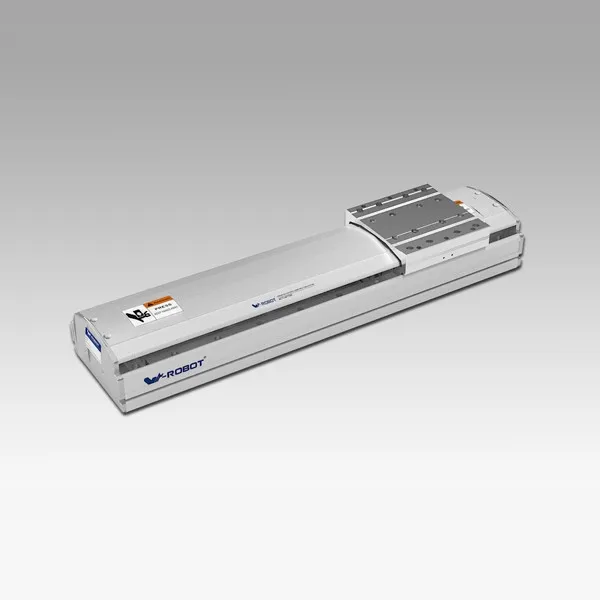

- Axis Module is designed of variety stroke and widenth for your selection.

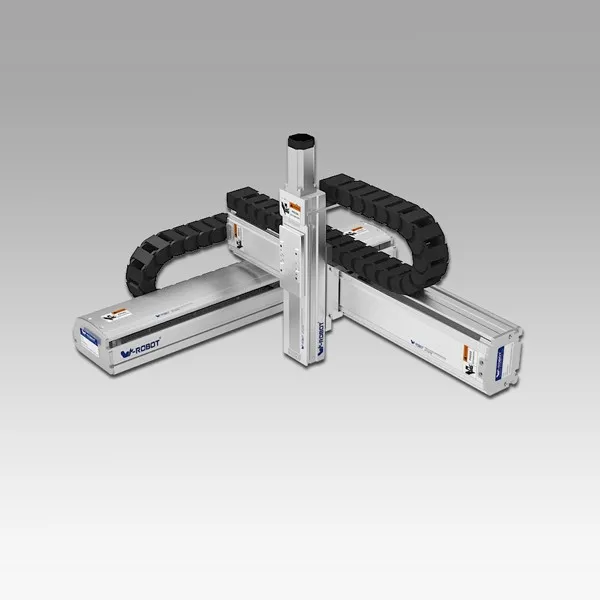

W-robot semi-closed automatic cantilever 3 aixs

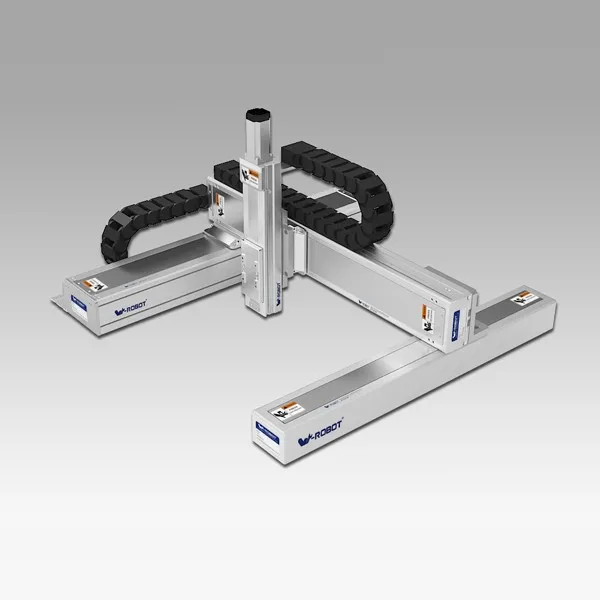

W-robot semi-closed automatic gantry type with 3 aixs
Specification
AC(W)Motor power 400W/750W/1000W
Ball screw Φ 25 (C7 Grade )
Repeat ability ±0.02mm
Ball screw lead 5mm 10mm 16mm
Maximum speed 500mm/s 1250mm/s
Max payloa 45/55/65kg 32/45/54kg 16/20/25kg
Rated trust 2100N 1050N 420N
Linear guide rail 23*18mm -- 2 pcs
Coupling 14*15mm 16*15mm 19*15mm
Motor output 400w 750w
Home sensor Outside EE-SX672(NPN) EE-SX672(PNP)
Outside guide EE-SX672(NPN) EE-SX672(PNP)
Packing & Delivery
