TQSF stone removal machinery wheat corn rice flour mill stone removal gravity separator

Supplier: Luohe Wanyi Grain Machinery Co., Ltd.
Region: Henan, China
Contact: Ms SOPHIA JIA
Price: $1350.00 / 1 - 4 sets
$1150.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Place of origin:	Henan, China	capacity:	1~20 tons per hour
application:	Remove stones and other impurities	port:	Qingdao Shangtai Tianjin Port
Function:	Stone removal machine Stone removal machine	strength:	0.25x2kw
Showroom location:	not any	Mechanical test report:	if
Name:	Grain seed destoner for cleaning	Marketing type:	2020 new products
Certification:	European Standardization Committee/International Organization for Standardization	brand:	just in case
Main selling points:	High productivity	Video outbound inspection:	if

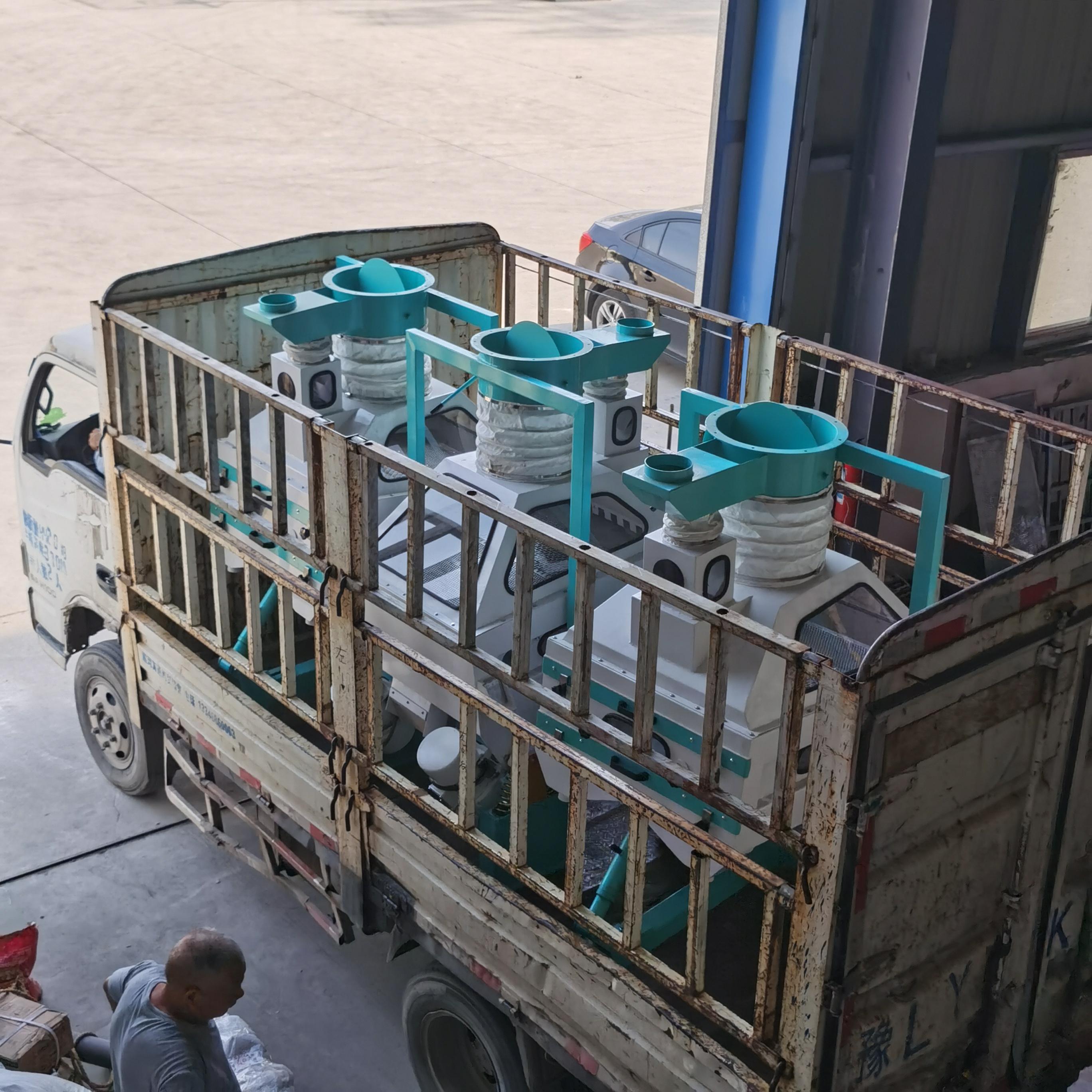

Core components:	engine	Packaging details:	Plastic pallets for gravity destoner container loading, or upon request. Gravity destoner export standard airworthy plywood box
Post-warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	product name:	Soybean and sesame rice destoning machine Coffee destoning machine
Local service location:	not any	Warranty:	1 year
Core component warranty:	1 year	Supply capacity:	100 sets per month
Package preview:		use:	washing machine
raw material:	wheat corn corn rice sesame	After-sales service provided:	On-site installation, commissioning and training
type:	gravity separator	Advantage:	higher efficiency
use:	stone separator	place of use:	Flour mills, seed cleaning plants, feed, coffee cocoa, malt plants
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Health status:	new
Applicable industries:	Food and Beverage Plants, Farms, Restaurants, Household Use, Retail, Food Stores, Energy and Mining, Food and Beverage Stores, Flour Mills

Product Description

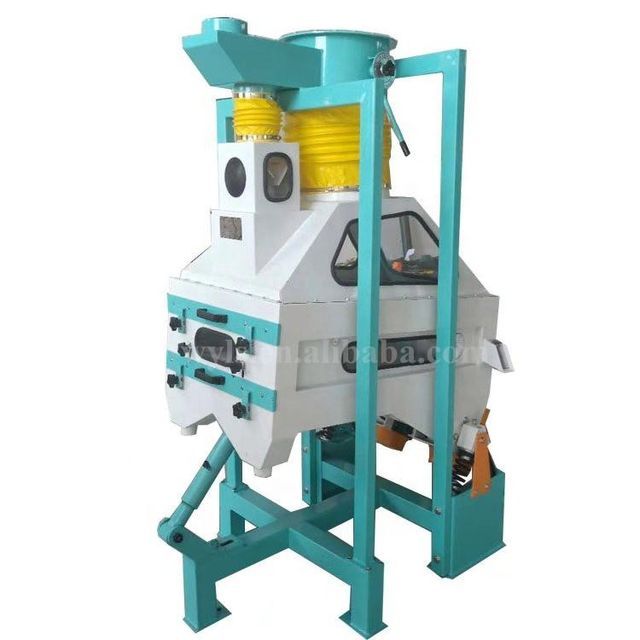

TQSF stone removal machinery wheat corn rice flour mill stone removal gravity separator

The TQSF series gravity grading destoning machine is mainly used for grading and destoning corn, wheat, rice, sesame, peanuts, corn, soybeans, etc., and can also be used for seed selection. This machine has the characteristics of graded stone cleaning, sand cleaning, low energy consumption, no dust, low noise, and easy operation and maintenance. Used in conjunction with an independent ventilation system, the effect is better.

main feature
1. The stone removal efficiency is high. The stone removal screen plate has a fish scale structure and is suitable for grain processing plants where the raw grain contains high stone content.
2. Simple operation and compact structure.
3. For different materials, the angle of the stone slab is adjusted within the range of 10 to 14 degrees to achieve the best stone removal process effect.

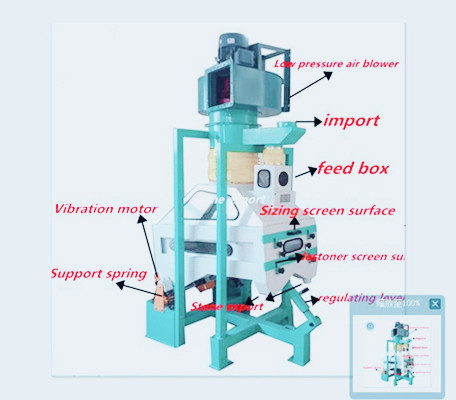

Structure and working principle
The main working mechanism of the gravity classification stone remover is a parallel screen surface, with two layers installed on the same screen surface.
Screen body. The motion of the screen body is similar to that of a suction destoner.
The upper screen surface is the classification screen surface, which is composed of pre-classification section and segmentation section.

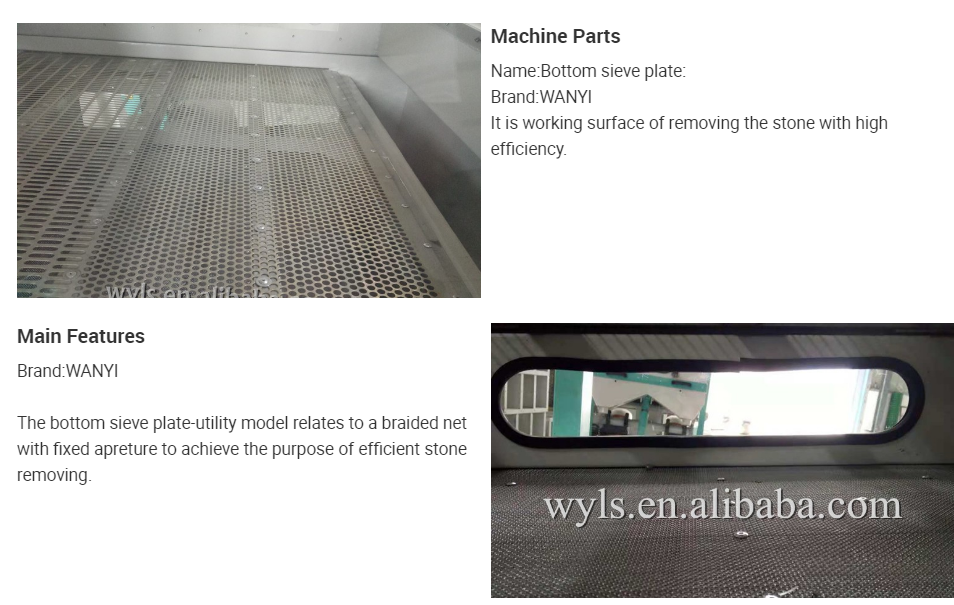

The second screen surface is a stone removal surface, using a steel wire mesh with a hole diameter of 1 mm to bear the role of heavy objects.

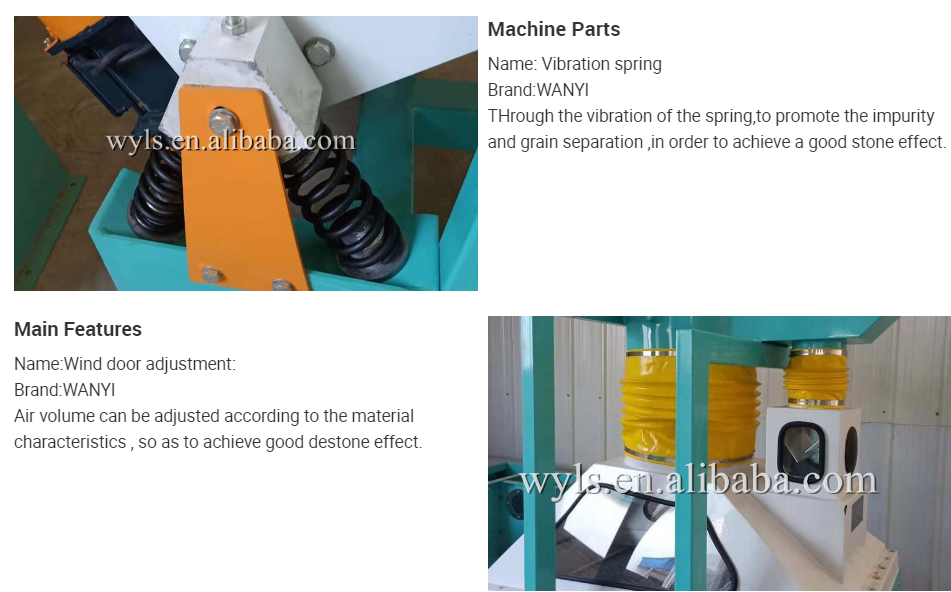

The particles fall and the stone removal is completed through vibration and air flow. The wheat flows into the gravity outlet along the gravity outlet.
Screen.

Size Information

Model	Screen width (mm)	Weight (kg)	Air volume (m^{3 hours})	Power (kW)	Production capacity(t/h)	Dimensions (mm)
TQSF63	630	280	4500	0.25*2	1-3	14508801800
TQSF80	800	340	6000	0.25*2	3-5	145010801800
TQSF100	1000	400	8000	0.25*2	5-8	150012801800
TQSF125	1250	500	10200	0.25*2	8-12	150015301900
TQSF150	1500	610	12000	0.25*2	12-18th	150017801920
TQSX100*2	1000				0.25*2	8-12	168013021950
TQSX120*2	1200				0.25*2	10-16 days	168015281950
TQSX150*2	1500					0.37*2	15-20 days	168018281950

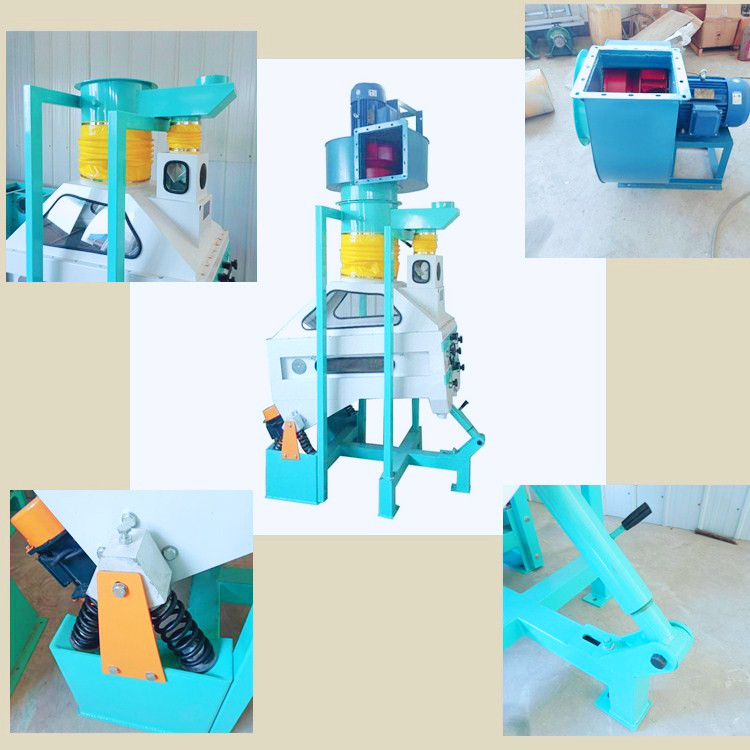

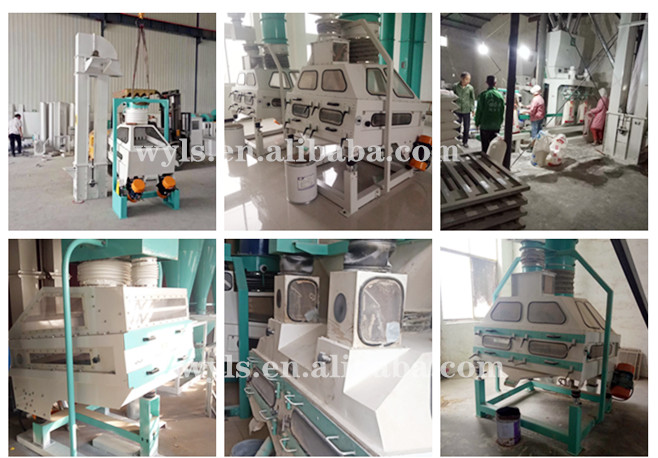

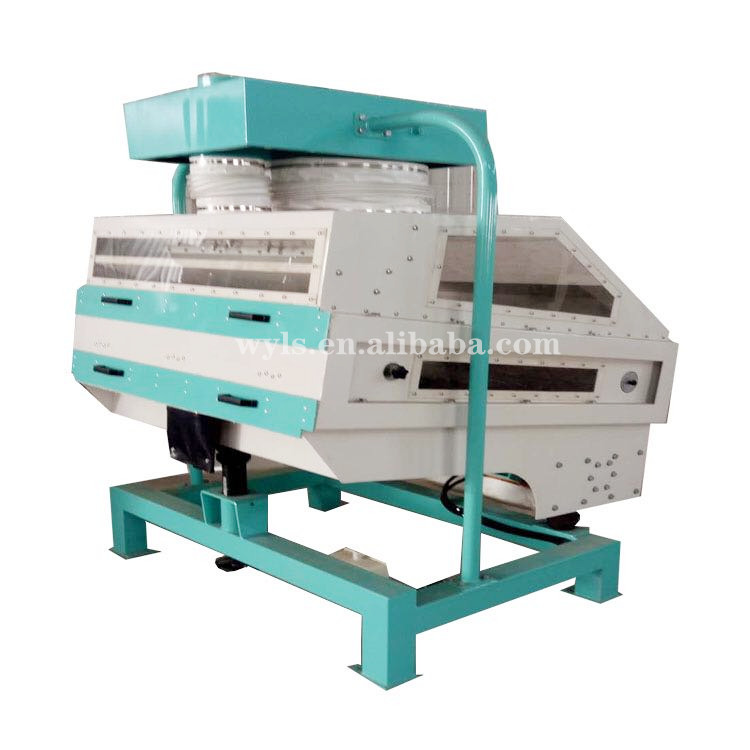

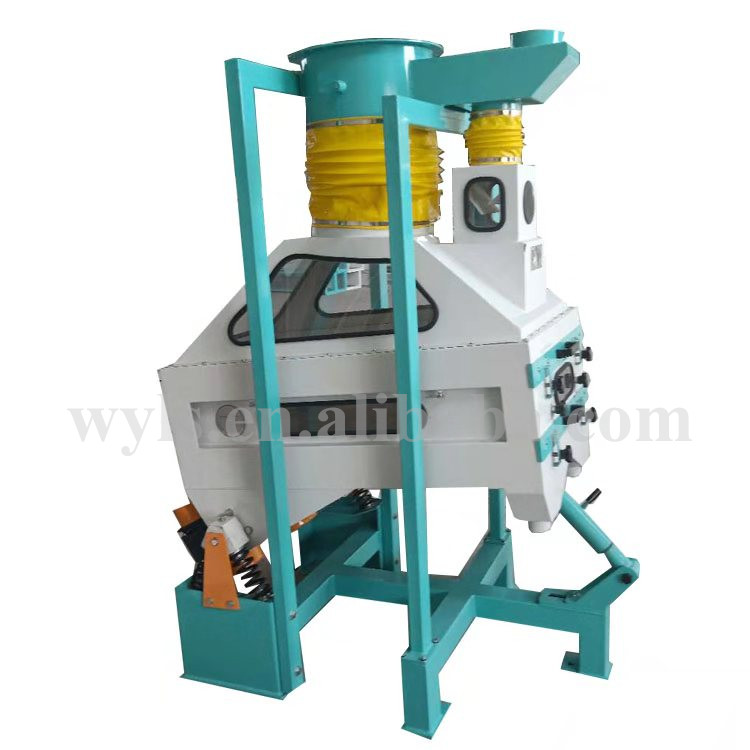

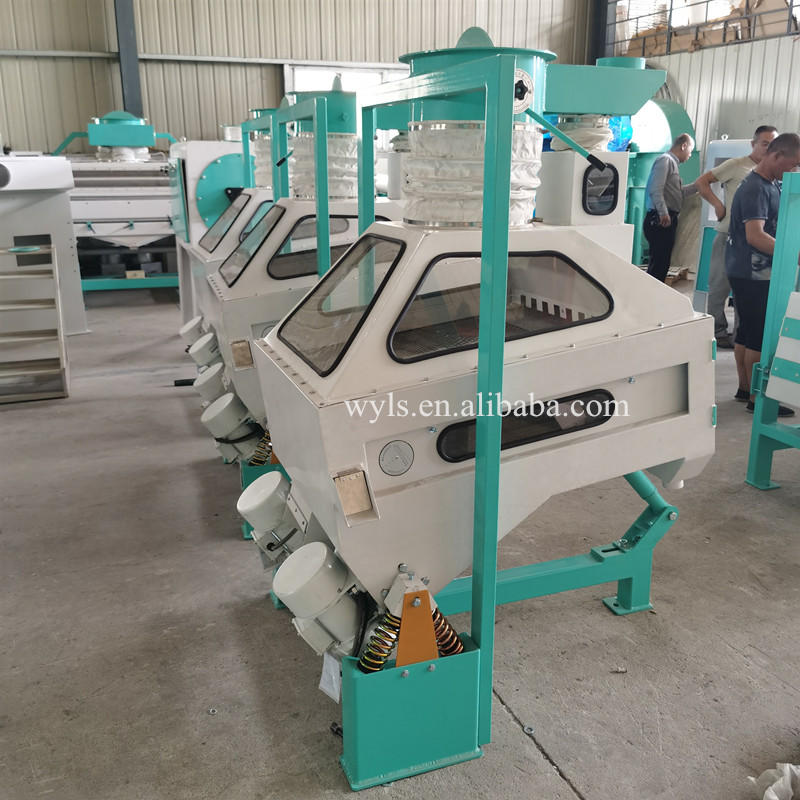

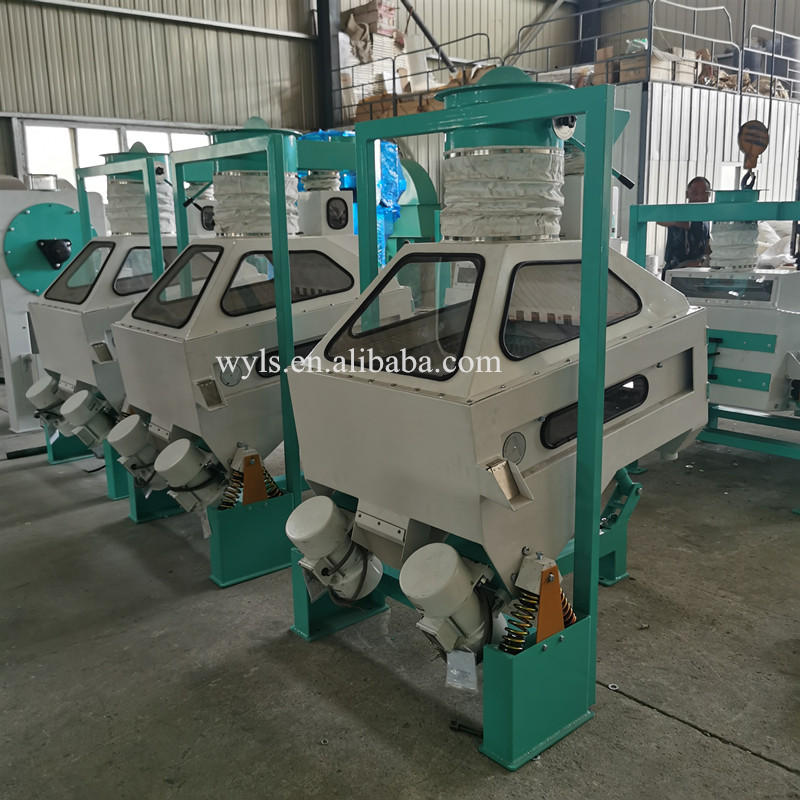

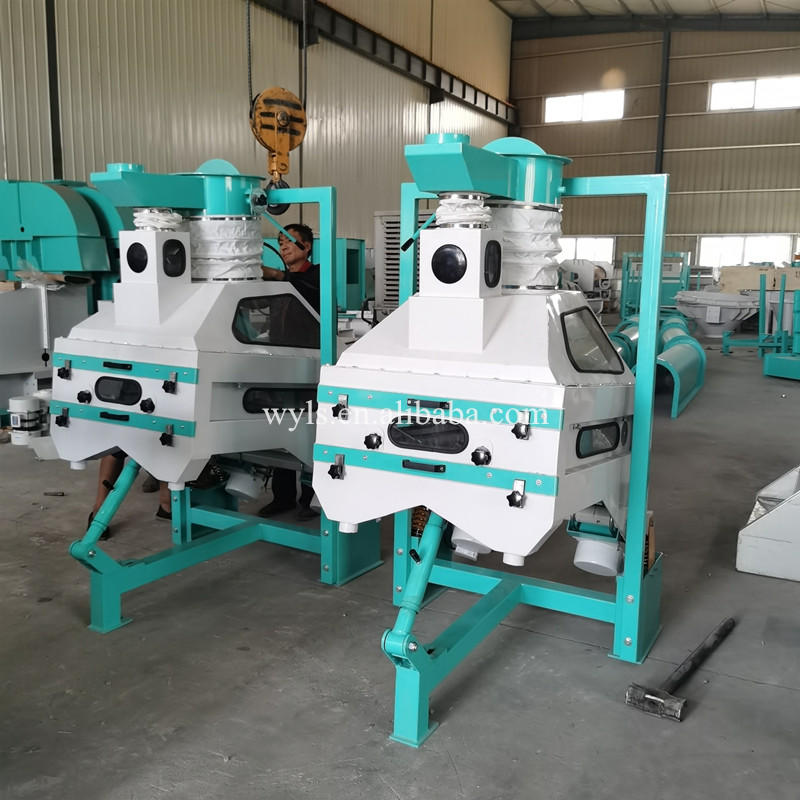

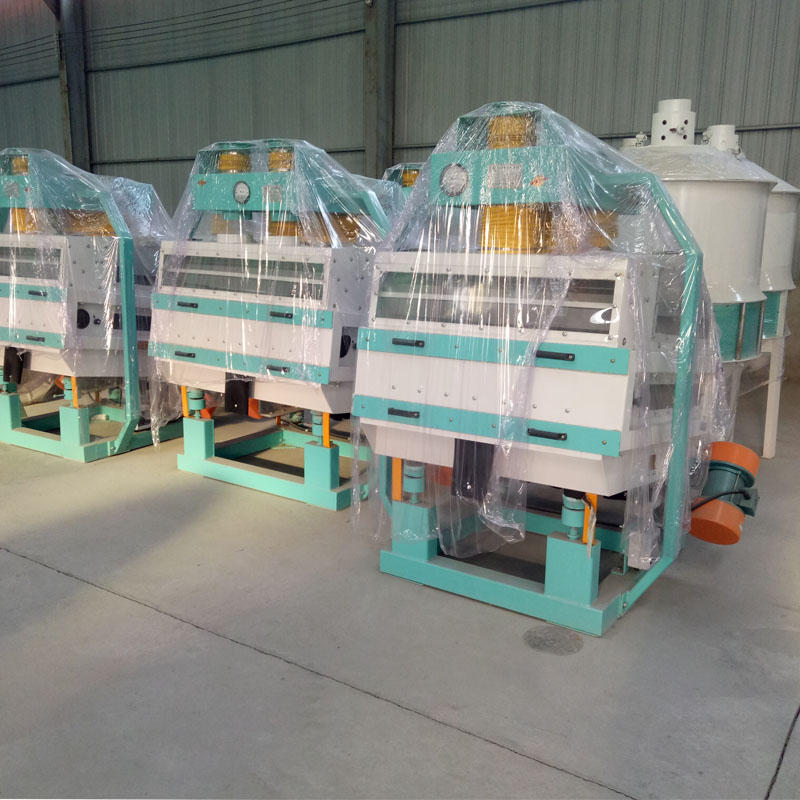

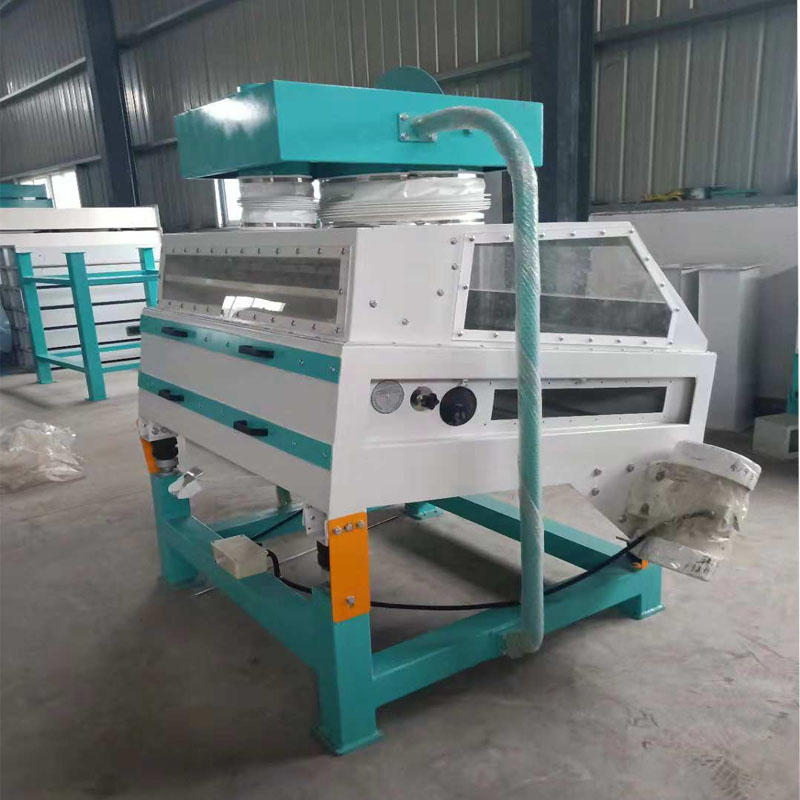

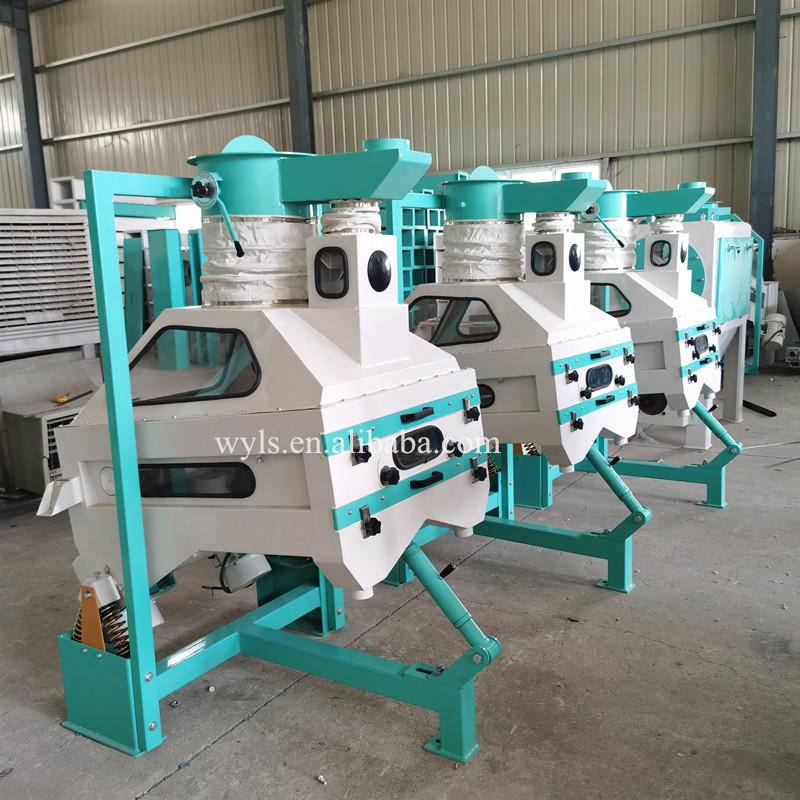

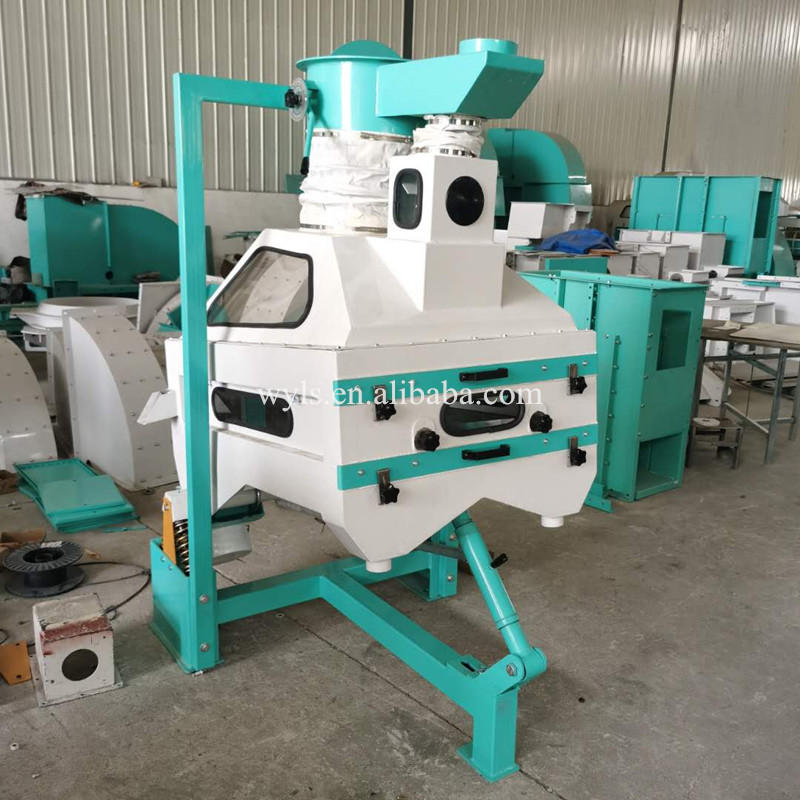

detailed image

Application areas
TQSF TQSX series stone removal machines are widely used in the grinding industry
-- Grain mill
-Semolina mill
- Milling Machine
- Equipment for cleaning grains and plant seeds
Feeding -
-- Malt, oat and sorghum plants
- Processing of coffee beans, cocoa beans, etc.
