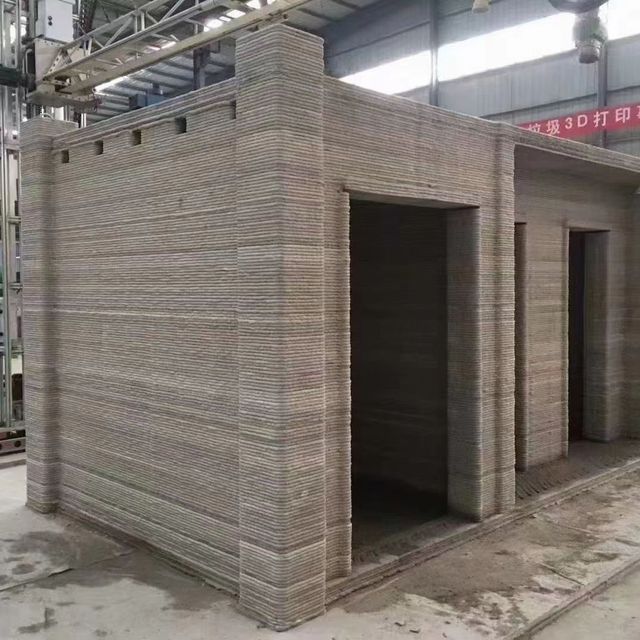

Advanced 3D concrete house printer for construction

model.

TKH-2

Machine size (meters)

2.5×3×3

Molding size (meters)

2×2×2

XY positioning accuracy (mm)

1

Z-axis positioning accuracy (mm)

0.5

extruder

single

Minimum printing thickness (mm)

5

Maximum printing speed (mm/sec)

300

Extruder diameter (mm)

10/20/30/40

Consumable type

Generally 325 and above
high performance cement

computer

i7-
7700T/256SSD/GTX1080/Full HD

PLC (point)

Omron 40+24

Servo motor (part)

6

voltage

110V/220V/380V

Model type

stl/obj/3ds/ply/3mf

Model size (meters)

unlimited

Edit function

Move/Rotate/Mirror/
Zoom/Cut

Slicing function

Support material can be used for filling,
Supports can be filled concentrically

Slicing speed

extremely high speed

Preview function

Display full/single layer display/range display

Print function

Pause/break points precisely positioned/continued Main and support materials available in different diameters.

Functional advantages

Batch application verification: mature equipment and stable operation
Advanced flow field design: greatly improves molding quality
Dual laser scanning, two-way intelligent powder feeding: greatly improves efficiency.
Backwash filtration system: filter element life is up to 1500H
Oxygen sensor redundant settings: multi-layer protection, key parameters are not distorted
Personnel isolation throughout the process: Strengthening personnel occupational health protection
PROFINET bus: fast communication, precise synchronization

Support function

Self-developed materials
