full Automatic bath oil beads capsule bottle filling production line

Supplier: Guangzhou Union Packing Co., Ltd.
Region: Guangdong, China
Contact: Ms Joyce Lung
Price: $46100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Huangpu;	Type:	Other;
Weight:	1450kg;	Supply Ability:	500 Set/Sets per Year bottle filling production line;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Dimension(LWH):	15404701800mm;	Brand Name:	union packing;
Type:	Other;	Application:	Commodity,Food,Medical;
Voltage:	220V/380V;	Power:	10kw;
Name:	bottle filling production line;	Payment Terms:	T/T,Western Union,MoneyGram;
Packaging Detail:	lubricate oil+shrink film+plastic bag+wooden case;	Place of Origin:	Guangdong China (Mainland);
Automatic Grade:	Automatic;	Packaging Material:	Glass,Plastic;
Driven Type:	Electric;	Packaging Type:	Bottles,Cans;
Certification:	CE ISO;

Product Description

Product Description

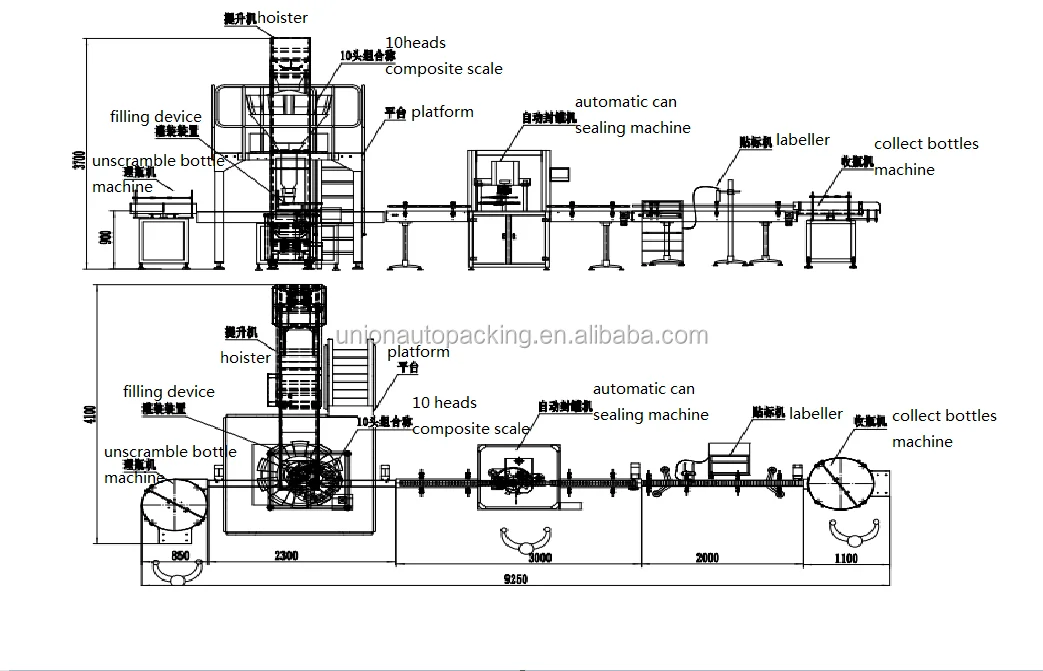

process:Automatic bottling machine - rotary disc filling and feeding device - can seal - dustproof cover - automatic revolving cover machine

Technical parameters:
1,Product specifications:400 grams of filling materials such as oats, round plastic can, diameter 99mm,PET plastic can;
2,Overall production capacity:product packaging speed:30-40 cans/min (1200-2400 cans/hour)
3,Measurement accuracy: ±1~3.5g plus or minu 1~3.5g
4,Air consumption of compressed air: about 0.25 cubic meters/min 0.6-0.7Mpa(User's own) 5,Total power: about 10KW

Details

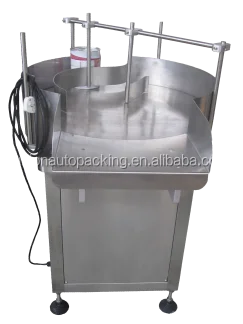

1,Fully automatic bottle trimmer

Appearance material:304 stainless steel
Wheel diameter:800mm
Richard tank capacity:80 Cans/min
power supply:220V 50Hz
power:0.18KW
Dimensions:1000*800*1200mm
Function:Guide the tank into the conveyor belt

2,Fully automatic weighing and filling machine for 10 heads

model:DLA10
Weighing scale:10-1000g
weighing accuracy:±0.5-2g
Maximum weighing speed:30cans/min
Hopper capacity:1.6L/2.5L
drive mode:stepper motor
Optional equipment:Hopper/printing device/differential selector/rotatable main vibrator
Operation interface:7Inch touch screen
power source specification:220V / 1000W / 50'60 HZ / 10A
package size(mm):1620(L)×1100(W)×1100(H)
Package weight(kg):420KG

3,Feeding and filling device (discharging device)

Controller:PLCmitsubishi PLC touch screen: 7 inch kunlun pass Conveyor belt:2m Cylinder:adeke Electric eye:otto nix
prestissimo :45/Cans/min
power source specification:220V/200W/50HZ

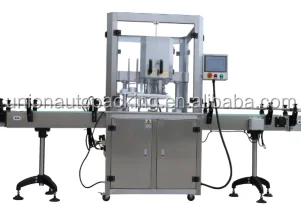

4,Automatic high speed can sealing machine

Material: stainless steel
Canned goods:1
Sealing speed:30~50cans/min
Sealing height:50-300mmadjustable roller material:chrome steel
Applicable bottle type diameter:35-100mm(8 leves);100-130mm(6stations)PLC:Japan mitsubishi touch screen:kunlun tongtai
Voltage:380V 50/60Hz
power:1.1KW
weight:500KG
size:3000(L)*900(W)*1800(H)mm

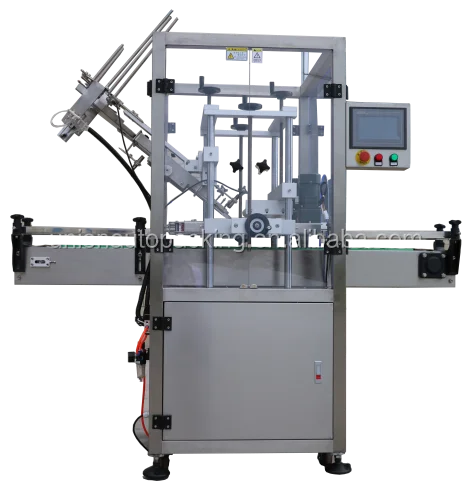

5,Fully automatic lid pressing machine (lid locking machine)

Capping speed:50-60 cans/min
Applicable specifications:40-130mm
PLC: Mitsubishi, Japanese mitsubishi touch screen:7-inch kunlun pass
power supply: 220V/50Hz power:120W
Overall size:1540*470*1800mm

6,Automatic double-sided labeling machine

Labeling speed:5-30m/min;
Labeling accuracy:±1mm(plane)±1.5mm(cambered surface);
voltage:220V/50Hz;
power:2.1KW;
Conveyor width:82.6mm wide POM chain strip
Transmission motor:370W frequency conversion speed regulating motor;
Program control:touch screen interface imported;
Inner diameter of paper roll:76mm; Outer diameter of paper roll:max300mm

7,Fully automatic bottle trimmer

Appearance material:304 stainless steel
Wheel diameter:800mm
Capacity:80 Cans/min
power supply:220V 50Hz
power:0.18KW
Dimensions:1000*800*1200mm
Function:guide the tank into the conveyor belt
