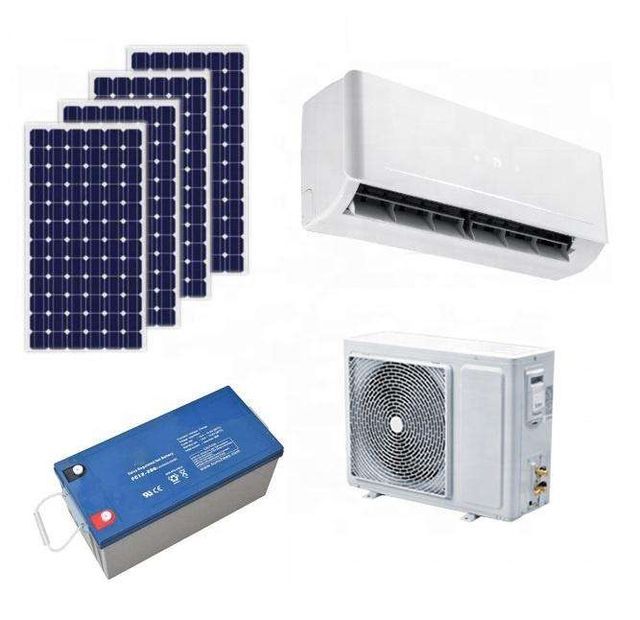

Direct PV ACDC Solar Air Conditioner Renewable Energy Hybrid Air Conditioning Heat Pump Solar Panel System

The Fridy Recreate range of hybrid solar air conditioners are designed for solar use. All electrical components
It adopts DC power supply, including DC compressor, high-efficiency DC fan motor, DC valve and solenoid valve, etc. The air conditioning system uses a VRF (Variable Refrigerant Flow) controller and frequency driver, combined with multiple sensors and an algorithmic control circuit to raise and lower the capacity of the device as conditions change in real time. The hybrid solar air conditioner adopts solar direct drive technology (SDDA), so the air conditioning unit can use AC and DC power simultaneously or independently.

grid power

The air-conditioning unit at night is powered by the power grid and operates according to the principle of ordinary air-conditioning, with SEER above 22.

Grid and Solar

When sunlight is weak, such as in the morning or on cloudy days. The air conditioning units give priority to solar energy, and the insufficient power is taken from the grid.

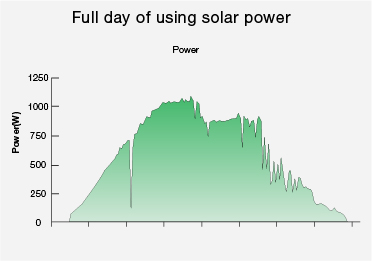

100% solar

When the solar energy meets the minimum operating requirements of the compressor, the air conditioning unit can start and run only on solar energy, or even the grid
leave. 100% energy saving.

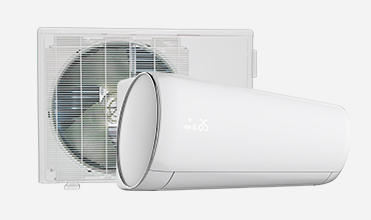

Air conditioning units.

>ACDC hybrid indoor unit usable capacity 9k, 12k, 18k, 24k, 36KBtu; digital display
>ACDC hybrid outdoor unit AC input 180~240V 50/60HZ; R410A;
Low noise 53~60dB
>Full DC inverter air conditioning unit;
>Environmental protection R410A

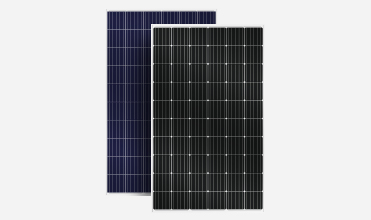

Solar panels.

Peak Power Wattage: 400W
Maximum supply voltage: 30.82V
Maximum power current: 12.98A
Open circuit voltage: 36.94V
Short circuit current: 13.6A
Dimensions: 1722×1134×30mm
Weight: 18.6 kg

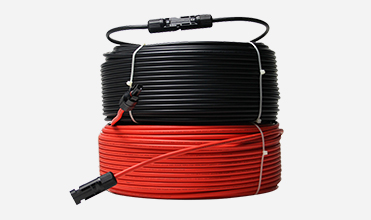

DC cable and MC4 connector.

Cross section: 4mm², 6 mm²Elective
Rated voltage: 600VDC(UL)/1000VDC(TUV)
Rated current: 55A, 70A
Color: Black for STD, red optional.
Lifespan: ≤25 years

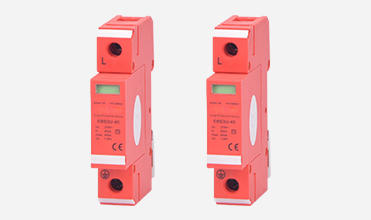

lightning arrester.

PC40-85V DC

Fuse protection.

RT28N-32X 1P

DC circuit breaker.

DC800V 2P 20A
