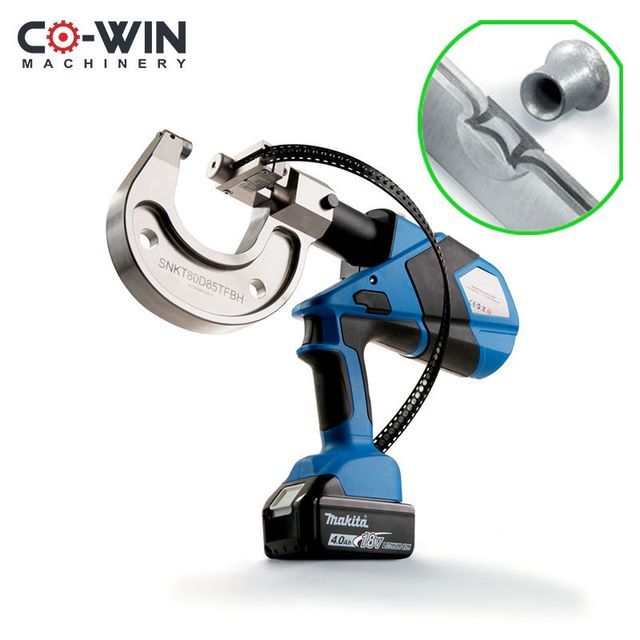

Battery SPR hand-held car aluminum alloy electric gun tool riveting machine self-piercing riveting tool

Supplier: Dongguan Co-Win Machinery Eqiupment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mintier Deng
Price: $2720.00 / 1 - 2 sets
$2680.00 / 3 - 4 sets
$2490.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE/ROHS	Working noise:	Working noise: 73dB
Full charge time:	1 hour	feature:	Rechargeable and Portable
brand:	win-win	Showroom location:	Italy, Germany
Core components:	Bearings, motors	Main selling points:	easy to operate
Marketing Type:	New Products for 2022	port:	Shenzhen
application:	Sheet metal industry	Work schedule:	35 mm
Core component warranty:	1.5 years	product name:	Rivet pliers
Power (kW):	0.02	Applicable industries:	Construction material stores, machinery repair shops, manufacturing plants, construction works, energy and mining, advertising agencies
staff member:	20-50KN	Energy source:	electro-hydraulic, mechanical
Health status:	new	Supply capacity:	200 sets per month
Mechanical test report:	if	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Packaging Details:	Plywood box packing	weight:	4 kg
Warranty:	1.5 years	Origin:	Guangdong, China
Video outbound inspection:	if	Package preview:
Weight (kg):	12

Product Description

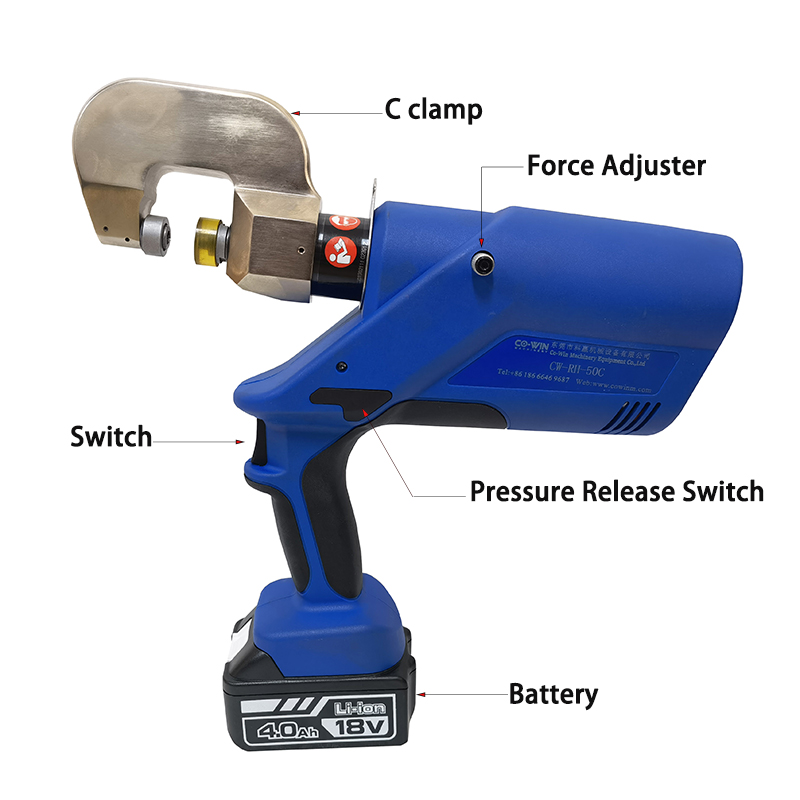

Technical Features:

1. According to the size of the rivet and the strength requirements of the riveted material, the riveting force is extremely adjustable, and can be used for riveting, filling, punching and plugging, plate flattening, riveting, etc. 2. Quick quilting has a stop function. Release the button during the riveting process, the tool temporarily pauses and can be restarted. The safety valve can be released automatically or manually after reaching a certain pressure, and the working stroke can be precisely adjusted. 3. Ergonomically designed non-slip handle, 360° free rotating pliers body is suitable for various angle applications. 4. Microcomputer control system, automatic riveting process realizes pressure detection and double safety protection. 5. The high-performance lithium-ion battery provides a stronger power source, has a low-battery reminder function, and has no discharge memory effect. 6. Tools can be used to remove rivets

No	thing	Specification
1	driving mode	Electro-hydraulic
2	pressure	30~60Kn (adjustable)
3	stroke	35 mm
4	engine	18V DC
5	strength	AC 100V-240V 50-60HZ
6	charging time	1 hour
7	Each riveting time	3~5 seconds/time
8	Working time/full charge	200~350 times
9	weight/set	4 kg
10	noise	75 decibels

detailed image

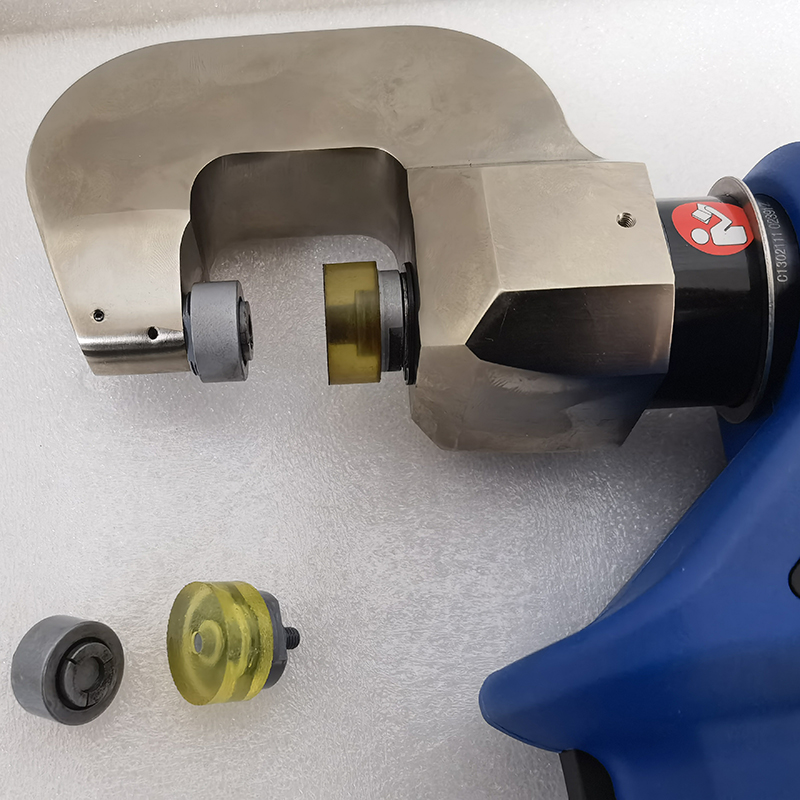

Type C tweezers

C-shaped pliers with different throat depths can be replaced, and the standard throat depth is 35mm/140mm/200mm. The mold is easy to replace.

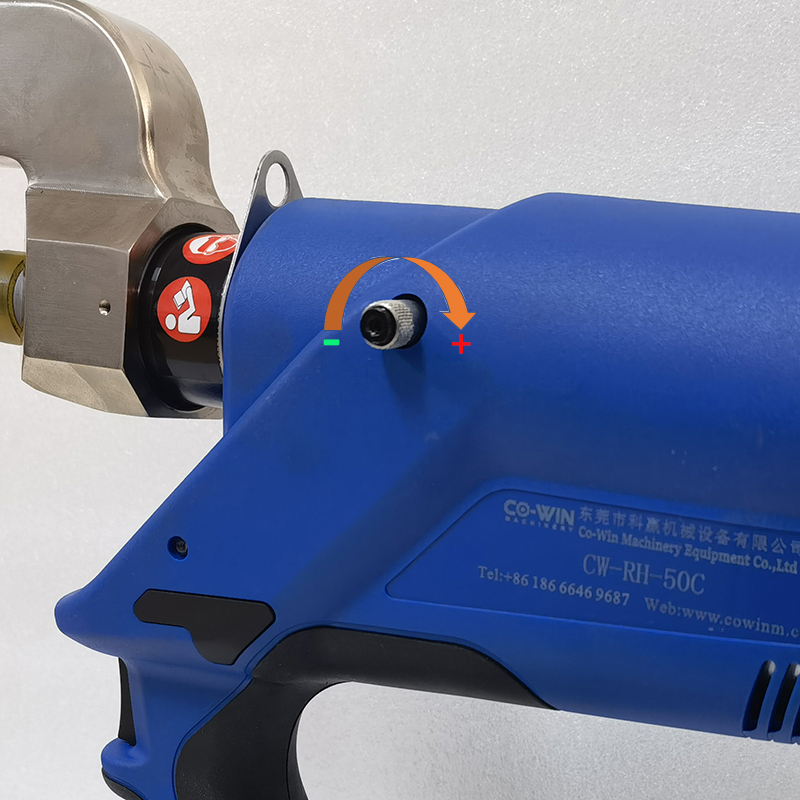

Adjustable working force of riveting gun

The working force of CO-WIN riveting gun can be adjusted between 30kn and 60kn. For different connection materials and different thicknesses, we can choose different forces to ensure the riveting quality

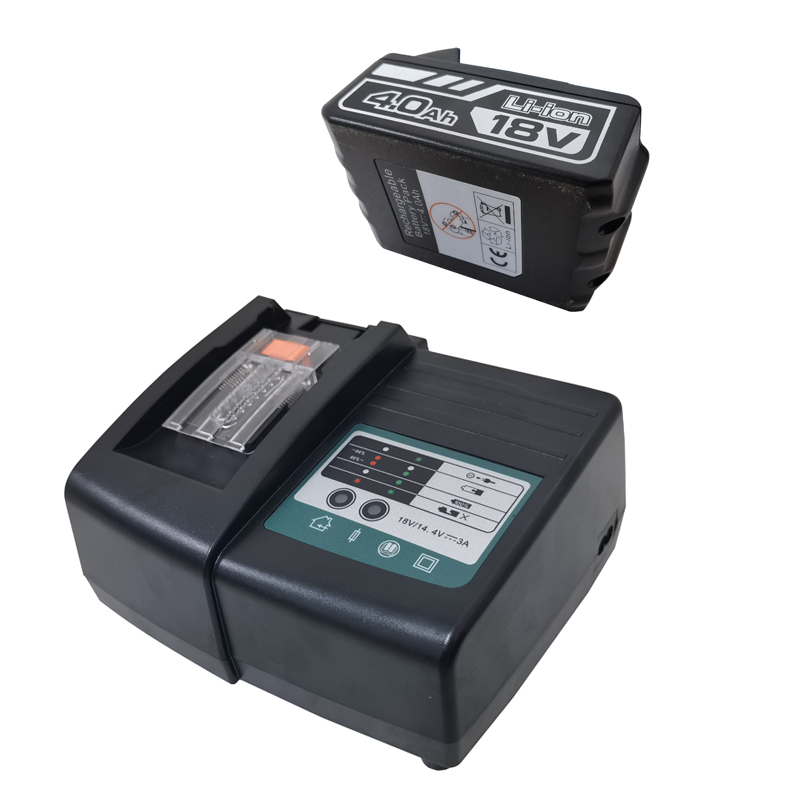

Battery

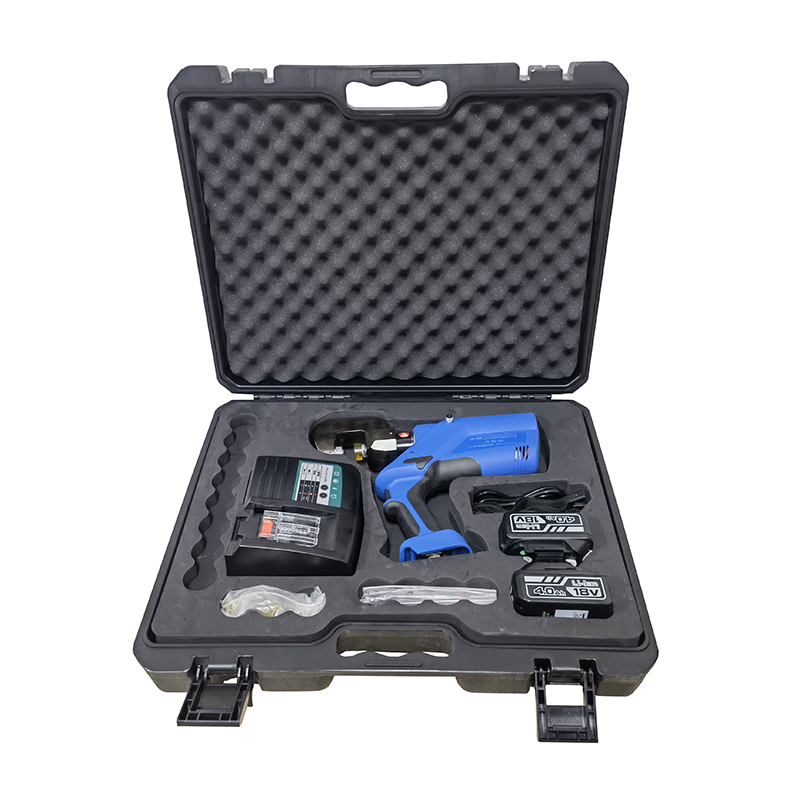

The CO-WIN riveting gun is cordless and rechargeable. It comes with two lithium batteries and a charger. No air power, no power supply, low battery reminder function, no discharge memory effect, is the perfect solution for outdoor production.

application

Riveting equipment for HVAC, construction, automotive, application, electronics, sheet metal and general industries, customers need different riveting arms for different workpieces and different working conditions. Our experienced technical team is ready to custom design for you to meet your special needs. If you have any project and need riveting gun with custom arm, you are welcome to contact us.
