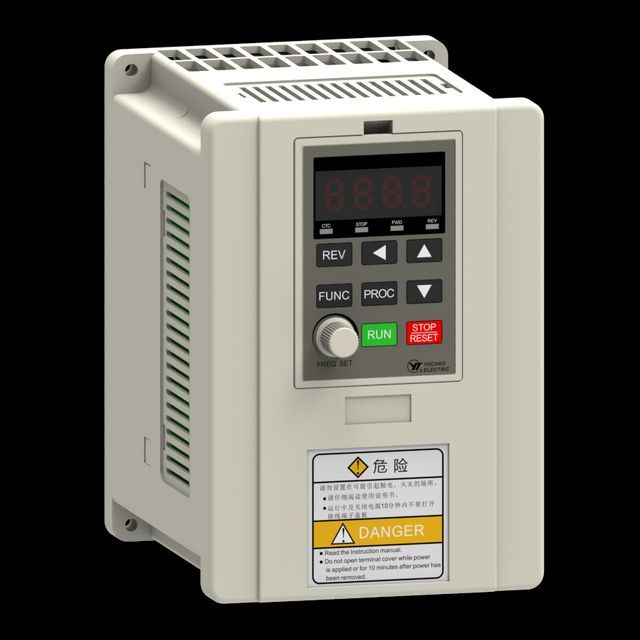

YATAI YTB-S5A (S5c) -1.5~2.2 KW inverter

Supplier: Shanghai Yatai Instrumentation Co., Ltd.
Region: Shanghai, China
Contact: Mr Kangyan Li
Price: $128.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		Supply capacity:	10000 pieces per month
Packaging Details:	English neutral carton	payment terms:	L/C, Western Union, T/T
Origin:	China Shanghai	Acceleration and deceleration time:	0.1-6550.0 seconds
cooling method:	Air-cooled/self-cooled (below 0.4kW)	model:	YTB
port:	Shanghai	Overload capacity:	150%, 60 seconds
brand:	Acet/Yatai

Summary:

This product is the latest upgraded version improved by our company on the basis of YTB-S5A/T5a. It not only adds many new control functions and derived varieties, but also improves the performance, reliability and service life of the product in an all-round way. The application is more extensive, flexible and practical.

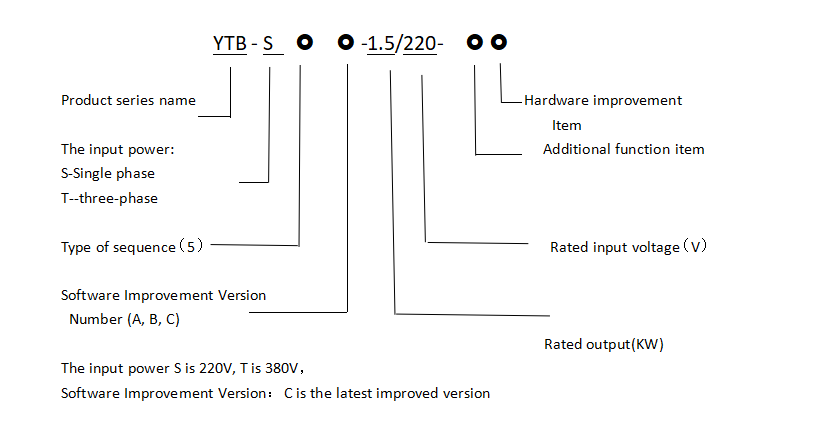

Model Specifications:

Additional function item definition:

A ------ no brake unit (general purpose≤5.5kw standard with brake unit):

C-----with 485 communication

D----dust type

FH----special textile flat machine

P-----Fan pump type (light load) LT-----Special winch

Z------heavy load type

L------simple model

Hardware Improvements (None, 1, 2...): Sort by Hardware Improvements (this does not apply to existing structures)

rated power(kilowatt)

Rated current (A)

S5 series

(single

stage

220V)

0.2

1.6

0.4

2.5

0.75

5.0

1.5

7.0

2.2

T5 series

(three-phase 380V)

0.75

2.5

1.5

4.2

2.2

5.0

3.7

8.5

5.5

Input Power Requirements

1Φ 220VAC, 3Φ 380VAC 48~62Hz

control function

Frequency Range

0.5-400.00HZ

use environment

Altitude/Vibration

Below 1000 meters, vibration below 0.5G

frequency setting

Button, external potentiometer, analog voltage current, external

Operating potentiometer

phosphoruslace

No corrosive gas, no conductive dust, good ventilation

Modulation

SVPWM

temperature humidity

-10°C-+40°C, relative humidity below 90%, no frost

carrier frequency

Regenerative braking, dynamic braking

overload capacity

150%, 60 seconds

Acceleration and deceleration time

0.1-6550.0 seconds

cooling method

Air-cooled/self-cooled (below 0.4kW)

Protective function

Overvoltage, undervoltage, overcurrent, overload, overheat protection, stall protection, etc.

Additional features

16 segments, simple PLC, timer/counter function

our service

1. Reply to your inquiry within 24 working hours.

2. Experienced staff will answer all your questions in professional and fluent English.

3. Customizable design. OEM and ODM are welcome.

4. Our well-trained professional engineers and staff can provide our customers with exclusive and unique solutions.

5. Special discounts and sales territory protection for your distributors.

why us

1. Alibaba certified gold supplier for the 7th year.

2. Buying from us is safe and convenient.

3. We can guarantee product quality and after-sales service.

4.Supplier's Trade Assurance Limit: USD30,000

Please feel free to contact us. High quality, reasonable price, best service for you.
