Buy Discount New Original Event Universal Audio Apollo x8p Installable Thunderbolt 3 Audio Interface

  • Supplier: KV FINANDENCE LLC
  • Region: California, China
  • Contact: Mr Vincent Nguyen
  • Price: $1200.00 /set
  • Min. Order: 1 set
Click here to contact
Product details
Supply capacity:10 sets per monthOperating temperature:IDAX300: -20°C to +55°C; IDAX350: -10°C to +55°C
aspect:335 x 300 x 99 mmOrigin:USA
voltage:100 -240V ±10%, 50/60Hzport:North America, South Asia, Eastern Europe
level of accuracy:< 0.5% + 0.0001 (with VAX020)Packaging Details:Brand new in original authentic factory sealed original retail packaging with international warranty.
Display type:numbers onlyMeasuring range:0 - 10
type:Thunderbolt Audio Interfaceweight:4.9 kg, 9.9 kg (inclusive) Flight case
model:x8pbrand:Apollo
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
+

Universal Audio APOLLO X8P Specifications

connectivity
host connection 1 x USB Type-C (Thunderbolt 3)
Analog I/O 2 x 1/4" TS Hi-Z inputs
8 x Combo XLR-1/4" TRS mic/line inputs
1 x DB-25 8-channel input
2 x 1/4" TRS headphone outputs
2 x 1/4" TRS monitor outputs
1 x DB-25 8-channel output
digital input/output 1 x BNC input (word clock)
1 x BNC output (word clock)
2 TOSLINK ADAT / S/MUX / S/PDIF inputs
2 TOSLINK ADAT / S/MUX / S/PDIF outputs
MIDI input/output not any
Performance
Frequency response Headphone output:
20 Hz to 20 Hz ± 0.05 dB
High impedance input:
20 Hz to 20 Hz ±0.04 dB
Line in:
20 Hz to 20 Hz ±0.04 dB
Line out:
20 Hz to 20 Hz ±0.07dB
Microphone input:
20 Hz to 20 Hz ± 0.05 dB
Monitor output:
20 Hz to 20 Hz ±0.06 dB
Gain/Trim Range enter:
+10 to +65 dB
input level High impedance input:
+12.4 dB
Line in:
+24dB
Microphone input:
+26 dBu (with Pad)
output level Line out:
+24dB
Monitor output:
+24dB
Headphone output power 150 mW into 300 ohms
Dynamic Range output:
125 decibels
High impedance input:
121 decibels
Line in:
123 decibels
Line out:
27 decibels
Microphone input:
122 decibels
Monitor output:
129 decibels
impedance High impedance input:
1 megohm
Line in:
10 kohms
Line out:
100 ohms
Microphone input:
5.5 kohm
Monitor output:
100 ohms
word clock:
75 ohms
Total Harmonic Distortion + Noise Headphone output:
-102dB/0.0008%
High impedance input:
-111dB/0.00028%
Line in:
-113dB/0.00022%
Line out:
-119dB/0.00011%
Microphone input:
-114dB/0.0002%
Monitor output:
-118dB/0.00012%
digital audio
Sampling Rate up to 192kHz
bit depth 24 bits (AD/DA conversion)
lurking 1.1 ms at 96 kHz (input to output)
compatibility
OS Compatibility macOS 10.10
macOS 10.11
macOS 10.12
macOS 10.13
Windows 10
processor requirements Intel Core i7
storage requirements 6GB
required hardware Available Thunderbolt 3 port
Thunderbolt 3 cable (not included)
Available Thunderbolt 3 port
Thunderbolt cable (not included)
Internet connection Registration and software/driver download required
strength
AC input power 100 to 240 VAC, 50/60 Hz
AC/DC Power Adapter 12 VDC @ 6 A (included)
energy consumption 30W (typical)
72 watts (maximum)
physical
Operating temperature 32 to 104°F / 0 to 40°C
aspect 19 x 13.5 x 1.8 in / 48.3 x 34.3 x 4.5 cm (including controls and protrusions)
weight 9.0 lbs/4.1 kg

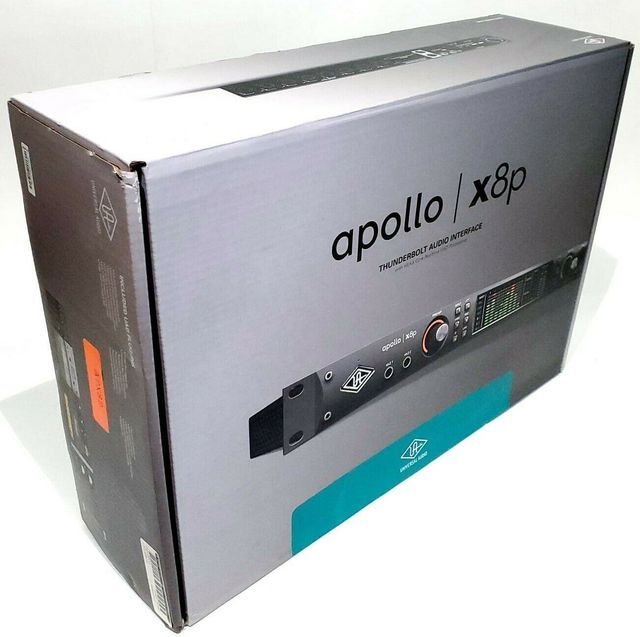

Packaging Information
package weight 17.5 lbs
Box Dimensions (LxWxH) 23.1 x 16.6 x 6.8 inches
