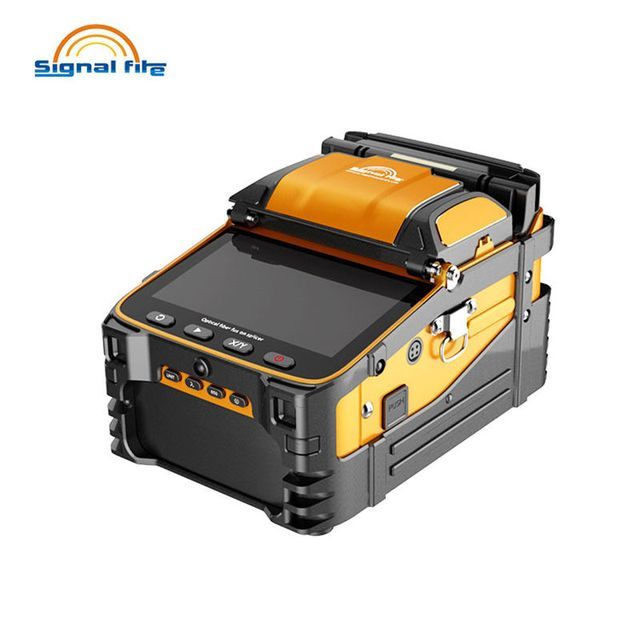

FTTH Fiber Fusion Splicer, Fiber Fusion Splicer AI-9, Built-in Power Meter and VFL

Supplier: Guangzhou Starlink Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr shinelink GZ
Price: $742.00 / 1 - 4 pieces
$740.00 / 5 - 9 pieces
$738.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Package preview:		Packaging Details:	Carton
type:	Fiber Fusion Splicer	Origin:	China
model:	AI-9	style:	Fiber Fusion Splicer
port:	Guangzhou/Shenzhen/Hong Kong	product name:	AI-9
Supply capacity:	20000 pieces per month	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
color:	orange

Product Description

Specification

Fiber Alignment	Core/Cladding Alignment/Manual Alignment
Splicing teeth	8S
heating time	18S
heating method	Automatic heating (preheating)
focus mode	Six-motor autofocus
Applicable fiber	SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655)
Splice loss	0.025dB (single-mode), 0.01dB (multi-mode) 0.04dB (DS/NZDS)
Control Technology	Fusion ARC for real-time control and calibration
return loss	Better than 60DB
Fiber diameter	Cladding diameter: 80-150μm Coating diameter: 100-1000μm
Fiber Cut Length	Coating thickness less than 250um; 8-16mm coating less than 250-1000um: 16mm
language settings	10 languages can be switched freely
Pull test	Standard 2N
Fiber support	3 in 1 Fiber Holder, Single Mode, Multi Mode, Bare Fiber, Pigtail, Rubber Insulated, Multi-Fiber Cable
enlarge	300 for X or Y view, 150 for X or Y view
Screen	5 inch TFT color display
Splicing method	Normal/High Precision Stitching
Stitched record storage	Sync to mobile phone, server to cloud storage unlimited
Built-in battery	7800mA large-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 240 times
power supply	Input AC100-240V 50/60HZ, output DC13.5V/4.8A, can identify the current power mode, and detect the battery power in real time
Operating conditions	Temperature -15～+50℃, humidity: <95%RH (no condensation) Working altitude: 0~5000m. Maximum resistance wind speed: ≤15m/s
heat shrink tubing	60mm, 50mm, 40mm, 25mm
boot time	1 second
product protection	Waterproof, dustproof, shockproof
