Flat Electroplated Diamond Grinding Wheel
- 5.00 >=100 pieces
| purpose: | gemstone processing; | Bonding Agent: | Metal; |
| Type: | Abrasive Disc; | Viscosity: | good; |
| industrial: | jewelry tools; | Supply Ability: | 1000 Piece/Pieces per Day; |
| Size: | 150x25.4x38mm; | Port: | Shenzhen; |
| Abrasive: | Diamond; | grain size: | 120#; |
| finish: | electroplating; | material: | diamond; |

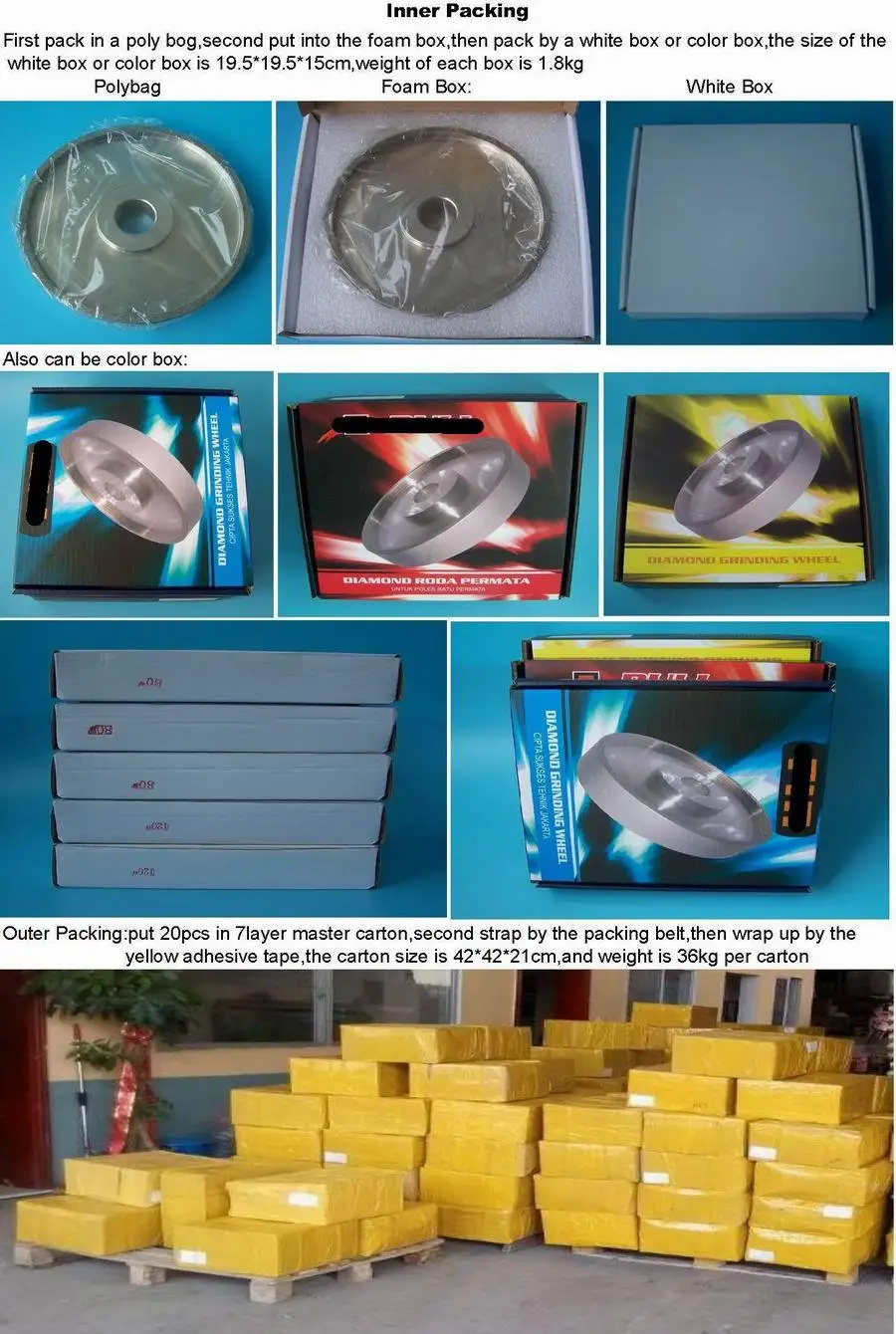

| Packaging Detail: | carton; | Place of Origin: | Guangxi China (Mainland); |
| Brand Name: | HL; | Shape: | Flat-Shaped; |
| Hardness: | hard; | Payment Terms: | L/C,T/T,Western Union,paypal; |
| Model Number: | EGW-001; |
Flat Electroplated Diamond Grinding Wheel

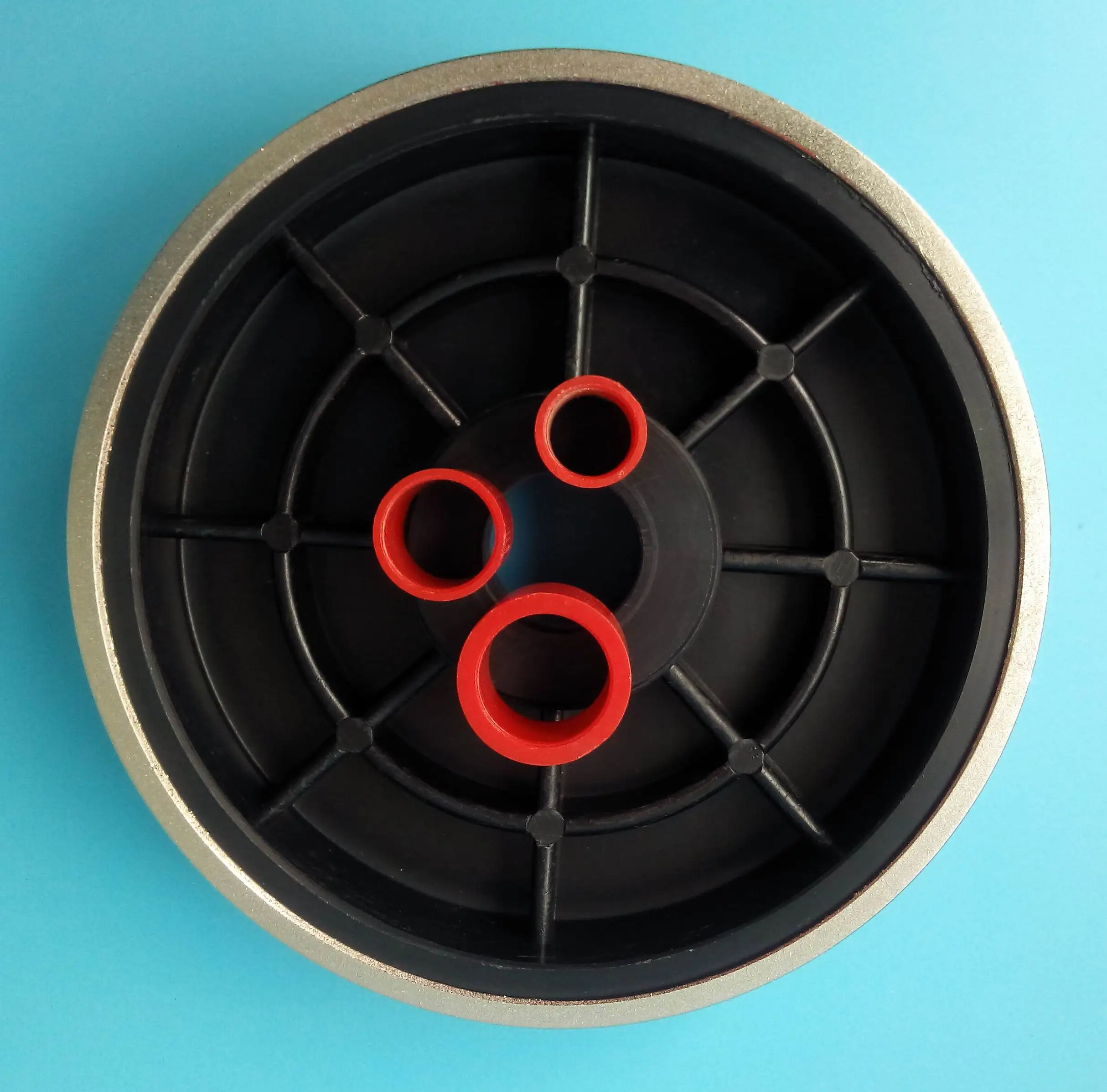

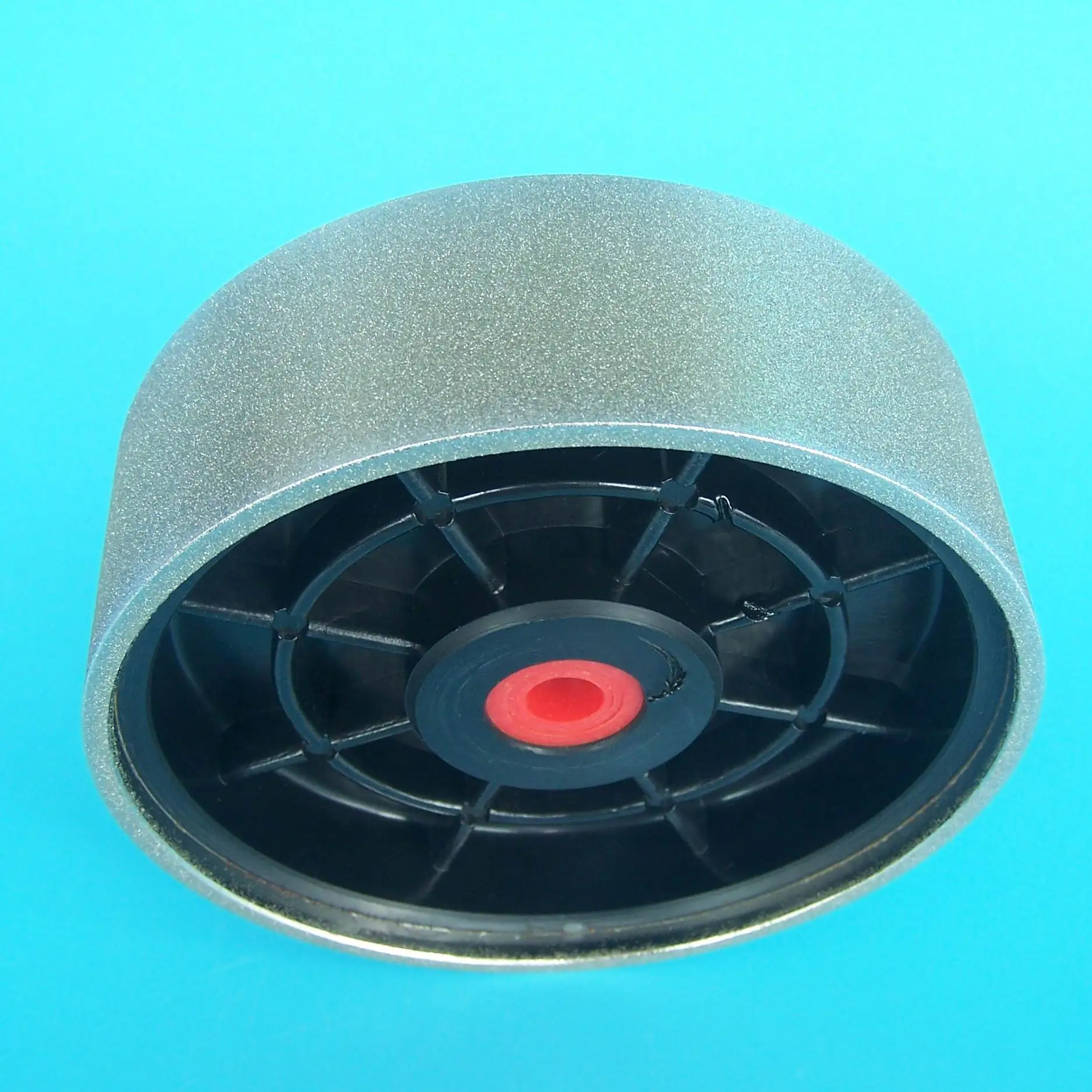

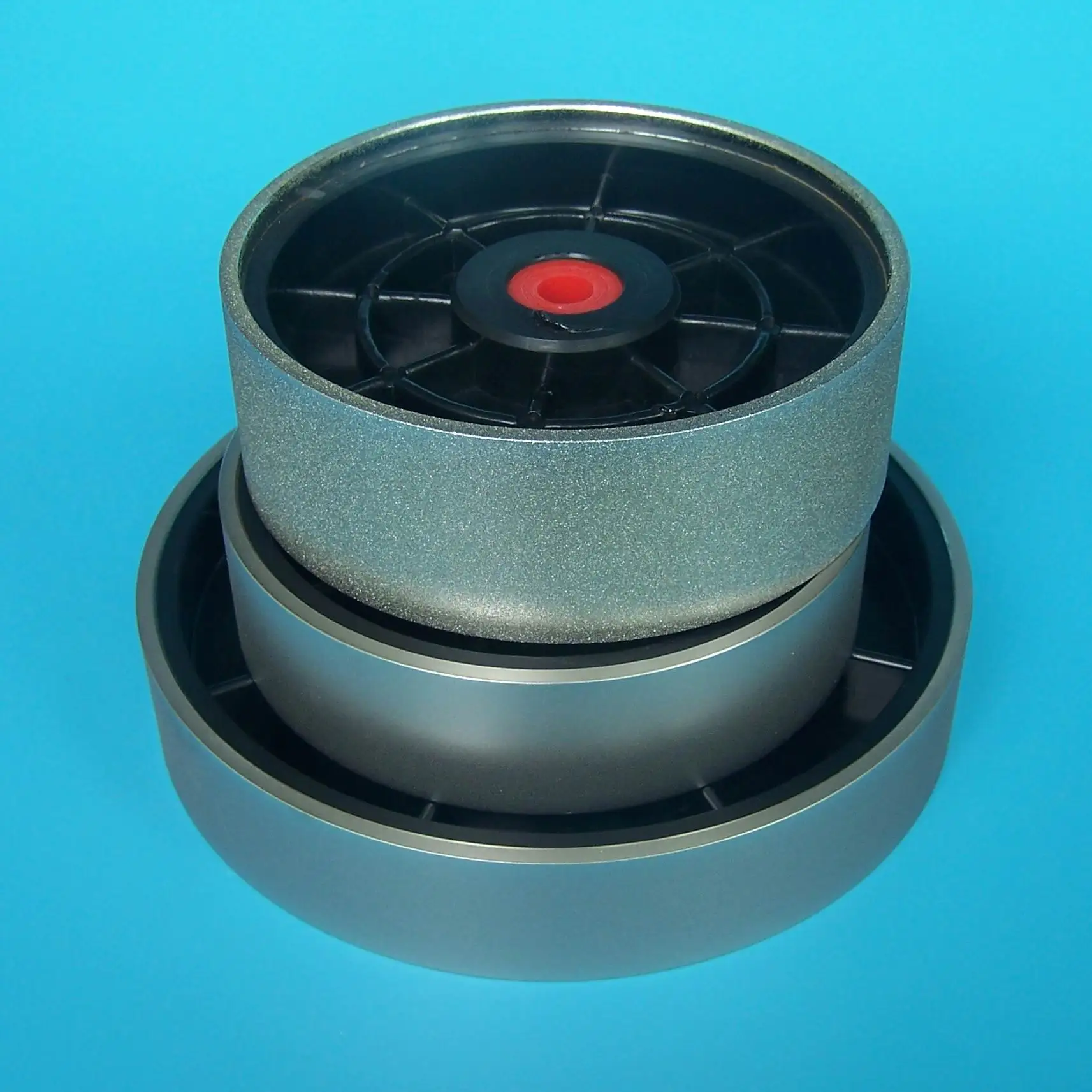

We can produce all kinds of diamond grinding wheel in different size,the core can be plastic,rubber and steel,it use for jewelry,gemstone,agate grinding and polishing ,we are also glad to produce for you according your drawing and special requirements.

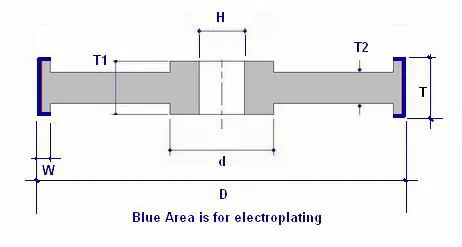

Drawing:
Description:
Brand | D(mm) | T(mm) | H(mm) | T1(mm) | T2(mm) | d(mm) | W(mm) | Grain Size |
HL | 50-500 | 10-50 | 10-50 | 10-50 | 5-25 | 20-250 | 3-10 | 60-3000 |
1.Abrade Speed: 6-7meters per minute
2.Life Of Grinding: for process 4-6 kilometers
3.Configuration of The Machine:
Remark of the drawing:
D: The diameter of the hole wheel
T: The side width of the wheel
H: The diameter of the center hole
T1:The thickness of the wheel center
T2: The thickness of the support base
d: The diameter of the inside round
W:The thickness of the wheel side
Our normal size details as follows:
6"x1"x1"
6"x1-1/2"x1"
6"x2"x1"
8"x1"x1"
8"x1-1/2"x1"
8"x2"x1"
Grain Size:46# to #3000

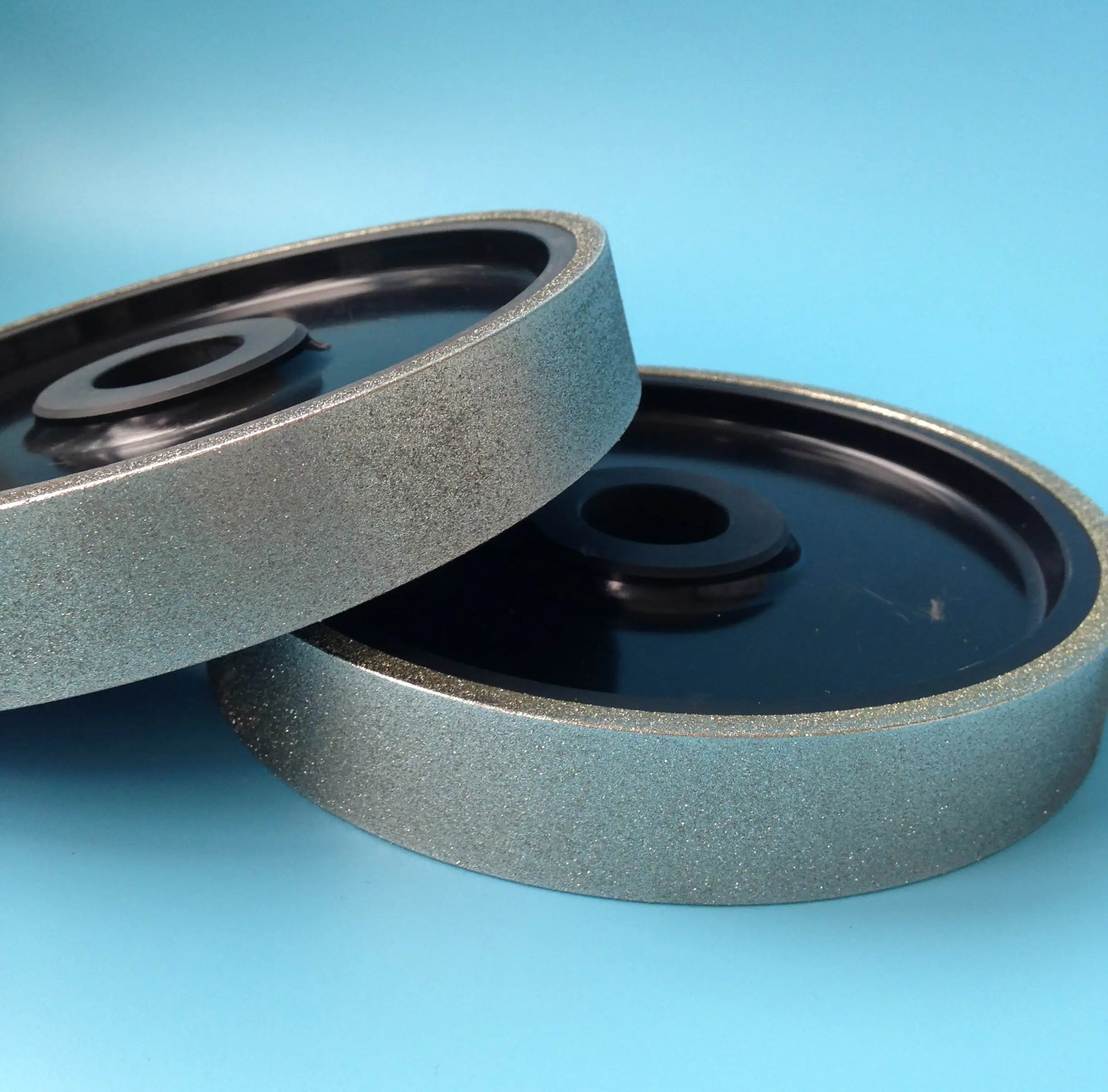

Product Detail View:
