New Thread Tool Spiral Point Machine Taps Thread Forming Steel Black Coated OEM Custom Surface Treatment HSS Thread Taps

Supplier: Xiamen Hongfeng Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Jacky Yang
Price: $4.03 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Finish:	Ultra-Life Titanium Nitride	Faucet Type:	Black Coated Spiral Point Taps
port:	Xiamen	payment terms:	wire transfer
application:	steel	Customization support:	Processing

Company overview

Product Description

Product specification analysis:

Product specification details:

No.	thread size	limit	Liquid Chromatography	type
1	M2X0.4	P2	5P	1
2	M2.5X0.45	P2	5P	1
3	M3X0.5	P2	5P	3
4	M3.5X0.6	P2	5P	3
5	M4X0.7	P2	5P	3
6	M5X0.8	P2	5P	3
7	M6X1	P2	5P	3
8	M7X1	P3	5P	3
9	M8X1.25	P3	5P	5
10	M8X1	P3	5P	5
11	M10X1.5	P4	5P	5
12	M10X1.25	P3	5P	5
13	M10X1	P3	5P	5
14	M12X1.75	P4	5P	5
15	M12X1.5	P4	5P	5
16	M12X1.25	P4	5P	5
number 17	M12X1	P3	5P	5
18	M14X2	P5	5P	5
No. 19	M14X1.5	P4	5P	5
20	M14X1.25	P4	5P	5
twenty one	M14X1	P3	5P	5
number 22	M16X2	P5	5P	5
twenty three	M16X1.5	P4	5P	5
twenty four	M16X1.25	P4	5P	5
25	M16X1	P3	5P	5

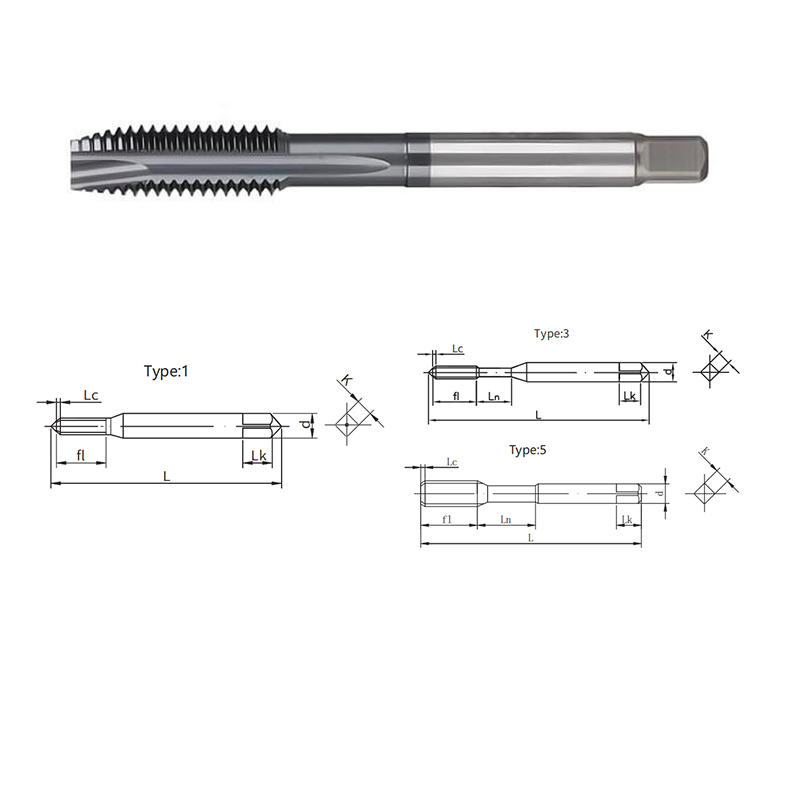

No.	thread size	L	Florida	melting point	d	k	Likang	flute
1	M2X0.4	45	11	-	3	2.5	3	2
2	M2.5X0.45	45	12	-	3	2.5	3	2
3	M3X0.5	50	5	13	4	3.2	6	3
4	M3.5X0.6	50	6	13	4	3.2	6	3
5	M4X0.7	57	9	11	5	4	7	3
6	M5X0.8	66	8	number 17	5.5	4.5	7	3
7	M6X1	69	12	12	6	4.5	7	3
8	M7X1	78	13	10	6.2	5	8	3
9	M8X1.25	70	13	twenty three	6.2	5	8	3
10	M8X1	70	13	twenty three	6.2	5	8	3
11	M10X1.5	75	15	28	7	5.5	8	3
12	M10X1.25	75	13	30	7	5.5	8	3
13	M10X1	75	13	30	7	5.5	8	3
14	M12X1.75	82	number 17	25	8.5	6.5	9	3
15	M12X1.5	82	number 17	25	8.5	6.5	9	3
16	M12X1.25	82	13	29	8.5	6.5	9	3
number 17	M12X1	82	13	29	8.5	6.5	9	3
18	M14X2	88	20	31	10.5	8	11	3
No. 19	M14X1.5	88	20	31	10.5	8	11	3
20	M14X1.25	88	20	31	10.5	8	11	3
twenty one	M14X1	88	20	31	10.5	8	11	3
number 22	M16X2	95	20	32	12.5	10	13	3
twenty three	M16X1.5	95	20	32	12.5	10	13	3
twenty four	M16X1.25	95	20	32	12.5	10	13	3
25	M16X1	95	20	32	12.5	10	13	3

Features:

1. Lower chip cutting, the chip is curling material, which can only be used for through hole processing;
2. The corner groove of the blade, the chips are discharged forward;
3. The chip is not easy to be entangled, and the damage strength is high;
4. Its core size design is relatively large, the strength is good, and it can withstand larger
cutting force;
5. Good cutting performance and excellent wear resistance;

product name	JIS-POT Spiral Point Tap
Material	High speed steel material
color	Black
standard	JIS
Handle Type	Square handle
surface treatment	TICN-AL coating
flute tap	spiral point
tolerant:	6 hours
size:	M2--M16
Working materials:	Low carbon steel, medium carbon steel, high carbon steel, 20/40CrMo
Working machine:	Automatic lathes, CNC machine tools, milling machines, drilling machines, tapping machines

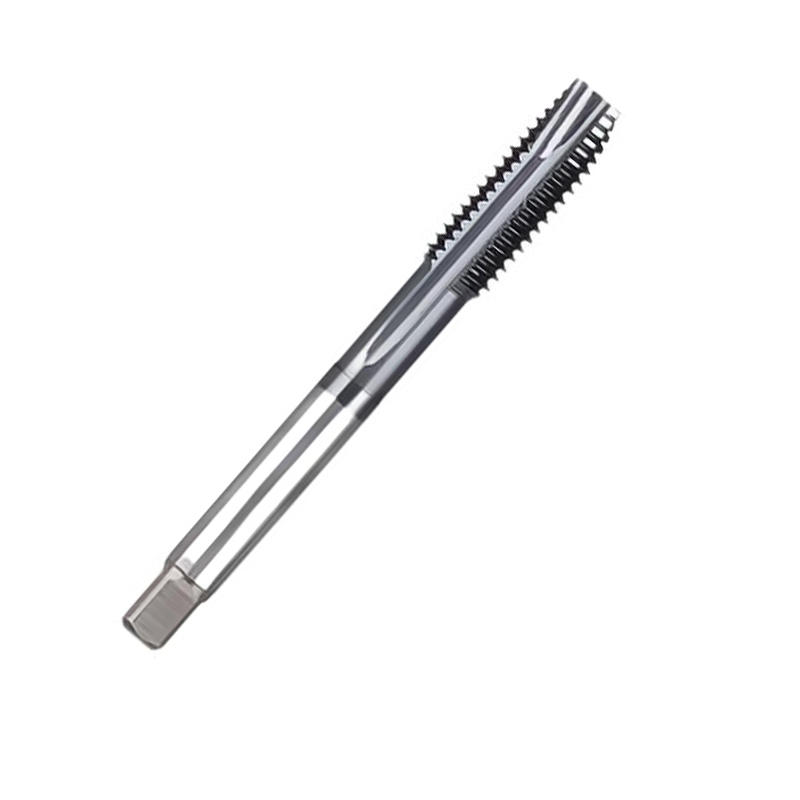

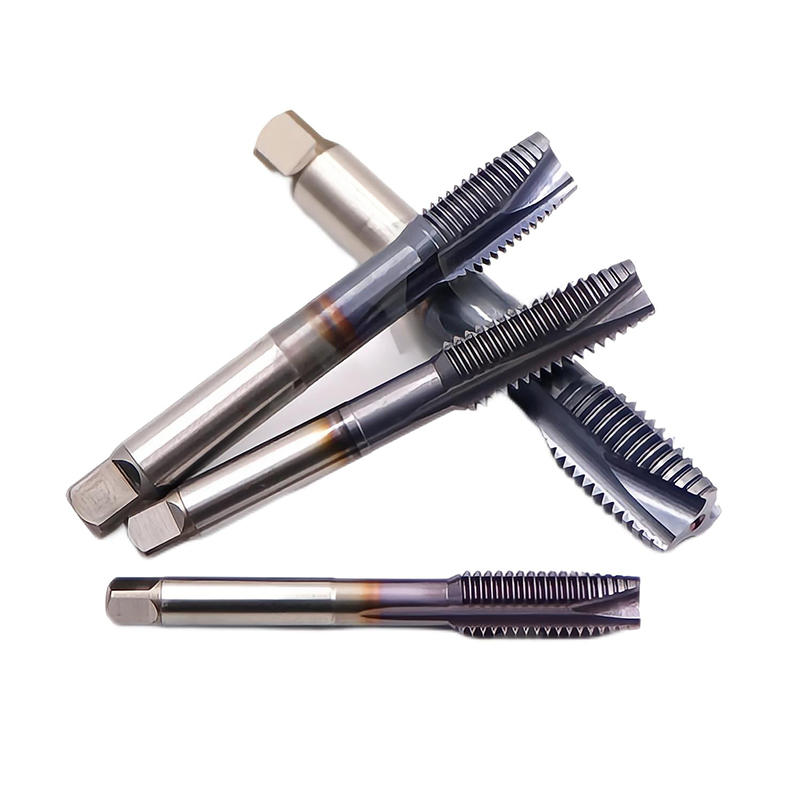

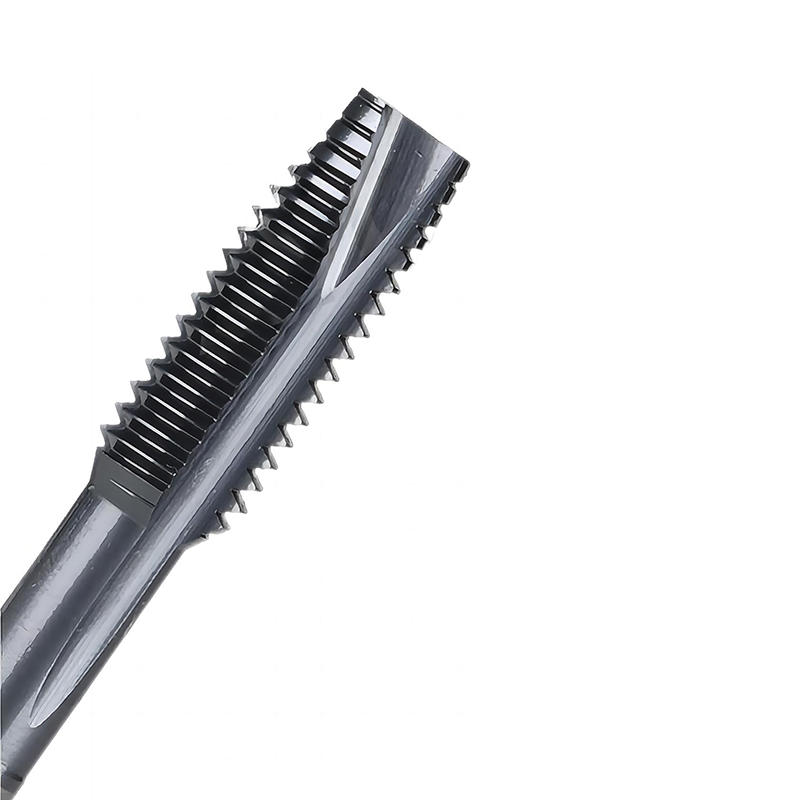

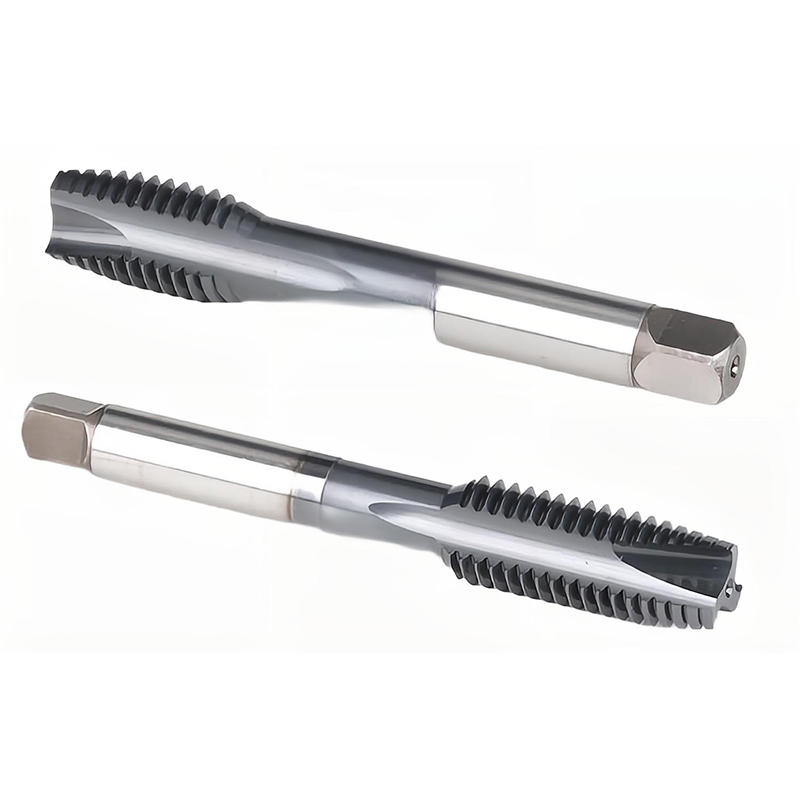

product display
