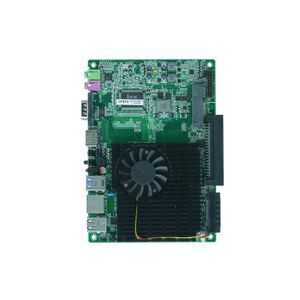

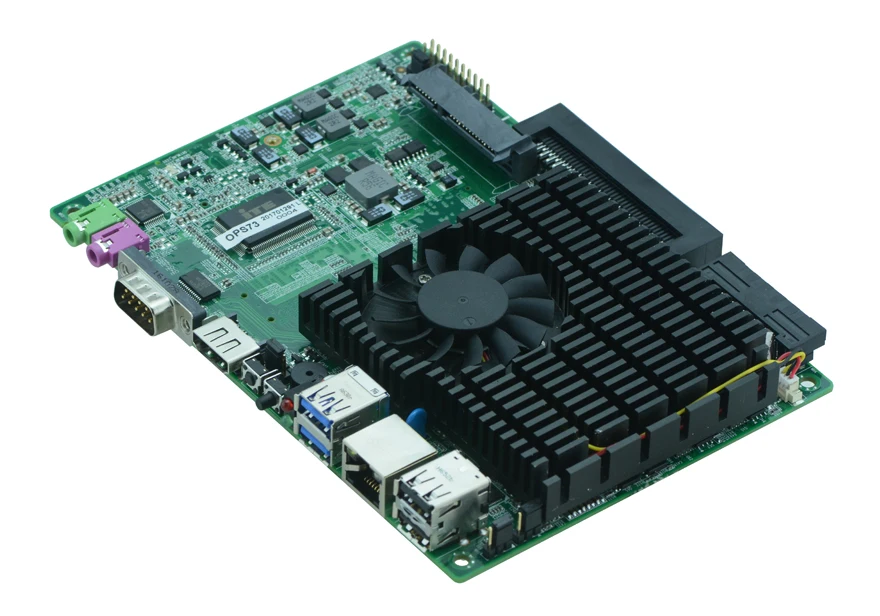

Integrated Intel Kabylake I5-7300U 2.6GHz dual core industrial computer motherboard
- 180.00 piece
| Hard Drive Interface: | SATA,M-SATA; | Ports: | Display Port,Ethernet,M.2,PCI-Express X1,SATA,USB 2.0,USB 3.0,VGA,WiFi; |
| Place of Origin: | Guangdong China (Mainland); | Form Factor: | ITX; |
| CPU Type: | Intel; | Products Status: | Stock; |
| Dimension: | 165mm x 115mm; | Chipset: | PCH-U; |
| LAN: | 1*Intel I219-LM Gigabit Ethernet; | Memory Type: | DDR4; |
| CPU: | Integrated Intel Kabylake I5-7300U 2.6GHz dual core processor; | Memory: | Integrated Intel Kabylake I5-7300U 2.6GHz dual core processor; |
| Brand Name: | x-hope; | Chipset Manufacturer: | Intel; |
| Graphics: | Integrated IntelHD Graphics620; | Audio: | Onboard ALC662 6-channel high fidelity audio controller; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal/Trade Assurance of Alibaba; | Supply Ability: | 100000 Piece/Pieces per Month; |
| Port: | Shenzhen/Donguan; | Power input: | provide 12V~19V power supply through OPS+ standard slot JAE_TX25; |
| BIOS: | 128Mb SPI Flash ROM; | Packaging Detail: | Package:1*motherboard , 1* SATA data cable inner package:foam cotton (each motherboard have one package) outer package: normal hard carton box; |
| Storage: | Provide 1* SATA 2.5 inch Netbook place; | Graphics Card Type: | Integrated; |
| Operating System: | Win 7/8.1/10/Linux; | Maximum Ram Capacity: | 32GB; |
| Socket Type: | LGA 1150; | Application: | Server/Workstation; |
Integrated Intel® Kabylake I5-7300U 2.6GHz dual core processor
support dual channel SODIMM 2133MHz DDR4 memory, up to 32GB
Integrated Intel®HD Graphics620
Provide 1*High definition multimedia slot-IN port
1*Intel I219-LM Gigabit Ethernet ,support wake on LAN,Vpro(AMT) function
1*M.2 2230(KEY E) standard slot,support M.2 standard WIFI

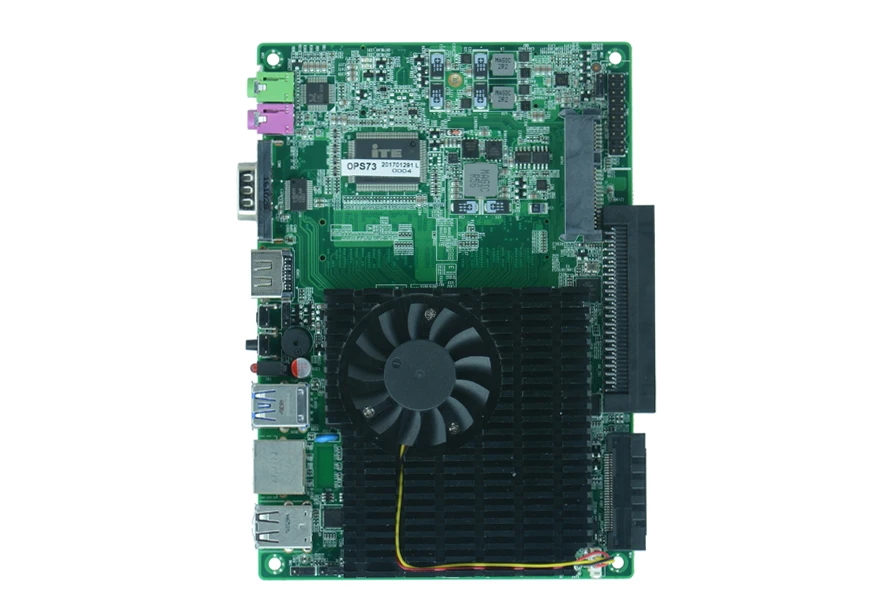

Model No | OPS73 |
Processor | Integrated Intel® Kabylake I5-7300U 2.6GHz /Skylake-U I3-6100U 2.6GHz dual core proces |
Chipset | PCH-U |
Memory | Support dual channel SODIMM 2133MHz DDR4 memory, up to32GB |
| Graphic | Integrated Intel®HD Graphics620,support4K/60Hz Provide 1*High definition multimedia slot -IN port |
LAN | 1*Intel I219-LM Gigabit Ethernet , support wake on LAN/Vpro(AMT) function(6100U do not |
Storage | Provide 1* SATA 2.5 inch Netbook place,can be installed directly on the hard disk |
Expansion slots | 1*M.2 2230(KEY E) standard port,support M.2 standardWIFI 1* supportOPS+ standard slot FX18-60P1(60Pin) 1* support OPS+ standard slot JAE_TX1(80pin) |
Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. |

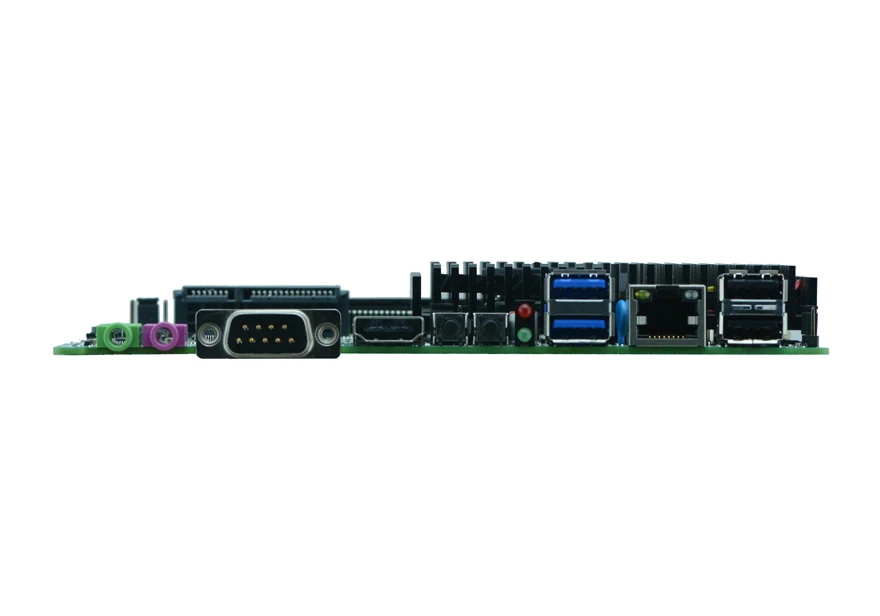

Rear I/O |
1*Line-out(Green),1*MIC(Red) 1*DB9 COM serial port 1*HDMI-IN port 1* power switch,1* reset switch 1* HDD LED,1* Power LED 2*USB3.0 ports 1*RJ45 Gigabit Ethernet connector 2*USB2.0 ports 1* support OPS+ standard slot JAE_TX1(80pin) 1* supportOPS+ standard slot FX18-60P1(60Pin)
|
Internal I/O | 1*TPM1.2 secure chip port 2*10pin |
FAN interface | 1*3pin system fan port |
BIOS | 128Mb SPI Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power input | provide 12V~19V power supply through OPS+ standard slot JAE_TX25 |
Operating Temp. | -10℃~60 |
Storage Temp. | -20℃~70℃ |
Humidity | 5%-95% (relative humidity; non-condensing) |
Dimension | |
Product application areas:
Multimedia advertising machine; touch one machine; industrial computer, face recognition terminal; education terminal; self-service vending machine, cash register, etc.;
Package:1*motherboard , 1* SATA data cable
inner package:foam cotton (each motherboard have one package)
outer package: normal hard carton box
Shippment: we have own forwarder or we also can ship via your account .
Sample shippment: (3~7 working days ) by express
Bulk order: by air/sea or Express accroding to your requirements .
We will supply 1. detailed pre-sale service : please kindly tell me or leave you detailed contact inforamtion here , and your requirement for the products .( quality, detailed asking, etc) , we will double check and get back to your as fast as we can .
2.Excellent after-sale service: We will offer Fast and convenient after-sale Maintenance service, when you receive the goods after checking and find something wrong with the goods(please kindly describe the problem of the goods, and take photos and video) , and we will make a avaliable plan to solve the problem.
3.3. ODM, OEM both support, if you have quantity.

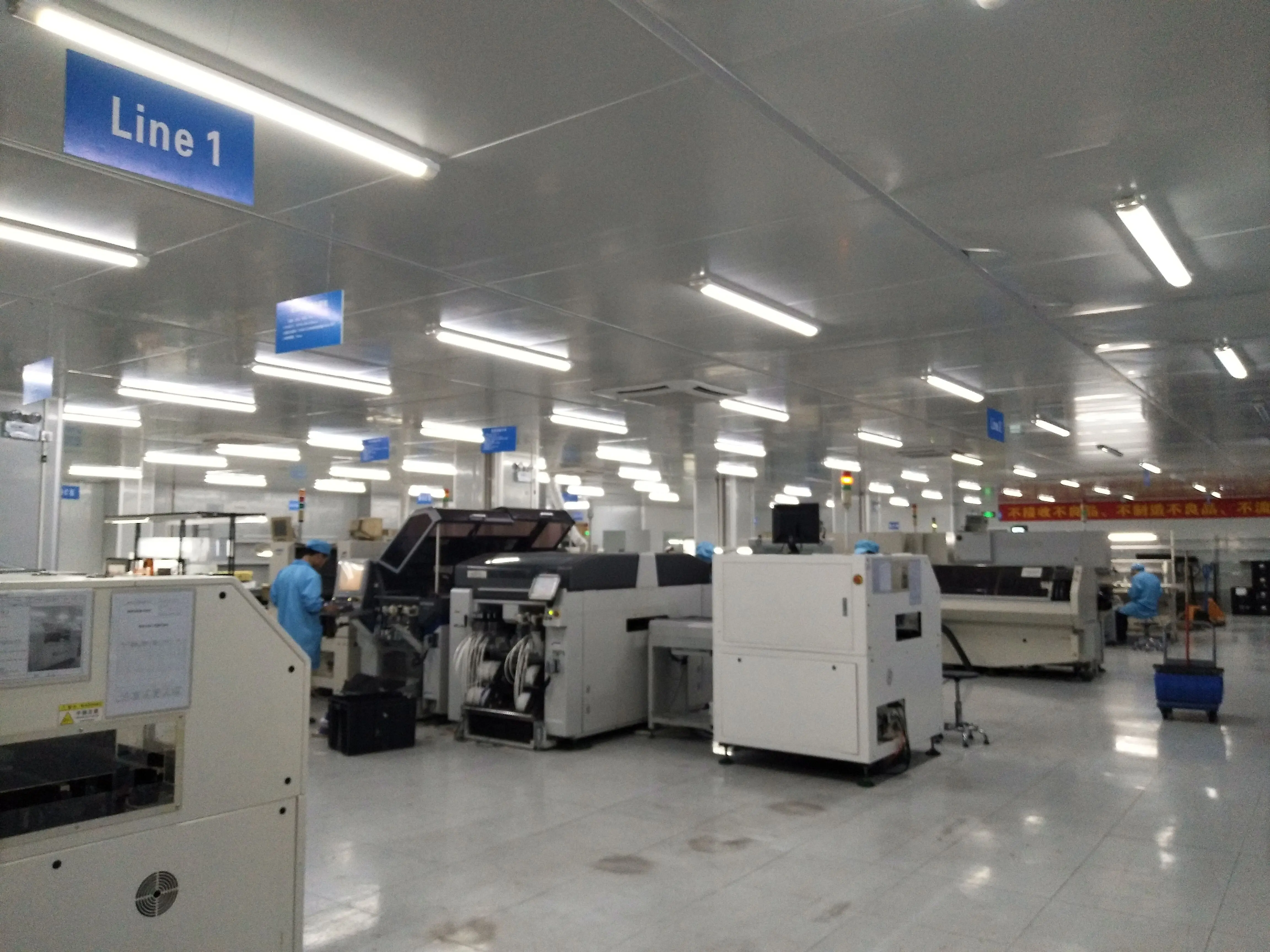

We are factory specializing in the manufacture and export of motherboard and all in one PC and desktop computer, computer accerssory etc. we can customize your computer according to your own needs very competitive price.
1.What's your minimum order?
A: Our minimum order quantity(MOQ) is 1pcs.
2.Can you provide OEM service?
A: Sure, we can provide OEM.You can choose RAM, storage, WIFI interface port and OS freely.
3. Can you arrange the shipment? Since it's my first time to buy from China.
A: Sure, we can arrange a trustworthy shipping company the arrange the shipment for you!
4. Can you put my brand name (logo) on these products?
Yes,We support OEM/ODM service, the process of customization is as below:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
