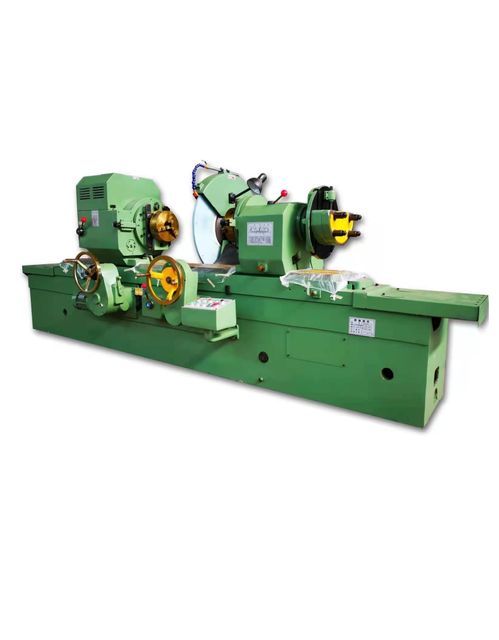

Crankshaft grinder MQ8260Bx1600

Supplier: Xinfuwang Electrical Machinery Equipment (Dalian) Co., Ltd.
Region: Liaoning, China
Contact: Mr luis liu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Metal Hardware Grinding	Core component warranty:	1 year
brand:	Q	Origin:	Shandong Province, China
Whether CNC:	normal	Year:	2021
Local service locations:	not any	Supply capacity:	15 pieces per month
Applicable industries:	Manufacturing plants, machinery repair shops, others	Marketing Type:	Hot Products of 2019
type:	crankshaft grinder	After-sales service provided:	Online support, video technical support
Certification:	CE	Main selling points:	competitive price
Packaging Details:	export package	Health status:	new
Key words:	crankshaft grinder	Warranty:	1 year
Showroom location:	not any	payment terms:	L/C, D/P, D/A, T/T
Video outbound inspection:	if	Core components:	Motors, bearings, gears, pressure vessels, gearboxes, PLCs, pumps
After Warranty Service:	online support	Power (kW):	10.5
Mechanical test report:	if	Wheel Size (mm):	900
Voltage:	380	Weight (kg):	6700
Dimensions (LWH):	4000×2100×1600

Specification

Item MQ8260x1600
Maximum working slewing diameter mm 580
Maximum working length mm 1600
capacity
1. The maximum swing of the workbench is mm 580
Working diameter mm 30 - 100 with steady rest grinding
Crankshaft stroke mm 110
2. The maximum working length of three-jaw chuck grinding is mm 1400
Between centers mm 1600
3. Maximum. Working weight kg. 120
front
Center height mm 300
Working speed r/min 25,45,95
wheel head
1. Maximum lateral movement mm 185
2. Grinding wheel head advances and retreats quickly mm 100
3. Feed amount per wheel of lateral feed handwheel mm 1
Horizontal feed hand wheel mm 0.005 per grid
Grinding wheel
1. Grinding wheel spindle speed r/min 745, 850
2. Circumferential speed of grinding wheel m/s 25.6 - 35
3. Wheel size (outer diameter x width x inner diameter) 900x32x305
table
1. The amount of movement of the handwheel per turn of the workbench
Coarse mm 5.88
Fine mm 1.58
2. Workbench swing: taper (18/100) β angle 5 taper 9/100
3. The table shakes every scale (taper 1:50), angle 1, taper 1/100
Motor total capacity Kw. 9.82
Dimensions (length x width x height) mm 4165 x 2037 x 1584
Weight kg. 6000

Product Description
