Level 2 EV Charging Station 40A WIFI RFID J1772 Wall Box EV Charger Type 1 220V 9.2KW 7KW AC EV Charger

Supplier: Injet International Trading Co., Ltd.
Region: Sichuan, China
Contact: Mr Alan Zou
Price: $326.00 / 2 - 49 pieces
$315.00 / 50 - 199 pieces
$306.00 / 200 - 499 pieces
$300.00 / >=500 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Origin:	Sichuan Province, China	Start method:	Plug and Play, RFID, Apps
Interface standard:	Type 1, SAE J1772, Type 2, IEC 62196-2	model:	fast
Material:	computer+ASA	port:	From any port in China
Input voltage:	200V~400V	Rated output power:	3.5KW/7KW/11KW/22KW
application:	Household/Commercial AC EV Charger	Output Power:	3.5KW~22KW
Function:	Wireless charging supports solar charging	Electrical protection class:	IP65, IK10
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	OCPP:	OCPP 1.6J, 2.0.1
product name:	Swift EV Charging Station (WallBox)	Packaging Details:	1 piece/carton
Connection mode:	Mode 3, case B/C, tethered/untethered	cable length:	5M (can be customized)
Output current:	AC 16~40A	brand:	injection
Supply capacity:	10000 pieces per month

Why choose us

Product Description

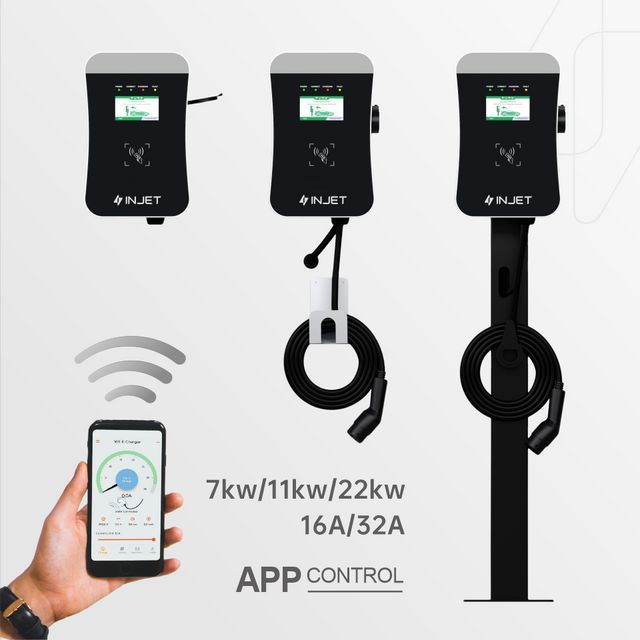

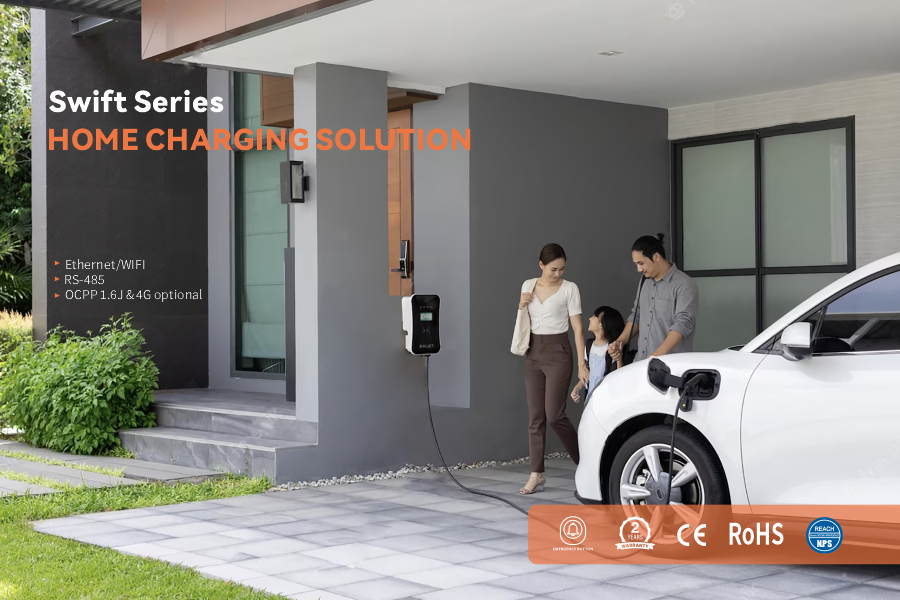

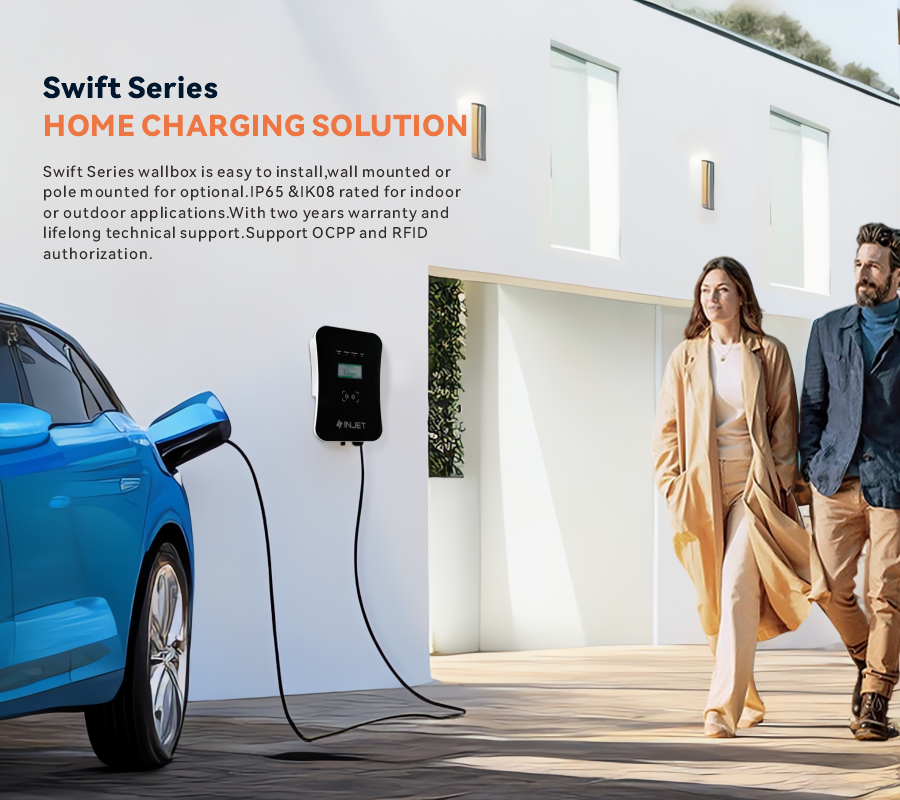

Swift Series Home and Business EV Chargers

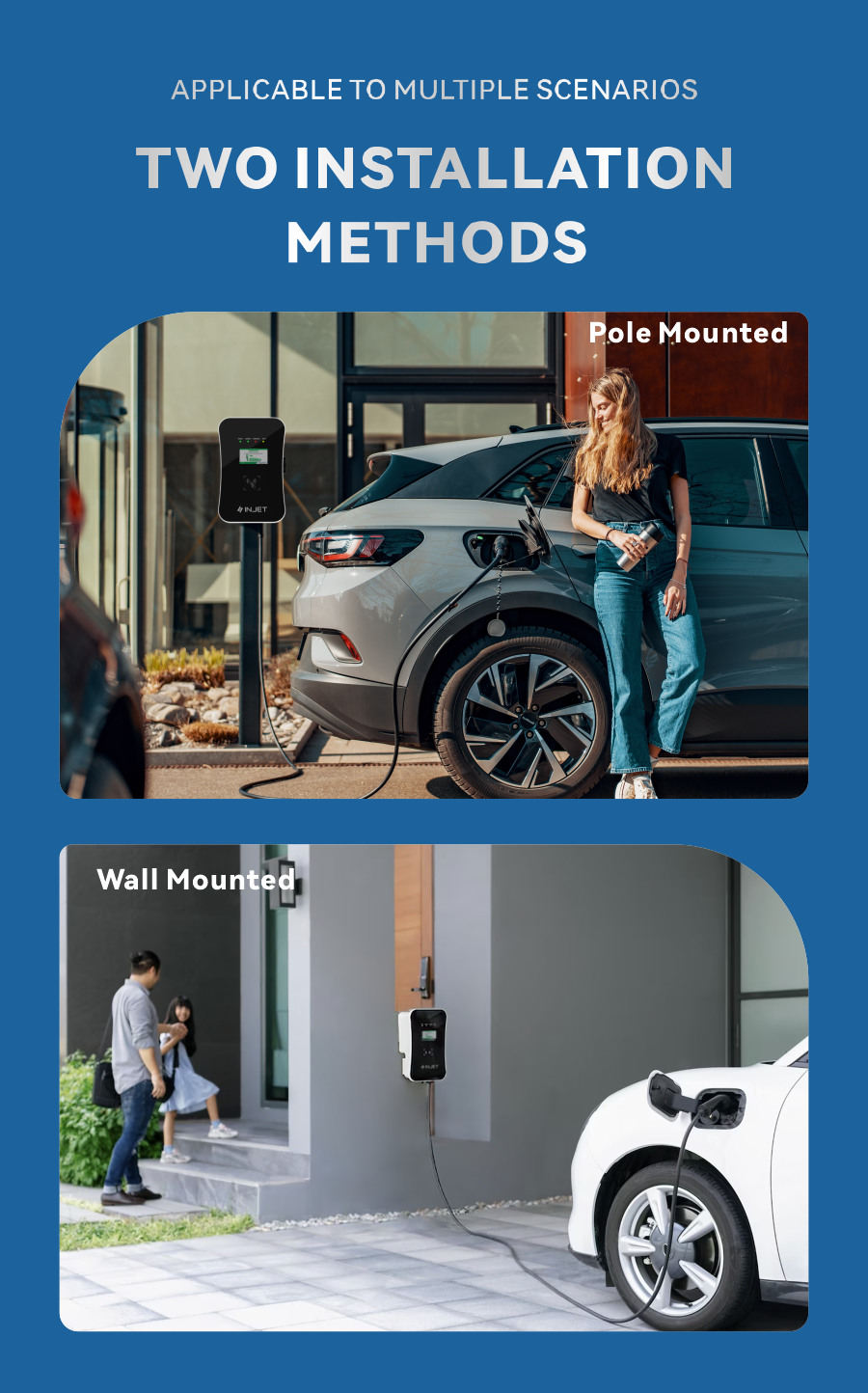

The Swift series chargers are suitable for residential and commercial use, with a maximum output of up to 22kw for fast charging. Its compact design can save more space. This AC electric vehicle charging station can also be installed on a floor-standing attachment, which is suitable for commercial electric vehicle charging installed outdoors in office buildings, hospitals, supermarkets, hotels, etc.

Smart Fast Chargers for Home and Commercial Charging

● Compatible with all electric vehicles, power sources and mains.

● This is a powerful home charging solution with a maximum current output of up to 32A, which is ideal and most vehicles can use it without any problems. It's original enough to fit in any domestic setting, while being easy to install and use.

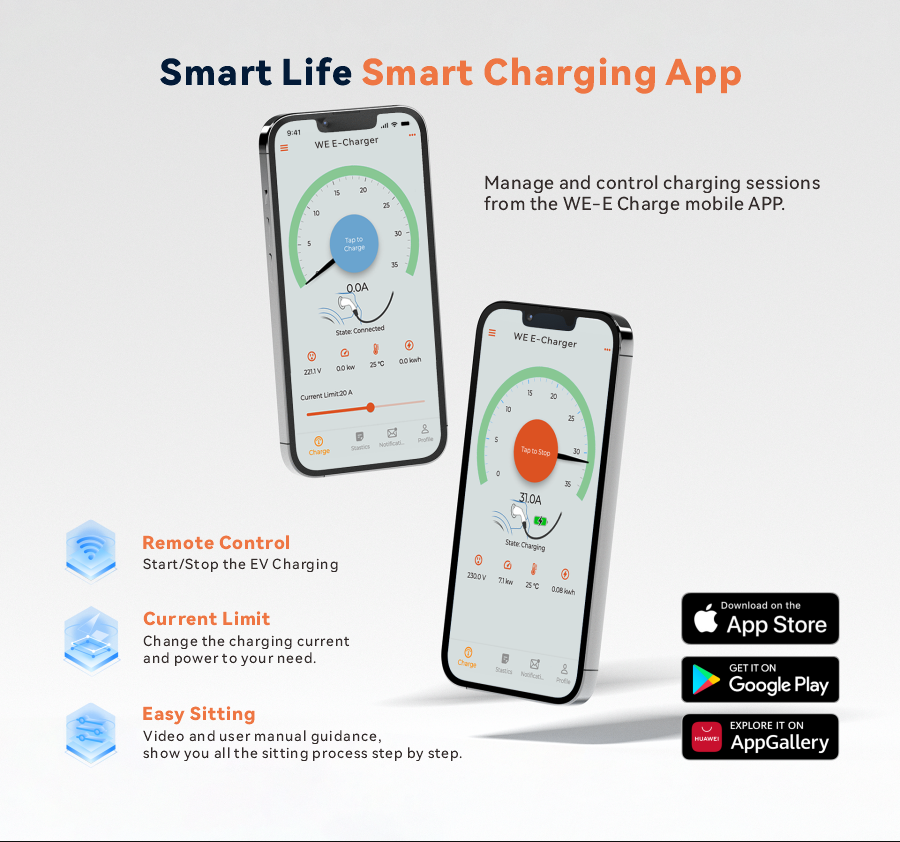

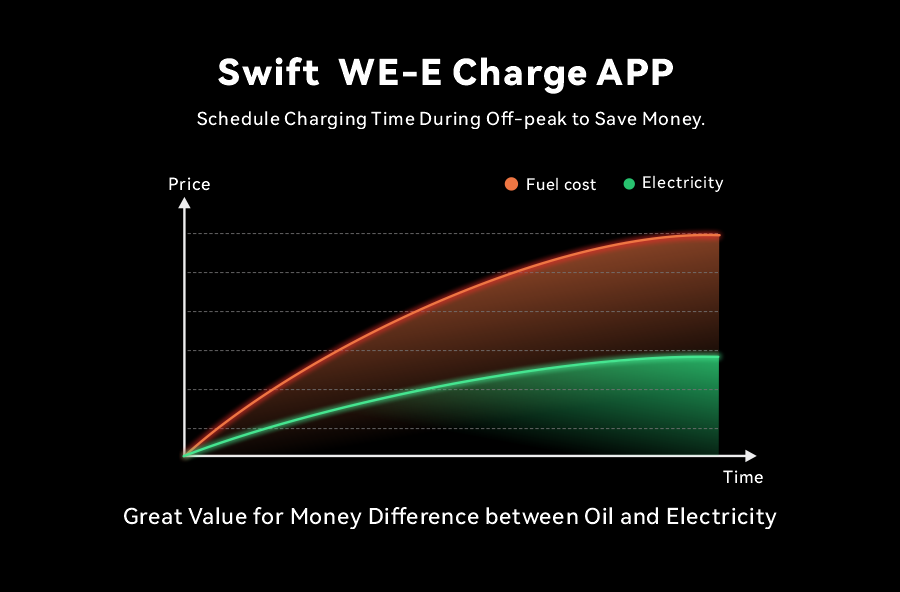

●Through the smart APP, you can easily arrange home charging, and adjust the current and power according to your needs. Passed CE, RoHs, REACH certification, strictly abide by health and safety standards.

●CE, RoHs, REACH certification, in strict compliance with health and safety standards. Also a commercial electric vehicle charging solution.

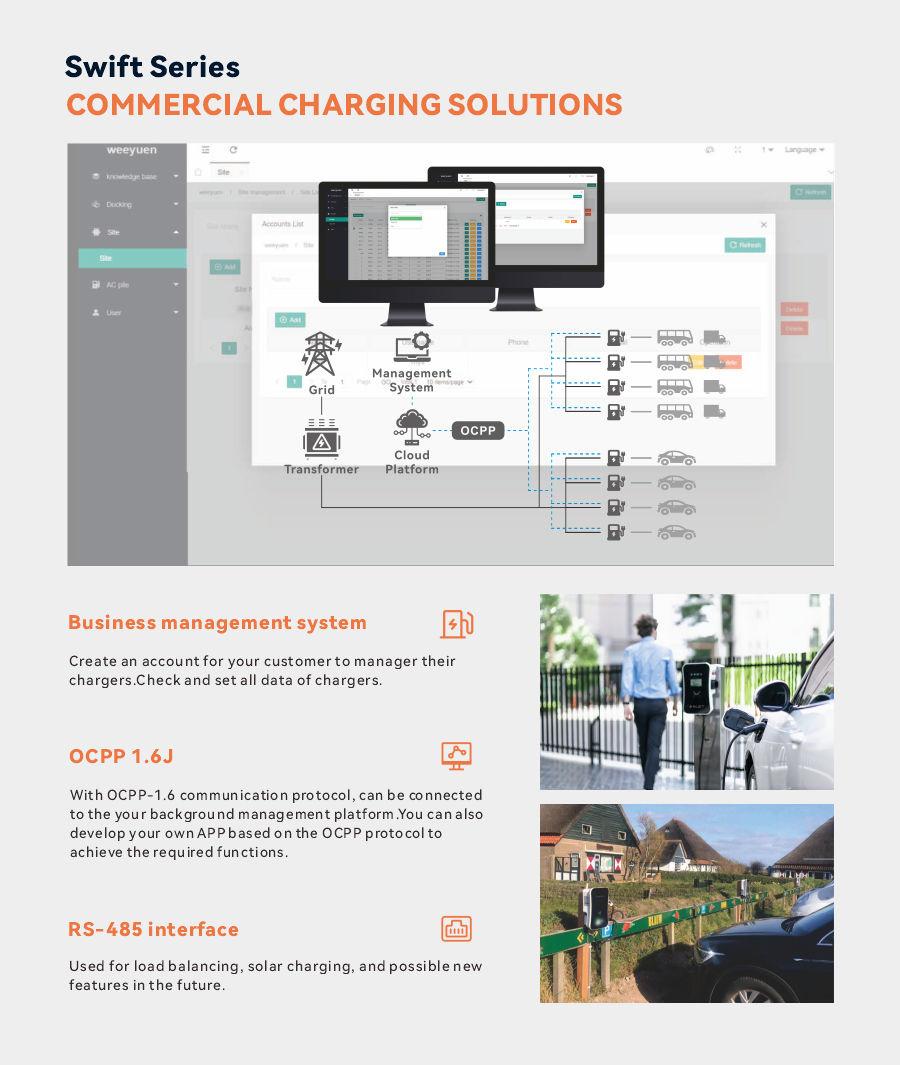

● Injet-Original is available in OCPP 1.6J and 4G, suitable for all parking lots such as workplaces, supermarkets, and apartments.

Community.

Product parameters

General information
standard	SAE standard (US version)	IEC standard (EU version/GBT version)

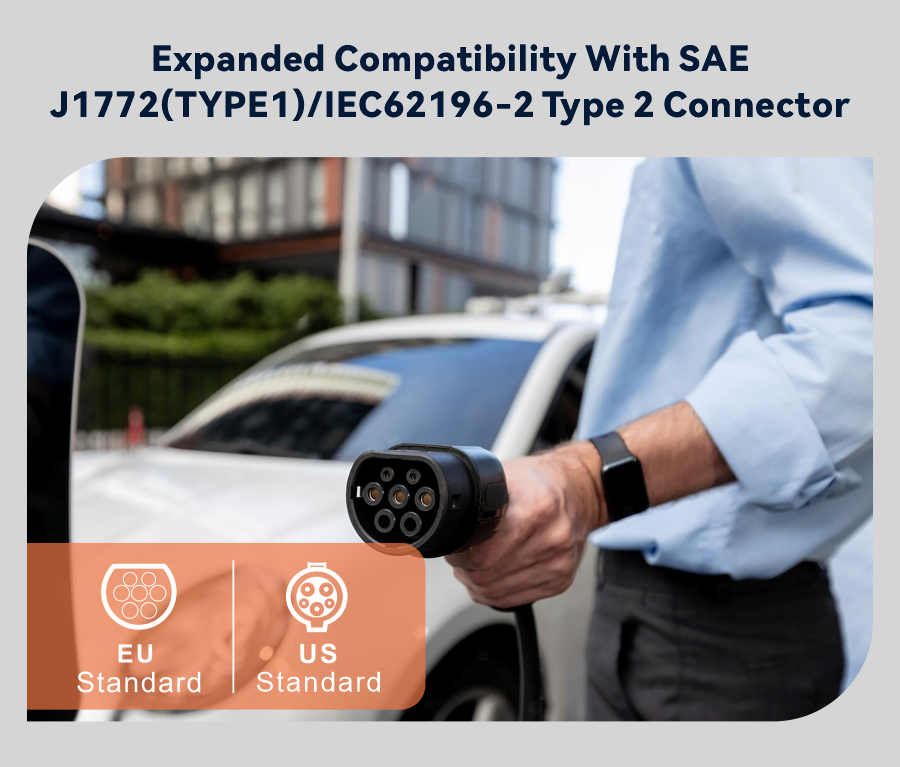

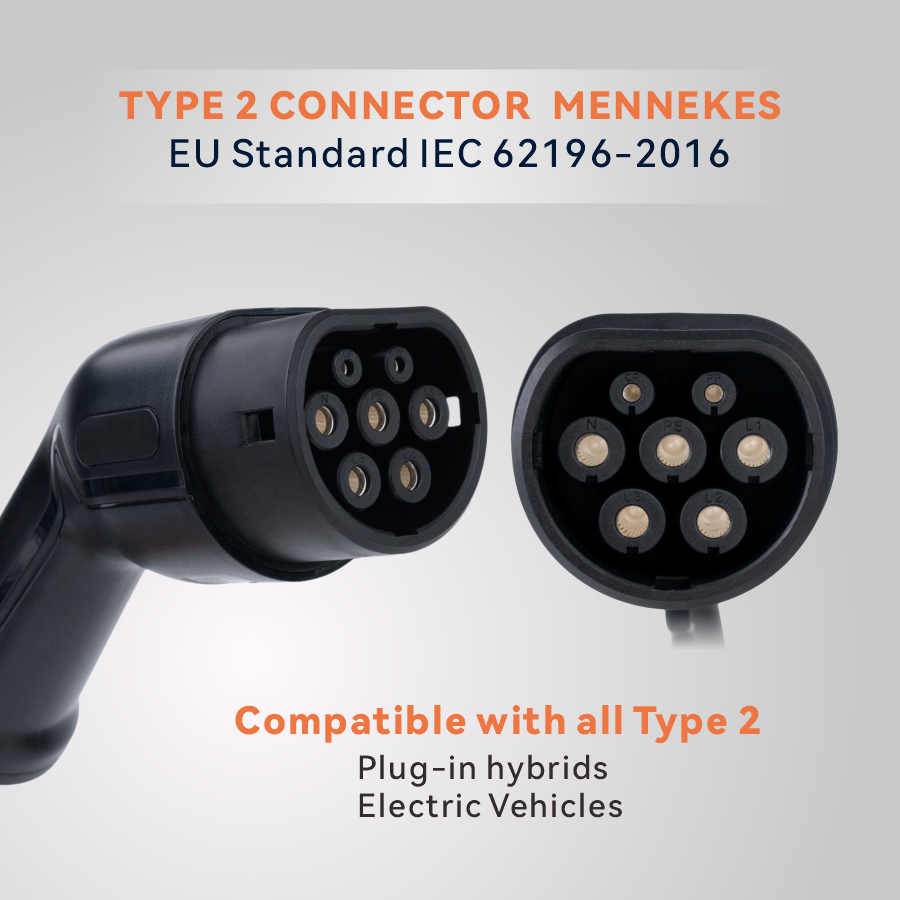

Charging interface type	SAE J1772 (Type 1) plug	IEC 62196-2 (Class 2/Mennekes) Plug/GB/T20234.2 Class 2
Certificate	/	CE, ROHS, REACH, LVD, red
Rated AC voltage input power	208-240V	220V±10%	380V±10%	380V±10%
Phase	/	1 phase	Phase 3	Phase 3
Rated AC output power	3.5kW/7kW/10kW	3.5kW/16A 7kW/32A	11kW/16A	22kW/32A
adjustable current	6a~40a	6a~16a 6a-32a	6a~16a	6a ~32a
rated frequency	rated frequency
power plug	NEMA14-50 plug	/
EVSE charging mode	Mode 3 charging

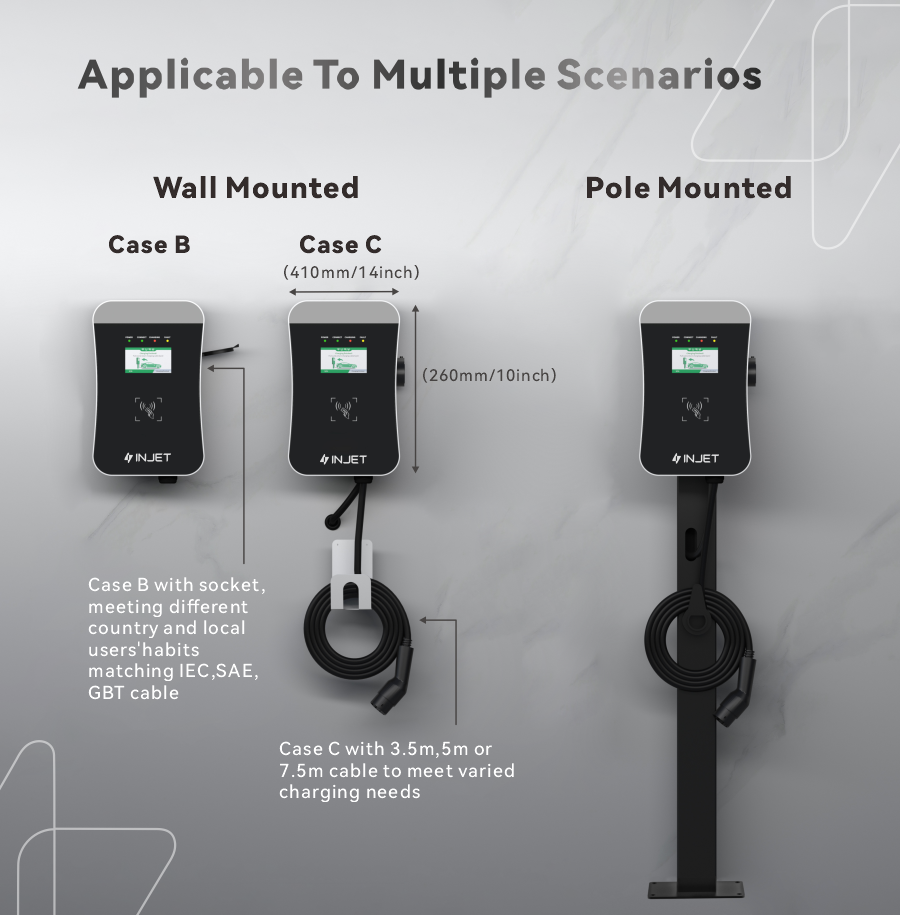

EVSE connection type	Case C, Case B available (tethered version with cable or non-tethered version without cable)
User Interface and Controls
charge control	1. Plug to start and stop charging 2. Plug in the power supply, swipe the RFID card to start and stop charging, and then pull out 3. Application Control

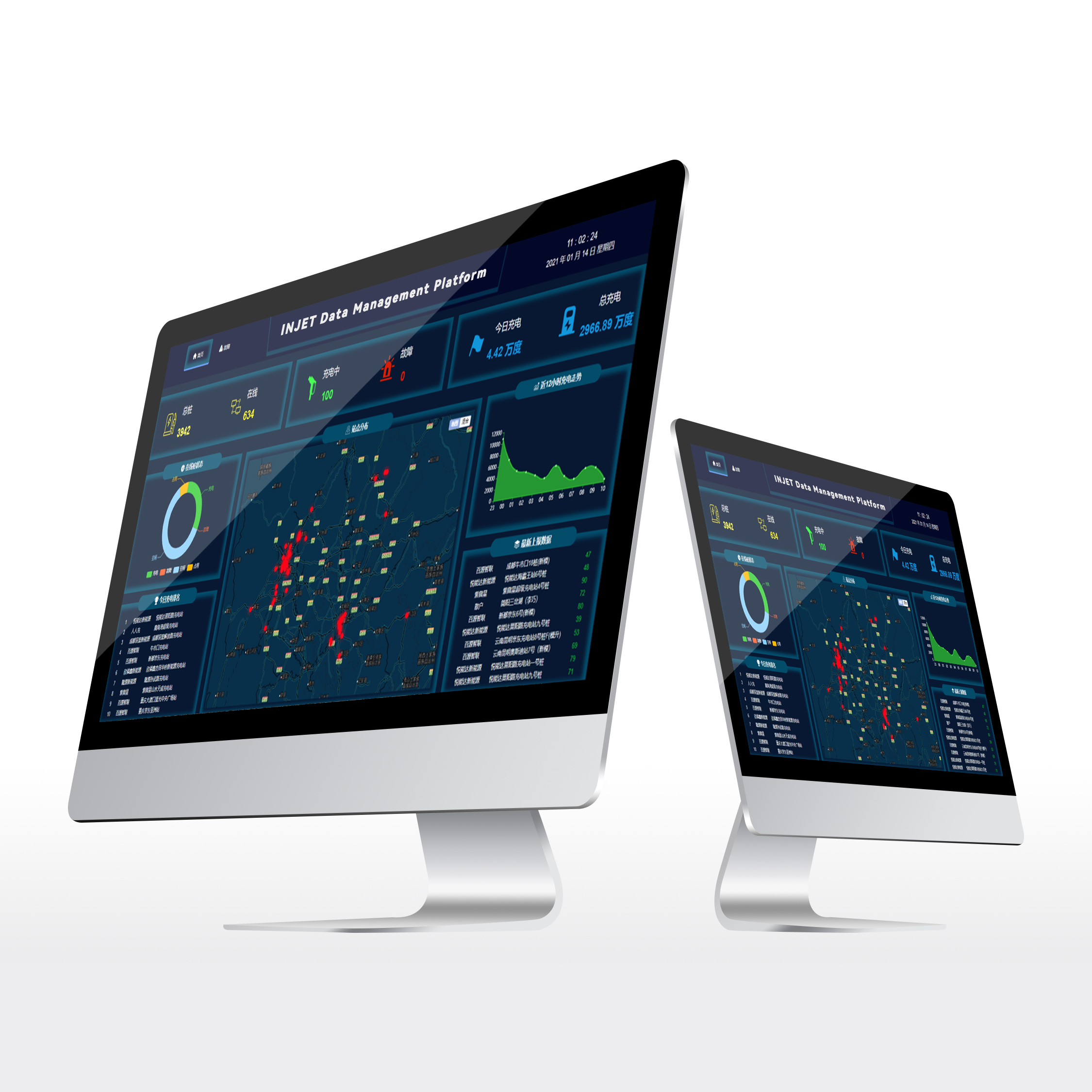

Charging data monitoring	Power consumption, current, voltage, mileage, cost and planned charging time, etc.

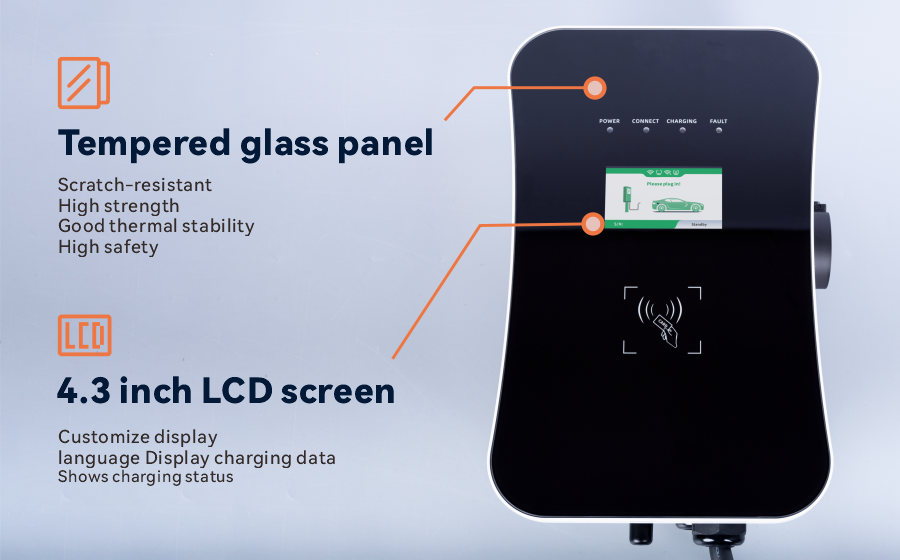

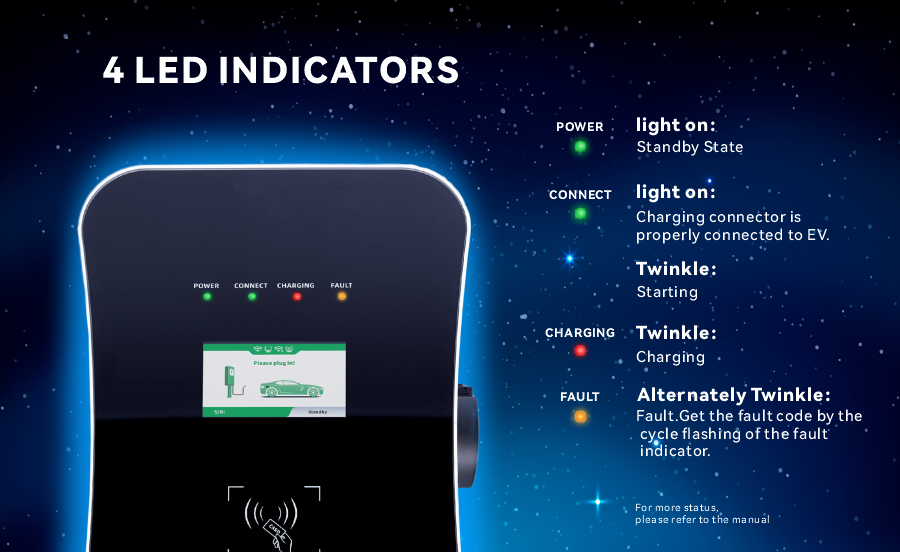

LED indicator	4 LED Indicators - Power/Connection/Charging/Fault
Internet connection	1. Ethernet/LAN (RJ-45) 2. 2.4GHz wireless network 3. LTE Category 4 (4G optional) / SIM card module
external communication	1.OCPP 1.6J (optional) 2.RS 485 (optional)
Operation Rating

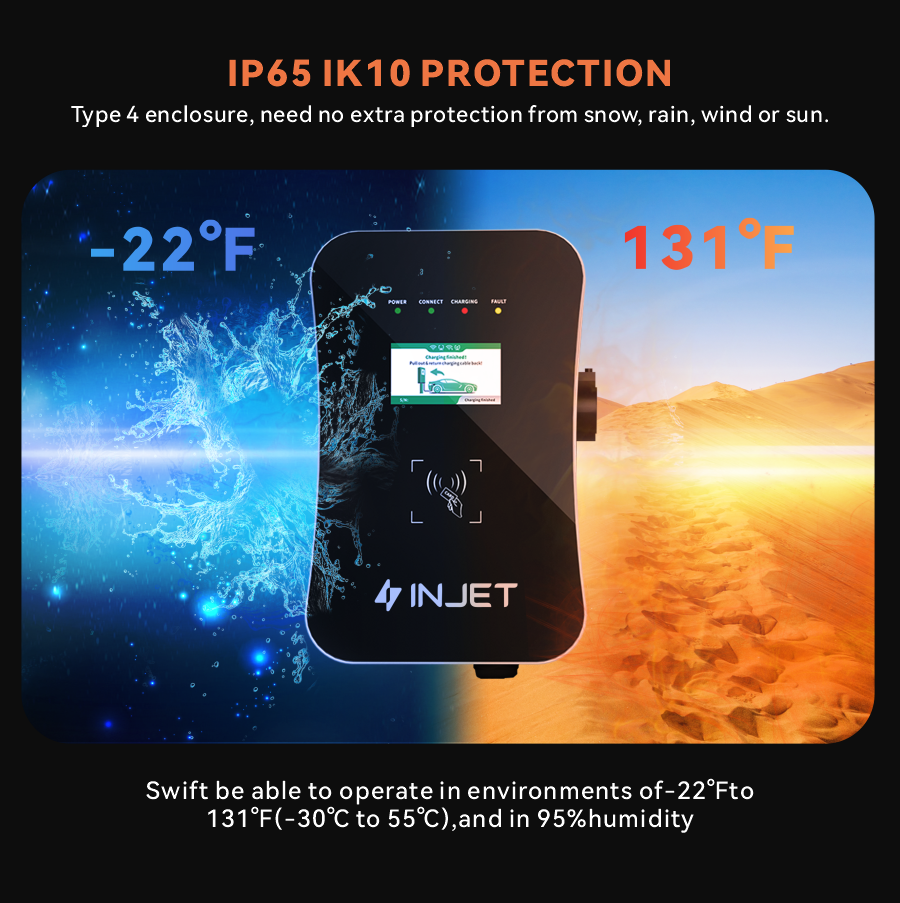

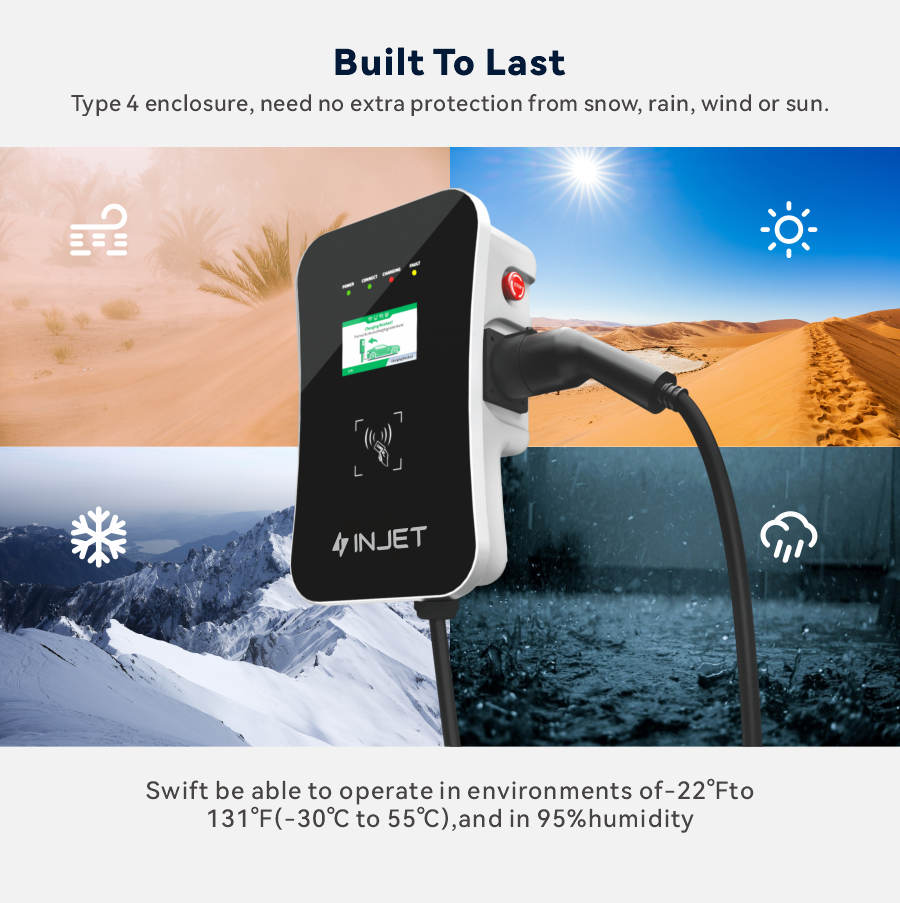

IP rating	NEMA Type 4 IP65 IK08	CE certified IP65, IK10 for indoor and outdoor applications
Storage temperature	-40 to 75°C (-40 to 167°F) ambient
Operating temperature	-30 to 55°C (-22 to 131°F) ambient
Working humidity	Up to 95% non-condensing
high	≤2000 meters

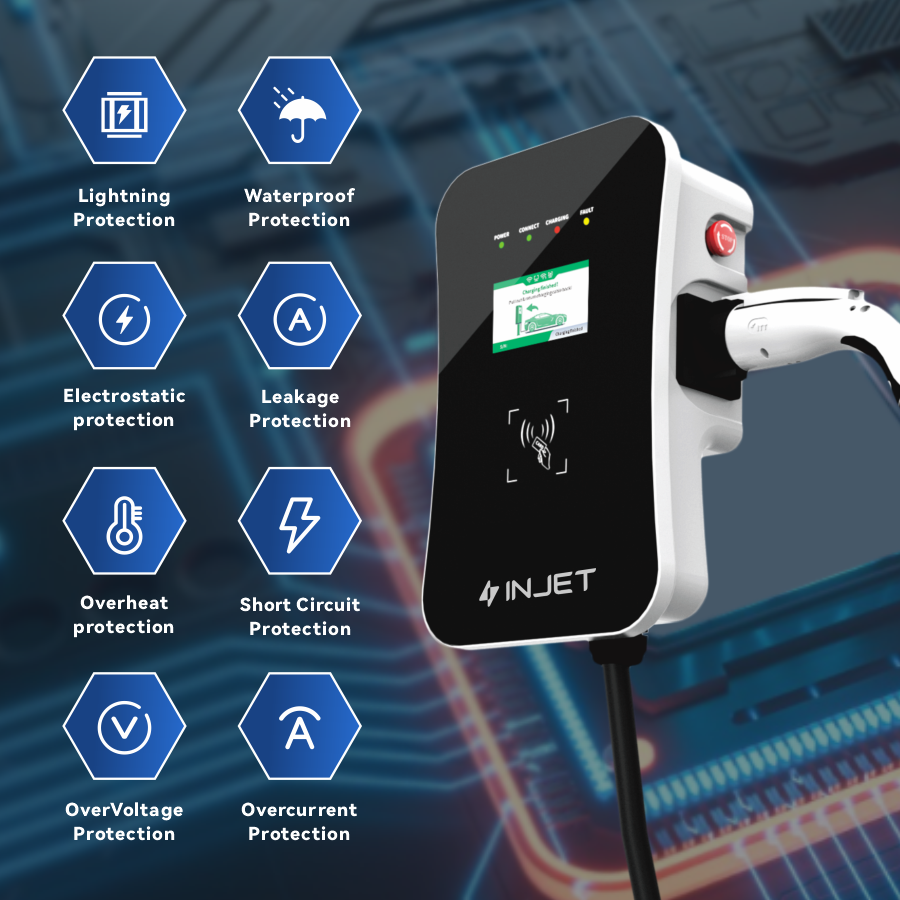

Protect	overvoltage protection overload protection Leakage protection (CCID 20) over temperature protection under voltage protection Short circuit protection Ground protection surge protection
Wallbox machinery
Dimensions (HxWxD, mm)	410260140	410260140
weight	7-8kg	7~11kg

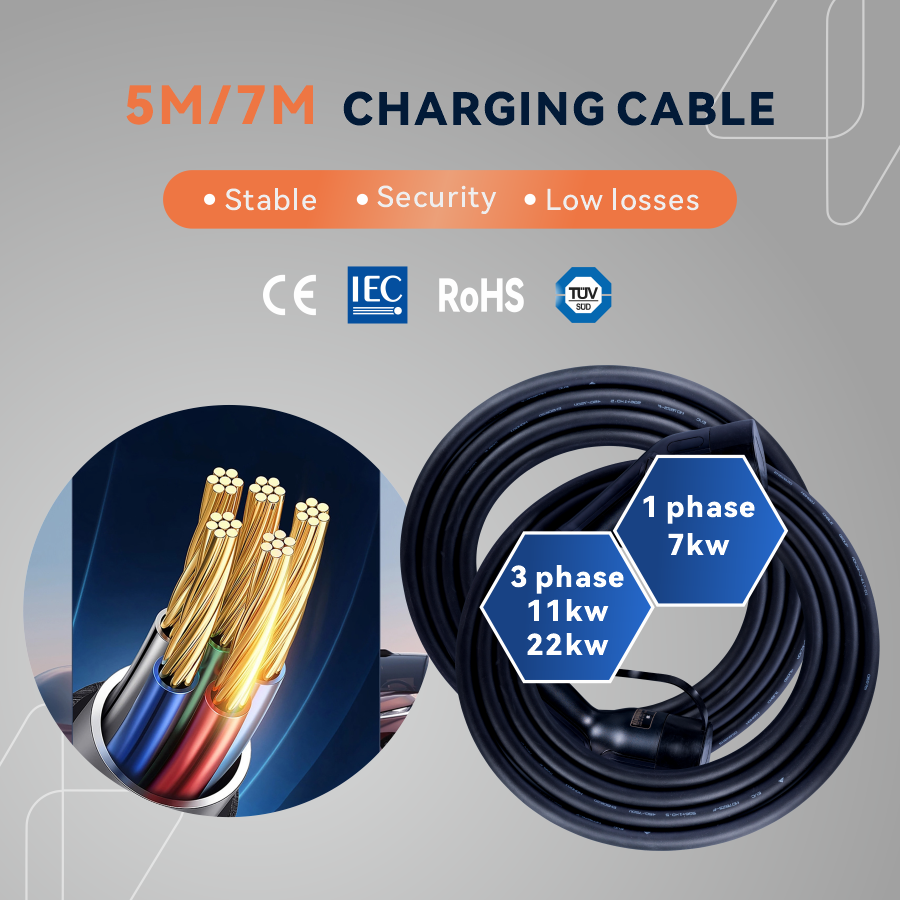

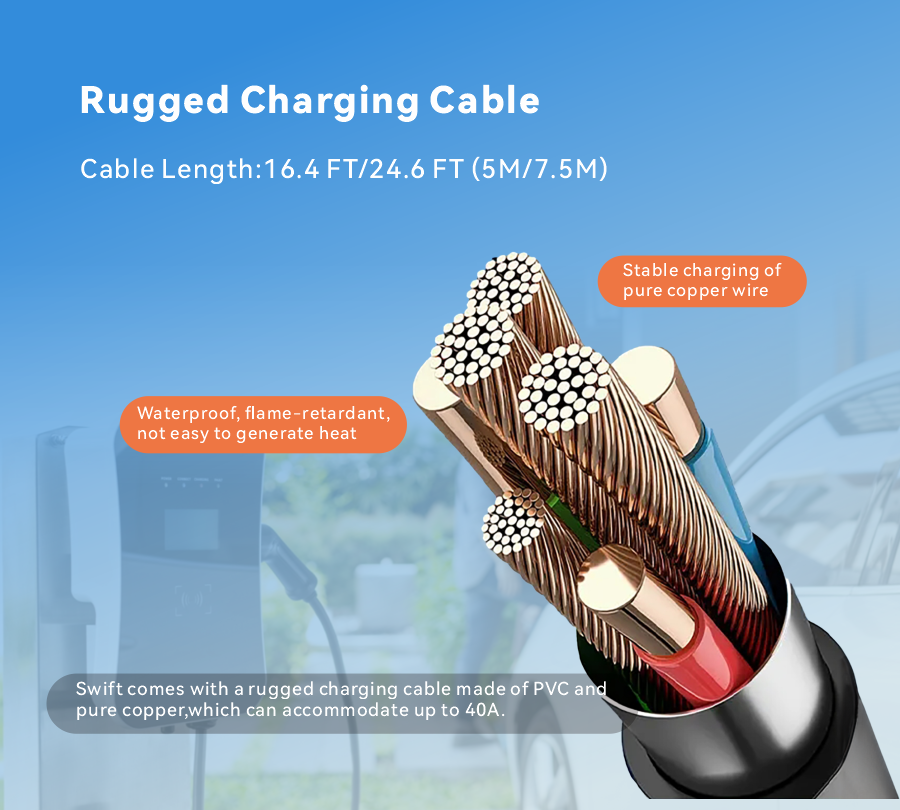

Charging cable length	5m, 7.5m, or customized length
Shell material	Metal
