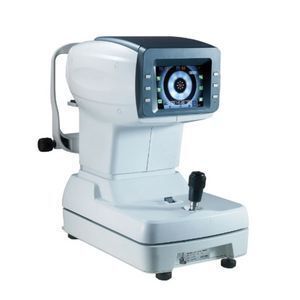

2018 New!!! China manufacturer Auto refractometer price/refractometer RM-9000

Click here to contact

Product details

Supply Ability:	1000 Unit/Units per Month;	Packaging Detail:	Carton;
Payment Terms:	T/T,Western Union,MoneyGram;	Measurement Range:	-20~+20D(VD=12MM,0.12 or 0.25);
Print:	Fast thermal printer;	Place of Origin:	Jiangsu,China;
Monitor:	5.7 inch Color LCD;	Port:	Shanghai port;
Delivery Detail:	7 working days after receive the payment;	Measurement Accuracy:	0.12/0.25D;
Size:	288(W)500(D)485(H)mm;	Certificate:	CE ISO FDA;
Weight:	14kg;	Place of Origin:	Jiangsu China (Mainland);
Brand name:	Loudly auto refractmeter keratometer;	Model number:	RM-9000;

Product Description

Features:

1.With corneal curvature and dioptre measurement function;

2.Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear;

3.Japan's mature optical path system, humanized automatic mist measurement process, to reduce the error

caused by adjustment, more precise measurements;

4.Light rack with integral casting, CNC machining,measuring system is more stable, good consistency;

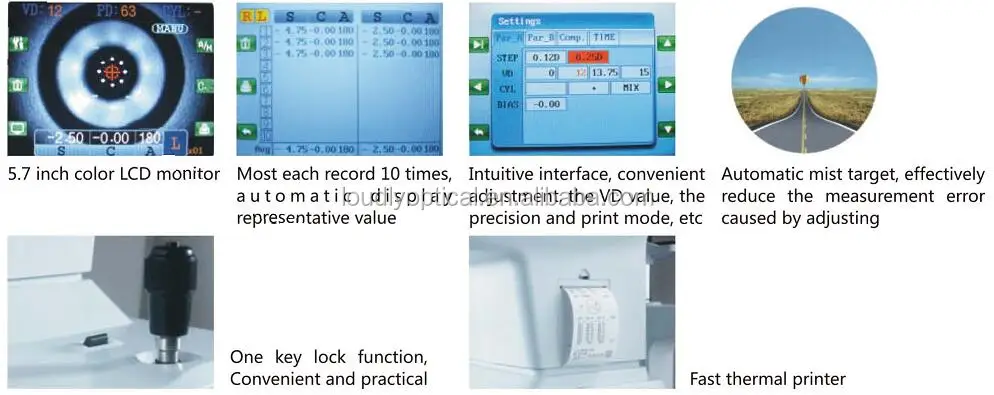

5.Color LCD display, 5.7 inches man-machine interface is more comfortable;

6.PD Automatic measurement function, automatically PD value;

7.One key lock function, quickly locking mobile platforms;

8.Innovative designs, accord with the structure of human body engineering, to bring customers good

aesthetic feeling and comfortable;

9.Data transmission with CV7000, improved efficiency of online.

Specification:

Measurement mode	K/R mode	Refractive and Keratometer measurement. (RM-9000 wihout the keratometer)
	REF mode	Refractive measurement
	KEF mode	Corneal curvature measurement (RM-9000 wihout the keratometer)
Refractive measurement	Vertex Distance	0.0,12.0,13.75,15.0 mm
	Sphere	-20.00~+20.00D (0.12/0.25D step)(VD=12mm)
	Cylinder	0.00~±10.00D (0.12/0.25D step)
	Axis	1°~180°(1° step)
	Pupil Distance	30~85 mm
	Min. pupil diameter measurable	2.0mm
	Target	Automatic fogging target
Corneal curvature measurement	Radius of curvature	5~10mm(0.01mmstep)
	Corneal Refraction	33.00~67.00D(0.12/0.25Dstep)
	Corneal Astigmatism	0.00~-15.00D(0.12/0.25Dstep)
	Angle of corneal	1°~180°(1°step)
	Corneal diameter	2.0~12.00mm
Hardware specification	Monitor	5.7 inch Color LCD

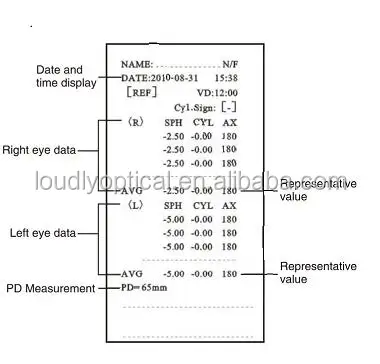

	Printer	Fast thermal printer
	Power saving function	OFF, 5, 15 mins (selectable)
	Power supply	AC110~220 V,50/60HZ
	Dimensions/weight	288(W)500(D)480(H)mm/14kg
