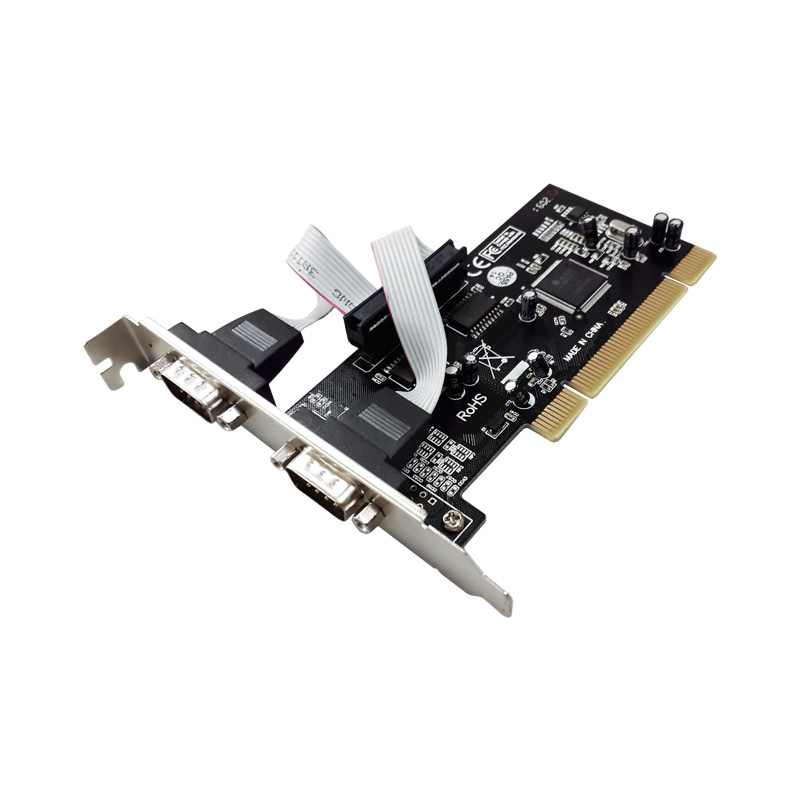

Sunweit ST324 PCI 2 serial port controller card DB9 RS-232 moschip 9865 PCI serial port card

Specification:

• •


    Features and Benefits

    1. Compliant with PCI Local Bus Specification, Revision 2.3

    2. Support 2 UART serial ports

    3. Add 1 IEEE 1284 parallel port on the system (for 1P model)

    4. Easy plug and play

    5. Automatic selection of IRQ and I/O address

    6. Built-in 16C450/550 compatible UART

    7. There is an on-chip 256-byte FIFO on the transmit and receive paths of each serial port

    8. Serial data transmission rate up to 115200bps

    9. Support Standard Parallel Port (SPP), Enhanced Parallel Port (EPP) and Enhanced Function Port (ECP)

    10. Parallel data transfer rate up to 1.5Mbytes/sec





    packConnector




    1 x DB25 female parallel connector (for 1P model)

    1 x Driver CD

    1 user manual





    System Requirements

    Windows® 2000, XP/2003 32/64 bit, Vista/Win7 32/64 bit

    Available PCI slots
