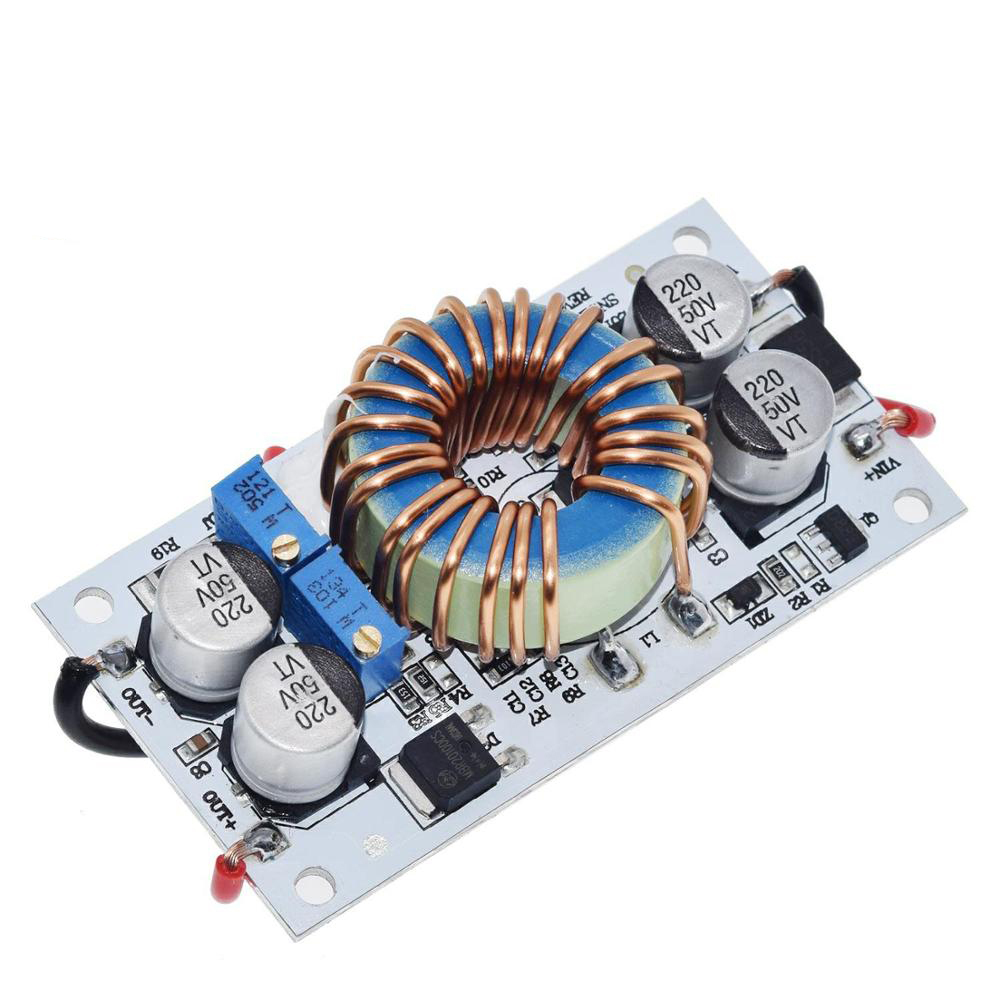

DC DC Boost Converter Constant Current Mobile 250W 10A LED Driver Non-isolated Boost Power Module

DC DC boost converter constant current module current mobile power supply 250W 10A LED drive module non-isolated boost module 250W boost constant current module
Module features: non-isolated boost module (BOOST)
Input voltage: DC8.5V-48V
Input current: 10A (MAX), please strengthen heat dissipation if it exceeds 8A
Quiescent current: 10mA (12V rises to 20V, the higher the output voltage, the quieter current will increase)
Output voltage: 10-50V continuously adjustable
constant] range: 0.2-8A
Temperature: -40 to +85 degrees (the ambient temperature is too high, please strengthen the heat dissipation)
Working frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: yes
Input reverse polarity protection: Yes,
Installation method: four 3mm screw holes
Connection method: connection output
Module size: length 70mm width 36mm height 13mm
Single module: 50 grams

application:
1. DIY a power supply, 12V can be input, and the output can be adjusted from 12-50V.
2. To supply power for your electronic equipment, you can set the output voltage value according to your system.
3. As a vehicle power supply, supply power for your laptop, PDA or various digital devices
product supply.
4. DIY a mobile notebook power supply: 12V is equipped with a large-capacity lithium battery pack, so that you can light up books wherever you go.
5. Solar panel regulator.
6, to the battery, rechargeable lithium battery.
7. Drive high-power LED lights.

Package Included:
1 x DC DC Boost Converter Constant Current Power Bank 250W 10A LED Driver
