2 heads die cut digital label die cutting machine die cutter

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;Port:Any china sea port;
Place of Origin:Henan China (Mainland);Type:Die-cutting Machine;
Applicable Industries:Printing Shops;Max. cutting width:310mm;
Dimension(L*W*H):158cm(L)*90cm(W)*136cm(H);Supply Ability:300 Set/Sets per Month;
Min. label length:10mm;Computerized:Yes;
Max. label length:440mm;After-sales Service Provided:Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Cutting media width:40-320mm;Voltage:100-240VAC;
Certification:CE;Condition:New;
Max. media roller:diameter 450mm;Warranty:1 Year;
Cutting speed:max. 5m per minute (depend on label shape and size);Brand Name:Allraise;
Cutting blades:2pcs (Standard) max. 4 pcs;Weight:420kg;
Slitting blades:4pcs (standard ) max. 15pcs;Slitting speed:Max. 60m per minute;
Packaging Detail:Digital Rotary Label Die Cutting machine One wooden case/set Package size: 168x100x161cm;Name:Digital Rotary Label Die Cutting machine;

2 heads die cut digital label die cutting machine/die cutter

Product Description

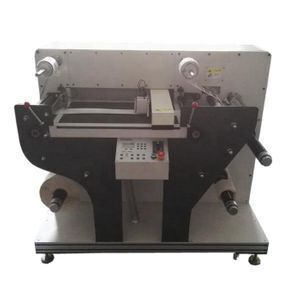

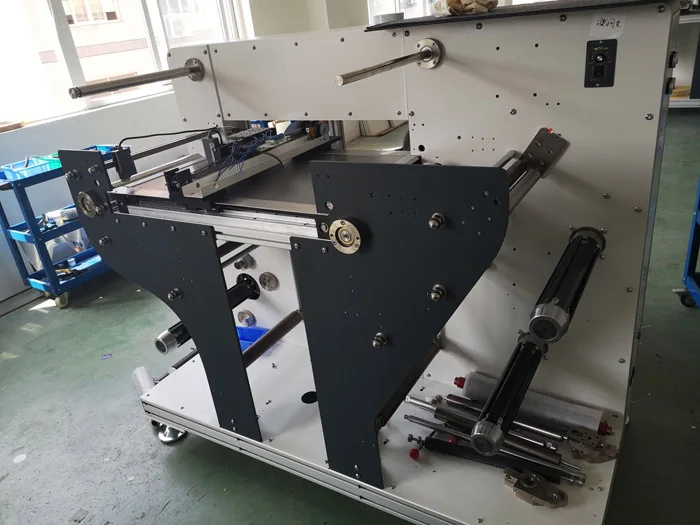

VD320 Roll to Roll Label Die Cutting Machine With Slitting Function:

Suitable media:
Adhesive label ,PP,Plastic film,PET,PVC,white card paper, art paper and other soft media.

Main parameters:

Product nameAutomatic Roll To Roll Sheet Self Adhesive Label Die Cutting Machine Price
Max. media rollerDiameter 450mm
Cutting media width40-320mm
Max. cutting width310mm
Min. label length10mm
Max. label length400mm
Cutting speed5m per minute (Depend on label shape and size)
Cutting blades2 pcs (Standard ) Max. 4pcs

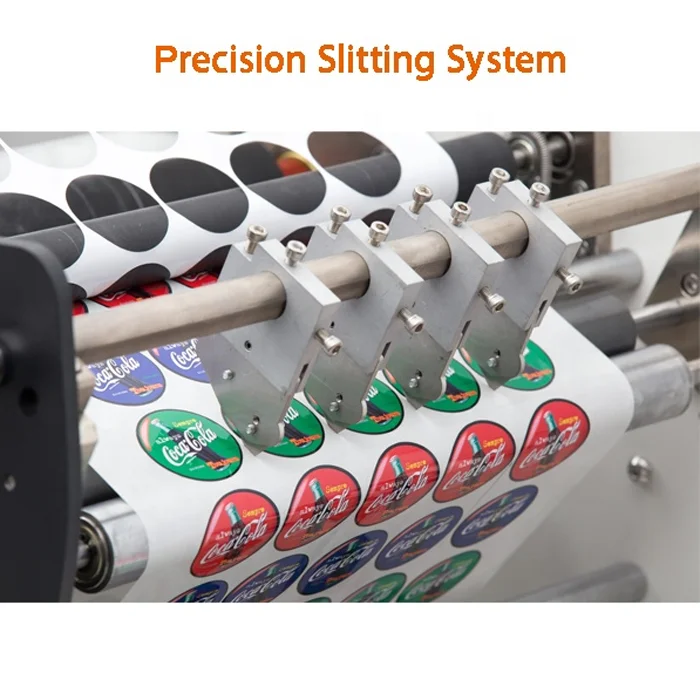

Slitting blades4pcs (standard ) Max. 15pcs

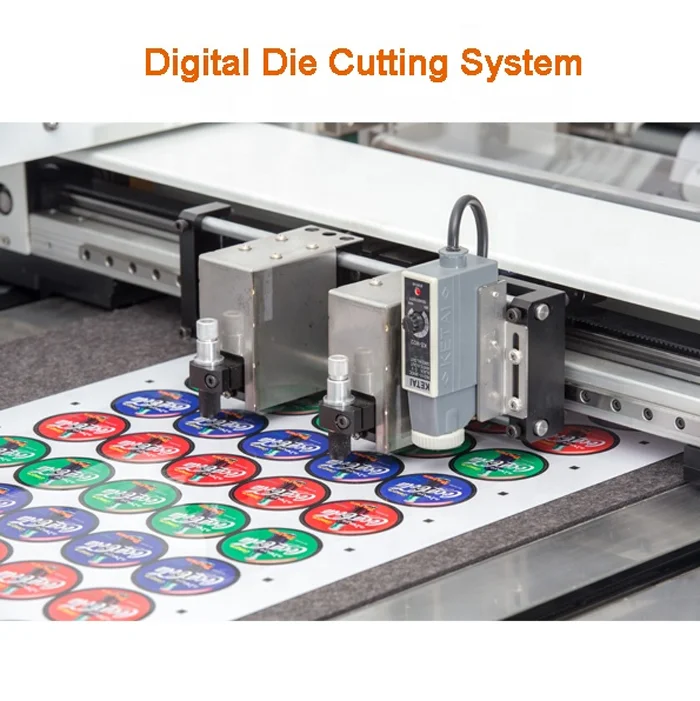

Die-cutting technologyTungsten steel rotary blades
Cutting Precision0.1MM(Duplicate )
Cutting tracking  Manuallysingle mark or double mark
Slitting speedMax. 60m per minute
Slitting precision0.2mm
Slitting width10-320MM
Machine size158cm(w)x90cm(D)x136cm(H)
Weight 450KG
Power100-240VAC, 1000 watts
Warranty1 year (beside high consumables parts)

Main Features:

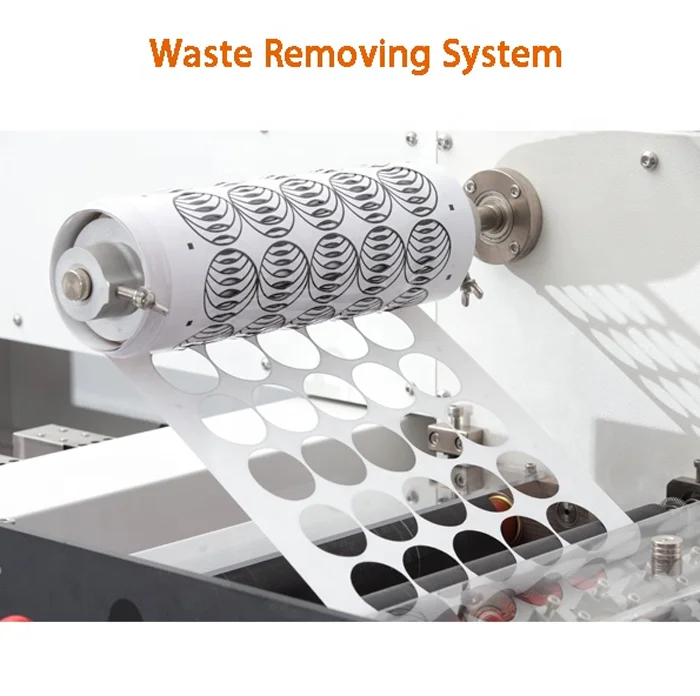

VD320 Digital Label Rotary Laminating Die Cutting Machine is developed for work for all kinds of applications. It can use for short work or big work, can die-cut all of shapes which you design, delivery time is very fast, it is your best partner for label printer. This machine collect to laminate, die-cut, waste-remove, slit and rewind together, it is not only for die-cutting, but also work for one slitting machine. The operation is very easy, it apply into label, hang tag, and package widely., we believe that this machine will be apply more and more lines , only expect you find the advantage.



1. High Speed, Economical Digital Label Finisher!
2. The traditional label finisher not only designs are complex and price is very
expensive, but also functions are lack. Now, Allraise research and develop high-
speed, easy to operate and multifunctional VD320 digital label die-cutter system.
3. The high reliable and professional new model digital label die-cutter are designed
for professional label printing company.
4. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting
and rewinding on one, it is the best solution for label finishing system.
