Universal Wireless External LCD TPMS Tire Pressure Monitoring System
- 40.00 >=100 sets
| model: | TM527C/SO | payment terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
| port: | Shenzhen or Hong Kong | brand: | Gobiz |
| Sensor pressure range: | 0-87 psi | Origin: | Guangdong, China |
| Wireless LCD tire pressure monitoring system: | Suitable for 4 wheel light vehicles | Sensor size: | Diameter: 21mm, Height: 17.5mm |
| Sensor Weight: | 9 grams | Sensor battery life: | 2 years |
| Packaging Details: | Customers can customize the packaging | Delivery Details: | 15-30 days |
| Supply capacity: | 15000 sets per month | frequency: | 433.92 MHz |

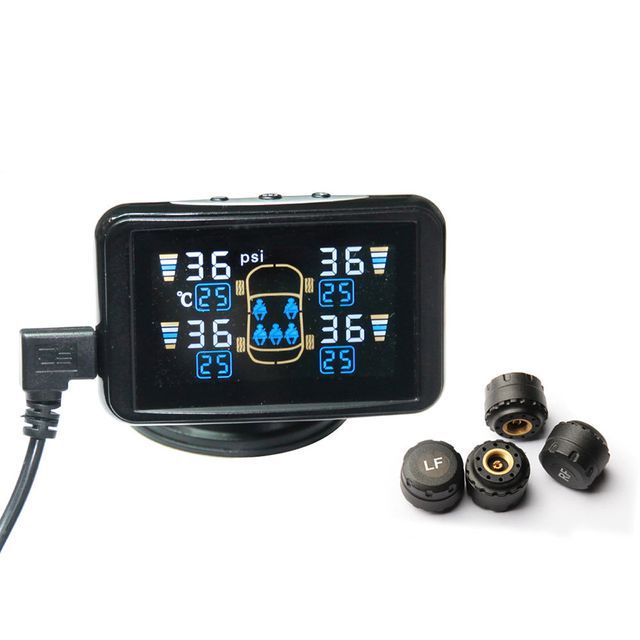

Universal Wireless LCD Tire Pressure Monitoring System External TPMS
1. What are the advantages of TPMS?
reduce driving risk
Improve fuel economy
Extend tire life
2. Features:

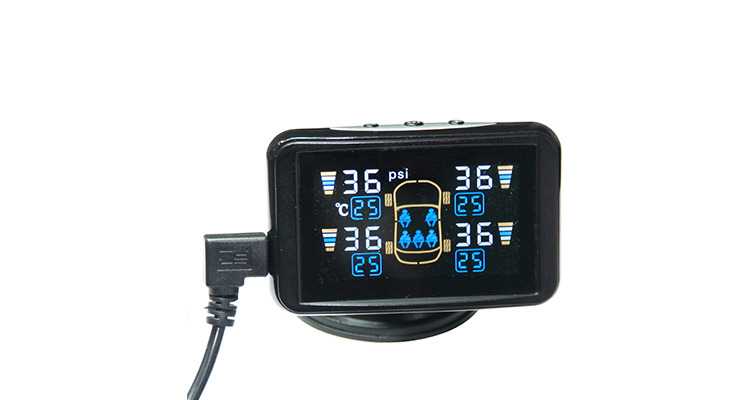

Display Features
Reliable and easy to install.
Built-in rechargeable lithium battery.
Automatic backlight.
Automatically wakes up when the vehicle starts moving.
Configurable high/low voltage warnings.
Configurable high temperature warning.
Visual and audible alarms.
Optional pressure units: PSI or BAR.
Selectable temperature units: C or F.
Monitor up to 5 tires.
Simultaneously display the pressure or temperature of 4 tires.
Sensor Features
Reliable cap sensor with easy installation.
water proof.
Replaceable sensor battery.
The sensor transmits pressure and temperature data every 5 minutes.
Rapid leak alert.
Individually coded sensors.
Anti-theft design.
3. Specifications:
monitorSpecification:
Operating Voltage: | 12 to 24V |
frequency | 433.92 MHz |
Operating temperature | -40 to +85°C |
size | 76×50×22mm (L×W×H) |
weight | 58 grams |
ExternalSensor Specifications:
Pressure range: | 0 to 6 bar, 0 to 87 psi |
Pressure Sensitivity: | ± 0.1 bar or 1.5 psi |
Temperature Sensitivity: | ±3℃ |
Transmission frequency: | 433.92 MHz |
Battery Life: | 2 years (sensor battery replaceable) |
Operating temperature: | -40 to +80°C |
weight: | 9 grams |
size: | Diameter: 21mm, Height: 17.5mm |

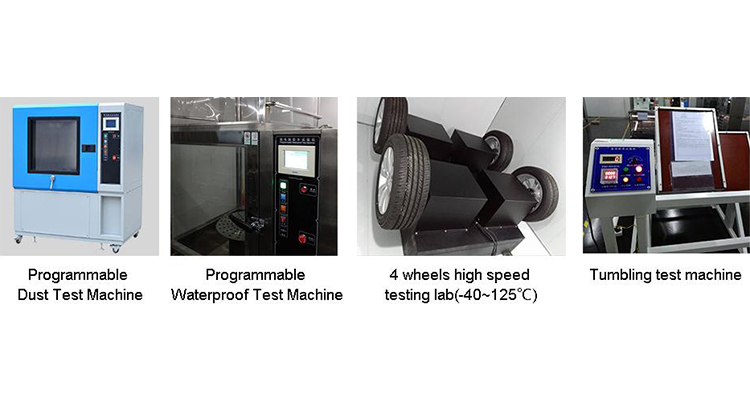

4. Our facilities:
5. Our certificates (CE, E-mark, FCC, RoHS, ISO9001) and patents
6. Cooperate with us, you will get:
0EM or ODM service
Professional R&D Engineer
Competitive price and professional sales team
Delivery time 2-4 weeks
Look forward to working with you!
