M6 M8 M10 M12 1/4" 5/16" 3/8" 1/2" Hex A4 Wedge Bolt Concrete Screw Anchor 316 Stainless Steel
- 0.50 3000 - 19999 pieces
- 0.35 20000 - 49999 pieces
- 0.30 >=50000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| usage: | Concrete, Bricks & Blocks | Packaging Details: | Stainless Steel Concrete Screw Anchor Blister Printing Plastic Bag Car Bag PP Box with Lid Box Tool Box Plastic Bucket Paper Box with Window |
| length: | 30mm-200mm, (1-7/8" to 10") | payment terms: | L/C, D/P, D/A, T/T, MoneyGram |
| aspect: | M6, M8, M10, M12, M16 (1/4, 3/8, 1/2, 5/8, 3/4) | measuring system: | imperial (inch), metric |

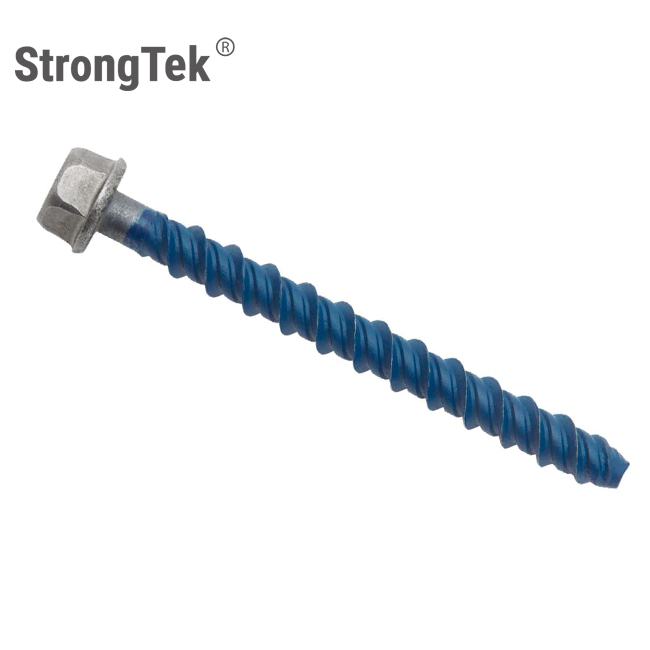

| Customization support: | Processing | Line Color: | blue tip or none |
| Anchor type: | Spiral expansion anchor bolts | Material: | Stainless steel 316+ hardened carbon tip |
| Supply capacity: | 5,000,000 pieces per month | port: | Shanghai, Ningbo |
| product name: | concrete screw | application: | General Industry, Heavy Industry, Mining, Concrete, Brick, Masonry |
| Package preview: | Warranty: | 10 years | |
| surface: | Zinc, Ruspert, Mechanical Galvanized, Dacromet | head: | Hex flange head or hex head. |
Product Description
M6 M8 M10 M12 1/4" 5/16" 3/8" 1/2" Hex A4 Wedge Bolt Concrete Screw Anchor 316 Stainless Steel

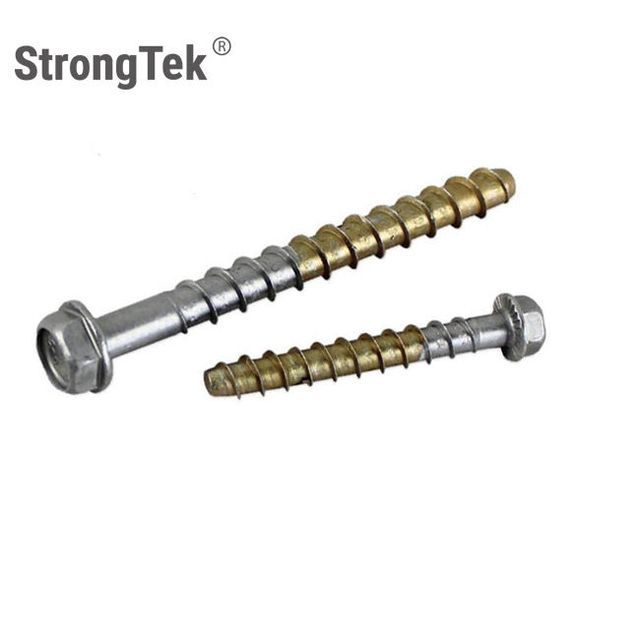

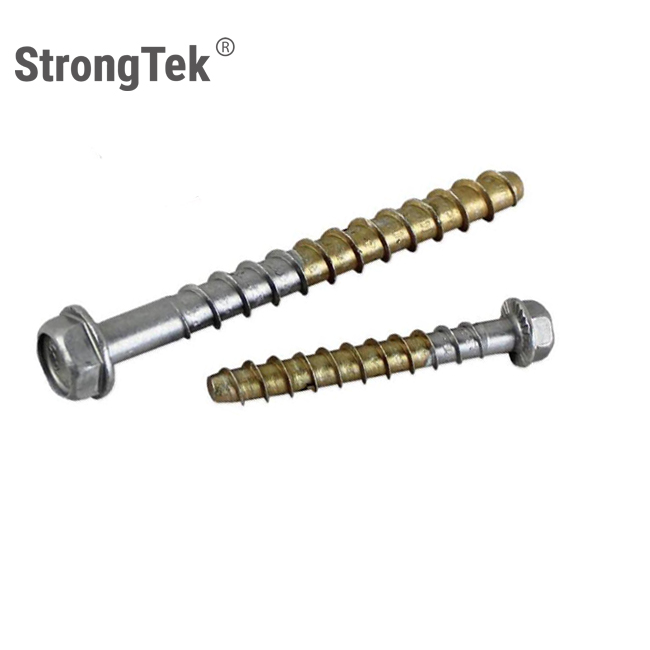

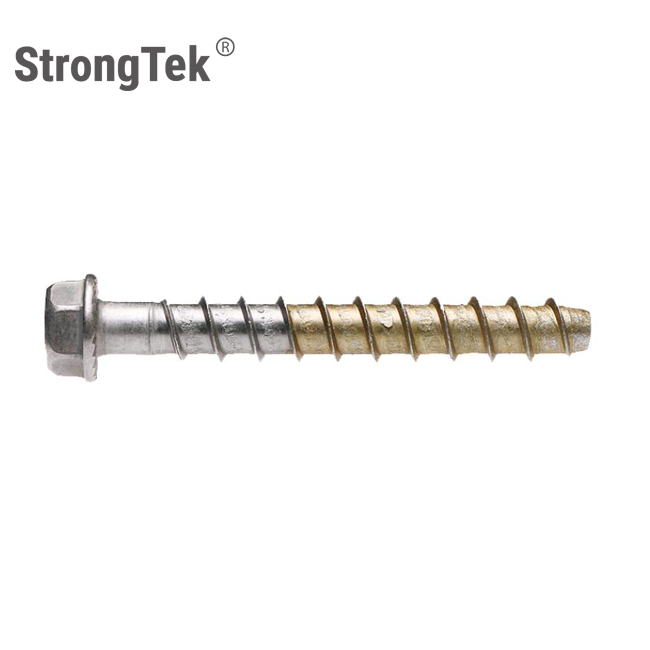

The Hex Head Concrete Screw Anchor 316 Stainless Steel is a fully removable heavy duty swivel fixed threaded form anchor ideal for temporary or permanent anchoring to substrates such as concrete, brick, hollow block or block. These anchors feature dual hardened carbon tips fused to a 316 stainless steel body for easier installation into concrete and excellent corrosion resistance. These anchors are suitable for outdoor use including waste and water treatment plants, bridges, highways, and coastal and marine areas.
availability
- Zinc transparent carbon steel
- Hot dip galvanized carbon steel
- Bi-Metallic 316 Stainless Steel with Case Hardened Tips
main features
- Installs quickly using the drill and drive method, using a hex socket, ratchet, or torque control impact wrench.
- Unlike chemical anchors or sleeve anchors, concrete screw anchors can be easily removed, leaving the hole free of debris.
- Dual hardened bodies increase durability and reliability for concrete screw anchor installations.
- The bolt's large self-tapping thread feature is designed for fast advancement and high performance as the threads are formed in the base material upon installation.
| concrete bolt | ||||
| size | Drilling diameter | head size | head type | Finish |
| (mm) | (mm) | (mm) | ||
| 5×50 | 5 | 7 | Hex flange | Galvanized/Mechanical Galvanized |
| 6x30 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6x50 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6x60 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6x80 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6×100 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6x120 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 6×140 | 6 | 10 | Hex flange | Galvanized/Mechanical Galvanized |
| 8x50 | 8 | 13 | Hex flange | Galvanized/Mechanical Galvanized |
| 8x75 | 8 | 13 | Hex flange | Galvanized/Mechanical Galvanized |
| 8×100 | 8 | 13 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×60 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10x75 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×100 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×110 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×120 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×140 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10x160 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10×200 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10x240 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10x280 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 10x320 | 10 | number 17 | Hex flange | Galvanized/Mechanical Galvanized |
| 12x75 | 12 | No. 19 | Hex flange | Galvanized/Mechanical Galvanized |
| 12×100 | 12 | No. 19 | Hex flange | Galvanized/Mechanical Galvanized |
| 12×150 | 12 | No. 19 | Hex flange | Galvanized/Mechanical Galvanized |
| 12×200 | 12 | No. 19 | Hex flange | Galvanized/Mechanical Galvanized |
| 16×100 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16×130 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16×150 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16×200 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16x240 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16x280 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| 16x320 | 16 | twenty three | Hex flange | Galvanized/Mechanical Galvanized |
| concrete bolt | ||||
| size | Drilling diameter | head size | Hex flange | Finish |
| (inch) | (inch) | (inch) | ||
| 1/4x1-7/8 | 1/4 | 3/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/4x2-3/4 | 1/4 | 3/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/4x3 | 1/4 | 3/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/4x3-1/2 | 1/4 | 3/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/4x4 | 1/4 | 3/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x1-3/4 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x2-1/2 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x3 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x4 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x5 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/8x6 | 3/8 | 9/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x3 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x4 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x5 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x6 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x6-1/2 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x8 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x12 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x13 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x14 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 1/2x15 | 1/2 | 3/4 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x4 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x5 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x6 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x6-1/2 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x8 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 5/8x10 | 5/8 | 15/16 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x4 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x5 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x6 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x7 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x8-1/2 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
| 3/4x10 | 3/4 | 1-1/8 | Hex flange | Galvanized/Mechanical Galvanized |
