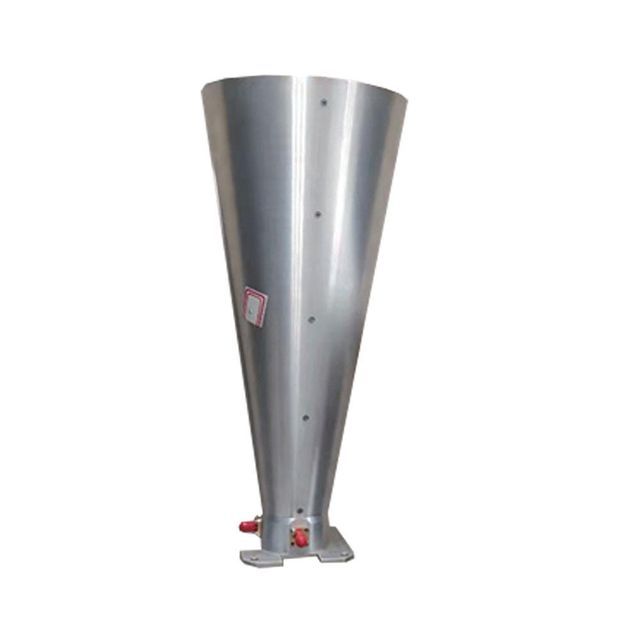

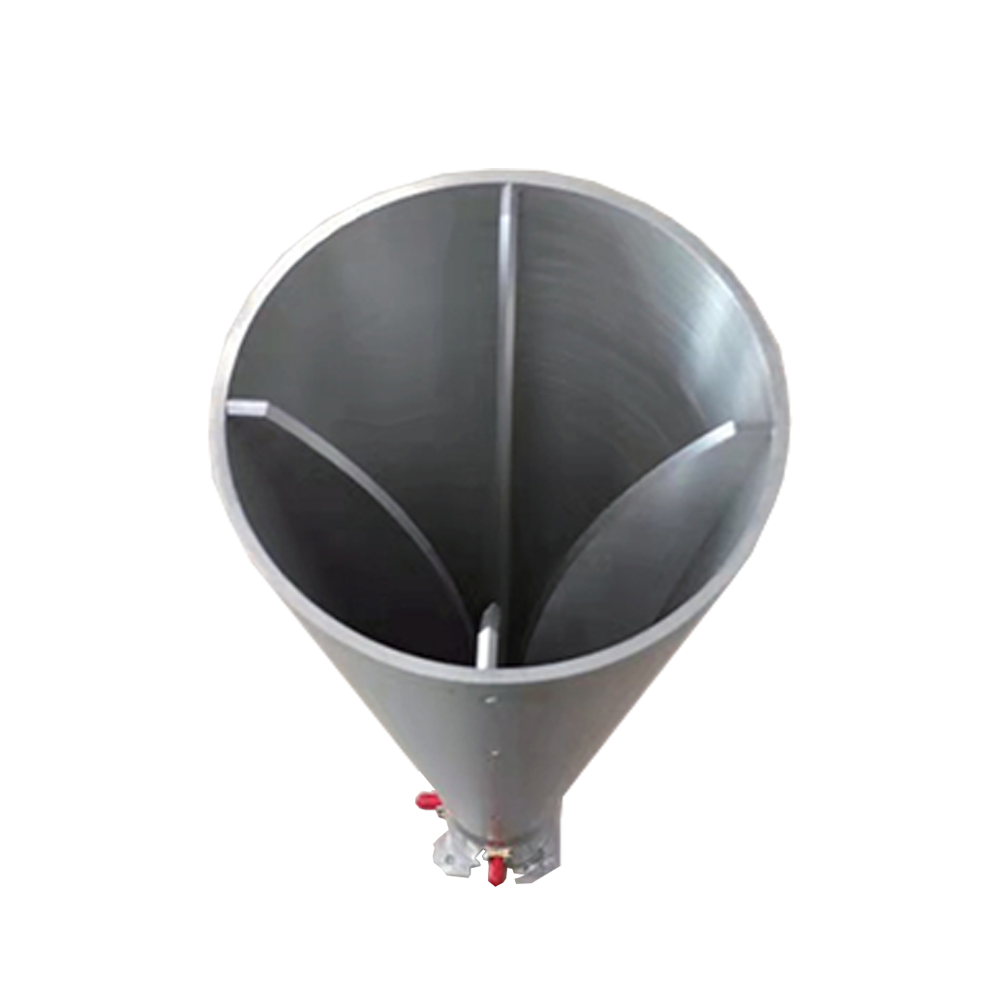

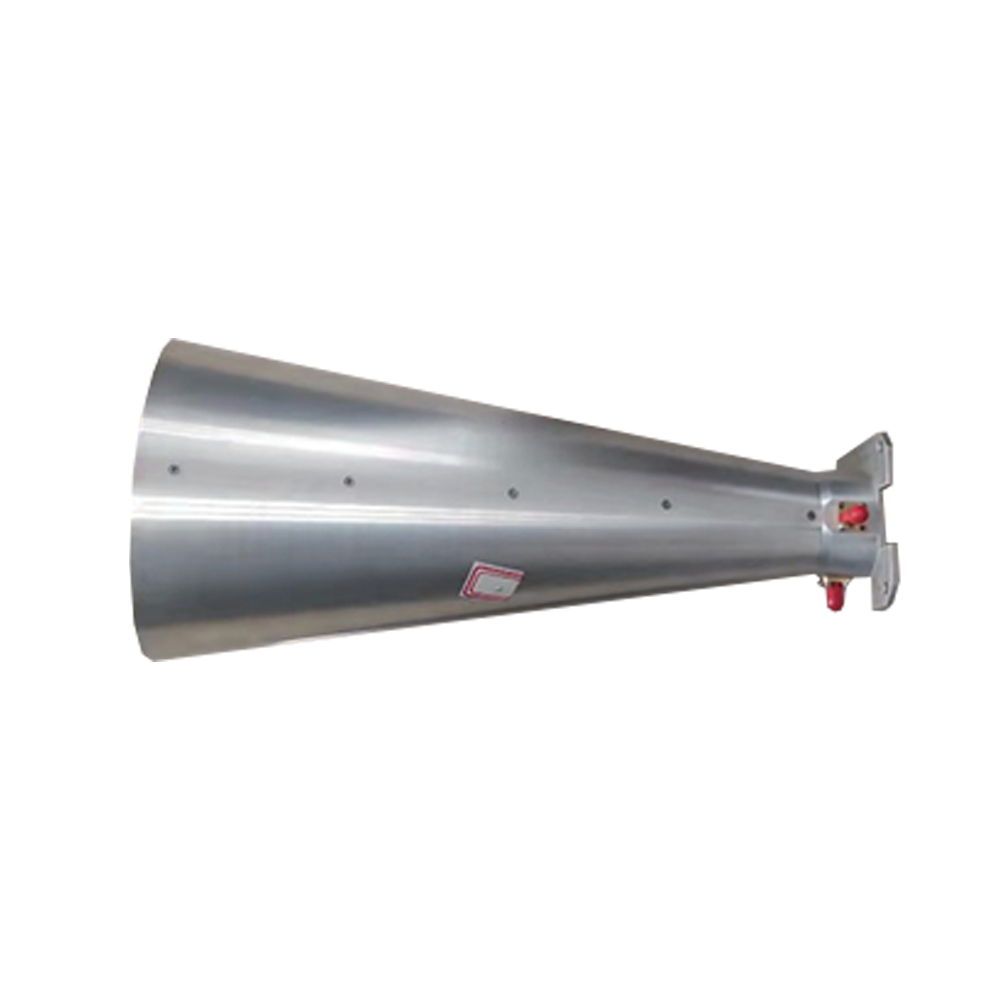

L band in Ku band 2GHz~18GHz horn cone-2-18GHz Double cone linear polarization HornAntenna Satellite receiver

Supplier: Nanjing Shinewave Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Yun Liu
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Interface form:	SMA-50K	Standing wave:	≤2.5
Supply capacity:	5000 sets per month	Model:	SH-AnT-0218
Packaging Details:	Carton/custom box	brand:	Sweet
get:	5~18 decibels	Antenna form:	cone horn
model:	SH-AnT-0218	Two-port isolation:	≥20dB
Origin:	Jiangsu, China	type:	Conical Horn Antenna
port:	Shanghai/Nanjing	Surface treatment:	conductive oxidation
payment terms:	L/C, Western Union, T/T	Mouth size:	≤140mm
polarization:	dual linear polarization	Frequency Range:	2GHz~18GHz

Model	SH-AnT-0218
Antenna form	cone horn
Frequency Range	2GHz～18GHz
standing wave	≤2.5
polarization	dual linear polarization
get	10～16.5 decibels
side lobe suppression	10～70°
side lobe suppression	E side 14dB; H side 21dB
two port isolation	≥20dB
Interface form	SMA-50K

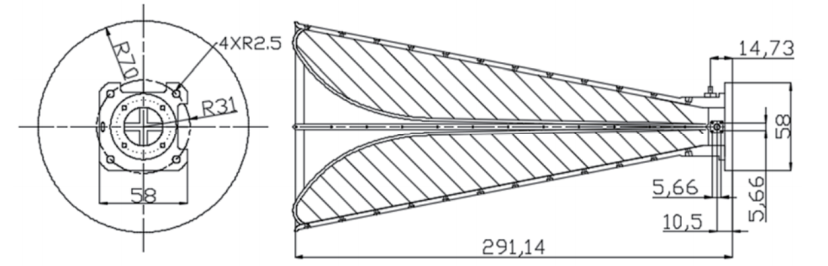

mouth size	≤140mm
weight	≤1.2kg
surface treatment	conductive oxidation
Operating temperature	-40~70℃
Storage temperature	-55~80℃
withstand power	800W

Nanjing Xinwei Technology Co., Ltd. Shenzhen Zhongke Microelectronics Co., Ltd. was established in 2008. It is a company specializing in the R&D, production and sales of RF and microwave active and passive devices and subsystems. Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative R&D team mainly composed of doctors and masters, and continues to attract outstanding talents in the industry and outstanding students from famous universities to expand the team.

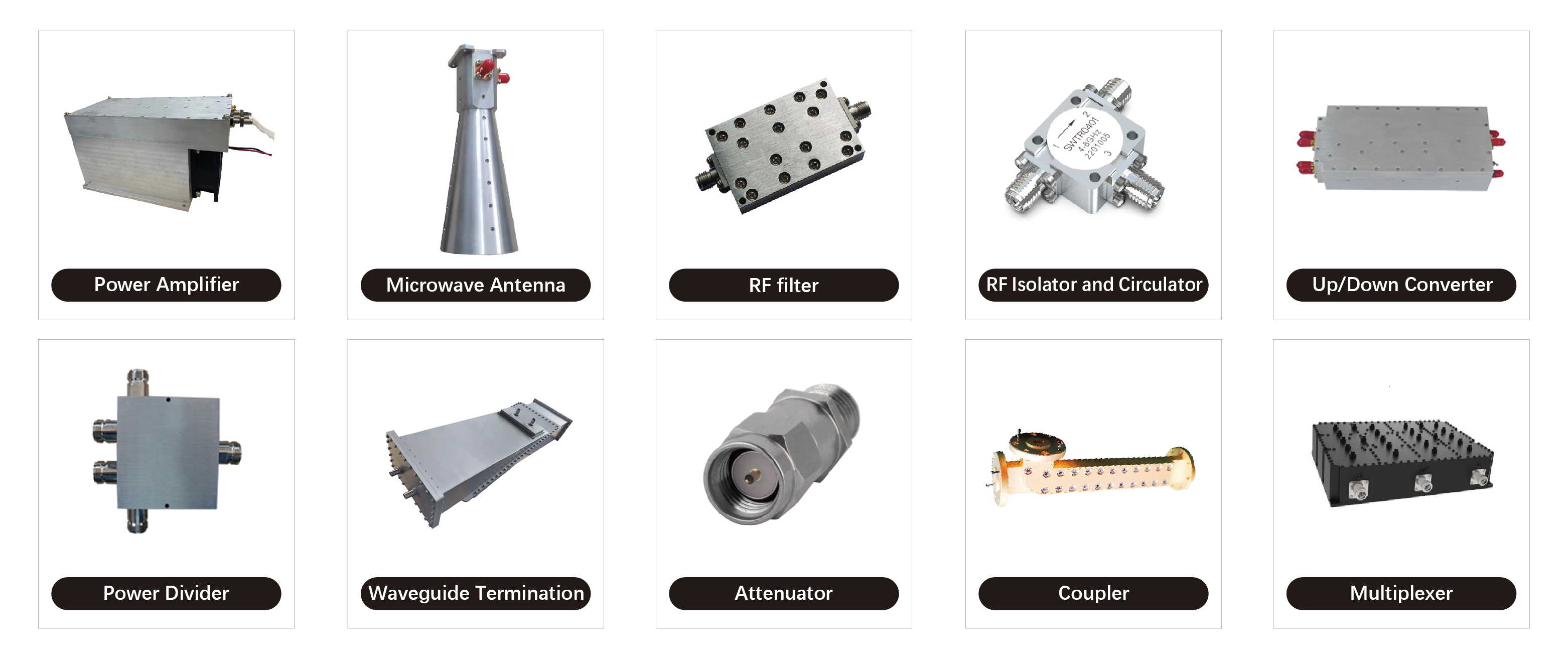

The company has nearly 20 authorized invention patents in active and passive device phase-shifting reconfigurable antennas, etc., and its application fields involve radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in civil market products such as microwave communication and mobile communication, covering RF microwave device components and antennas, among which active products include high-power solid-state microwave power amplifiers,
Low noise amplifier transceiver module, up and down converter, frequency source, etc.Passive products include microwave filters,

duplexer, power splitter, coupler,The antenna products are mainly various high-gain horn antennas, covering VHF, UHF, L-band, S-band, C-band, X-band, Ku-band, etc.

Our company is located in the beautiful ancient capital of the Six Dynasties, the big data industry base in Yuhuatai District, Nanjing. In order to meet the special needs and higher index requirements of customers, in addition to standard products, we also provide customers with customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
Serve.

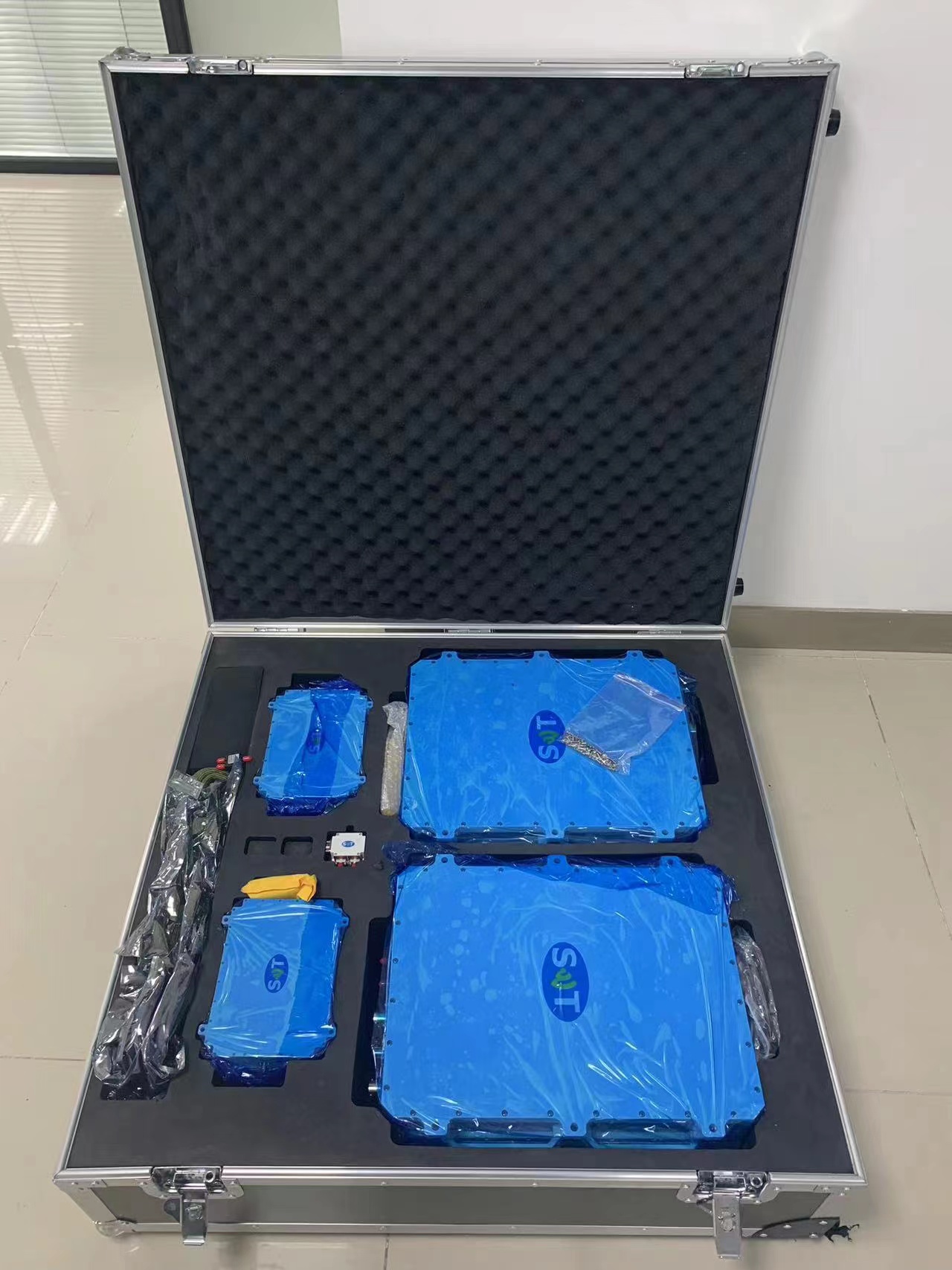

Packaging Details:

The default packaging is usually a carton, if the production batch is different, the packaging may be different.

Delivery port: Shanghai

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check the quality.

Q2. How about the delivery time?
A: Samples are usually taken out within 3 working days.

Q3. Do you have any MOQ (minimum order quality) limit?
A: For standard products, usually 1pc/item. For OEM order, MOQ at least 50pcs/item.

Q4. How to place an order?
A: After the buyer confirms the product and price is confirmed and is ready to purchase, the order will be placed. Please tell us your shipping address, phone number,
Sometimes email is required. Then we can draft the order and it will have a Alibaba payment link.

Q5. After payment, what information does the supplier provide?
Answer: Tracking number

Q6: Do you provide warranty and after-sales service for the products?

A: Yes, our products have a 6-12 months warranty. Note: We do not take any responsibility for man-made damage or improper operation. Delivery damage will be negotiated.
