Single drum vibratory road roller

Product details
Certification:CE/ISO;Vibration frequency:70HZ;
Weight:400kg;Hydraulic oil tank:15L;
Static Linear Pressure:45n/cm;Engine Model:GX160;
Water tank:22L;Condition:New;
Warranty:1 Year;Supply Ability:200 Set/Sets per Month single drum road roller;
Grade Ability:30%;Power(W):4kw;
Place of Origin:china;Dimension(L*W*H):1050*850*1200mm;
Travel Speed:0-4km/h;Wheel size:426x600mm;
Type:Single Drum Roller;Color:Yellow;
Packaging Detail:wood case for single drum road roller;Port:Qingdao Shanghai;
Brand Name:Suwelin;After-sales Service Provided:Overseas third-party support available;
Keywords:road roller;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Starting mode:Manual + Electric Starting;Name:single drum road roller;

Single drum vibratory road roller

Product Description

It is used for the maintenance of municipal and highway pavement, and also for the compaction operation of the groove foundation, the pipe ditch backfilling,the construction and the square construction, and the roller compacting lawn and so on.

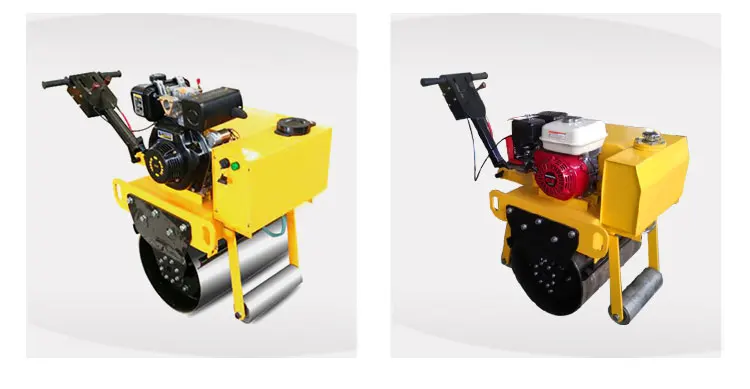

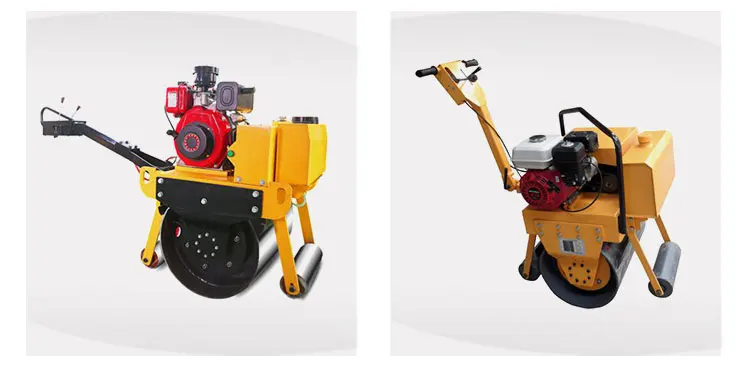

According to different working regions,we provide the different type of the Vibratory Road Roller Models.

600mm single wheel Gasoline/Diesel Road Roller

700mm single drum gasoline and diesel road roller compactor



Model

SW-S600

SW-S600C

SW-S700C

Engine model

Honda Gx270

Changfai/Changchai CF178

CF180f

Fuel type

Gasoline

Diesel

Diesel

Power

6.7KW/9HP

4.4KW/6HP

5.7KW/8HP

Fuel capacity

5.9L

             2.7L

6.5L

Static line load

 45N/cm

Vibration frequency

70HZ

70HZ

75HZ

Nominal amplitude

0.6MM

Exciting force

20KN

Water tank capacity

20L

20L

20L

Walking speed

0-4KM/H

Climbing ability

30%

Hydraulic oil capacity

5.9L

2.7L

6.5L

Drum size

426*600MM*2

700*450MM

Weight

540KG

540KG

750KG

Product feature

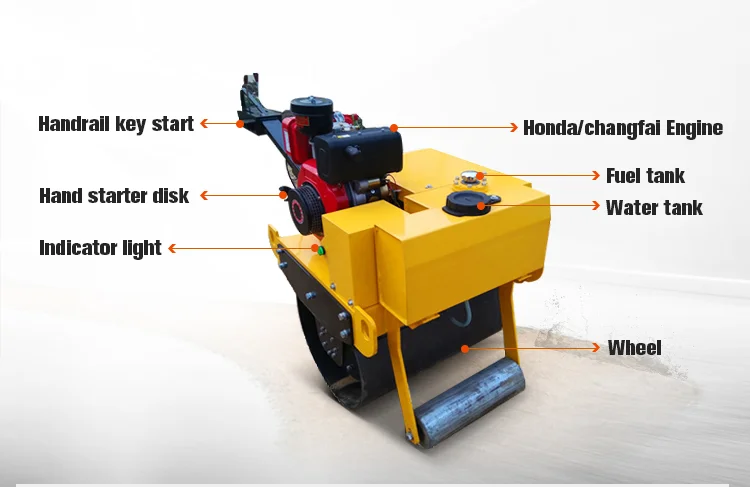

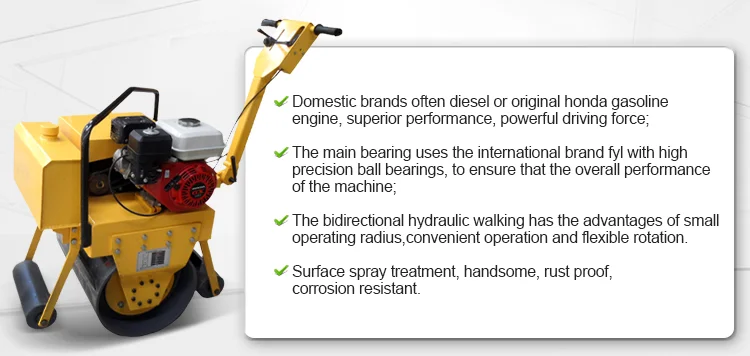

Product show and our advantage:

1.Top class quality:we provide our customer with all type road roller with good quality .

2.Cost saving:we provide high reliable pressure roller with long service life,wear resistance and superior quality and performance,and then reduce the cost.

3.Less cost of purchase:we are the manufacturer,there is no intermediate cost.

4.After sales service and technical support:our company to provide customer with after-sales service and technical support.

5.Experience:We are engaged in the production and export of many years,have a professional production and production line,experience technial experts.

Widely use for compaction the soil road, narrow space and aphalt road, parking lot and so on.
