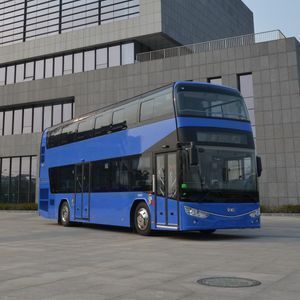

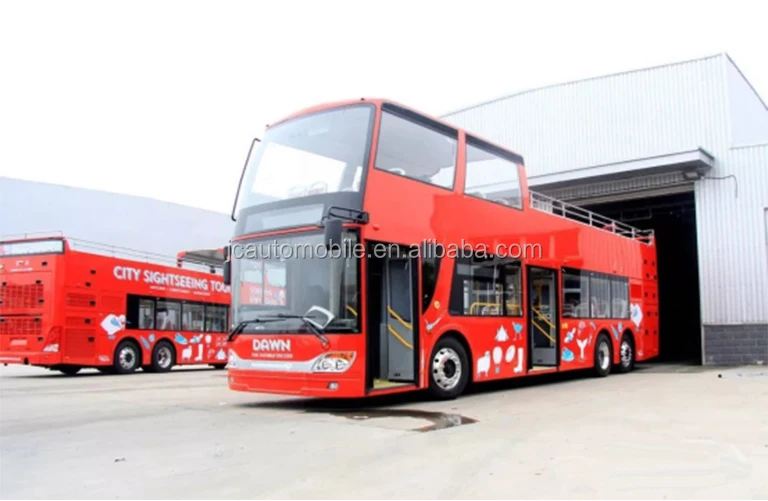

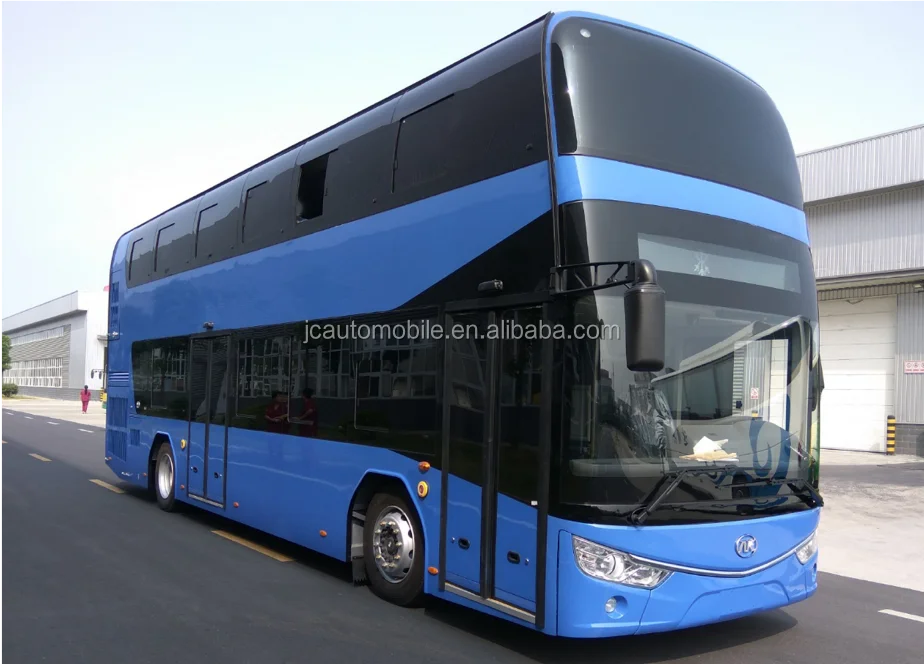

2020 New Model 60-65 Seats Full Closed Top Double-decker Sightseeing Bus for Tourism

Supplier: JC Automobile Co., Limited (Shanghai)
Region: Shanghai, China
Contact: Mr. Cyril Jia
Price: $100000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand:	JAC;	Supply Ability:	100 Unit/Units per Quarter;
Brand Name:	JAC;	Power:	Diesel;
Place of Origin:	Anhui China (Mainland);	Payment Terms:	L/C,T/T,Western Union;
Color:	Customer's Requirement;	Packaging Detail:	Simple package;
Port:	China port;	Driving type:	LHD/RHD;

2020 New Model 60-65 Seats Full Closed Top Double-decker Sightseeing Bus for Tourism

Product Description

Standard Seat Quantity	44(Upper floor)+18(Lower floor)+1
Overall Dimention (mm)	11320x2550x4200
Approach /Departure Angel	8°/8°
Wheelbase (mm)	5600
Front/Rear Overhang(mm)	2480/3240
Kerb Weight	12600 Kg
G.V.W (kg)	18000 Kg
Max Speed	69 km/h
Fuel Tank	250 L
Chassis
Engine	Model	YC6L310-42
	Type	Rear Mounted Diesel Engine ,In- line,6 Cylinders, 4 Stroke ,Water-Cooled, Turbo-charger ,Intercooler
	Emission	Euro IV
	Displacement(L)	8.424
	Rated Power(kw/rpm)	228/2200
	Max Torque(N.m/rpm)	1150/1200-1400
Gearbox	Manufacturer	VOITH
	Model	D854.5
Retarder	Hydraulic Retarder Intergrated with the gearbox
Suspension	Chinese Air Suspension with 6 Air Springs
Front Axle	AK Lowered Center Front Axle,Disc Brake,7.5 T
Rear Axle	AK Rear Axle , Drum Brake, 13T
Service Brake	Dual-circuit ,Air Brake, Automatic Clearance Adjusting Arm
Parking Brake	Spring Energy Storage Brake
Auxilliary Brake	Hydraulic Retarder
ABS	YES
Steering System	Standard
Tire	275/70R22.5/6 Pcs ,Stainless Steel Wheel Cover
Wheel Rim	Standard Chinese Wheel Rim
Electric Equipment	195A.hX2 /110A , 24V , Minus Earth
Body
Body Frame	Monocoque
Air Conditioner	50000kcal/h
Defroster	Yes
Interior Tirm	Aircon inner trim
Handrail	Plastic covered Combined Pipe ,with Flying Rings
Floor	15mm Bamboo
Floor Cover	Quartz Sand
Interior Lights	Double Line Fluorescent Lights
Video	Hard disc player & 2 units 15' TV
Driver Seat	Chinese
Passenger Seat	up44, down 18, plastic seats
Rear View Mirror	bracket type
Paint	Chinese Pure Lacquer
Passenger door	Front and Middle Pneumatic Inwards-swing Passenger Doors
CCTV	4 Cameras
Front Windsheild	Laminated Glass with Sunvisor
Rear Windsheild	Tempered Glass
Side Window	Tempered Built-in Sliding Side Windows with Folding Curtain
Others	2 Fire Extinguishers(4 KG) ,Digital Clock, Colorful Reverse Monitor ,Front and Rear Tube -Type Route Indicators
Option	2000USD should be added for whole black privacy glass
