Parallel Speaker Cable Red Black Figure 8 Zip Wire 0.5mm 0.75mm 1.0mm 1.5mm 2.5mm Speaker Wire for HiFi, Home or Car Audio

Supplier: Shenzhen Lanp Cable Co., Ltd.
Region: Guang Dong, China
Contact: Ms Amy Yang
Price: $14.00 / >=150 rolls
Min. Order: 150 rolls

Click here to contact

Product details

Connector type:	not applicable	length:	100M
Supply capacity:	2,000,000 meters of parallel loudspeaker cable with oxygen-free copper (OFC) conductors per month	style:	parallel speaker cable
color:	red black	payment terms:	L/C, Western Union, T/T
Origin:	Guangdong, China	jacket:	pvc
model:	LP-RBSC01	port:	Any port in Shenzhen
temperature range:	-20°C to +70°C	Maximum working voltage:	300/500V, 450/750V
Conductor size:	12-24awg or request	Package:	carton
Number of cores:	2	feature:	flexible
sample:	usable	shield:	not applicable
Outer diameter:	2.5*5MM	conductor:	CCA
Packaging Details:	100m, 500FT, 200m, 1000FT, 500m plastic film, wooden drum or as required	application:	HiFi, home or car stereo
brand:	Lamp

Product Name: Parallel Speaker Cable Red Black Figure 8 Zip Wire 0.5mm 0.75mm 1.0mm 1.5mm 2.5mm Speaker Wire for HiFi, Home or Car Audio

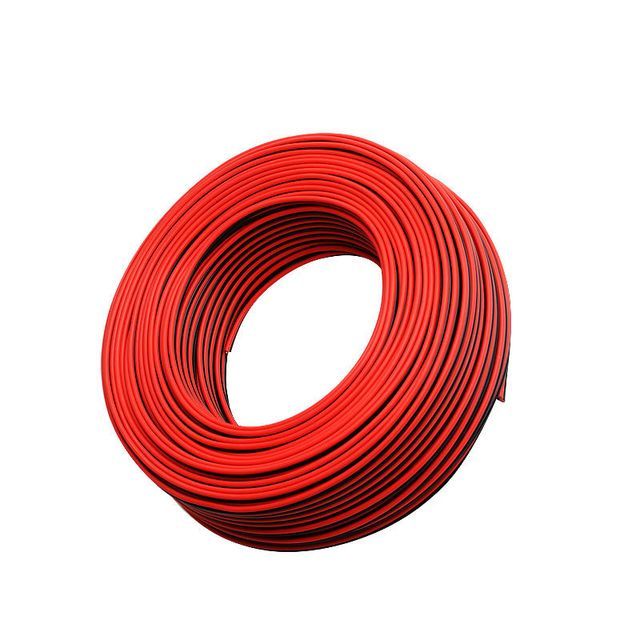

Product Image

Product Description

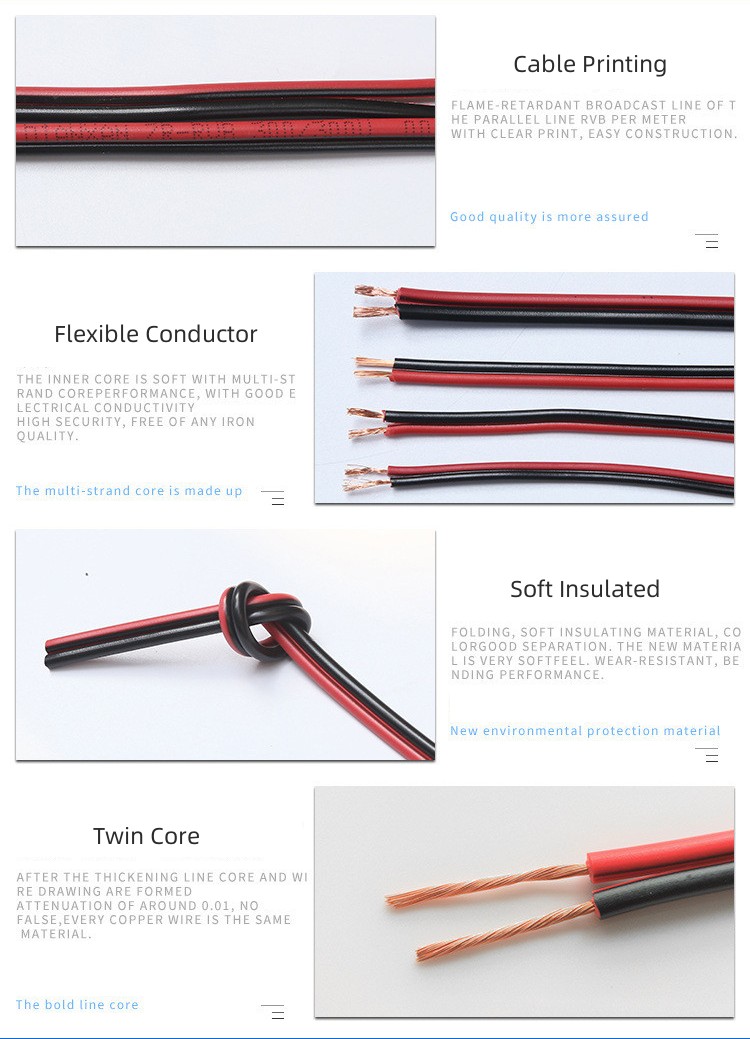

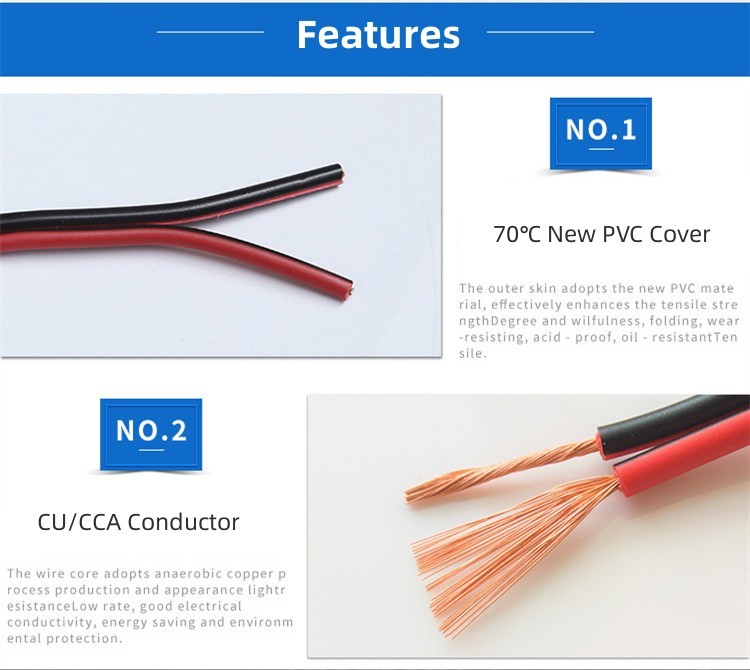

feature:

1. Stranded/flexible OFC, copper, tinned copper wire conductor

2. Reliable connection

3. High-quality PVC insulation new material

4. CE, RoHS SGS, ISO9001 standard

5. Full 100M

6. Rated voltage: 300/300V

7. Keep working under 70°C for a long time

Specification

Model (size)	Specifications	Outer diameter (mm)	Sheath / Sheath	color
0.35mm2	2CX20/0.15mm	Outer diameter: 2.0X4.0	pvc	transparent/red and black
0.50mm2	2CX28/0.15mm	Outer diameter: 2.2X4.4	pvc	transparent/red and black
0.75mm2	2CX42/0.15mm	Outer diameter: 2.4X4.8	pvc	transparent/red and black
1.0mm2	2CX57/0.15mm	Outer diameter: 3.0X6.0	pvc	transparent/red and black
1.5mm2	2CX85/0.15mm	Outer diameter: 3.6X7.2	pvc	transparent/red and black
2.5mm2	2CX7X20/0.15mm	Outer diameter: 4.2X8.4	pvc	transparent/red and black
4.0mm2	2CX7X32/0.15mm	Outer diameter: 5.0X10.0	pvc	transparent/red and black
6.0mm2	2CX7X48/0.15mm	Outer diameter: 5.5X11.0	pvc	transparent/red and black

AWG (size)	Specifications	Outer diameter (mm)	Sheath / Sheath	color
24AWG	2CX18/0.12mm	Outer diameter: 1.8X3.6	pvc	transparent/red and black
22AWG	2CX18/0.15mm	Outer diameter: 2.0X4.0	pvc	transparent/red and black
20AWG	2CX29/0.15mm	Outer diameter: 2.2X4.4	pvc	transparent/red and black
18AWG	2CX46/0.15mm	Outer diameter: 2.5X5.0	pvc	transparent/red and black
16AWG	2CX74/0.15mm	Outer diameter: 3.0X6.0	pvc	transparent/red and black
14AWG	2CX118/0.15mm	Outer diameter: 3.5X7.0	pvc	transparent/red and black
12AWG	2CX187/0.15mm	Outer diameter: 4.5X9.0	pvc	transparent/red and black
10AWG	2CX297/0.15mm	Outer diameter: 5.5X11.0	pvc	transparent/red and black

application:

Speaker cable is used in speaker series, home theater or sound system, for connecting power amplifier and broadcasting system, for transmitting the audio signal amplified by the amplifier

Packaging and Shipping

1. Packing details

1) Packing length: 100m/roll, 200m/roll, 300m/roll, 500m/roll, 1000m/roll or other lengths according to customer requirements.

2) Inner packing: plastic film, wood roll, plastic roll, paper roll are available.

3) Outer packing: carton, sack or as per requirement

4) Other packaging is available upon customer request.

2. Shipping details:

Lead teeth: 15-25 working days or negotiated

Shipping method: by sea, by express (DHL, UPS, FEDEX, TNT) or by request

our service

1. Any inquiry will be replied within 24 hours.

2. Professional manufacturer with 12 years manufacturing experience.

3. OEM/ODM is available
1) Print your logo on the cable.
2) Print your logo on the box, make according to your design.
3) Any ideas you have about cables, packing boxes are available.

4. High quality, reasonable and competitive price, fast delivery time.

5. Good after-sales service.
1) All products are strictly quality checked in-house before packing.
2) All products will be properly packed before shipping.

6. Faster delivery:
If stock is available, sample order, mass production 3-7 days.

7. Payment method:
We can accept payment methods: L/C, T/T, Western Union. Other payments can be negotiated.
