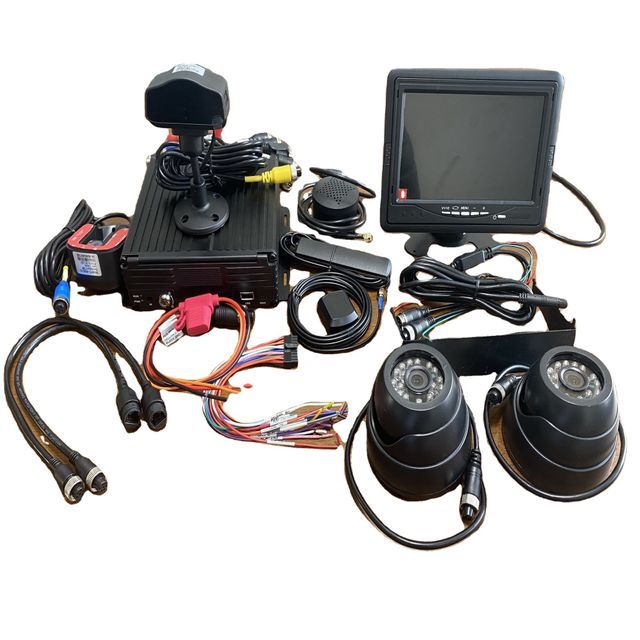

JY-X3/6 Fleet Management DSM 2T HDD 2*256G Anti-sleep ADAS 3G 4G GPS Original Fatigue Monitor 8 Channels DVR
- 79.00 piece
| Chip type: | Ent | Model: | 5130 mining, 5130B mining, 5110B mining, 5230B mining, 5230 mining, 5110B MH mining |
| Package preview: | brand: | Avenue of Joy | |
| Warranty: | 12 months | frequency band: | Band 1/3/5/7/8/18/28/38/46 |
| Year: | 2006-2015,2006-2015,2006-2015,2006-2015,2006-2015,2006-2015 | Auto Parts: | caterpillar |
| language: | Support multiple languages | product name: | 8-channel car hard disk video recorder (hard disk storage) |
| solve: | 1080P | payment terms: | L/C, T/T |
| Packaging Details: | Box | Optional features: | driver identification |
| Storage: | 1x2TB HDD/SSD+1x256GB SD | Global Positioning System: | Built-in GPS module |
| Video input: | 8 channels | Video Compression: | H.265/H.264 |
| type: | 1080P AHD DVR | Function: | Driving recorder, asset protection |
| Voltage: | 8-36 |
JY-X3/6 One machine with multiple functions
Specification
Version: V1.0.1
Date: 2020-11-10
|
8-channel all-in-one AI BOX-X3 |
|
Function: |
Ÿ HiSilicon single-chip design, integrated ADAS, DSM, BSD (optional) intelligent early warning system
Ÿ Support Yunweibao system debugging and maintenance
Ÿ H.265 encoding, high compression ratio, clear image, saving memory space
Ÿ 8 channels 1080P AHD
Ÿ AHD/TVI/CVI/IPC/analog five types of video input
Ÿ Built-in G-Sensor, real-time monitoring of vehicle driving behavior
Ÿ Support reversing image ranging assistance
Ÿ Support image horizontal and vertical image adjustment
Ÿ Support independent voice intercom
Ÿ Support hard disk automatic heating
Ÿ Special GPS drift suppression algorithm
Ÿ Input pulse automatic calibration algorithm
Ÿ Support UPS power access
power supply:
Ÿ Professional vehicle power supply, 8-36v DC wide voltage input design
Ÿ Undervoltage, short circuit, reverse connection and other protection circuits, suitable for all types of vehicles
Ÿ Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
data storage:
Ÿ Built-in super capacitor to avoid abnormal power failure, data loss and disk damage
Ÿ Adopt a special file management mechanism to encrypt data to effectively protect data security
Ÿ Support 2.5-inch hard disk, maximum support 2TB
Ÿ Support hard disk + SD card dual storage
wireless module:
Ÿ Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning
Ÿ Built-in 4G module, support LTE/HSPA/WCDMA
Ÿ WiFi module (optional), support 802.11b/g/n, frequency 2.4GHz
Active Safety Warning System:
Ÿ Built-in ADAS advanced driver assistance system (collision, vehicle approach, lane departure, etc.)
Ÿ Built-in DSM driver status analysis system (fatigue, distraction, smoking, phone calls, infrared blocking sunglasses, abnormal driver, blocking, driver comparison, etc.)
Ÿ Built-in BSD (optional) blind spot monitoring system (3-level alarm classification)
Product Specifications:
|
project |
equipment |
Performance |
|
system |
operating system |
Embedded Linux operating system |
|
operating language |
Chinese/English/Portuguese/Spanish |
|
|
Operation interface |
Graphical menu operation interface, support mouse operation |
|
|
audio and video |
video input |
8-channel 1080P AHD/TVI/CVI/CVBS |
|
video output |
VGA+CVBS |
|
|
audio input |
8 channels |
|
|
Audio output |
1 channel analog output |
|
|
video format |
PAL/NTSC |
|
|
video compression |
H.264/H264+/H.265/H265+ |
|
|
video resolution |
1080P/720P/960H/D1/CIF |
|
|
video quality |
Level 1 to 6 (configurable) |
|
|
audio format |
G711A, G711, G.726, MG.726, ADPCM, IMA |
|
|
video and playback |
storage method |
proprietary file system |
|
video query |
Search by channel, video type, alarm type |
|
|
video playback |
4 channels, local storage |
|
|
local backup |
Support SD card, U disk |
|
|
software upgrade |
Upgrade method |
Manual upgrade, automatic upgrade, remote upgrade, exception recovery |
|
upgrade mode |
U disk, SD card, online upgrade |
|
|
audio and video output |
1 way VGA, 1 way M12-4PIN CVBS |
|
|
power interface |
Power/ignition signal |
|
|
Alarm input |
7 digital inputs (configurable positive/negative trigger) |
|
|
Alarm input and output |
Two input and output modes are available |
|
|
ADC input |
4-channel ADC input |
|
|
speed pulse |
1 |
|
|
RS232 |
1 |
|
|
TTL |
1 port |
|
|
RS485 |
1 interface |
|
|
able |
1 interface |
|
|
other interface |
LED indicator |
Pressurized water/running |
|
Hard disk interface |
1 SATA interface 2.5' |
|
|
SD |
1 SD interface (maximum single channel 512G) |
|
|
disk lock |
1 |
|
|
wireless interface |
GPS/BeiDou/Glonass |
GPS/BeiDou/Glonass |
|
Wifi |
Optional WiFi module, support 802.11b/g/n, frequency 2.4GHz |
|
|
3G/4G |
1 SMA, LTE/HSPA/WCDMA |
|
|
Active Safety Device Interface |
ADAS interface |
1 channel ADAS video access, 1080p / 720p (av21) |
|
DSM interface |
One DSM video access, 1080p / 720p (AV1) |
|
|
BSD interface |
Optional 1-channel BSD video access, 1080p / 720p (av3) |
|
|
others |
power input |
DC: 8V~36V |
|
Conventional electricity consumption |
22W (without external equipment) |
|
|
power output |
5V@500mA |
|
|
Operating temperature |
-20---70℃ |
|
|
Storage capacity (H265) |
1080P 0.726G/hour/channel |
|
|
Dimensions (LxWxH) |
162mm*153mm*52mm |
