4G INDUSTRIAL ROUTER WITH SIM CARD SLOT

Supplier: Shenzhen Tengqingfeng Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms dimple zhan
Price: $1.00 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Wi-Fi Transmission Standard:	802.11n;	Standards And Protocols:	Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n;
Dimension:	2107035mm;	system requirements:	Windows 7/Vista/XP, MAC OS X, Linux and iPhone OS;
standards:	IEEE802.11n/b/g;	Certification:	ce;
Function:	Firewall,QoS,VPN;	Payment Terms:	T/T,Western Union,MoneyGram,paypal;
weight:	290g;	Products Status:	Stock;
antenna:	3 external antenna;	Place of Origin:	Guangdong China (Mainland);
WAN Ports:	1;	Packaging Detail:	3g gateway neutral packing;
Type:	Wireless;	Supply Ability:	50000 Piece/Pieces per Month 3g wireless-n router;
Max. LAN Data Rate:	150Mbps;	LAN Ports:	3;
Logo:	free to MOQ;	Brand Name:	OEM;
2.4G Wi-Fi Transmission Rate:	300 Mbps;	support:	WCDMA, CDMA2000 & TD-SCDMA;
color:	black;	Application:	Soho;
Wired Transfer Rate:	10/100/1000Mbps;	With Modem Function:	Yes;
Port:	shenzhen;	Model Number:	TQ606;
Item:	3g wireless-n router;	port:	1 wan port , 3 lan port , TF Card slot sim card port(Option);
Wi-Fi Supported Frequency:	2.4G;	Delivery Detail:	within 7 days after payment;

Cloud Storage Wireless-N Router

TQLINK8613 use in car bus

4g Router with 1 wan and 3 lan port and with sim card slot

Function:

1,Wireless network storage:build-in SD card slot,Support SD card,U-disk and USB portable hard disk(internal hard disk Option) file reading and sharing as well as online paly;

2,Vidio,online gaming simultaneous transfers with minimal interruptions or buffering;

3,connect up to 32 WI-FI enable device and share 3G/4G bandwidth

4,Support IEEE802.11 b/g/n wifi standard,wifi connection speed up to 300Mbps

Built-in high performance 5 dbi 2.4G external antenna;

5,One WAN and Three LAN RJ45 ethernet connection ports

6,Access EVDO/CDMA2000/TD-SCDMA mobile network via 3G/4G usb dongle

7,Built-in SIM Card slot,Access EVDO/CDMA2000/TD-SCDMA mobile network via 3G/4G SIM Card(Option).

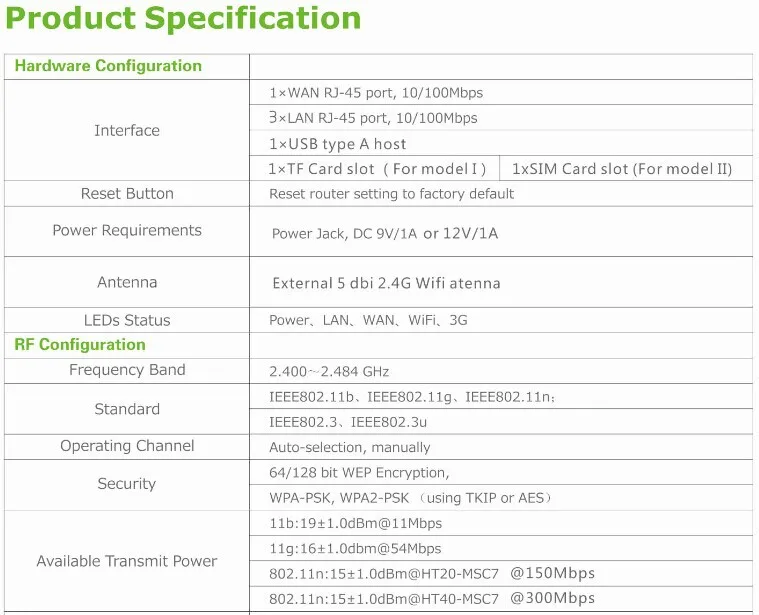

Product Specification

Hardware Configuration
Interface	1×WAN RJ-45 port,10/100Mbps
	3×LAN RJ-45 port,10/100Mbps
	1×USB type A host
	1×TF Card slot
	1×SIM Card slot(Option)
Reset Button	Reset router setting to factory default
Power requirements	Power Jack, DC 9V/1A or 12V/1A
Antenna	External 5 dbi 2.4G Wifi atenna
LEDs Status	Power,LAN,WAN,WiFi,3G/4G
RF Configuration
Frequency Band	2.400~2.484GHz
Standard	IEEE802.11b,IEEE802.11g,IEEE802.11n;
Standard	IEEE802.3,IEEE802.3u
Operating Channel	Auto-selection,manually
Security	644/128 bit WEP Encryption
Security	WPA-PSK,WPA2-PSK(using TKIP or AES)
Available Transmit Power	11b:19±1.0dBm@11Mbps
	11g:19±1.0dBm@54Mbps
	802.11n:15±1.0dBm@HT20-MSC7 @150Mbps
	802.11n:15±1.0dBm@HT40-MSC7 @150Mbps

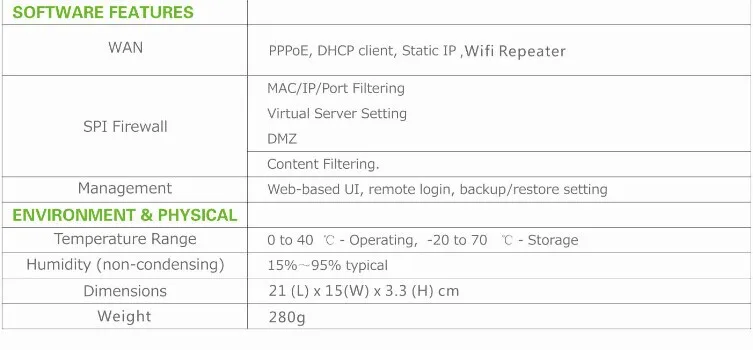

SOFTWARE FEATURES
WAN	pppoE,DHCP client,Static IP.Wiffi Repeater
SIP Firewall	MAC/IP/Port Filtering Virtual Server Setting DMZ
SIP Firewall	Content Filtering
Management	Web-based UI.remote login,backup/restore setting
ENVIRONMENT&PHYSICAL
Temperature Range	0 to 40°C-Operating,-20 to 70°C-storage
Humidity(non-condensing)	15%~95% typical
Dimensions	21(L)7(W)3.5(H)cm
Weight	290kg
