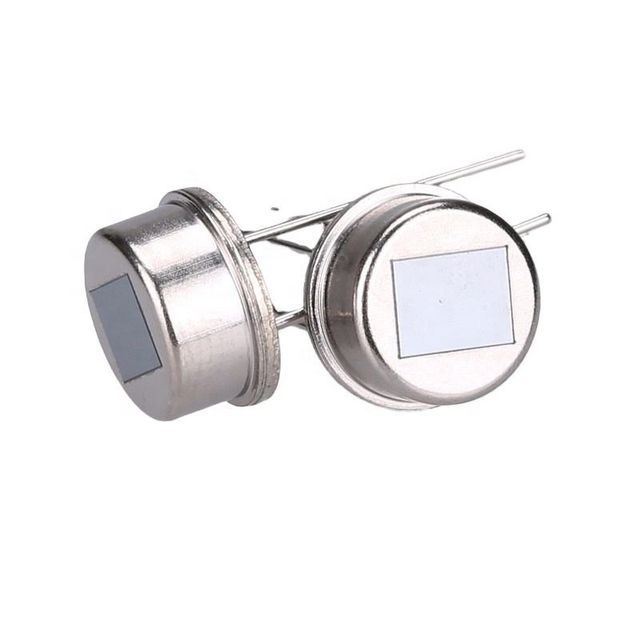

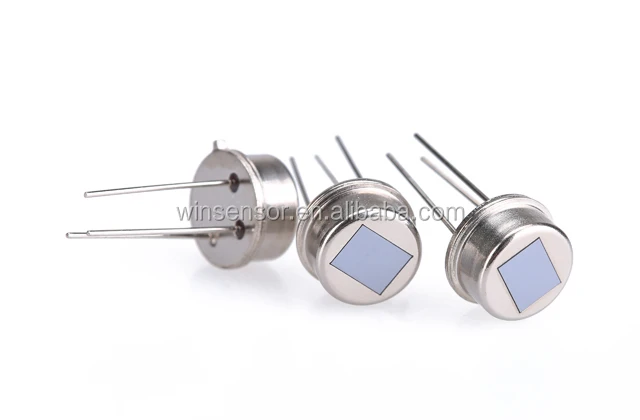

Winsen RD-624 PIR Motion Sensing Sensor Pyroelectric Infrared for Automatic Sliding Door Light Toys

Supplier: Zhengzhou Winsen Electronics Technology Co., Ltd.
Region: Henan, China
Contact: Ms Lucky Liu
Price: $0.23 / 10 - 999 units
$0.20 / >=1000 units
Min. Order: 10 units

Click here to contact

Product details

describe:	RD-624 PIR Motion Sensing Sensor, RD-624 PIR Motion Sensing Infrared Sensor	Package preview:
Window Size:	3*4mm	usage:	Security alarms, lighting, automatic doors, toys, sensory doors, signal lights, alarms
model:	RD-624	Advantage:	Dual sensing element compensation
in principle:	pyroelectric infrared	Installation type:	ceiling wall mount
output:	analog sensor, analog	series:	PIR motion sensor
theory:	Pyroelectric infrared, PIR	feature:	High sensitivity
port:	Main ports in China: Qingdao, Shanghai, Tianjin, etc.	Manufacturing date code:	-
type:	PIR motion position sensor, infrared induction sensor	Packaging Details:	Inside: Protective Foam Outside: Paper Box
MOQ:	2	Origin:	Henan
Supply capacity:	50000 pieces per month	Detection wavelength:	7~14μm
payment terms:	L/C, Western Union, T/T	Shipping:	Fedex, DHL, TNT, by air
brand:	Winson	Package:	TO-5

Winsen RD-624 PIR Motion Sensing Sensor Pyroelectric Infrared for Automatic Sliding Door Light Toys

Factory information

Factory scale	About 30000 square meters
Number of production lines	18
Number of R&D personnel	More than 100 people
Number of QC personnel	More than 30 people
Number of employees	800 people
certified	ISO9001; ISO14001; ISO45001; CE;

market

Main Market: North America; South America; Eastern Europe; Western Europe; Asia

Total annual sales volume: 3.5 million pieces

Application field

* Security, intrusion alarm, indoor access control management

*Human detection lighting

* Automatic control gate, smart home

*Smart office equipment

Pyroelectric infrared sensors use temperature-dependent properties to detect infrared radiation. The interference caused by temperature changes is suppressed in a complementary way with dual sensing elements, which improves the stability of the sensor. The PIR sensor can be widely used in security devices, anti-theft alarms, automatic doors, automatic light control and smart toys and other fields.

feature

* High filter transmittance, good selectivity

* It adopts double sensing element compensation structure, which has strong anti-interference ability of external environment

* High sensitivity and excellent signal-to-noise ratio

* High stability, strong anti-interference ability (such as vibration, radio frequency interference, etc.)

contour

Pyroelectric Infrared Motion Sensor, Mini Bluetooth Motion Sensor/Small Motion Sensor/Wireless Motion Sensor Hidden Camera, detects infrared radiation with temperature dependent function. The interference caused by temperature changes is suppressed in a complementary way with dual sensing elements, which improves the stability of the sensor. The PIR sensor can be widely used in security devices, anti-theft alarms, automatic doors, automatic light control and smart toys, motion-sensing lighting and other fields.

Technical database:

model.	RD-624 (Motion Sensor)
Standard package:	TO-5
Infrared receiving electrode	2×1mm, 2 sensitive elements
Window Size:	3×4mm
Receive wavelength:	7~14 microns
Transmittance	>75%
Output signal peak value [Vp-p]	3500 mV
sensitivity	3200V/W
Detection rate (D*):	1.4×10⁸centimeter hertz^1/2/W
Noise Peak [Vp-p]:	<70mV
Output balance:	<10%
voltage:	0.2~1.5V
Operating Voltage:	2~15V
Operating temperature:	-30~70℃
Storage temperature:	-40~80℃

About Vincent

Wensen Electronics is a professional and leading supplier of gas sensing solutions, with more than 30 years of experience in sensor product development, manufacturing and sales, covering an area of 30,000 square meters.

30+ years of experience, 15+ advanced production lines, 100+ patents, 100+ R&D team members

Wensen products are mainly composed of gas sensors and modules, as well as other sensors such as PIR motion sensors, flow sensors, pressure sensors, humidity sensors, gas sensor instruments and equipment.

7Category200+ Series Sensors300+ Detection IndicatorsN+ Applications

Vinson can be found in various fields involving sensor applications, such as household appliances, automotive electronics, medical health, industrial safety, civil fire protection, smart animal husbandry, smart agriculture, smart water, smart home, smart city, and environmental protection.

Our Strengths and Advantages

*Top brand - Wensen is the largest and leading company in the field of gas sensors.

* Strong research and development capabilities - self-built laboratories, 100+ outstanding engineers and 100+ patents.

* Production capacity - 30,000 pieces per 24 hours.

* 15+ international advanced production lines and processing workshops, with about 500 sets of production and processing equipment

Check the equipment.

* Market growth: Supply more than 60,000,000 gas sensors and modules to more than 100 countries and regions every year.

* One-stop service: technical consultation, sales, logistics, after-sales, etc.
