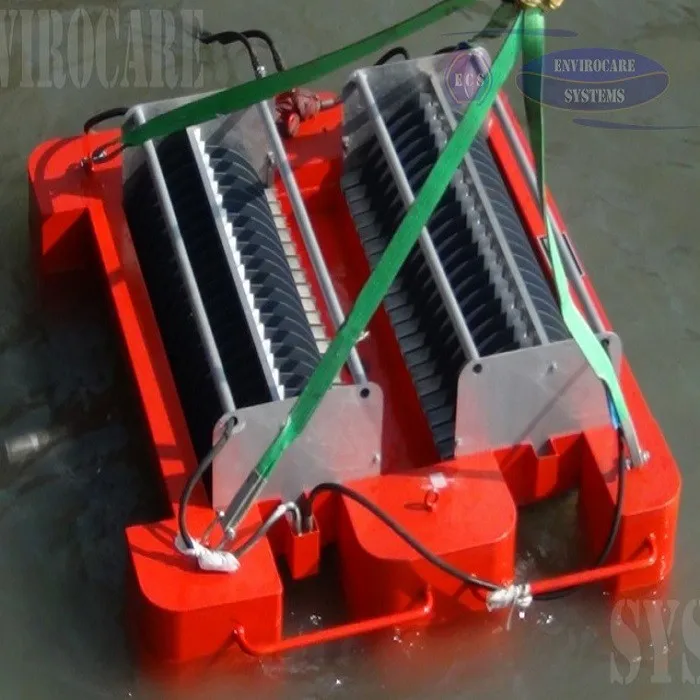

High efficiency and Exclusive technology ship fuel oil purifier DISC SKIMMER

KEY FEATURES

Proven 98:2 Oil Water Recovery Ratio

Unsinkable Floats Filled Due To Polymer Foam Filling Which Prevent Water Ingress In Unlikely Event Of Damage Or Rupture
High Reserve Buoyancy To Weight Ratio
Light Weight Construction
Low Draft Operation Capability
Can Be Deployed By 2 Personnel
Self Lubricated Disc Drive Bearings Specially Selected For Marine Environment

Single Control Panel Consisiting Of Dual Control Mechanism For Controlling Disc Speed And Pump Speed Rendering Ease Of Oil Pick Up And Transfer Operation.

Modular Hydraulic Circuit In Power Pack For Ease Of Maintenance And Swift Component Interchange With Minimal Downtime

SPECIFICATIONS
Size: 900mm X 500mm X 450mm (L*W*H) And 1250mm X 900mmx480mm (L*W*H) And 1650mmx 1000mm X500mm (L*W*H)
Rated Capacity: 5tons/Hr And 12tons/Hr And 25 Tons/Hr As Per Astm F631 Witnessed By Dnv/Bvqi
Material Of Construction: Powder Coated Marine Grade Aluminum.
Working Principle: Mechanical Recovery By Oleophilic Oil Attraction
Disc Cartridge Construction: Anodised Aluminum Fittings
Lifting Points: Side Handles And 4 Point Lifting Eyes
Debris Screen: Debris Mesh Attached To Skimmer
Accessories: Cover/Splash Guard
Drive: Hydraulic
Power Pack Connection: Quick Connect
Transfer Pump (Option-1): Stainless Steel Channel Impeller Hydraulic Drive Onboard Skimmer For Viscosities Upto 1000 Cst.
Transfer Pump (Pption – 2): Stainless Steel Screw Impeller Drive Onboard Skimmer For Viscosities Upto 100000 Cst.
Pump Material Of Construction: Sea Water Resistant Aluminum
Power Pack Connection: Quick Connect
Power Pack Material Of Construction: Powder Coated Grade A Carbon Steel
Power Pack: Air Cooled Electric Start Diesel Engine Hatz Maket
Power Pack Control Panel Instrumentation: Disc And Pump On/Off Control, Speed Control , Engine Start , Engine Stop , Engine Speed, Battery Charge Indicator, Pressure Gauges
Power Pack Accessories: Filters, Debris Mesh, Hydrualic Oil Tank, Oil Level Indicator, Engine Vibration Mounts.
Power Pack Mobility: Mounted On Heavy Duty 6" Wheels

EnviroCare Systems has been founded by a dedicated team of technocrats who have been working in the field of Oil Spill Response Containment and Recovery for more than two decades in Europe, India and Africa. After gaining significant experience and know how, along with one of our co-founding members having worked with a pioneer international company in the field of Oil Spill Response Equipment in Europe across the value chain and having participated in actual Oil Spill Response Operations in the Niger delta , having the correct industry synergies in place , it was envisaged to commence manufacturing in India, in order to provide the market not only with proven equipment , that is guaranteed to perform on the field but also along with it an offering that creates value.

Over the course of our manufacturing and research inception from 2008, we have supplied to all major oil companies and port terminals such as Reliance Industries, Petrobras Brazil, Indian Oil Corporation, Blue Water Energy Services, Total, New Mangalore Port Trust, Haldia Dock complex, etc.
