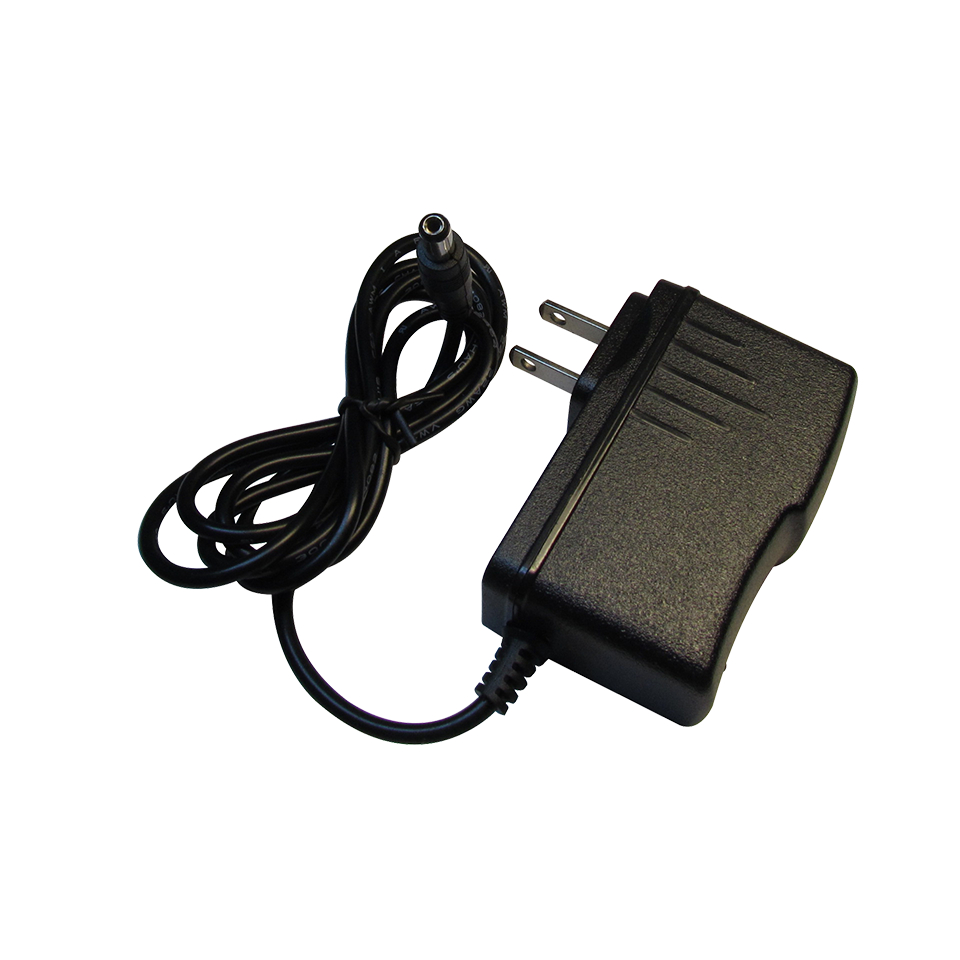

SD Wall Switch Charger Adapter 100V 220V 240V Transformer to 5V 6V 9V 15V 500Ma 1A 1.5A 2A 3A 24V 12V Power Adapter

Click here to contact
Product details
brand:super dragonOrigin:Guangdong, China
output:12V1A/5V2A/24V 0.5A...model:SD1202000
Warranty:2 yearsPackage preview:
color:black or whiteAC plug:US Euro UK Australia or other plug
port:ShenzhenOutput Power:5W ~ 12W
application:CCTV Products/ LED Strips/Printers/Pumpspayment terms:Western Union, T/T, Paypal
output type:direct currentconnect:insert
enter:100-240VAC 50/60HZSupply capacity:8000 pieces per day
Customized service.
Physical parameter customization
MOQ: 100
5V, 6V, 9V, 12V, 18V, and 24V are commonly used output voltages for power supplies. then if you needCustomize other specifications, provide special parameters through our channels, such as 8.9V, 13.8V, 34V. Also, increase or decrease overvoltage protection.provide sample.
Structure and function customization
MOQ: 100
Single output is common, while some customers prefer power adaptersmultiplexed output, please provide your concept andrequired functionGive us. Apart from,output cable lengthCan be customized to meet your requirements.

Label and Laser Content Customization
MOQ: 100
yourlogoand other information. Can be shown in the label of the power adapter. we can laser you toologointo the plastic case. You can meet the needs of your target market with our additional services.
Shell customization
MOQ: 10000
If you request a customspecial casefor power supply/charger/cableVI that meets your brand, you can provide your design or share your ideas with our designers andIncrease the budget/lead time of the project. Then we can make a special mold for your company.
Box customization
MOQ: 500
For unit products (power supply/charger/data cable), if you want to customize the packaging box, such as addingA picture of your logo or design, with two different materialscardboard orcorrugated cardboardfor your special requirements.
Packaging carton customization
MOQ: 2000
send to usYour branding packaging artwork or designOur designers will create for youPower/Charger/Data Cable. Professional designers in our teamquality assuranceyour packaging.
Product Description
stable
Safety
Low R&P
High Power
elite design
low no-load
flame retardant
high efficiency
global recognition
emphasis on details
wide area applicant
perfect heat conduction
High temperature resistant

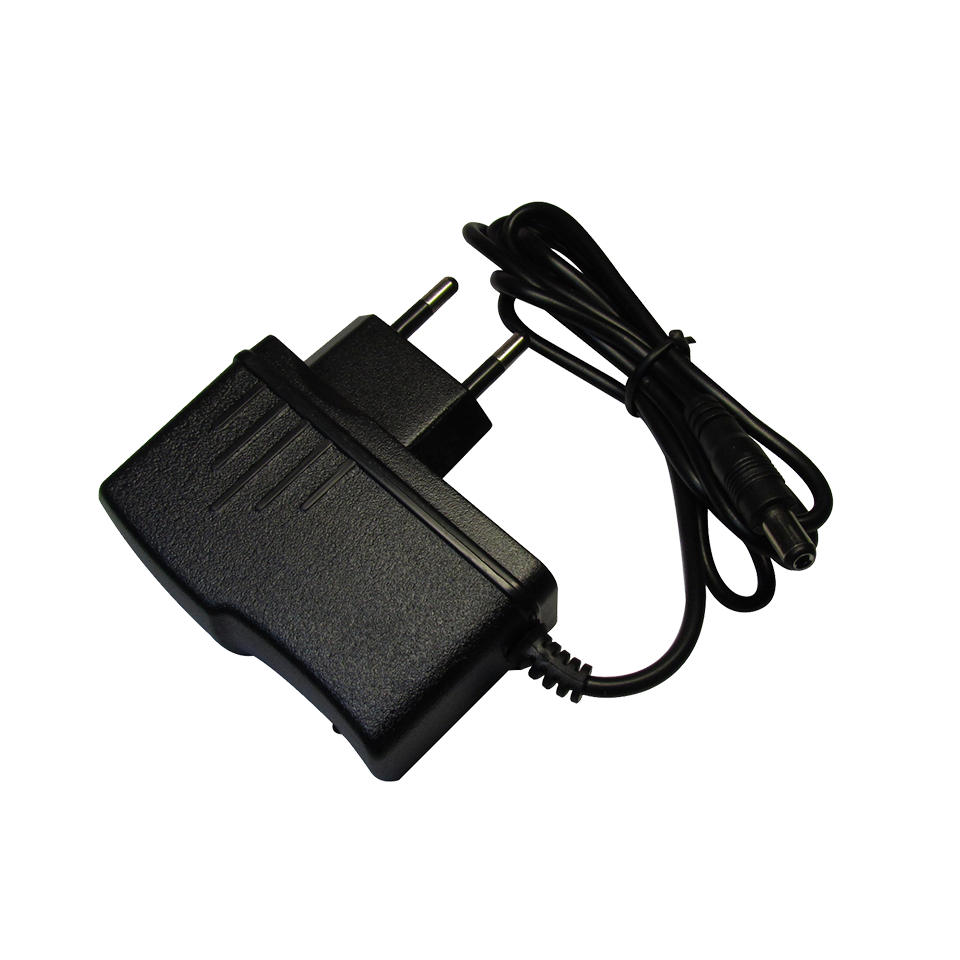

EU plug

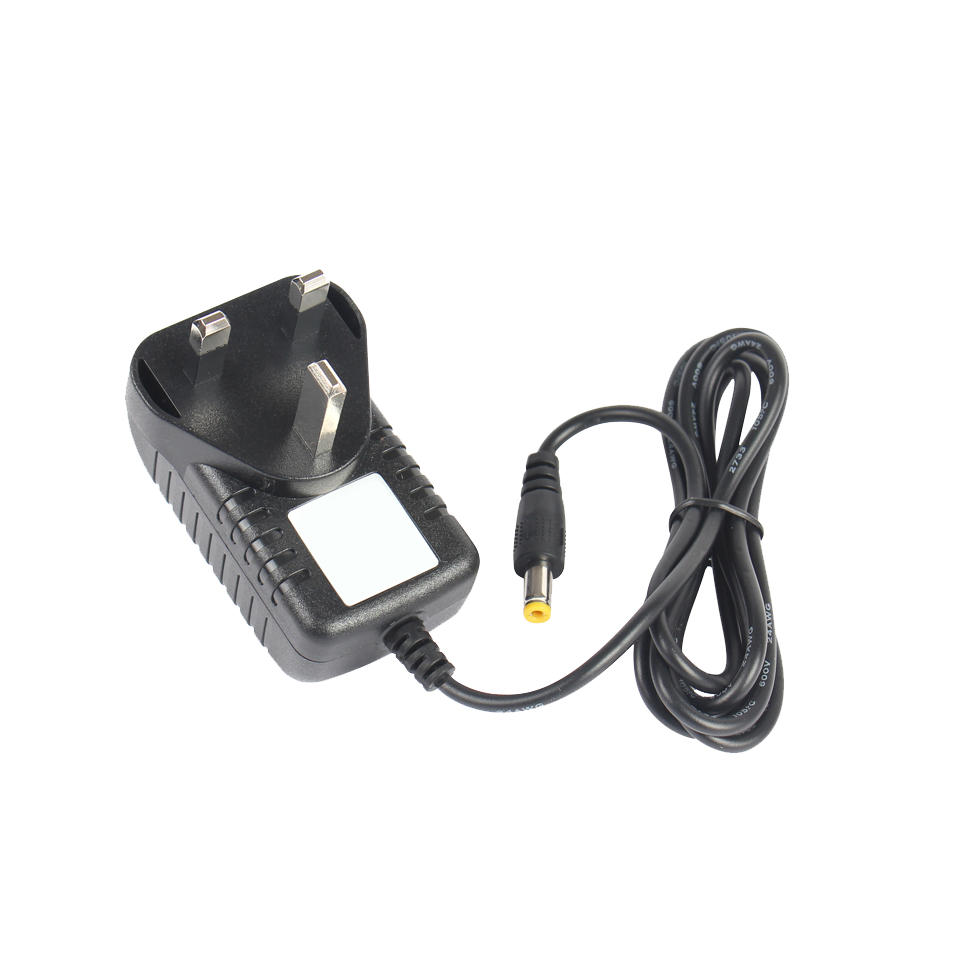

UK plug

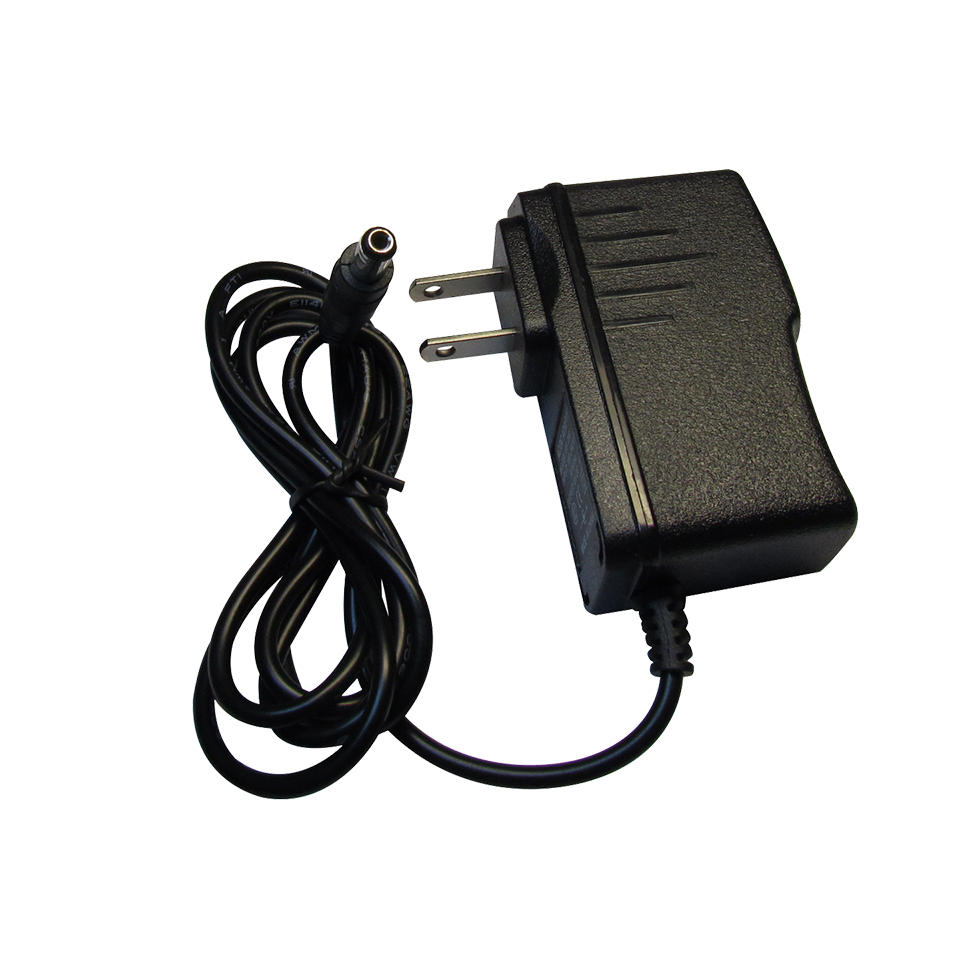

American plug
voltage transformer

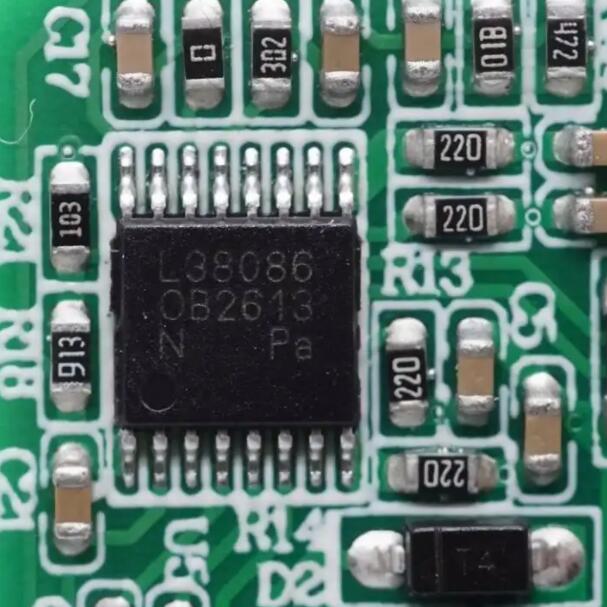

chip
capacitor
scope of application
Artificial Intelligence, Internet of Things, ICT, Consumer Electronics, Industrial, Lighting, Medical and Alternative Energy.
input specifications
Input voltage
100-240V (Universal worldwide)
50-60 Hz
input frequency
50-60 Hz
output specification
The output voltage
12V/5V
19V
Output current
1A/2A
4.74A
Output Power
12W
90W
ripple
≤200mVp-p@25℃
<=230MV
output connector
External 5.5mm * Internal 2.5mm
5.5mm external* 2.5mm internal
regulator
±5.0%
±0.3V
Protective function
overload protection
5%-10% more than the rated power, automatic recovery
5%-10% more than the rated power, automatic recovery
overvoltage protection
10%-13% exceeds the rated voltage (customizable)
10%-13% exceeds the rated voltage
short circuit
Short circuit is not damaged, automatic recovery
Short circuit is not damaged, automatic recovery
Environmental requirements
Operating temperature
0℃~ 45℃
35°C-55°C
Storage temperature
-10℃~+85℃
-20℃-85℃
humidity
5%-25% non-condensing
5%-25% non-condensing
Air conditioner
Three plug 3PIN
Equipment type
insert adapter
Mechanical Dimensions
weight
0.15 grams
size
75*40*30mm
reliability
MTBF
50000 hours
security requirements
standard
IEC 62368
Customize other parameters, please contact us,Our R&D engineers are always on call.
