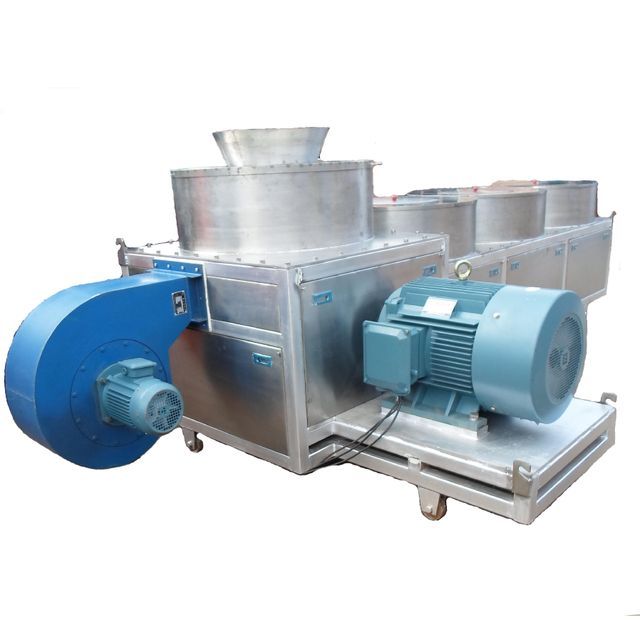

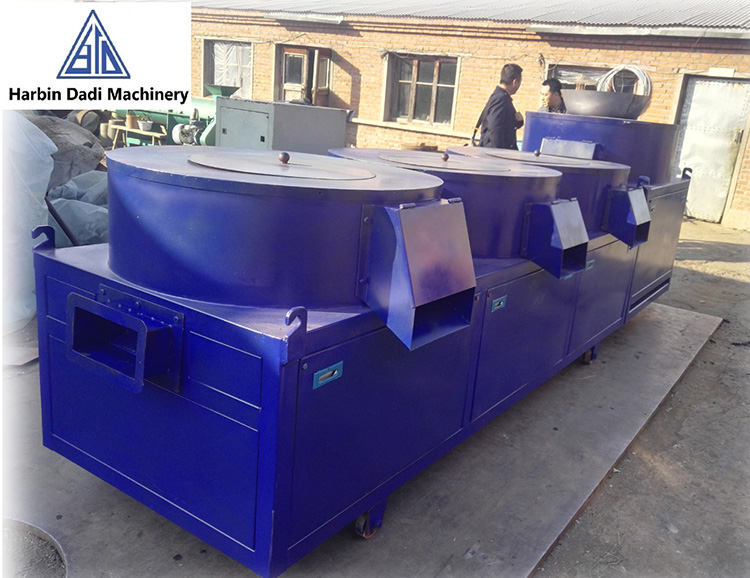

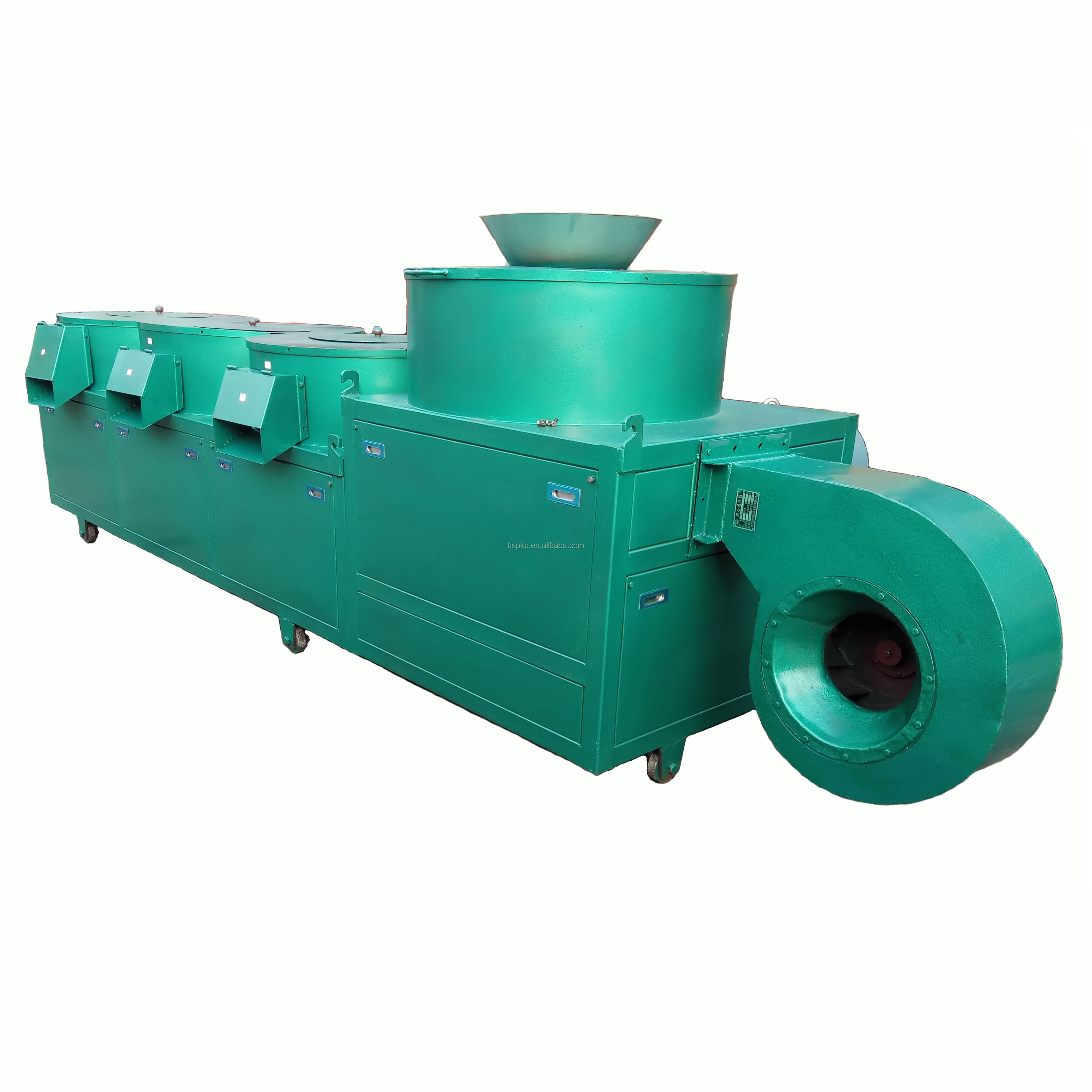

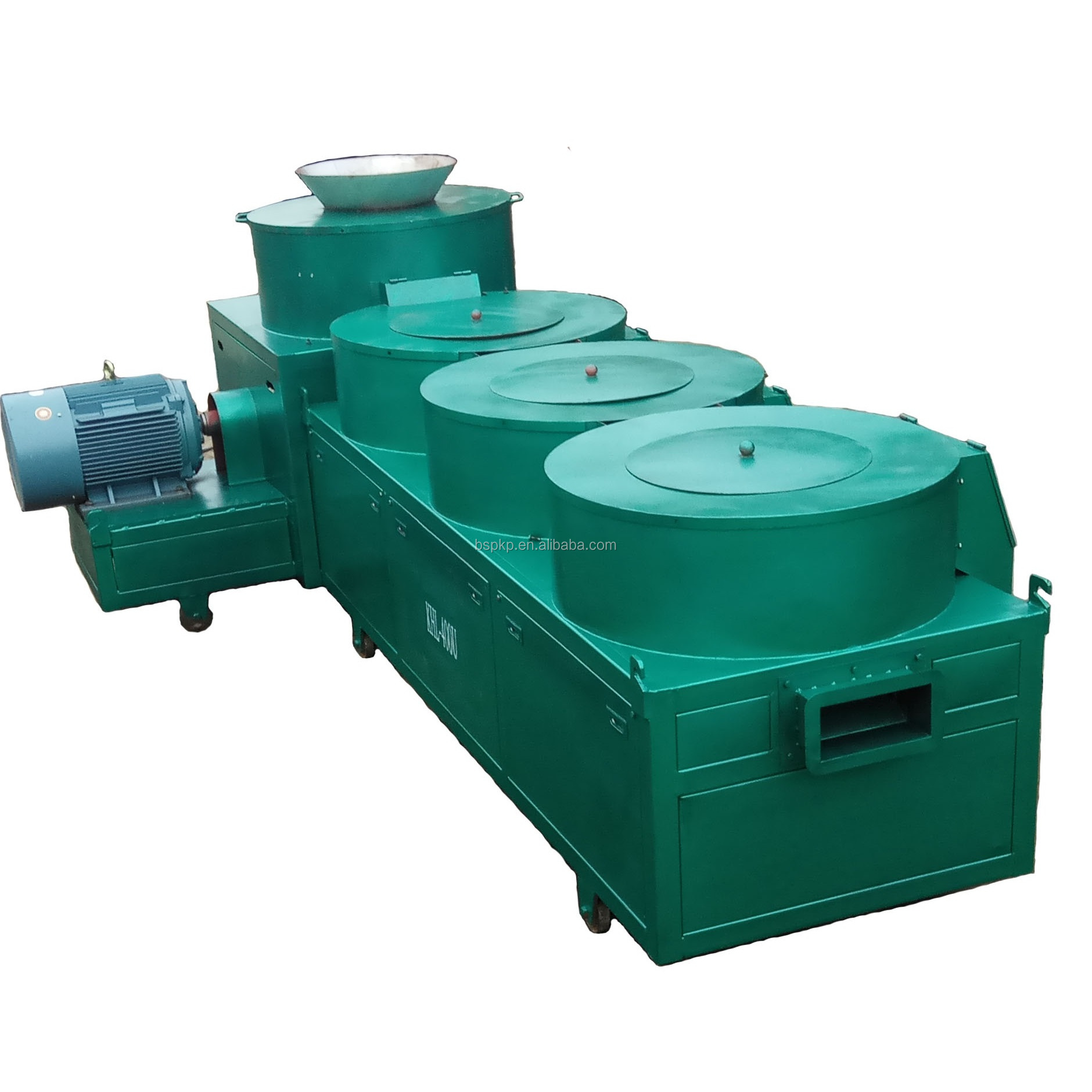

Automatic Biochar Fertilizer Organic Pellet Machine

featureBiochar fertilizer organic pellet machine:

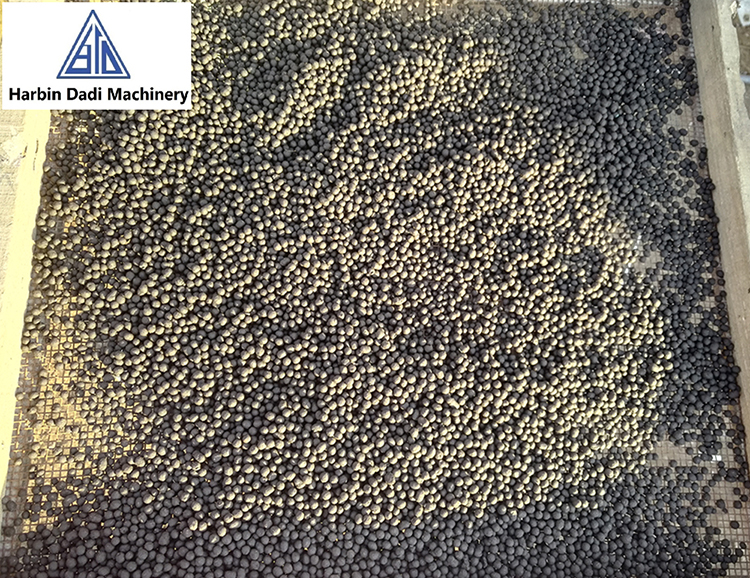

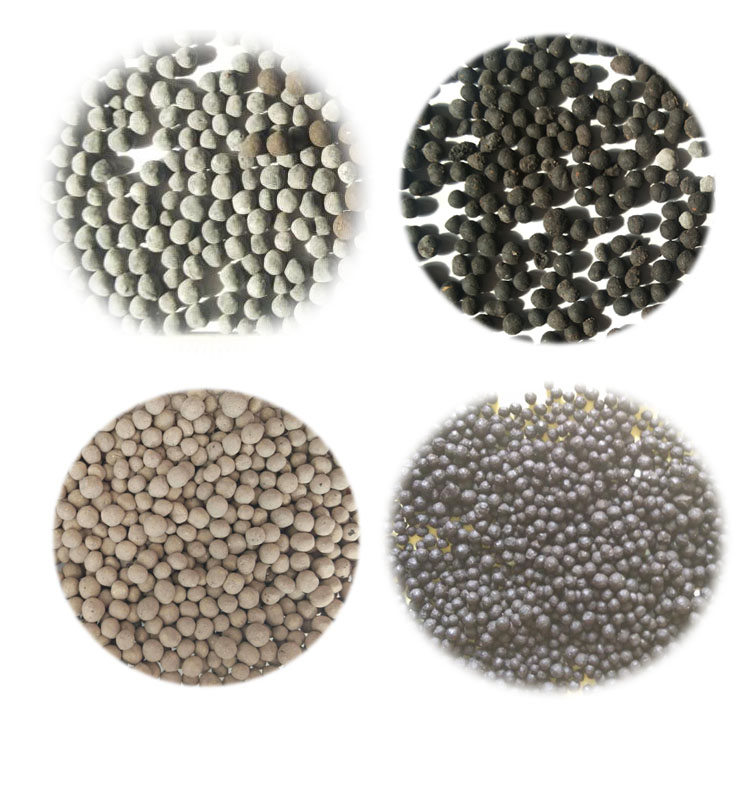

1) The surface of the finished granules is smooth, the hardness is good, the granules are uniform and spherical.

2) The material granulation rate can reach 100%, and all raw materials can be made into spherical shapes.

3) The yield rate is over 90%.

4) The content of organic matter can be as high as 100%, and it can be made into pure organic matter granulation.

5) There is no need to add binders during granulation.

raw material

The biochar fertilizer organic granulator can make the following raw materials into granules:

1. Agricultural waste: straw, bean dregs, cotton dregs, rice bran, etc.

2. Animal manure: a mixture of poultry manure (PL) and animal manure (AW), such as, slaughterhouse waste, fish market, cattle, pigs, sheep, deer, chickens, ducks, geese, goats, urine and manure of earthworms ETC.

3. Industrial waste: distiller's grains, vinegar residue, cassava residue, sugar residue, furfural residue, bean cake, distiller's residue, biogas residue, pomace, palm oil residue, etc.

4. Residues from municipal garbage or sewage treatment plants.

5. Household waste: kitchen waste, bones, vegetable roots, stems and leaves, etc.

6. Turf, lignite, sludge, pond sludge, bagasse, starch slurry.

7. Organic material mixed with mineral material.

work rules

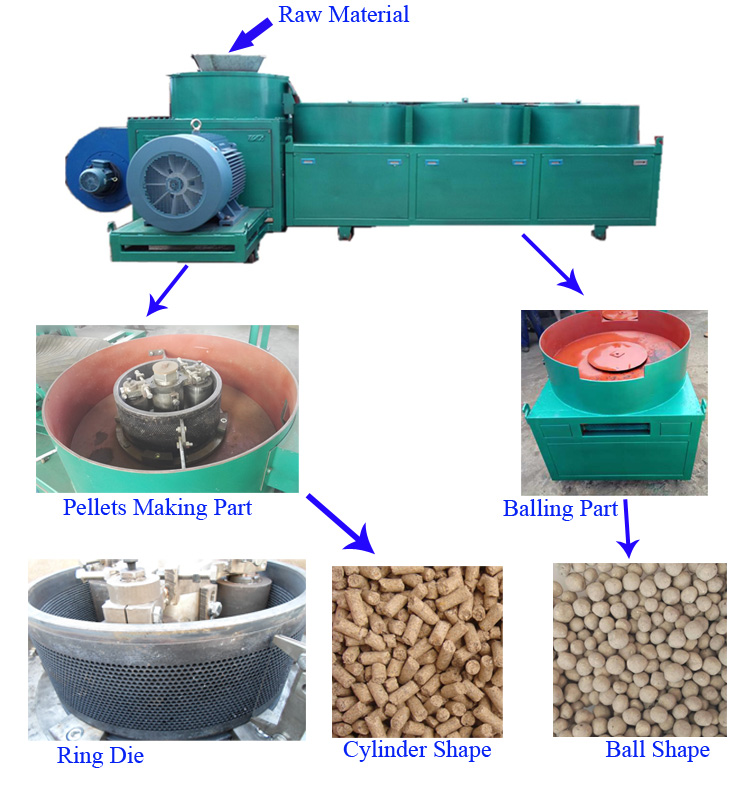

The biochar fertilizer organic granulator has two parts:

1. Granulation part

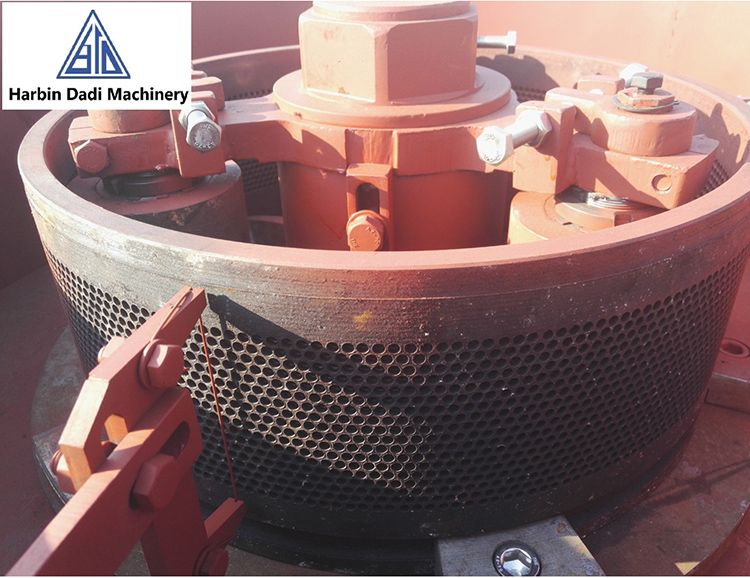

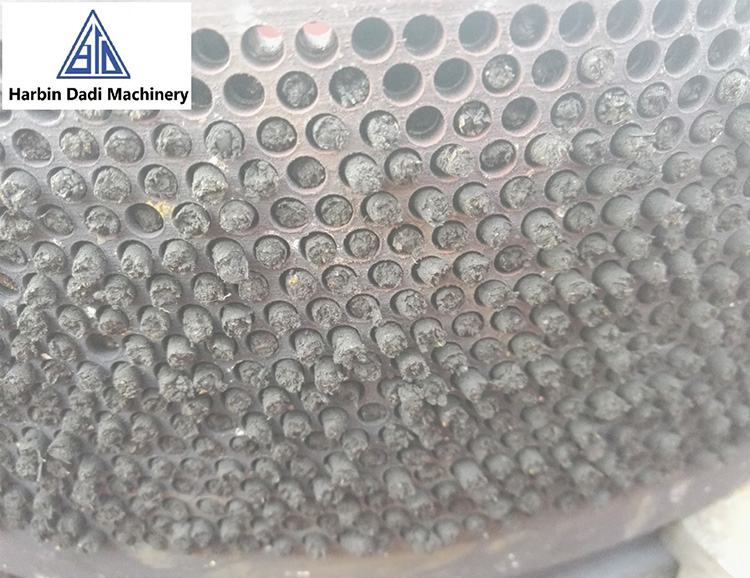

Granule section with ring die and roller system:

The raw material enters the working chamber and falls on the "discharging tray", and the raw material is thrown into the ring die under the action of centrifugal force; the ring die and roller system are driven by reduction gears and transmission devices, and the energy comes from the motor. The pressure comes from the operation of the ring die and the roller system, and the cylinder is forced to be extruded from the hole of the ring die, and cut into the required small particles by the cutting line.

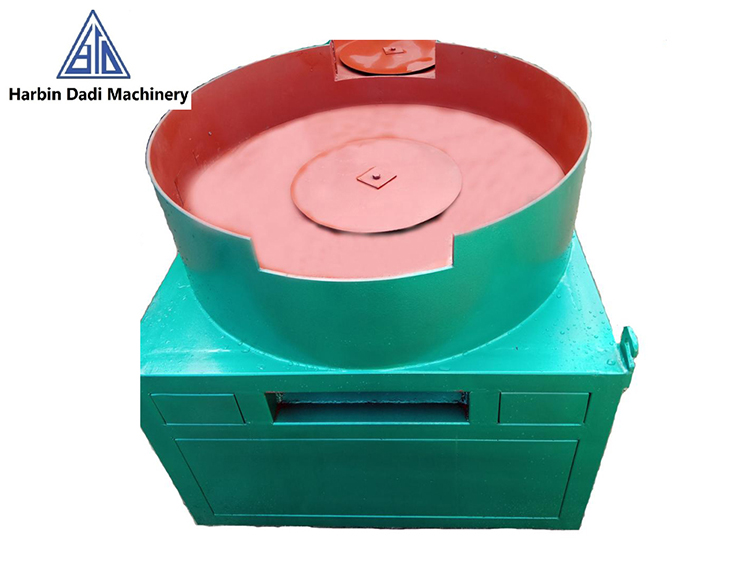

2. Pilling part:

The particles fall on the disc in the drum, and are thrown to the drum wall by the high-speed rotating disc in a circular motion. While the particles are doing circular motion, they also rotate radially due to centrifugal action. Due to the movement of the particles, the mutual friction makes the angular particles gradually become balls. At this time, the pellets gradually float on the top, and finally the pellets overflow as the amount of pellets in the drum increases.

detailFertilizer granulator

Technical ParametersFertilizer granulator:

1. Design the production line for you.

2. Design the factory layout according to your requirements and factory scale.

3. Sample test support.

4. Provide comprehensive technical and business consulting services.

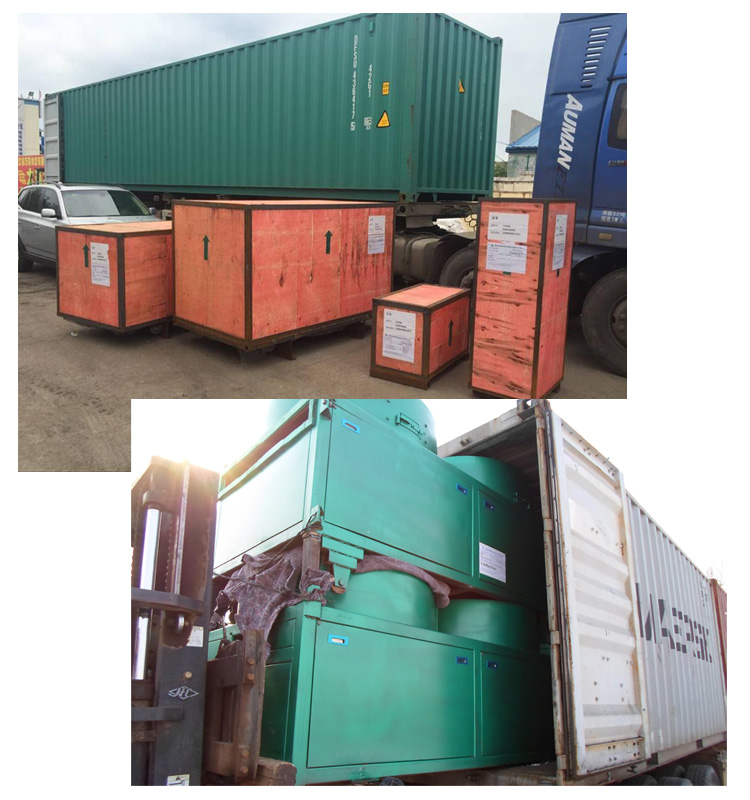

5. Fast and safe delivery.

6. Training how to install the machine, how to use the machine and maintain.

7. Engineers who can repair machinery overseas.

You can enjoy all-round one-stop services such as drawing design, equipment construction, installation and operation provided by us.
