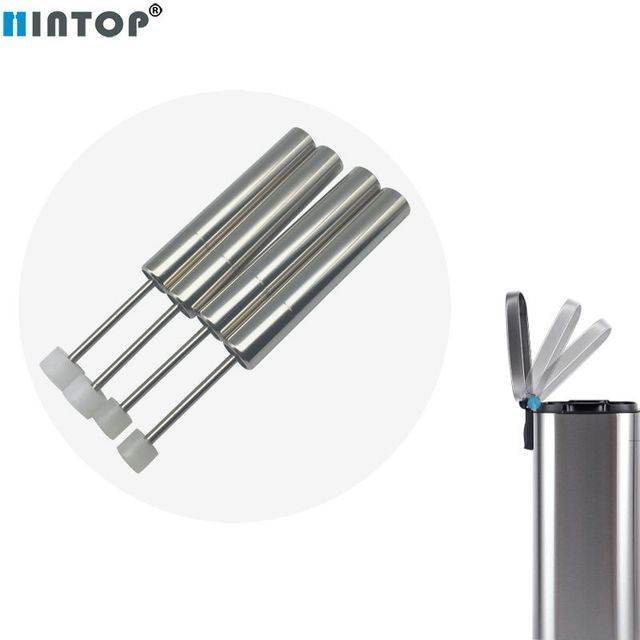

Soft Close Stainless Steel Damper Trash Can Damper Products from Guangzhou Hintop Hardware Co., Ltd.

Product Details

Supply capacity:	4,000,000 pieces per month	model:	HTMD-1061C2
OEM:	Yes	Packaging Details:	Inner packing: 150-250 pieces in a bag Outer packing: three tile carton (333325cm)
Package preview:		Material:	steel, iron, stainless steel
size:	10mm61mm2.5mm	brand:	hint

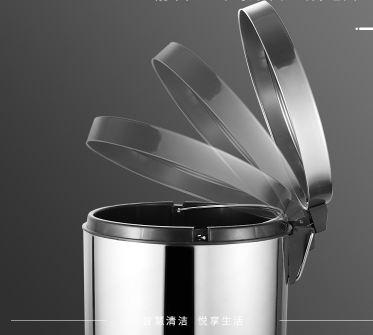

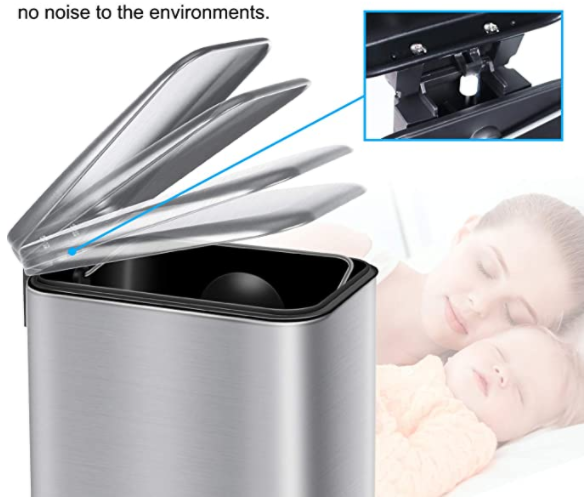

type:	Furniture Hardware	application:	Garbage cans, garbage cans, trash cans, drawers, cabinets, desks
Function:	Durable, reduces noise and speed	product name:	Trash can soft close lid damper
stroke:	1-29mm	Service life:	More than 100,000 times
Origin:	Guangdong, China	Application temperature:	-20℃~60℃
Finish:	galvanized	color:	silver, customized

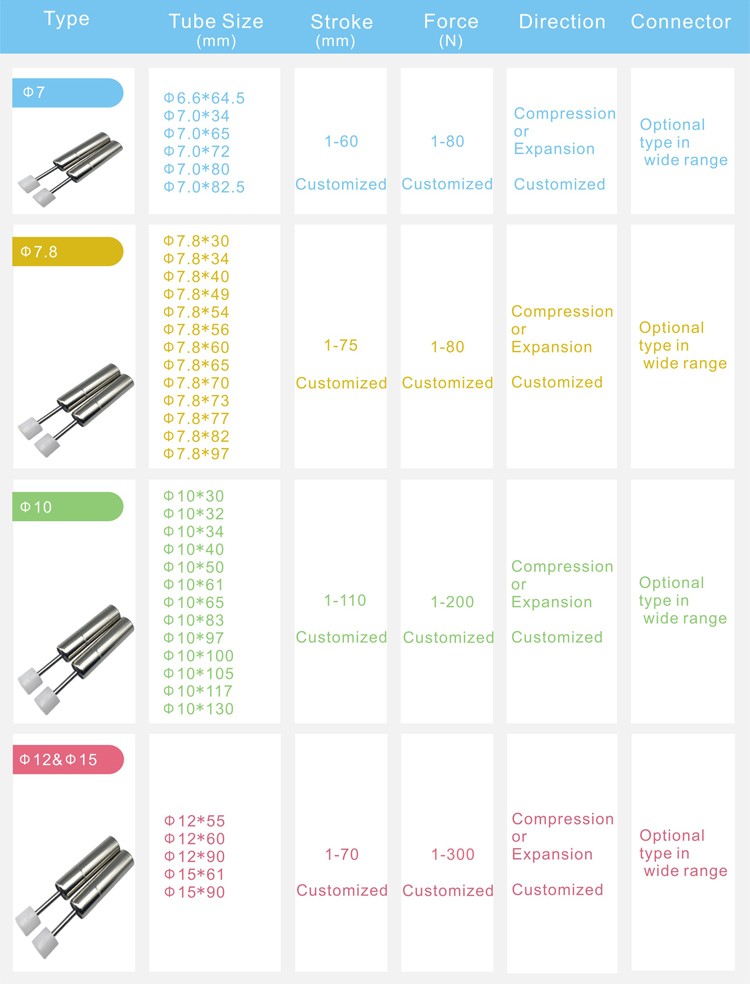

Specification

setting information
Outer diameter stroke (D1)	7.8 mm
Outer tube length (L)	49mm
Piston rod diameter (D2)	2.0mm
strength	2~100N
itinerary (S)	1~29mm
hat(C)	Yes
1. The force range can be customized, but it is affected by the diameter of the outer tube and the diameter of the piston rod, 1KG≈10N (2N~100N)
2. The effective stroke range can be customized, but it is limited by the structure of the inner tube and the direction of the force. (1~29mm)
3. For the choice of connector, please indicate the connector model before ordering; or you can contact customer service.

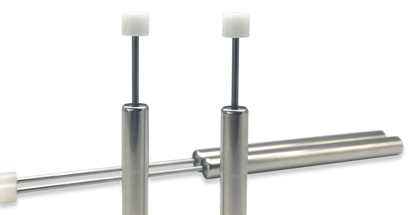

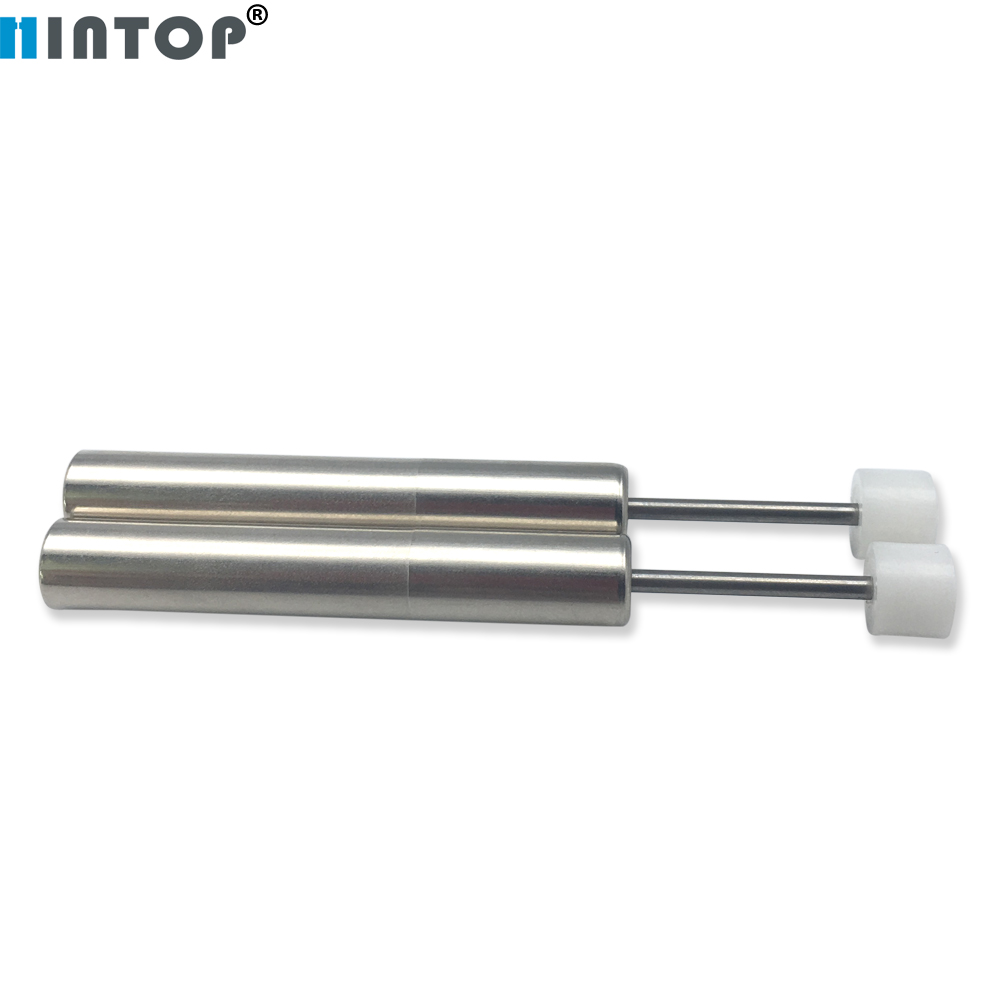

detailed image

Product Description

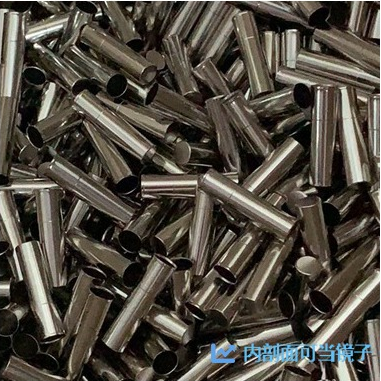

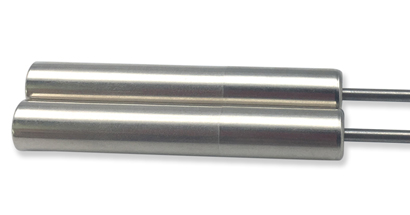

tube

1. The pipe body is made of 65Mn carbon steel, which is a high-density seamless steel pipe, and the outer surface is nickel-plated to prevent air leakage and rust;

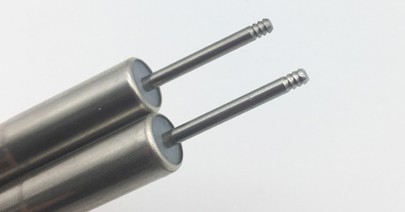

piston rod

2. The piston rod is made of 25# carbon steel and 304 stainless steel solid rod, the surface is chrome-plated, and QBQ high-temperature nitriding treatment; smooth and non-stick;

silicone oil

Imported silicone oil and gasket production technology are used to prevent oil leakage and air leakage, and the service life is longer, reaching 100,000 times;

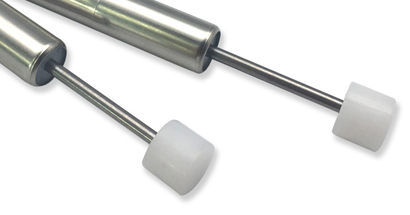

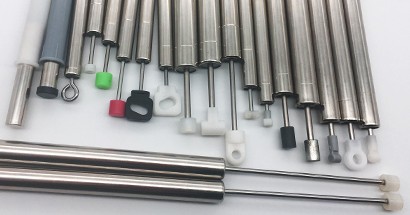

Connector

A variety of connectors are available; and can be customized, and the color, size and style of the connector can be customized according to the specific requirements of specific products.
