| Origin: | Guangdong, China | brightness: | 250cd/square meter |
| product name: | sign | brand: | Hue |
| Packaging Details: | standard carton | product status: | in stock |
| Pen technology: | Battery-free electromagnetic resonance | Key words: | digital signature device |
| Package preview: | Contrast Ratio (Typical): | 800:1 | |
| solve: | 800*480 (16:9) | Activity area: | 135.360 x 216.576 mm |
| Certification 1: | FCC | Certification 2: | ce |
| Gross weight per piece: | 1.500 kg | Sales unit: | single product |
| Single package size: | 25X13X6 cm | LCD Display Type: | LCD Monitor |
Welcome to Huiwang
Provide OEM&ODM service

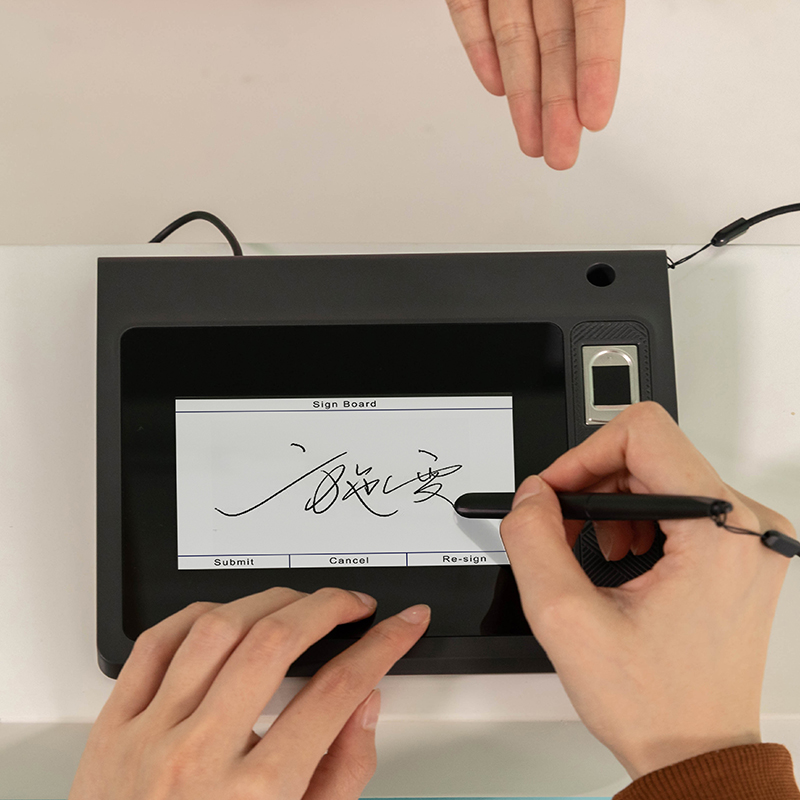

HUION Huion DS510 DS530S newly upgraded fingerprint support digital signature device


1. Certificate:ISO 9001, ISO 14001, ROHS, Sedex, CE, FCC, KCC (Korea), PSE (Japan), BIS (India), BSMI, etc.
2. Patent:More than 100 international patents, including design patents, utility model patents, etc.
3. Brand:The HUION brand and Logo have been registered in most countries and regions such as the European Union, the United States, South Korea, Japan, and India.

Specification:
|
panel size |
5 inch |
|
solve |
800*480 (16:9) |
|
LCD type |
LCD Monitor |
|
activity area |
135.360 x 216.576 mm |
|
Contrast (Typical) |
800:1 |
|
brightness |
250cd/square meter |
|
Response time |
30 milliseconds |
|
Viewing angle |
70°/70°(H)/50°/70°(V) (typ.) (CR>10) |
|
color gamut |
120% sRGB (92% Adobe RGB) |
|
pen technology |
Battery-free electromagnetic resonance |
|
pen resolution |
5080LPI |
|
Pressure Level |
2048 levels |
|
accuracy |
±0.5mm (center), ±3mm (corner) |
|
Induction height |
10mm |
|
reporting rate |
233PPS |
|
digital pen |
P13 |
|
Input voltage |
USB 5V 1A |
|
energy consumption |
5W |
|
interface |
USB Type-A |
|
aspect |
140 x 97 x 23.2mm |
|
net weight |
660 grams |
|
color |
Black |
|
operating system support |
Windows 7 or later |
|
Operating Temperature and Humidity |
0 -+40°C , 20-80% |
|
Storage Temperature and Humidity |
-20℃~60℃, 10-90% |
Detailed description:
Click here to view more Huion products:

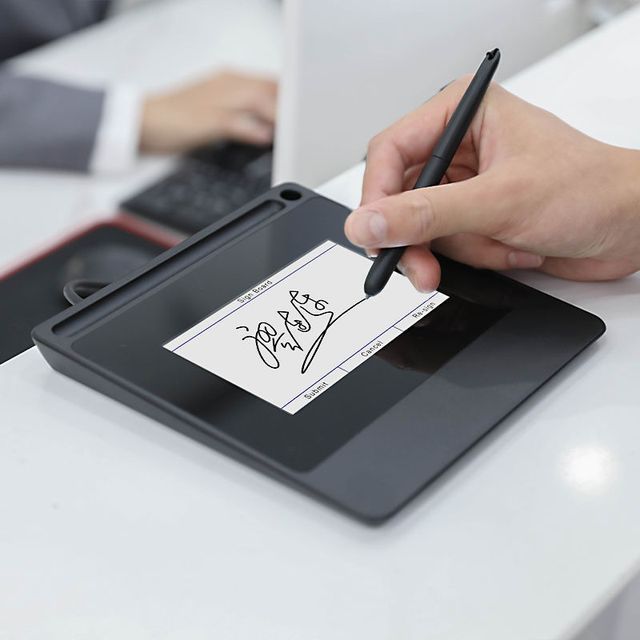

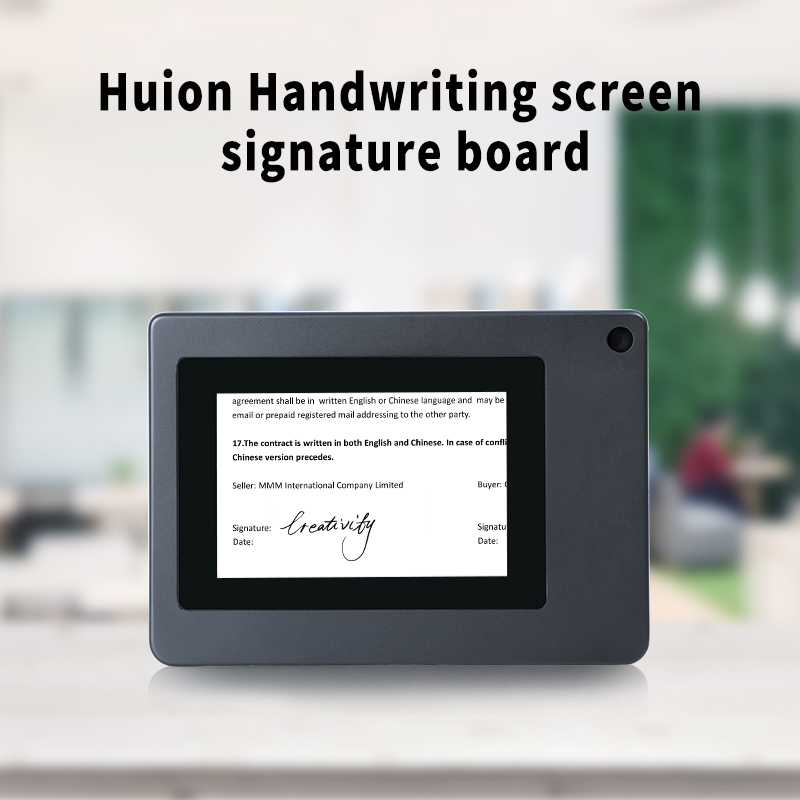

1. Always pursue better convenience. Huion's newly upgraded product line--paperless electronic signature board for banking system, hospital, government office and other applications

2. 5-inch LCD screen has more features: Smooth and natural strokes -- With 2048 pressure level sensitivity, the signature pad ensures consistent and natural strokes. Instant Feedback and Smooth Lines - 233PPS report rate ensures smooth lines and instant feedback on pen movements.

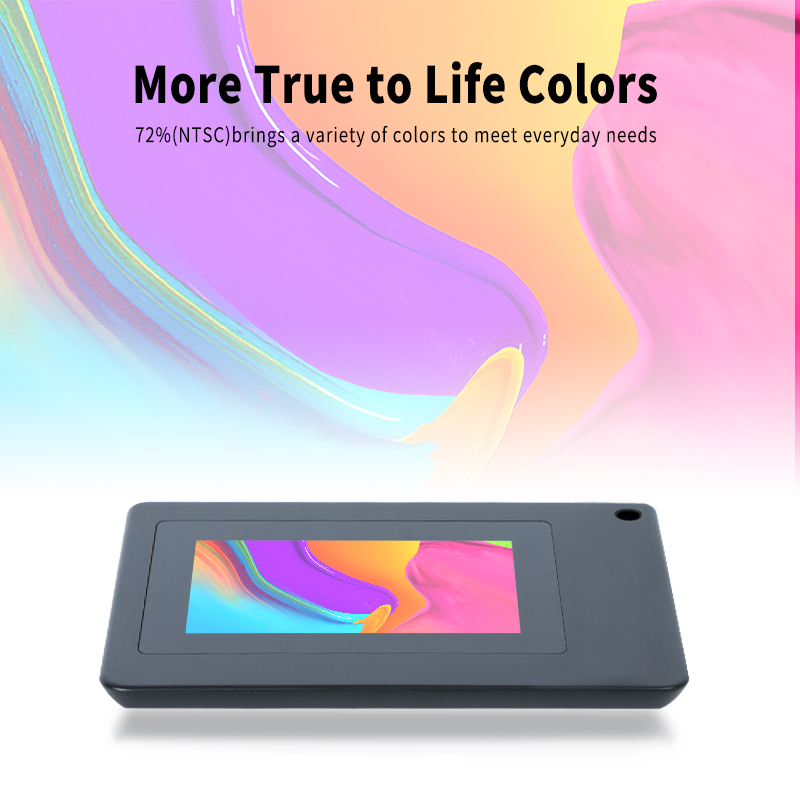

3. Good visual effect: IPS screen resolution 800x480 (16:9)

4. Flexible stylus: The flexible stylus can not only reduce hand fatigue, but also help the performance of 2048 levels of pressure sensitivity.

5. The battery-free electromagnetic resonance pen improves office efficiency and protects the environment at the same time.

6. It can be customized for banking system, hospital, financial industry and other customers.
