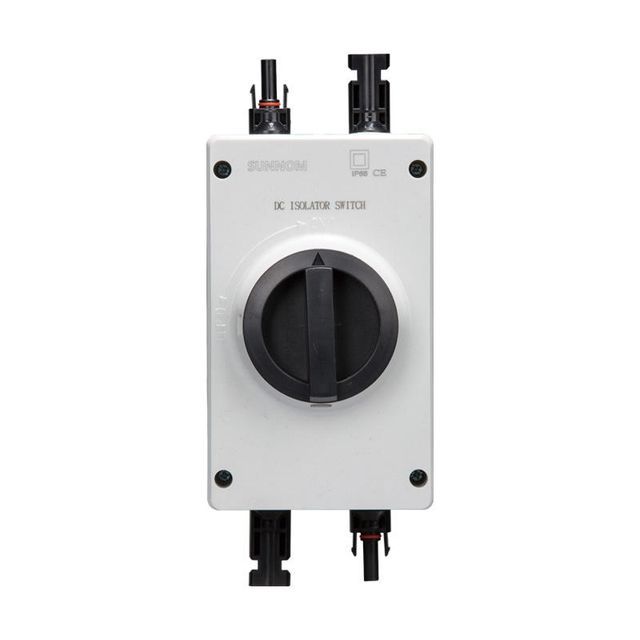

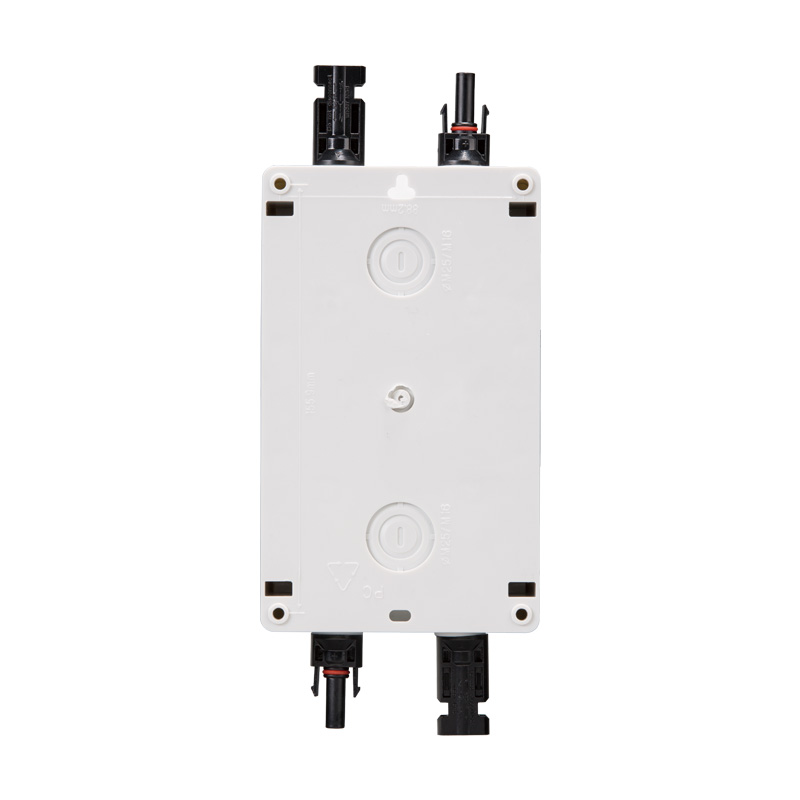

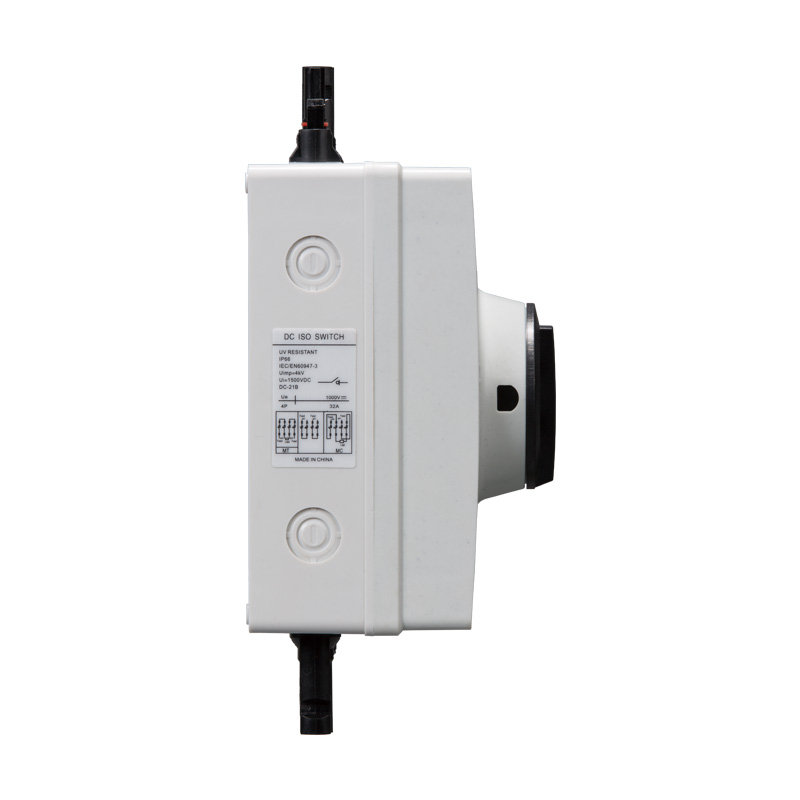

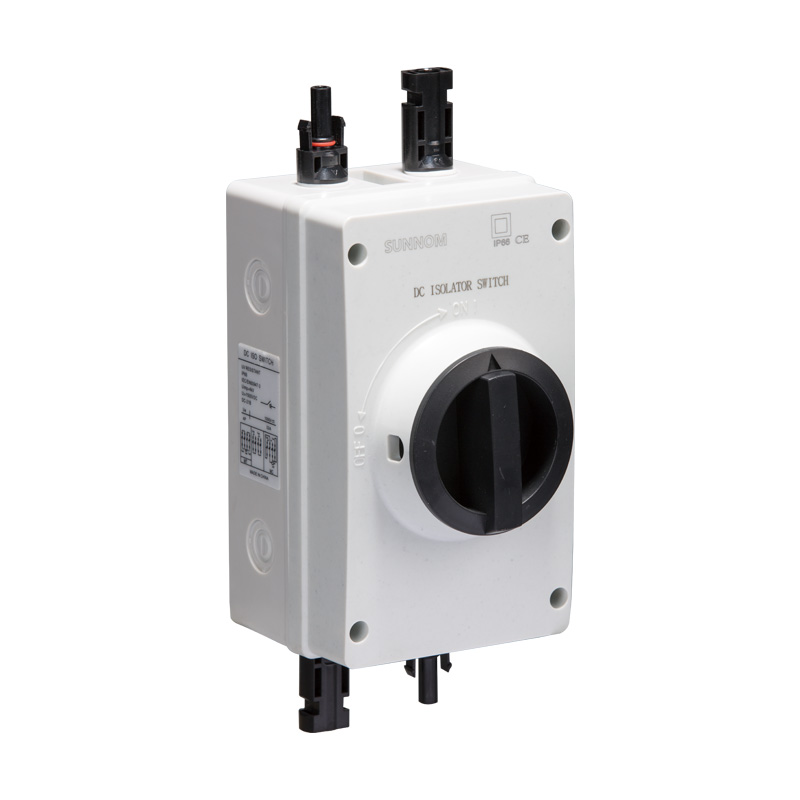

OEM IP66 CE IEC Outdoor Photovoltaic Isolation Switch 4p 100A 1500v Solar DC Waterproof Solar Isolation Switch With Solar Connector
- 15.50 1 - 99 pieces
- 14.70 100 - 999 pieces
- 14.00 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | SNISO-32 | Packaging Details: | DC isolating switch packing details 40pcs/ 41cmx36cmx12cm/ 12.6kg |
| application: | Power Systems | Rated voltage: | 1000 |
| type: | switch | payment terms: | Western Union, T/T, MoneyGram |
| port: | Ningbo/Shanghai | Rated current: | 32A |
| Number of poles: | 4 | brand: | Sannong |
| Warranty: | 2 years | color: | White and black |
| Certificate: | CE certification | Origin: | Zhejiang, China |
| Package: | cardboard box |
Product Description
application
Rated voltage: DC1000V Protection class: lP66 Wiring mode: MC4, M20, M25 Working temperature: -5℃-+60℃ Standard: IEC 60947-3
Function
Compact for use where space is limited; DIN rail mounts for easy installation; Load breaking up to 8 times rated current makes it ideal for motor isolation; Doublebreak for superior performance, reliability, and durability; Padlockable handle - Tamper-resistant; eye-catching red/yellow handle; easy to install and operate;Name | unit | SNISO-32 | |||||||
rated current | A | 16 | 25 | 32-50 | |||||
isolation voltage | V | 1000 | 1000 | 1000 | |||||
Rated operating current DC21B | |||||||||
in series | 750V | A | 16 | 25 | 32 | ||||
in parallel | 750V | A | 29 | 45 | 50 | ||||
1125V | A | 13 | 16 | 20 | |||||
in series | 1500V | A | 9 | 11 | 13 | ||||
in series | 750V | A | 16 | 25 | 32 | ||||
1125V | A | 16 | 25 | 32 | |||||
750V | A | 16 | 25 | 32 | |||||
4p in series | 1125V | A | 16 | 25 | 32 | ||||
1500V | A | 16 | 25 | 32 | |||||
degree of protection | IP66 | ||||||||
Mechanical life | 10 | 10 | 10 | ||||||
Rated short-circuit current (1s)1 2,4/2+2H | A | 800/1300 | 900/1500 | 1000/1700 | |||||
Breaking capacity | cubic centimeter | 800/1300 | 900/1500 | 1000/1700 | |||||
Ambient temperature | -40℃～+70℃ | ||||||||
Altitude | <2000m, ≥2000 and above derating use | ||||||||

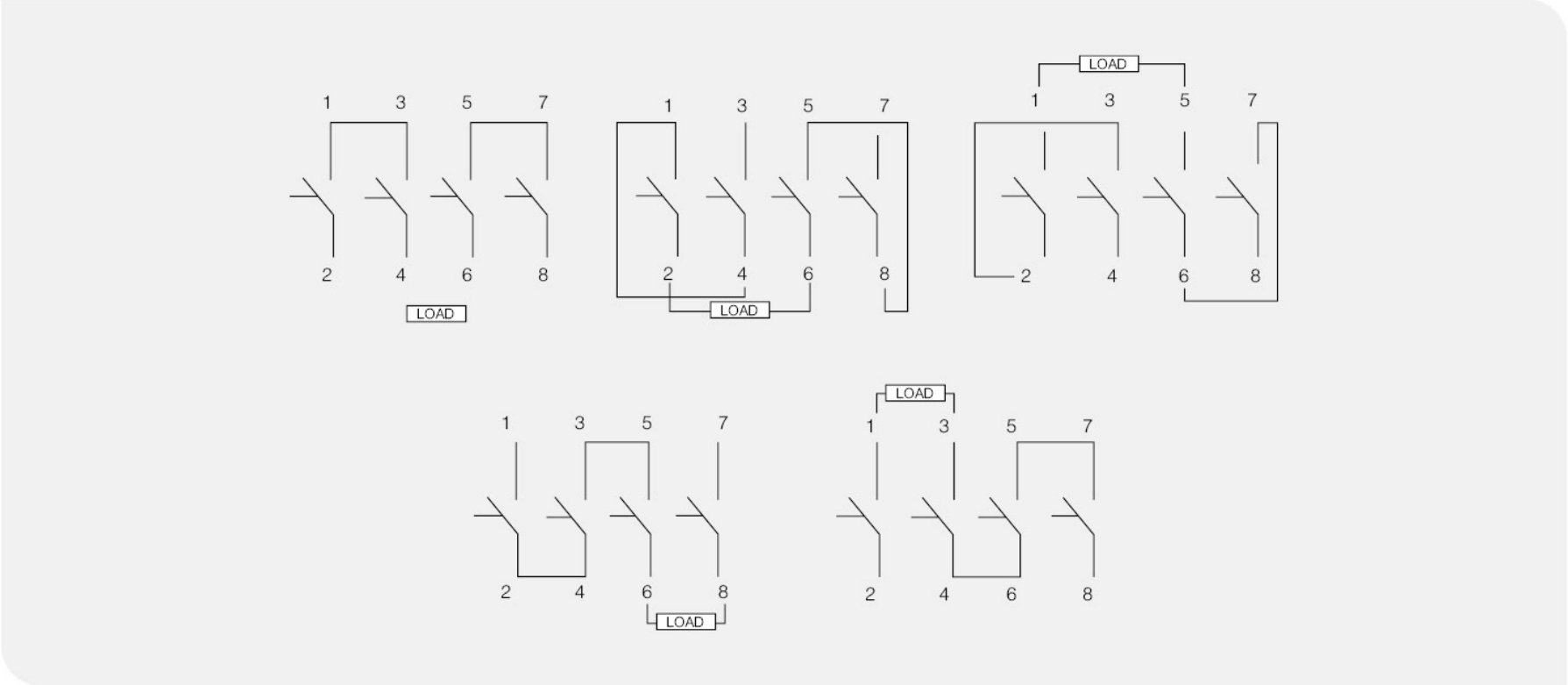

connect
characteristic curve
detailed drawing
