Unique design 4k 60Hz hdmi video card with HDR uncompressed RGB colors live gaming/broadcast Dual video recording hdmi USB 3.0

Supplier: Shenzhen Lyc Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Joy Cheng
Price: $89.90 / 2 - 199 pieces
$87.00 / 200 - 499 pieces
$85.00 / 500 - 1999 pieces
$65.00 / >=2000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

model:	HD-02A	Loop out/capture:	1080P
Input resolution:	4K@60Hz	Live software:	Youtube, Twitch, Amazon Live, Skype...
Video format:	RGB	support system:	QuickTime Player, Skype, OBS, Windows 10, VLC, vMix, Potplayer
High Dynamic Range:	Support 4K/60Hz HDR input; support capture HDR chroma	input interface:	HDMI, audio
Maximum file size:	5Gb/s transmission bandwidth	operating system:	Windows7/8/8.1/10/11, Linux operating system and Mac operating system
power supply:	other	solve:	800x600, 640x480, 1920x1080, 3840x2160, 1280x800, 1920x1200
Input format:	HDMI2.0	enter:	2HDMI video input, 1audio input, 1*microphone audio input
Capture format:	RGB 24bit, YUY2 16bit	payment terms:	Western Union, T/T
Capture video format:	RGB, YUY2	Output Interface:	USB,HDMI,Audio
Private Mold:	Yes	brand:	LYC
output:	1HDMI loop out, 1USB-C to computer, 1*headphone audio	Packaging Details:	Sales unit: Single piece Package size: 12X11.5X8.5 cm Gross weight per piece: 0.5 kg Packing type: pic in case
Compatible software:	QuickTime Player, VLC, OBS, vMix, PotPlayer...

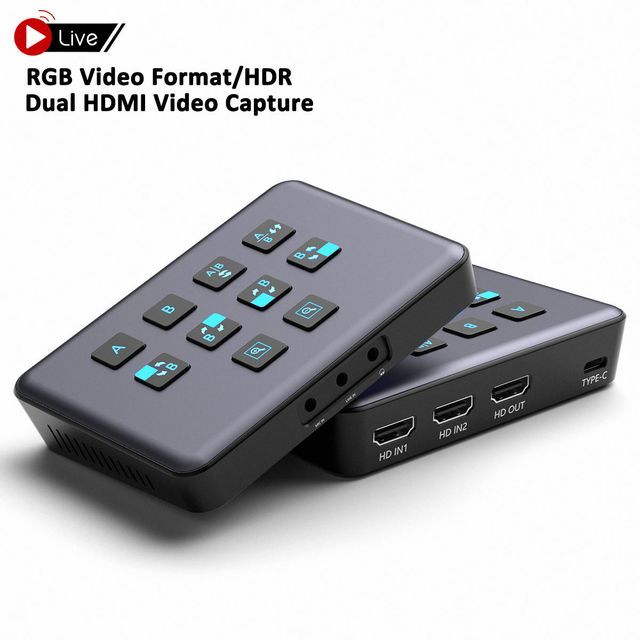

4k 60Hz HDMI Video Capture Card Unique Design HDR Color Uncompressed RGB Live Gaming/Streaming USB 3.0 Dual HDMI Video Capture

introduce

This USB 3.0 dual-channel HDMI video capture card can simultaneously capture dual-channel 4K HDMI input video signals, while supporting HDMI 1080P loop-out, compatible with Windows7/8/8.1/10/11, Linux and Mac OS, and backward compatible with USB2.0 , connect to the computer through the USB 3.0/Type-C interface, and realize preview, video recording, live broadcast and other functions through the playback/collection software.

Specification

product name	HDMI video capture card
enter	2HDMI video input, 1audio input, 1*microphone audio input.
output	1HDMI loop out, 1USB-C to computer, 1*headphone audio
USB-C	USB 3.0, 5Gb/s transmission bandwidth, compatible with USB 2.0
capture	Compliant with UVC (USB Video Class) and UAC (USB Audio Class) standards.
input resolution	720P, 1080P, 4K@30Hz, 4K@60Hz 640x480, 800x600, 1024x768, 1600x1200, 1280x1024, 1680x1050, 1920x1200, 1600x900, 1440x900, 1366x768, 1360x768, 1280x960, 1152x864, 1280x800, 1920x1080, 3840x2160
Loop output (mostly used in video recorders	1080P
capture video format	RGB, YUY2
high dynamic range	Support 4K/60Hz HDR input and loop output, support HDR chroma collection, backward compatible.
operating system	Windows7/8/8.1/10/11, Linux operating system and Mac operating system
compatible software	Windows Media Encoder, Adobe Flash Media Live Econder, Reel Producer Plus QuickTime Player, VLC, OBS, vMix, PotPlayer...
Live software	Youtube, Twitch, Amazon Live, Skype..
application	Video conferencing, live broadcast, game live broadcast, online teaching

feature:

1)It supports the collection of single-channel HDMI signals, and the input and loop output resolutions can reach up to 4K@60Hz.

2) recording resolution up to 4K30Hz, 1080P/60Hz

3)Recording video formats support RGB/24bit, YUY2/16bit.
4)Support UAC/UVC protocol, support 48KHz audio sampling rate.
5)No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac operating systems.
6)Support HDR color input, loop out and capture.
7)Support microphone audio input, line audio input, headphone monitoring.
8)Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.

9)HDCP: Support Xbox, PS4, PS5, Switch, Blu-ray DVD...

10)Seamless switching; can work continuously for 21 days
